Start with a SPDT toggle (Single Pole Double Throw) if your application requires binary state changes–on/off or swap between two outputs. A 5V coil draws minimal current (~50-100mA) yet delivers sufficient force to actuate contacts handling up to 10A at 250VAC. For low-voltage DC loads (12V or 24V), opt for metal oxide semiconductor alternatives if coil power consumption is critical; they switch in microseconds with negligible inductance.
Wire the coil through a base resistor (2.2kΩ for 5V, 4.7kΩ for 12V) and a flyback diode (1N4007) to absorb voltage spikes when de-energizing. A NPN transistor (2N2222 or BC547) isolates the logic level (3.3V or 5V microcontroller) from the switching element. Connect the emitter to ground, the base via the resistor to your control signal, and the collector to the coil’s negative terminal. Keep traces short between the transistor and the switching module to prevent induced noise.

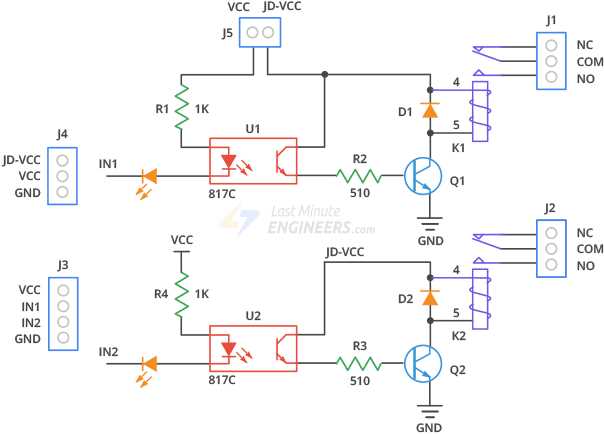

For AC mains isolation, use opto-couplers (PC817) between the low-voltage side and the actuator. A 1kΩ resistor on the LED side limits current to ~5mA; the phototransistor’s output drives the switching transistor directly. Test continuity across switching contacts with a multimeter before applying live voltage–contact resistance should read sub-1Ω. Add a snubber network (0.1μF + 100Ω resistor in series) across AC contacts to suppress arcing at high inductive loads.
If timing sequences are needed, integrate an RC delay network. A 10μF capacitor and 10kΩ resistor yield ~100ms delay; double the capacitor for longer intervals. For precision timing, feed the control signal into an 8-pin microcontroller (ATtiny85), which can toggle the switching module with μs accuracy using PWM.
Switching Mechanism Blueprint for Automated Systems
Choose a 5V electromagnetic switch for low-power applications under 2A, ensuring minimal voltage drop compared to mechanical counterparts. Solid-state variants excel in silent operation but require heatsinks for currents above 3A to prevent thermal runaway. For inductive loads (motors, solenoids), incorporate a flyback diode rated at 1.5x the peak load current to absorb voltage spikes. Failure to include this component risks damaging both the switch and the connected actuator within 50-100 cycles.
Opt for a Darlington transistor pair when driving switches from microcontroller outputs below 20mA. The TIP120 Darlington offers a current gain of 1000, allowing direct interfacing with 3.3V logic while handling 5A collector current. Base resistance should be calculated as R = (Vin – Vbe) / Ib, where Vin is the logic voltage, Vbe is 1.4V (for Darlington), and Ib is 1/10 of the switch coil current. Omitting this calculation leads to insufficient coil activation or transistor saturation.
For AC applications, select a bistable magnetic latch requiring only a pulse to toggle states. This reduces power consumption to near-zero during steady operation, unlike monostable types that draw continuous holding current (typically 20-50mA). Bistable switches are critical in battery-powered systems where quiescent current must remain below 10μA. However, their activation requires bidirectional pulses, necessitating an H-bridge driver or dual MOSFET configuration.
| Switch Type | Coil Voltage (DC) | Contact Rating (Resistive) | Activation Time | Release Time |
|---|---|---|---|---|
| Standard electromagnetic | 5V, 12V, 24V | 10A @ 250VAC | 8-15ms | 5-10ms |
| Reed (hermetically sealed) | 3V, 5V | 0.5A @ 100VAC | 0.2-0.5ms | 0.1-0.3ms |
| Solid-state (DC input) | 3-32V | 25A @ 48-660VAC | <1ms | <0.5ms |
Incorporate an optoisolator (e.g., MOC3041) for driving AC switches from low-voltage DC sources. The MOC3041 integrates a zero-crossing detector, eliminating transient noise during activation. Input current should be 5-10mA, requiring a series resistor calculated as R = (Vlogic – Vled) / Iled. For a 5V logic system, this resolves to 330Ω (standard). Omitting the zero-crossing feature risks electromagnetic interference (EMI) exceeding FCC Part 15 limits.
For high-voltage DC switching (above 100V), employ cascaded MOSFETs in a half-bridge configuration. The IRF540N supports 100V DS and 22A ID, but requires gate drivers (e.g., TC4427) with 12V output to ensure full enhancement. Gate resistance should be 10-22Ω to limit ringing, while a 10kΩ pull-down resistor prevents floating gate conditions during microcontroller reset. Ignoring these precautions leads to MOSFET avalanche breakdown within milliseconds.
Fault Protection Implementation
Insert a 1N4007 diode across switch coils to clamp inductive kickback, but for high-frequency switching (above 1kHz), upgrade to a Schottky (e.g., 1N5819) to reduce reverse recovery time to 10ns. Additionally, place a 0.1μF ceramic capacitor between power pins near the switch driver to suppress high-frequency noise. For systems prone to electromagnetic noise, add ferrite beads (e.g., BLM21PG221SN1) on signal lines to attenuate frequencies above 10MHz by 30dB.
Isolate power domains using separate linear regulators for switch drivers and microcontroller logic. A 7805 regulator for the switch driver prevents ground bounce exceeding 50mV, while the microcontroller’s AMS1117-3.3 ensures stable 3.3V output. Ground planes should be star-connected, with the switch driver’s ground separated from analog/signal grounds by at least 1mm trace spacing. Violating this layout causes erratic switching and false triggers, particularly in 24V industrial environments.
Key Elements of an Electromagnetic Switch System
Start with a robust coil rated for the voltage of your power source–typically 5V, 12V, or 24V DC. Ensure the coil resistance aligns with the current draw to prevent overheating. For example, a 12V coil with 200Ω resistance demands 60mA, which standard GPIO pins can supply, but always verify specs before connecting to microcontrollers.
Select contacts based on load type: SPST for simple on-off tasks, SPDT for switching between two outputs, or DPDT for dual-path isolation. Silver-nickel contacts handle resistive loads up to 10A, while silver-cadmium oxide suits inductive loads like motors up to 5A. Exceeding these ratings risks welding or arcing.
Add a flyback diode across the coil to suppress voltage spikes when de-energizing. Use a 1N4007 for DC coils, reversed bias to block normal flow but clamp transients. Skip this for AC coils–opt for an RC snubber (0.1µF + 100Ω) instead to dissipate inductive kickback without damaging drivers or nearby components.
Use a transistor (e.g., 2N2222) or MOSFET (e.g., IRF520) as an intermediary when controlling the switch from low-power sources like Arduino pins. A 1kΩ base resistor limits current to safe levels, while a gate resistor (10Ω) prevents oscillations in MOSFETs. Check saturation voltage to ensure full coil activation.
Include a fuse sized 20-30% above the maximum expected load current. For a 2A load, a 2.5A fuse provides overcurrent protection without nuisance trips. Position it near the power input to safeguard the entire assembly from shorts or overloads.
For AC applications, pair the electromagnetic switch with an optocoupler (e.g., PC817) to isolate high-voltage lines from logic circuits. The optocoupler’s LED side connects to a microcontroller via a current-limiting resistor (330Ω for 5V), while the transistor side drives the coil through a triac or solid-state element.
Ground the switch properly–separate signal and power grounds where possible to minimize noise. For noisy environments, twist coil wires and shield them with foil tape connected to ground. Keep lead lengths under 30cm to reduce stray inductance, which can interfere with adjacent digital signals.
Step-by-Step Wiring Guide for a Single Switching Module

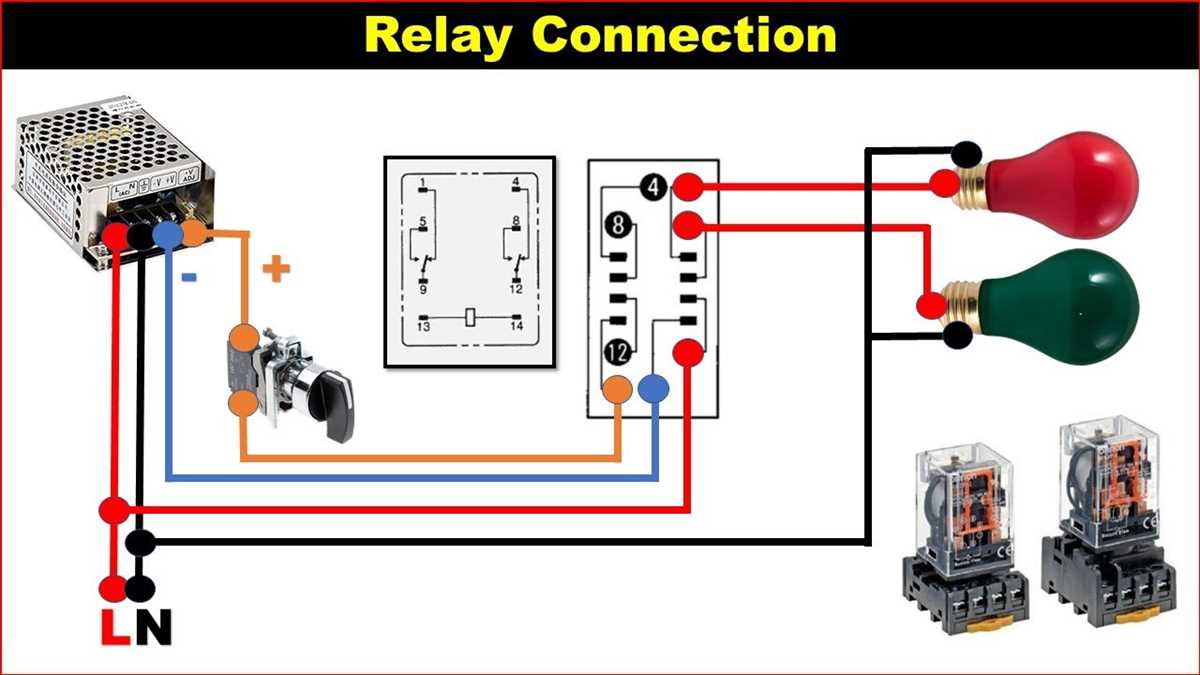

Start by connecting the power source’s positive terminal to the coil terminal marked + on the switching unit using 18-AWG stranded wire. Ensure the wire gauge matches the module’s current rating–typically 10A for standard automotive applications. Secure the connection with a crimped ring terminal and verify conductivity with a multimeter set to ohms. The negative lead from the power source should connect to the ground terminal of the module, often labeled COM or GND, completing the activation loop. Avoid twisting wires; instead, use heat-shrink tubing to prevent short circuits.
- Attach the load (e.g., a lamp, motor, or solenoid) to the NO (normally open) terminal. For inductive loads like motors, include a flyback diode (1N4007) across the load terminals to suppress voltage spikes.
- Test the setup by momentarily applying voltage to the coil. The load should energize instantly–delay indicates loose connections or undersized wiring.
- For high-power loads (>5A), use a separate fuse (inline with the load) rated at 125% of the expected current.
- Label all wires with heat-resistant sleeves to simplify future maintenance.
Frequent Errors in Switching Mechanism Layouts
Overestimating contact ratings leads to premature failure–always verify datasheets for both resistive and inductive loads. A 10A-rated switch installed in a 12A motor loop will arc within days, accelerating pitting on contact surfaces. Derate by 20% for inductive applications and 10% for resistive ones to avoid this.
Ignoring flyback protection on coils induces voltage spikes that fry adjacent semiconductors. A single 1N4007 diode across a 12V solenoid can clamp transients below 1.1V, yet many omit it entirely. Pair diodes with a 0.1µF snubber capacitor for high-speed switching applications to further suppress ringing.
Selecting undersized wiring creates thermal hotspots–calculate current density based on 3A/mm² for continuous duty. A 22AWG conductor handling 5A suffers 40°C temperature rise, while 18AWG under the same load stays within 10°C. Always cross-reference wire gauge tables with duty cycles to prevent insulation breakdown.
Mismatching actuation voltage and coil resistance wastes power. A 24V coil driven at 12V pulls only 25% of rated force, causing chatter. Measure coil resistance at operating temperature (typically 20% above 20°C) to ensure pull-in voltage stays within ±5% of nominal specification.
Neglecting contact bounce generates false triggers in sensitive logic. Mechanical bounce lasts 5–15ms; slow microcontrollers sample noise as valid signals. Implement 10ms software debounce or add an RC network (470Ω + 1µF) to stretch transitions to >30ms for reliable edge detection.
Omnidirectional layouts with high-impedance traces invite crosstalk. Keep 5V signal traces at least 0.5mm from 240VAC lines on 1oz copper. Use ground planes between power and control segments; a 0.2mm clearance reduces capacitive coupling by 70% compared to adjacent routing.
