Download the official service manual for the Xiaomi Y2 (2018 model) from authorized repair sources like Electro-Tech or AllGSMDocs. These files include annotated PCB views, component placement maps, and test point locations–critical for diagnosing power delivery failures. Verify the document version matches your device’s board revision (e.g., MBV1 or MBV2); minor revisions differ in PMIC configurations and USB trace routing.
Focus on the power section near the battery connector. Identify the MTK6762 SoC pins handling buck converters (labels VCORE, VPROC, VIO18, VRF18). Measure voltages at C3211 (10µF) and C3215 (4.7µF) with a multimeter–values should stabilize at 1.8V, 3.0V, and 3.3V within 300ms of power-on. Deviations indicate faulty LDO regulators or shorted capacitors.
Trace signal lines from the USB-C port to the FUSB302B chip. Use a continuity tester to confirm connections at resistors R1402-R1405 (510Ω). Broken traces here cause charging irregularities or no-data-transfer states. Rework damaged pads with 36-gauge wire and low-temperature solder (max 300°C) to avoid lifting traces.
Locate the primary flash memory (SKhynix H26M64003DTR) and check resistance between data lines D0-D3 and ground–expected readings range from 200-400Ω. Lower values suggest moisture ingress or failed ESD diodes. Replace the entire module if reflowing the BGA under 260°C nitrogen flow doesn’t restore connectivity.
For touchscreen issues, reference the FocalTech FT5435 datasheet to map I2C lines (SCL/SDA) and interrupt pins. Probe TP_CLK and TP_DATA with an oscilloscope–square wave signals at 400kHz indicate proper communication. Absence of pulses points to a faulty flex cable or corroded connectors; clean with isopropyl alcohol (99%) and reflow connector J501.
Store schematic archives in PDF/A format with OCR layers for searchable text. Use KiCad or EasyEDA to overlay netlists for cross-referencing component values against the physical board. Label backup files with board revisions, calibration data, and firmware checksums to avoid misalignment during rework.
Xiaomi Y2 Circuit Blueprints: Hands-On Repair Walkthrough
Identify power delivery components first–CAP203, a 10µF ceramic capacitor near the PMIC (Qualcomm PM660), often fails under voltage spikes. Probe it with a multimeter in diode mode: readings above 0.5V suggest replacement. Use a hot-air station at 280°C with low airflow to avoid lifting nearby pads; reflow under a microscope to confirm proper wetting.
Critical Signal Paths and Test Points
Trace the USB-C data lines (D+ and D-) to resistors R1201/R1202–both must show continuity to the SoC. If broken, bypass with 27Ω 0402 resistors; verify signal integrity with an oscilloscope (expect ~400mVpp differential swing). For I2C buses (e.g., touchscreen or camera), check pull-up resistors (R404/R405) at 2.2kΩ; values outside 1.8–2.5kΩ require recalibration.
Flash memory IC (SK Hynix H26M64001DQR) uses a custom ECC algorithm–avoid generic programmers. Instead, short test points TP400/TP401 to force EDL mode, then flash via MiFlash tool with the factory ROM (e.g., “sunstone_images_global_V10.3.3.0.PEFMIXM”). Corrupted partitions like “modemst1” brick devices; repartition using “fastboot erase” followed by “fastboot flash” with the verbose flag.
Replace the ambient light sensor (APDS-9930) if display brightness flickers: desolder the 2.0×1.2mm IC with a preheater at 150°C for 60s, clean pads with flux, and reball using SAC305 solder spheres (0.3mm pitch). Validate functionality by covering the sensor–screen should dim within 0.5s. For intermittent charging issues, bypass the USB-C port’s CC line resistors (R601/R602) with 5.1kΩ 0201 components; confirm negotiation with a USB PD analyzer.
Where to Locate Official Xiaomi Y2 Circuit Documentation
Official technical blueprints for the Xiaomi Y2 can be obtained directly from the manufacturer’s authorized service centers. Xiaomi’s Mi Partner Portal (partner.mi.com) provides verified circuit references for authorized repair technicians. Registration requires proof of business affiliation–typically a repair shop license or distributor credentials. Once approved, navigate to the Service Documentation section under the Y2 (Redmi S2) model listing. Files are categorized by revision (e.g., V1.0, V2.3) and include both board layout PDFs and component placement guides. Avoid third-party repositories; only these files guarantee alignment with factory calibration data.
Alternate Sources for Verified Files
- Xiaomi’s Global Service Site: service.global.xiaomi.com hosts basic hardware references, though full schematics often require deeper access. Filter by “Y2” in the model search bar.
- Authorized Distributor Portals: Companies like Ingram Micro or Arrow Electronics occasionally provide restricted documentation to resellers. Contact your account manager for eligibility.
- FCC ID Database: Search
2AE6M-Y2at fccid.io for internal photos and RF test reports, which may include partial circuit traces. Note: These lack detailed signal routing.
For firmware-linked layouts (e.g., PMIC or modem pinouts), check GitHub repositories like xiaomi-sdm625/datasheets, but cross-validate with Mi Partner Portal to avoid mismatches. Unverified leaks from forums like XDA Developers or 4pda often omit critical revisions–use at your own risk.

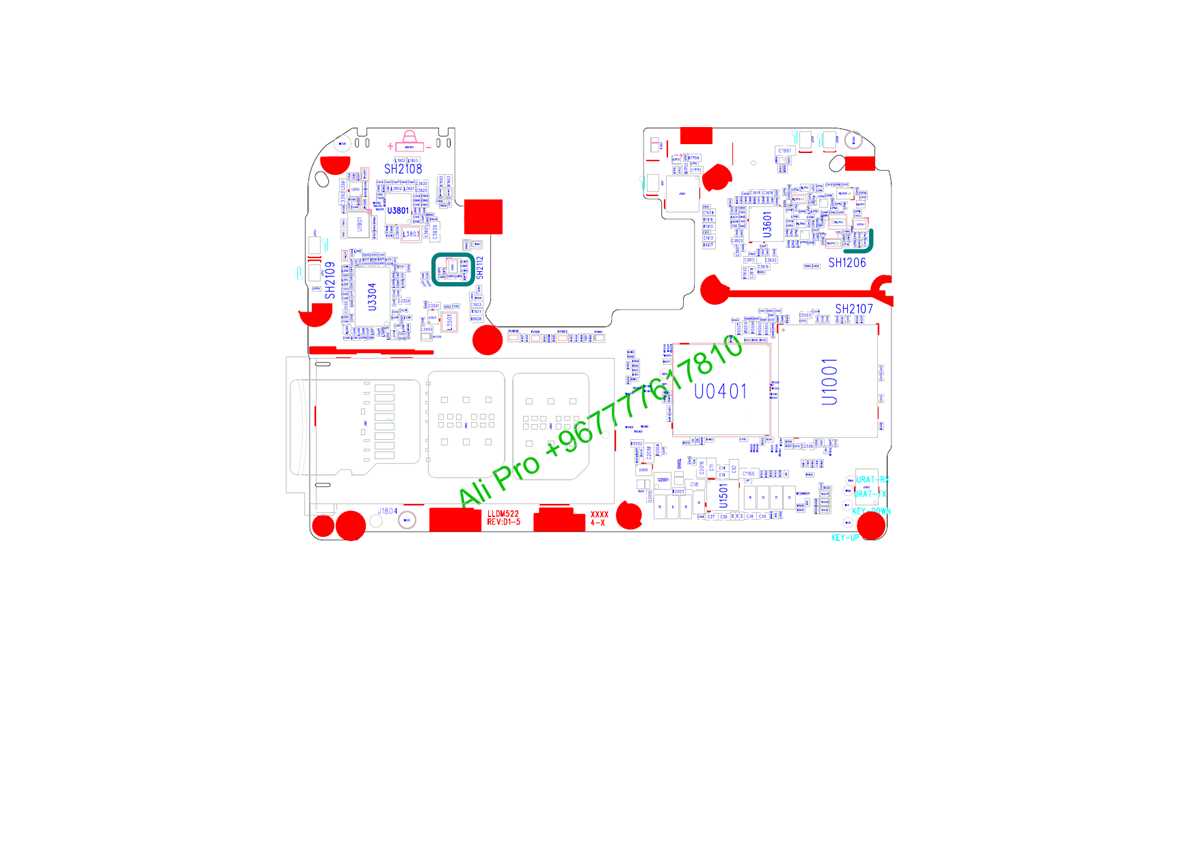

Key Component Locations on the Y2 Motherboard Layout
Begin troubleshooting or repairs by identifying the primary power management IC (PMIC) near the top-right edge of the board, adjacent to the battery connector. Labelled U701 (Qualcomm PMI8952), this chip regulates voltage rails for CPU, GPU, and memory. Check for cold solder joints or corrosion on its 0.4mm pitch BGA pads–common failure points after liquid damage. Use a multimeter in diode mode to verify connectivity between PMIC pins and decoupling capacitors (C701-C712), ensuring readings between 0.2-0.5V.
The central processing chipset (U200, Qualcomm MSM8953) dominates the board’s center. Its 14nm FinFET architecture requires strict thermal dissipation; locate the thermal paste application zone (marked TH200) directly beneath the copper heat spreader. For signal integrity checks, trace the DDR4 memory interface to U301/U302 (Samsung KMRX2000BM-B614), focusing on the 32-bit wide data bus routed via R301-R332 (0Ω resistors). Measure resistance across these resistors–values above 1Ω indicate open circuits.
| Component | Reference Designator | Location | Critical Test Points |
|---|---|---|---|
| Flash Storage | U401 | Lower-left, near USB-C port | CLK/GND pins (TP401), 1.8V VCC |
| RF Transceiver | U501 | Upper-left, under EMI shield | TX_COM (TP502), RX_COM (TP503) |
| Power Amplifier | U601 | Top-left corner | VBATT input (2.4V), APT pin (TP601) |
Primary charging circuitry clusters around U702 (TI BQ25892), left of the USB-C port (J701). Verify the 5V boost converter (L701, 4.7µH) by probing its input/output pads–expect 5.1V at the output. For fast-charge compatibility, inspect R701-R703 (470kΩ resistors) connected to the CC lines; deviations in resistance corrupt PD negotiations. The fuel gauge IC (U703, STC3115) sits below the battery connector–calibrate it via TP701 (SENSE+) if battery percentage readings drift.
Camera connectors (J801-J803) reside along the top edge, each paired with a dedicated power LDO (U801-U803, 2.8V/1.8V outputs). Test continuity from the LDOs to the flex cable connectors using a scope–signal rise times should be U805, TPS61099) warrants close inspection; shorted outputs manifest as blurry autos focus. Audio codec (U901, WCD9335) occupies the bottom-right quadrant–check C901-C908 (0.1µF capacitors) for AC coupling issues causing no-sound symptoms.
For radio frequency stability, audit the antenna matching networks (L1001-L1004, 2.2nH inductors) and SAW filters (FL1001-FL1003) near the SIM tray (J101). Replace damaged SAW filters if insertion loss exceeds -3dB at 1.8GHz. The main RF switch (U1001, SKY13585) toggles between 4G LTE bands–its control lines (GPIO_21-GPIO_23) should swing between 0-1.8V during band transitions. Terminate unused antenna ports with 50Ω loads to prevent RF leakage.
Diagnosing Hardware Problems with Circuit Reference Guide
Trace power delivery faults by checking the MT6762 PMIC output lines. Measure voltages at VCORE, VPROC, and VGPU test points marked on the board layout. If values deviate by more than ±5% from the reference (typically 0.8V–1.1V), inspect the inductor (e.g., L1701) and capacitor (C1703) connected to the suspect rail. Replace components showing physical damage or ESR exceeding 3Ω.
Signal chain corruption often stems from faulty flex connectors. Probe resistance between the touchscreen IC (U3201) and the display FPC pad (J3200). A reading above 20Ω indicates a broken trace–locate the interruption using continuity mode and reflow or bridge the gap with 30AWG wire. Verify pull-up resistors (R3205–R3208, 4.7kΩ) on I2C lines; incorrect values disrupt communication.
Charging failures require scrutiny of the BQ25895 charger IC and surrounding circuitry. Confirm VBUS presence at D6401 (Schottky diode)–absence suggests blown fuse (F6400). If input current regulation triggers prematurely (under 500mA), bypass R6410 temporarily with a 1kΩ resistor to isolate software throttling. Clean corrosion on the USB-C port’s CC pins if intermittent detection occurs.
Audio Path Debugging
No speaker output despite functional calls demands examination of the NXP TFA9872 amplifier. Test SPK+ and SPK- outputs with an oscilloscope–flatline waveforms point to IC failure or blown fuses (F7300). Check I2S clocks at R7301/R7302 (33Ω)–missing pulses require motherboard replacement. For mic failures, inject 2kHz tone via TP_MIC and observe the MSM8937 codec inputs (MIC_BIAS1); if signal drops below -40dB, replace the microphone module.
Baseband-related reboots signal failed power sequencing. Force PS_HOLD high via the MT6762 GPIO (EINT0) and monitor VREG_S4 (1.8V)–collapse indicates a shorted decap (C1801). If the issue persists, reflash preloader while holding VOL_DOWN to bypass faulty baseband firmware. Ensure QCA1530 Wi-Fi IC has stable 3.3V at V3P3_W; intermittent drops often correlate with RF crashes.
Peripheral Power Management
Erratic fingerprint scanner behavior traces to the Goodix 7317P sensor or its power rail. Measure VIO (1.8V) at C4602–absence likely means a failed LDO (U4600). For unresponsive sensors, jumper I2C_SDA/SCL (pull-ups: R4601/R4602) directly to the SoC while bypassing potential ESD damage on J4600. If voltage levels match but communication fails, replace the sensor module.
