Begin by shutting off power at the circuit breaker–test the lines with a non-contact voltage detector to confirm no current remains. A single 14-gauge copper conductor with gray insulation (marked NM-B 14/2) is sufficient for most ceiling installations up to 15 amps, but replace it with 12-gauge for 20-amp circuits or when running more than eight fixtures in series.
Split the cable sheath 6 inches from the junction box entry, leaving bare ground exposed. Route the live (black) and neutral (white) wires through the box’s knockout, securing the sheath with a clamp to prevent chafing. Strip 3/8 inch of insulation from each conductor, twist clockwise, and cap with color-matched wire nuts before folding into the box.
For metal housings, bond the ground wire to the fixture’s green screw; in remodel applications, use an insulated pigtail spliced to the box’s grounding clip. Daisy-chaining fixtures? Match live-to-live, neutral-to-neutral, ground-to-ground–never mix polarities. Verify each connection with a multimeter set to 200 ohms: continuity between live and neutral should read 0.L; infinite Ω indicates a failed splice.
Label branch circuits before finalizing drywall: use UL-listed low-voltage tape marked “Ceiling Circuit A” or embed a QR code linking to a wiring schematic saved in your home automation app. If dimming is required, pair the fixture’s driver with a compatible phase-cut or PWM dimmer–check the manufacturer’s specs for minimum load (e.g., 5W for Lutron Diva or 10W for Insteon).
For IC-rated models, maintain 3-inch clearance from insulation; non-IC units demand an empty cavity. Use a fisheye camera to inspect plenums before sealing–loose strands of fiberglass near high-temperature LEDs can ignite under sustained 1,200 lumen loads. Replace brittle insulation boots if they show signs of heat stress (e.g., discoloration, cracking).
Embedded Fixture Electrical Connection Guide
Always connect the power feed to the first junction box in a run of multiple downlight installations. This prevents voltage drop across lengthy cable runs, which can cause dimming or flickering in later fixtures. Use 12-gauge NM-B cable for circuits rated up to 20 amps; 14-gauge is only suitable for 15-amp circuits. Verify local building codes–some jurisdictions require arc-fault circuit interrupters (AFCIs) for all ceiling-mounted electrical components, including these fixtures.
Install a dedicated circuit if adding more than six embedded fixtures or combining them with other high-draw devices like ceiling fans. Each unit typically draws between 10-15 watts, but LED variants may require drivers that alter current flow. Check the manufacturer’s specifications–some drivers demand neutral wires, while others operate on switch loops. Label all wires during disassembly to avoid miswiring, especially in multi-switch configurations.
- For dimmable setups, use compatible dimmer switches–standard incandescent dimmers often cause buzzing or failure with LED drivers.
- Stranded copper wire is preferred for flexible connections, but solid wire may be required for push-in terminals.
- Ground wires must be bonded to metal fixture housings and junction boxes–omitting this creates a shock hazard.
- Space conductors at least 12 inches apart when running cables parallel to HVAC ducts to prevent heat degradation.
Test continuity with a multimeter before enclosing connections in junction boxes. Measure voltage at the fixture’s input terminals–readings should match the circuit breaker’s rating (120V in North America, 230V in most of Europe). If installing in insulated ceilings, use IC-rated housings to prevent overheating and fire risks. Non-IC housings require a minimum 3-inch clearance from insulation.

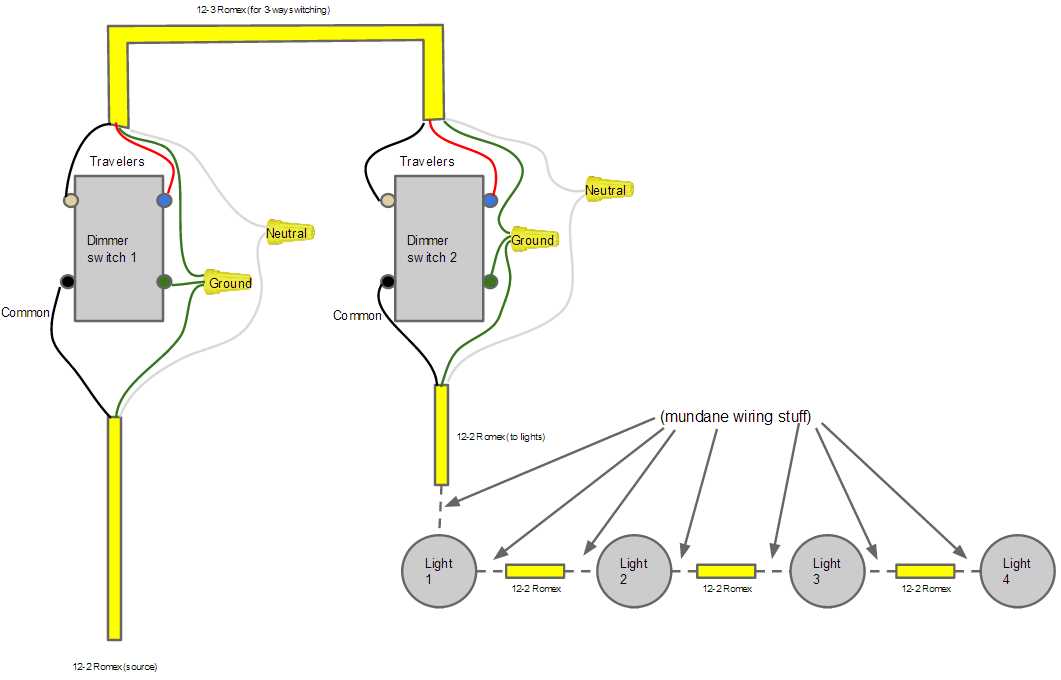

For switch-controlled setups, run a three-wire cable (hot, neutral, ground) between the switch and first fixture. This allows future upgrades to smart dimmers or occupancy sensors without rewiring. Avoid daisy-chaining more than five fixtures in a single circuit–excessive load can trip breakers or melt wire insulation over time. Use wire nuts rated for the wire gauge; twist clockwise before applying to ensure secure bonds.
In suspended grid ceilings, secure fixture housings to the grid’s structural members using provided clips or independent support brackets. Never rely solely on the ceiling grid–fixture weight can cause sagging or detachment. For moisture-prone areas (e.g., bathrooms), use vapor-tight housings and GFCI protection to comply with NEC Article 410. Verify torque specifications for terminal screws–most require 12-15 inch-pounds to prevent loosening.
Key Cable Variants for Embedded Illumination Networks
For most residential and commercial fixtures installed within ceilings or walls, 14-2 NM-B cable delivers the optimal balance of conductivity and safety. It handles typical 15-amp circuits with ease, featuring dual copper conductors (plus ground) rated for 600V insulation. Upgrade to 12-2 NM-B when connecting 20-amp circuits–its thicker gauge reduces voltage drop over distances exceeding 50 feet, critical for dimmable systems or LEDs requiring stable current. Commercial applications often mandate THHN/THWN in conduit; its heat-resistant nylon coating outperforms NM-B in damp locations such as bathrooms, while 10 AWG variants support higher wattage fixtures like high-output LEDs or track systems.
MC cable offers armored flexibility for exposed runs or renovations where conduit isn’t feasible–its helically wound aluminum armor resists physical damage, and the included ground wire simplifies connections. For straight runs between junction boxes, UF-B (underground/outdoor-rated) withstands moisture but demands larger gauges (e.g., 12 AWG minimum) to offset its higher resistance. Avoid Romex or unshielded alternatives in ceilings with insulation contact–local codes frequently require CL2/CL3-rated plenum cables in insulated spaces to prevent overheating risks.
Step-by-Step Guide to Connecting a Single-Pole Switch for Fixed Fixtures
Turn off the circuit breaker controlling the power source to eliminate risk of shock. Use a non-contact voltage tester to confirm the absence of current at the supply cables before handling any terminals. Label the cables: black or red (live), white (neutral), and bare or green (ground) for clarity during assembly.
Strip ½ inch of insulation from the ends of the conductors using wire strippers. Twist the exposed copper strands tightly to prevent fraying. For secure connections, bend the stripped end into a hook shape to wrap around terminal screws.
Attach the live cable from the power source to the top brass-colored terminal on the switch. Wrap the conductor clockwise around the screw, ensuring full contact with the metal base. Tighten the screw firmly–loose connections generate heat and pose fire risks.
Connect the fixture’s live cable to the bottom brass-colored terminal using the same method. Verify that both terminals are free of insulation fragments, which can disrupt conductivity. Tug gently on the cables to confirm they’re anchored securely.
Join the neutral cables from the power source and fixture with a wire connector. Align the stripped ends, twist them together, and cap them with a twist-on connector. Push the connected neutrals into the electrical box, keeping them separate from live terminals to avoid short circuits.
Secure the ground conductor to the green grounding screw on the switch. If the switch lacks a grounding terminal, bond the ground wires directly with a wire connector. Grounding prevents equipment damage and reduces shock hazards if faults occur.
Fold the connected conductors neatly into the electrical box, ensuring no bare metal contacts the box’s edges or other live parts. Fasten the switch to the box with mounting screws, then attach the wall plate. Restore power at the circuit breaker and test the fixture for proper operation using the switch.
Series vs. Parallel Connections for Built-In Fixtures
Wire built-in fixtures in parallel–never series. Parallel circuits provide each fixture an independent path from the power source, ensuring consistent voltage (120V or 240V standard) across all units. This maintains uniform brightness and prevents cascading failures: if one bulb fails, others remain lit. Use 14-AWG or 12-AWG copper conductors for runs under 50 feet; upgrade to 10-AWG for longer spans to reduce voltage drop. Install a dedicated 15A or 20A breaker for 6–12 fixtures, matching wire gauge to breaker rating. For safety, splice connections inside a listed junction box, coating wire nuts with dielectric grease to prevent corrosion.
Critical Differences
- Voltage Distribution: Parallel delivers full voltage to each fixture; series divides it, dimming bulbs progressively and risking overheating.
- Fault Tolerance: Parallel circuits isolate failures (one outage = one dark unit); series failures disrupt the entire chain.
- Load Capacity: Parallel allows scaling to 20+ fixtures on a single circuit; series is limited by cumulative resistance.
- Code Compliance: NEC Article 410.16 mandates parallel for all luminaires. Series violates safety standards and voids UL listings.

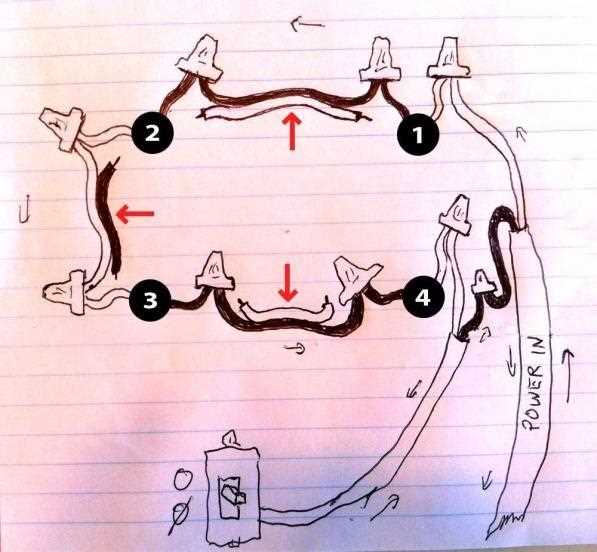

Run a home-run from the switch: connect the first fixture’s feed to the switch, then daisy-chain to subsequent units with 6″ pigtails at each junction. Use push-in wire connectors for faster install (rated for 600V), or twist-and-wrap for higher durability. For dimming, pair with an ELV or MLV dimmer; verify compatibility with LED trims (e.g., Lutron Diva DVCL-153P for 120V LEDs).
