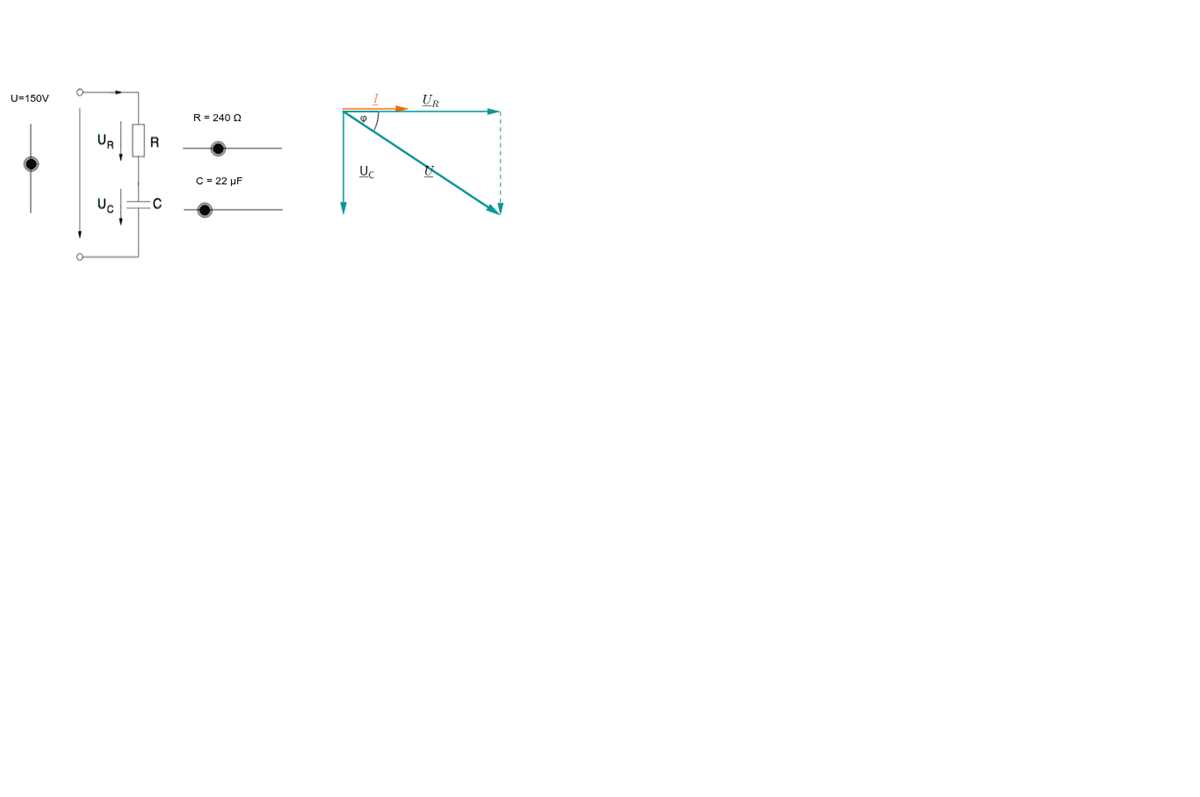

For precise AC response calculations in resistance-capacitor combinations, construct the voltage-current relationship using right-angled triangles. Position the current vector along the positive real axis–this serves as the phase reference. Draw the resistor’s voltage drop collinear with the current line; its magnitude equals IR, where R is the resistance value. The capacitor’s voltage drop lags by exactly 90°, plotted orthogonally downward. The hypotenuse of this triangle represents the total applied voltage, while the angle between the hypotenuse and current axis equals the phase shift θ = arctan(XC/R), where XC = 1/(2πfC).
Measurements confirm this geometric model: with R = 1 kΩ, C = 1 μF, and f = 1 kHz, XC computes to ~159 Ω, yielding θ ≈ 9°, a value verifiable on an oscilloscope by observing the zero-crossing offset between VR and Vtotal. Adjusting R or C recalculates θ instantly–critical when designing reactive attenuators or filter stages where phase margin impacts stability. Scale vectors proportionally for clarity: 1 cm = 0.1 V avoids clutter while maintaining accuracy.
For troubleshooting, superimpose the constructed triangle onto actual oscilloscope traces. Any misalignment signals component tolerance errors or parasitic inductance–common when using wire-wound resistors above 100 kHz. Always verify with a multimeter at DC: resistive drops should sum to the applied DC voltage; capacitive reactance then infers the AC behavior. Include stray capacitance in high-impedance setups; 10 pF stray adds ~16 kΩ reactance at 1 MHz, skewing the predicted shift by ~9°.
Visualizing Voltage and Current Relationships in RC Combinations
Construct the vector representation by plotting the voltage across the resistor along the horizontal axis and the capacitive reactance drop along the vertical axis. Ensure the resistive voltage (VR) aligns with the current (I) since they maintain zero phase shift. The capacitive voltage (VC) must lag the current by 90°, positioning it downward from the origin.
Measure the impedance angle (θ) using the tangent function: θ = tan-1(-XC/R), where XC = 1/(2πfC). For a 1 kΩ resistor and 1 µF capacitor at 50 Hz, θ ≈ -26.57°. Draw the impedance vector (Z) from the origin to the endpoint of VC, confirming this angle matches the calculated value.
- Scale vectors proportionally: 1 cm = 1 V for small signals, adjust for higher voltages.
- Verify vector lengths satisfy KVL: √(VR2 + VC2) = Vtotal.
- Use distinct colors: red for current, blue for VR, green for VC, purple for Vtotal.
Calculate VC at different frequencies to observe phase variance. At 100 Hz, with R = 1 kΩ and C = 1 µF, XC ≈ 1.59 kΩ, yielding θ ≈ -57.86°. Update the vector plot accordingly, noting the increased vertical component of VC. Document how frequency adjustments alter the diagram’s proportions.
For transient analysis, overlay the steady-state vectors with the exponential decay of capacitor charging. Represent the transient voltage as a shrinking VC vector moving clockwise toward the origin while maintaining its -90° phase relationship with current. Indicate the time constant (τ = RC) on the plot by marking 63.2% of the initial VC value along the vertical axis.
- Select graph paper with 10×10 grids per square for precision.
- Plot VR first, then VC downward at 90°.
- Connect the vectors’ endpoints to form the supply voltage triangle.
- Confirm the hypotenuse length equals the applied voltage.
- Label all vectors with magnitudes and angles.
Modify the plot for varying capacitance values. A 0.1 µF capacitor at 50 Hz with R = 1 kΩ produces XC ≈ 31.83 kΩ, increasing θ to ≈ -88.2°. Redraw the diagram, showing VC dominating the vector composition while VR remains nearly horizontal. Compare this to the original 1 µF scenario to demonstrate how component values reshape the voltage-current interplay.
Step-by-Step Guide to Building a Graphical Representation for an RC Arrangement
Define the reference direction first. Align the voltage across the resistor (VR) along the positive horizontal axis. This establishes the baseline for all subsequent measurements, ensuring consistency when plotting other components.
Measure or calculate the current magnitude and phase shift. For a capacitor-resistor network, the current leads the source voltage by an angle between 0° and 90°, depending on the component values. Use the formula θ = arctan(1/(2πfRC)) to determine this angle, where f is the frequency, R is resistance, and C is capacitance.
Draw the capacitor voltage (VC) at a 90° lag behind the current. Since the current leads VC, position this vector downward from the origin if the current is horizontal. Ensure the length of VC matches its calculated RMS or peak value.
| Component | Typical Phase Relationship | Vector Orientation |
|---|---|---|
| Resistor (VR) | In-phase with current | Horizontal (0°) |
| Capacitor (VC) | 90° lag behind current | Vertical downward |
| Source (VS) | Reference angle θ | Resultant vector |
Add the source voltage (VS) as the geometric sum of VR and VC. Use the Pythagorean theorem if working with magnitudes: VS = √(VR2 + VC2). The angle of VS relative to VR equals the phase shift θ calculated earlier.
Scale all vectors proportionally if using a diagram for analysis. A common practice is to set 1 cm = 10 V for clarity. Verify that VR and VC form a right angle; their vector addition should trace a straight line to VS at the angle θ.
Label each vector with its value and angle. Include the frequency (f) and component values (R, C) near the diagram to contextualize the results. For example: “f = 50 Hz, R = 1 kΩ, C = 10 μF.”
Verification Techniques
Check the diagram against Kirchhoff’s voltage law. The algebraic sum of VR and VC projected onto any axis should equal VS. For instance, VR cos(θ) + VC sin(θ) = VS. Deviations indicate plotting errors.
Use oscilloscope measurements for real-world confirmation. Capture VR and VC waveforms, then overlay them to observe the 90° phase difference. The resultant waveform should match the theoretical VS in amplitude and phase, validating the graphical approach.
Key Differences Between Voltage and Current Representations in RC Networks
Voltage across the resistor leads the source by an angle proportional to the resistance-reactance ratio, while the capacitor’s potential lags behind the same reference by 90 degrees. Measure both using a dual-trace oscilloscope: the resistive drop aligns with the instantaneous current, whereas the capacitive drop forms a right angle with it. Adjust probe scaling to match amplitude ranges–capacitive magnitudes diminish as frequency rises, unlike resistive values remaining constant.
Current remains uniform throughout the resistive-capacitive chain, yet its phase relationship shifts. Use a current probe with a phase-locked amplifier: the resistive branch’s current aligns exactly with the applied voltage, while the capacitive branch’s current precedes the voltage by a quarter cycle. Record the phase difference at multiple frequencies to verify the inverse tangent of the reactance-resistance ratio directly correlates to the lead angle.
Amplitude Behavior Under Frequency Variations
At low frequencies, the capacitor’s impedance dominates–current phasors shrink while voltage magnitudes across the resistor grow. Increase the excitation frequency: observe the capacitive voltage dropping sharply (follows 1/ωC) while the resistive voltage rises until saturation. Log these values at decade intervals; the crossover point where resistive and capacitive magnitudes equalize defines the cutoff frequency.
High-frequency measurements require compensation for parasitic inductance. Employ a vector network analyzer to isolate the resistive drop–its amplitude scales linearly with current, unaffected by frequency. In contrast, the capacitive potential diminishes hyperbolically; plot this decay on logarithmic axes to confirm a -20 dB/decade slope. Ensure calibration checks phase offsets introduced by test cables.
Phase Angle Dynamics and Practical Implications
Phase angles diverge even when magnitudes converge. Design filters targeting specific phase shifts: a 45-degree lag occurs at the cutoff, useful for simple phase-shifting networks. Simulate variations: at one-tenth the cutoff, expect near-zero phase difference; at ten times, the angle approaches 90 degrees lag. Verify with an LCR meter using parallel mode–reactance readings should mirror impedance magnitudes.
Current always leads capacitor voltage, but the lead angle narrows as resistive effects dominate. Use this to advantage in timing circuits: a 60-degree lead at 1 kHz implies a 2 ms delay, adjustable via resistance changes without component swaps. Monitor thermal drift–resistive phase angles remain stable, while capacitive angles shift minimally unless dielectric losses change.
Visualize transformations via polar plots: rotate voltage vectors clockwise around the origin, current vectors counterclockwise relative to the resistive reference. Confirm quadrature at high frequencies–current precedes voltage by nearly 90 degrees. Troubleshoot anomalies: mismatched angles indicate parasitic coupling or incorrect ground references. Re-measure with differential probes to eliminate common-mode errors distorting phase readings.
Determining Phase Shift in Resistor-Capacitor Networks
Begin by measuring the resistance (R) in ohms and capacitance (C) in farads directly from the components. For precise calculations, use a multimeter or refer to manufacturer datasheets–nominal values often deviate from real-world behavior due to tolerances.
The phase shift angle (θ) between supply voltage and current in a resistor-capacitor combination is derived from the arctangent of the ratio of capacitive reactance (XC) to resistance: θ = arctan(XC/R). Calculate XC first using XC = 1/(2πfC), where f is the signal frequency in hertz.
At 50 Hz, a 10 kΩ resistor paired with a 1 μF capacitor yields XC ≈ 3.18 kΩ. The resulting phase shift is arctan(3.18k/10k) ≈ 17.6°, meaning current leads the applied voltage by this angle. Verify calculations with an oscilloscope–probes connected across the resistor and capacitor will visually confirm the lead.
For non-sinusoidal waveforms, decompose the signal into its Fourier components. The phase shift for each harmonic follows the same formula but uses the harmonic’s frequency. A 1 kHz square wave with the same R-C pair introduces a phase shift of arctan(159/10k) ≈ 0.91° for the fundamental, but higher-order harmonics experience progressively larger shifts due to their frequency dependence.
Adjusting for Component Variability
Account for parasitic elements: lead inductance (≈5-10 nH), dielectric absorption in capacitors (especially electrolytic types), and resistor temperature coefficients (±100 ppm/°C). At frequencies above 100 kHz, these effects distort the ideal phase shift. Replace ideal equations with SPICE models or manufacturer-provided impedance graphs for accuracy.
When cascading multiple resistor-capacitor stages, the total phase shift accumulates. Two identical stages each with a 30° shift produce a combined 60° shift–assuming no loading effects. Buffer stages with op-amps (e.g., unity-gain followers) to isolate each segment and prevent interactions.
Practical Applications and Limits
In filter design, a 45° phase shift occurs at the cutoff frequency (fc = 1/(2πRC)). Below fc, the circuit increasingly behaves as a pure resistance; above fc, the capacitive influence dominates, reinforcing the phase lead. For audio applications (20 Hz–20 kHz), ceramic capacitors (X7R dielectric) minimize losses, but at frequencies >1 MHz, film capacitors (polypropylene) reduce phase errors caused by dissipation factors.
Circuit layout impacts phase shift measurement: keep traces short (
