Use the factory harness as a starting point: The 2002 GMC half-ton truck utilizes connector C1 (16-pin) and C2 (12-pin) directly behind the dashboard’s audio unit. Pin B on C1 carries constant 12V power–verify with a multimeter before splicing. Ground connections terminate at pin D (C1) and pin F (C2), both critical for reducing interference.
Avoid common mistakes: Speaker wires differ by location–front left tweeter (+) pairs with pin 1 (C2), while rear subwoofer (-) links to pin 8 (C2). Swap polarity at your risk; phase cancellation will muddy midrange frequencies. The steering-wheel controls require a separate adapter (GM part #15036542); bypassing it disables volume adjustment through the wheel.
Fuse protection is non-negotiable: The factory wiring routes through a 10A fuse (position #23 in the under-hood box). Upgrading to aftermarket amplifiers? Install an inline fuse no more than six inches from the battery terminal. The dimmer circuit (pin H, C1) adjusts display brightness; tapping it without a 470-ohm resistor will burn out the unit’s illumination LEDs.
Test every connection before finalizing install. Use a tone generator to confirm speaker wires before crimping–mixing left-right channels causes spatial distortion. The parking brake wire (pin C, C2) must be grounded to enable video playback; failure trips the system into safe mode.
Audio System Connection Guide for 2002 GMC Pickup

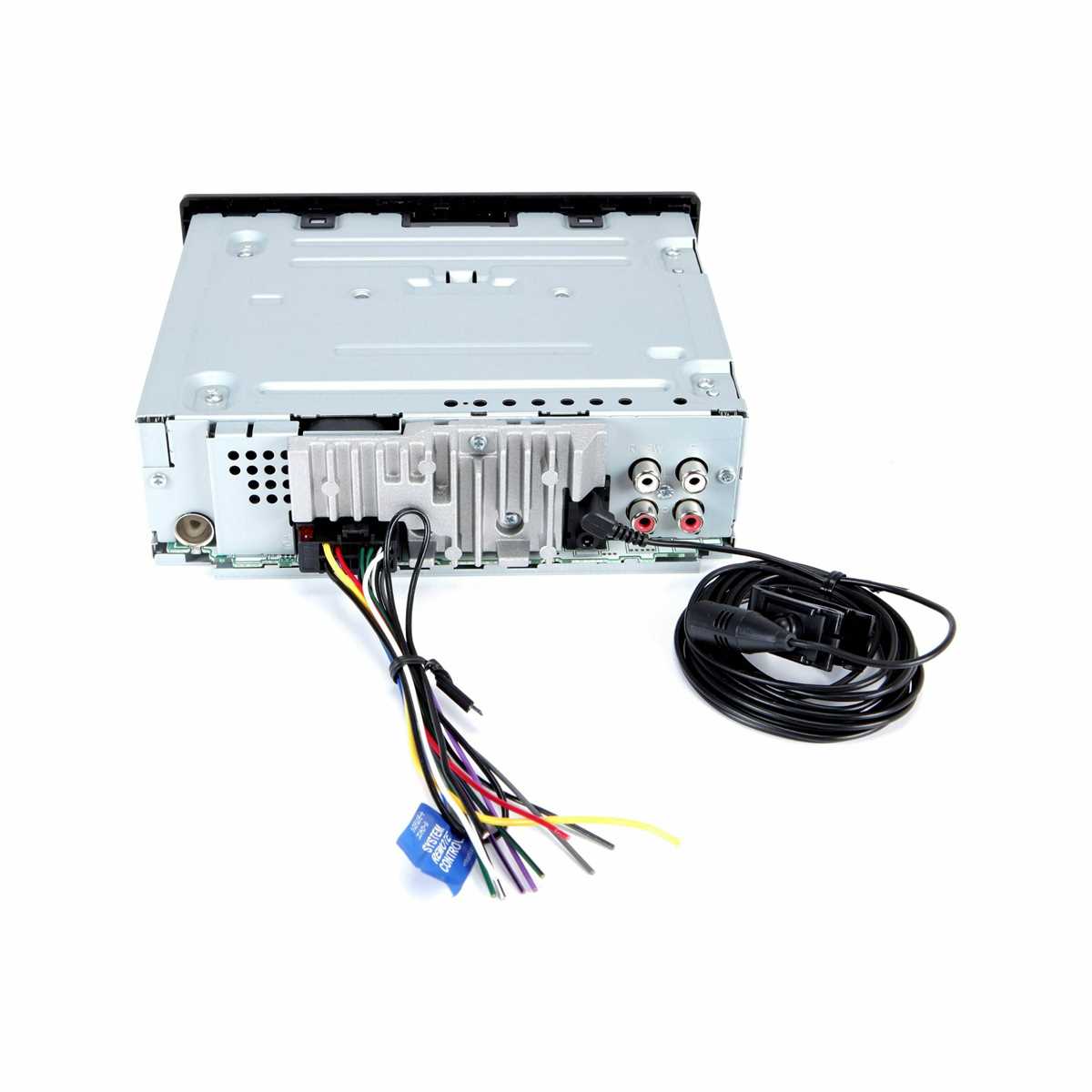

Install a replacement receiver by matching the vehicle’s harness to the aftermarket unit using these pin assignments. Factory colors are standardized, but verify each wire with a multimeter before splicing.
| Connector Pin | Function | Wire Color | Aftermarket Equivalent |
|---|---|---|---|
| A1 | Left Front Speaker (+) | Light Green/Black | LF+ |
| A2 | Left Front Speaker (-) | Light Green | LF- |
| A3 | Right Front Speaker (+) | Dark Blue/White | RF+ |
| A4 | Right Front Speaker (-) | Dark Blue | RF- |
| A5 | Power Antenna | Yellow | Remote Turn-On |
| A6 | Battery Constant | Pink | 12V+ |
| A7 | Illumination | Gray | Dimmer/Illum |
| A8 | Ground | Black | GND |

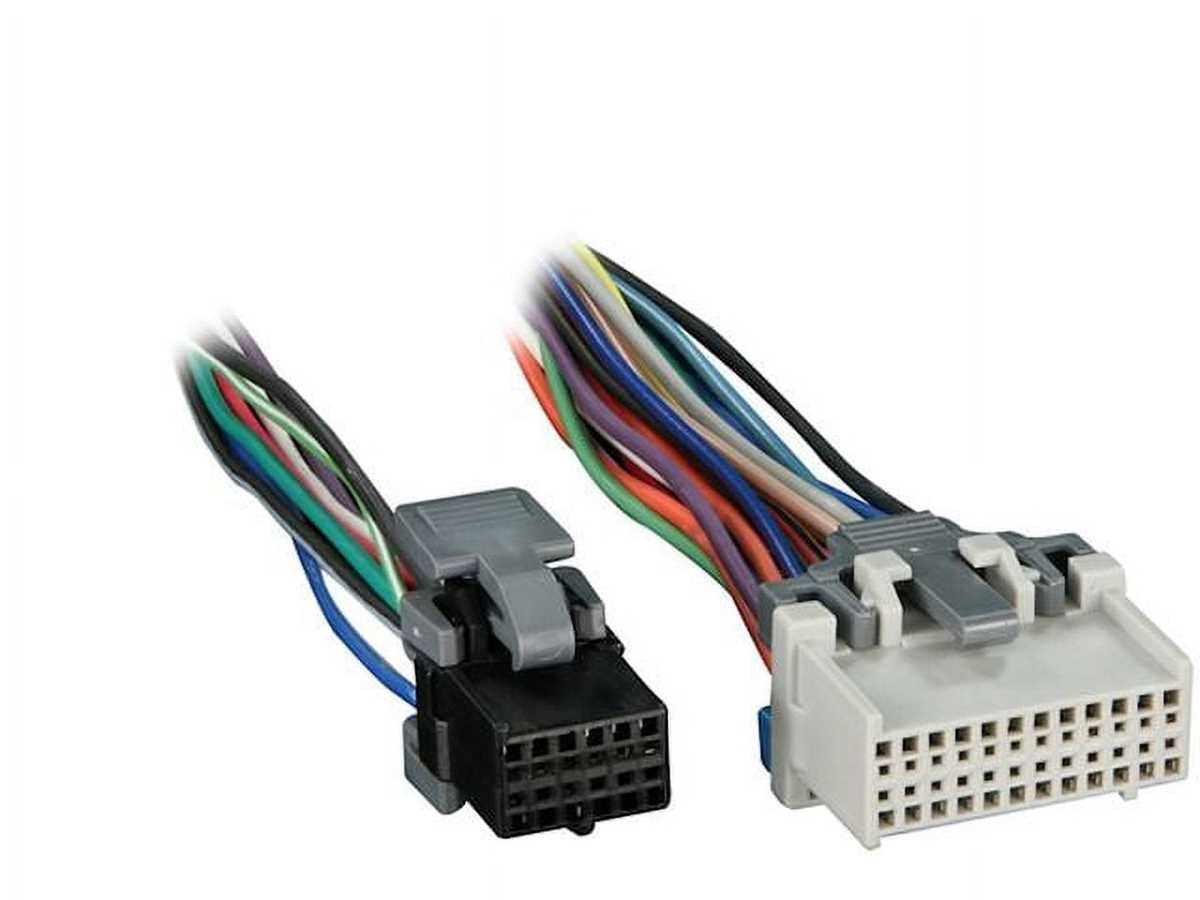

Cutting the factory harness is unnecessary–use a mating connector (Metra 70-1870 or equivalent) for a clean plug-and-play setup. Avoid connecting the orange/white wire to chassis ground; this line triggers the OnStar module and can drain the battery if miswired.
Aftermarket amplifiers or subwoofers require tapping into the purple and gray wires (A9, A10) for rear channels. Ensure amplifier remote turn-on syncs with the head unit’s yellow lead to prevent current drain.
Test speaker polarity before finalizing connections. Swap leads at the harness if audio phase is inverted (hollow sound). Use heat-shrink tubing on all splices to prevent corrosion in under-dash environments.
Vehicle-specific retained accessory power (RAP) is controlled via the pink wire–verify voltage drop during ignition-off tests to confirm no parasitic load exceeds 50mA. Replace blown fuses (10A, location #15 in under-hood box) if power loss persists.
Steering wheel controls interface via a PAC RP4-GC1 adapter. Program buttons sequentially: volume up/down, track skip, and mute. Factory navigation requires bypassing the green/white wire to prevent error codes.
Matching the Proper Audio System Plug to Your 2001-2003 Heavy-Duty Pickup
Locate the OEM harness tag behind the factory stereo unit. The tag on a base trim model reads “Delco 16185565”, while LT and SLE trims use “ACDelco 16185566”. Both connectors are 12-pin Metri-Pack 280 series, distinguishable by the locking tab position: the base model tab sits at the 9 o’clock mark, LT/SLE variants at 11 o’clock.
Verify pin functions before purchase–pins 1 (left front +), 3 (right front +), 6 (illumination -), and 9 (constant 12V) must align. Third-party adapters often mislabel pin 2 (vehicle speed signal) as “antenna trigger,” a common failure point. If replacing the head unit, select a harness with color-coded leads: yellow for battery, red for ignition, and orange/white for dimmer, matching GM’s J1850 VPW protocol.
For aftermarket integration, prioritize harnesses with integrated ground loops. The 2001-2003 chassis ground point is behind the glove box, requiring a 10-AWG wire minimum to prevent alternator whine. Dodge adapters like Scosche GM02B claim compatibility but lack shielding, introducing interference on FM bands 88-108 MHz. Validate grounding by measuring voltage drop: readings above 0.1V at the amp connector indicate a faulty link.
Disconnect the negative battery terminal before splicing. The vehicle’s BCM retains memory for up to 10 minutes; avoid touching metallic surfaces to prevent fuse burnout. Use crimp connectors with heat-shrink tubing for joins–solder alone fails under vibration. For retractable antenna models (RPO UQ7), ensure the adapter includes a pink/black wire for the 12V motor feed; skipping this step disables extending/retracting.
Confirm part numbers against the door jamb sticker. “V6 4.3L” engines require “Metra 70-2003”, while “V8 4.8L/5.3L/6.0L” pairs with “Axxess ASWC-1”. Reject universal kits with mismatched pin widths–GM’s Metri-Pack tolerances are ±0.05mm. Test speaker outputs with a 1kHz sine wave at 1W RMS; clipping above 2V suggests impedance mismatch, risking tweeter burnout.
How to Identify Original Head Unit Cable Shades in Your Pickup
Disconnect the negative terminal from the battery before handling any connectors to prevent short circuits. The harness exits directly behind the center console, concealed by a plastic trim panel held by four clips–press inward on the edges to release it.
Trace the main plug from the vehicle’s stereo harness; it uses a 12-pin rectangular socket. Pin assignments follow industry standard C identifier codes: constant power (yellow), ignition-switched (red), ground (black), front-left positive (gray), front-left negative (gray-black stripe), and identical pairs for remaining speakers.
Refer to an aftermarket stereo adapter chart matching your pickup’s make–common brands like Metra or Scosche list these color schemes. If unavailable, use a multimeter set to continuity mode and probe each wire while a helper operates the factory audio system; speaker outputs trace to +/- pairs with 2–4 ohms resistance.
Label every wire with painter’s tape before cutting or splicing to avoid misconnections. For amplifier-equipped models, an additional 8-pin plug connects behind the glove box–locate it by removing the lower dash panel using a 7mm socket.
Ground wires often attach to chassis points near the fuse box; clean any corrosion with sandpaper before reattaching. If factory plugs show brittle insulation, strip 6mm of sheathing and solder joints using 60/40 rosin-core solder, then cover with adhesive-lined heat shrink tubing.
Test every connection by reconnecting the battery, turning the ignition to accessory, and checking all audio channels. Adjust balance and fade to confirm each speaker functions; a faint pop during power cycles indicates proper polarity.
Store a photograph of the labeled harness on your phone for future reference when upgrading components or replacing blown fuses tied to the entertainment circuit–typically a 10A fuse in slot #28 of the under-dash panel.
Integrating Aftermarket Audio System Cables with Original Pickup Connector
Locate the factory audio harness behind the dash cluster–typically a 12-pin plug with weatherproof seals near the fuse box. Match the aftermarket unit’s power lead (often yellow or red) to the vehicle’s constant 12V line (pin 4 on GM harness); avoid tapping into ignition-switched circuits (pin 9) unless using a relay for high-current demands.
Identify the ground connection by testing continuity between the chassis and pin 2 (black wire). Scrape paint off mounting points if resistance exceeds 0.2 ohms–poor grounding causes engine noise in speakers. For RCA-level signals, connect the aftermarket RCA cables directly to the original amplifier outputs (pins 5-8 for front/rear channels) if retaining the stock amp; bypass it entirely for passive systems by splicing into the speaker wires.
Speaker polarity matters: front left positive (pin 5, light green) pairs with front left negative (pin 6, dark green). Swap polarity if imaging sounds hollow. For rear channels, pin 7 (purple) is positive; pin 8 (purple/black) is negative. Test with a 9V battery before finalizing–brief contact should push the cone outward.
Dimmer control (orange/white, pin 10) requires a 1k-ohm resistor inline if the aftermarket head unit lacks automatic illumination adjustment; failure triggers erratic backlight behavior. Data lines (pin 12, pink) for steering-wheel controls need a GM-specific interface module–cutting this wire disables onboard diagnostics.
Critical Wire Pairings
- Power: Yellow → Pin 4 (constant), Red → Pin 9 (switched, optional)
- Ground: Black → Pin 2 or bare metal chassis
- Speakers:
- Front: Light green (+) / Dark green (-)
- Rear: Purple (+) / Purple-black (-)
- Illumination: Orange/white → Pin 10 (with resistor if needed)
- Mute/Antenna: Blue/white → Pin 1 (automatic antenna trigger)
Use crimp connectors with heat-shrink tubing for all splices; t-taps introduce corrosion risks. For OEM amplifiers, retain pin 3 (blue) to preserve fade/balance functions–removing it defaults audio to front-only output. Verify connections with a multimeter before reinstalling the dash; reverse polarity or shorted wires can fry the head unit’s internal circuitry.
If static persists, route signal cables away from ECU and ignition wires. For CD changers, pin 11 (gray) carries data–leave it disconnected unless using a GM-compatible adaptor. Avoid soldering near plastic dash components; heat damages underlying circuits.
Troubleshooting Checklist
- No power: Check fuse (10A, position 22 in under-dash panel).
- Engine noise: Re-ground head unit to firewall bolt (avoid seatbelt anchor points).
- No rear speakers: Ensure pin 7/8 aren’t bridged; test with direct 9V touch.
- Dimmer malfunction: Confirm resistor value (1kΩ) or replace with variable trimpot.
- Error codes: Clear with OBD-II scanner post-install to reset IPC warnings.
