Use a Colpitts oscillator as the foundation–pair a bipolar junction transistor (2N3904) with 100nF feedback capacitors and a 10MHz crystal resonator for stable frequency output. Keep traces under 15mm to minimize parasitic inductance, especially between the tank circuit and power amplifier stage. A class-C amplifier with a single MRF581 MOSFET delivers 5W into a 50Ω load while drawing 50mA at 12V, but add a snubber diode (1N4007) across the drain-source junction to clamp inductive kickback.
Incorporate a low-pass filter (7-pole Chebyshev) immediately after the final amplification stage to suppress harmonics below -60dBc. Wind the output coil on a T50-6 toroid using 12 turns of 0.8mm enameled wire–center-tap for impedance matching to coaxial lines. Bypass all IC pins with 100pF ceramics, but mount them within 2mm of the pin pad to prevent self-oscillation above 30MHz. For modulation, inject AF signals into the varactor diode (BB212) via a 1kΩ resistor; ensure DC blocking caps (10nF) isolate the audio stage from the RF path.
Ground planes should cover at least 70% of the PCB underside, stitching to the top layer at multiple vias near the oscillator and PA stages. Use 1oz copper for power traces feeding the PA–4mm widths handle 1A with less than 0.1V drop. Test stability by loading the output with a 10dB attenuator and spectrum analyzer: spurious emissions must stay below -40dB relative to the carrier when sweeping from 1MHz to 100MHz. Adjust bias resistors (470Ω for base, 22Ω for emitter) to keep collector current between 8-12mA at room temperature.
Etch the PCB with 0.2mm trace spacing–this prevents arcing at 12V while allowing 250mW RF dissipation per trace segment. Heat-sink the PA transistor using a 15mm² copper pad soldered directly to the board; thermal vias to the ground plane improve heat transfer by 30%. Log potentiometers (10kΩ) simplify fine-tuning of frequency and modulation depth, but shield them with a grounded copper shield can to reduce noise pickup. Calibrate using a known signal source (10MHz, -10dBm): deviations above ±50Hz indicate layout flaws or component drift.

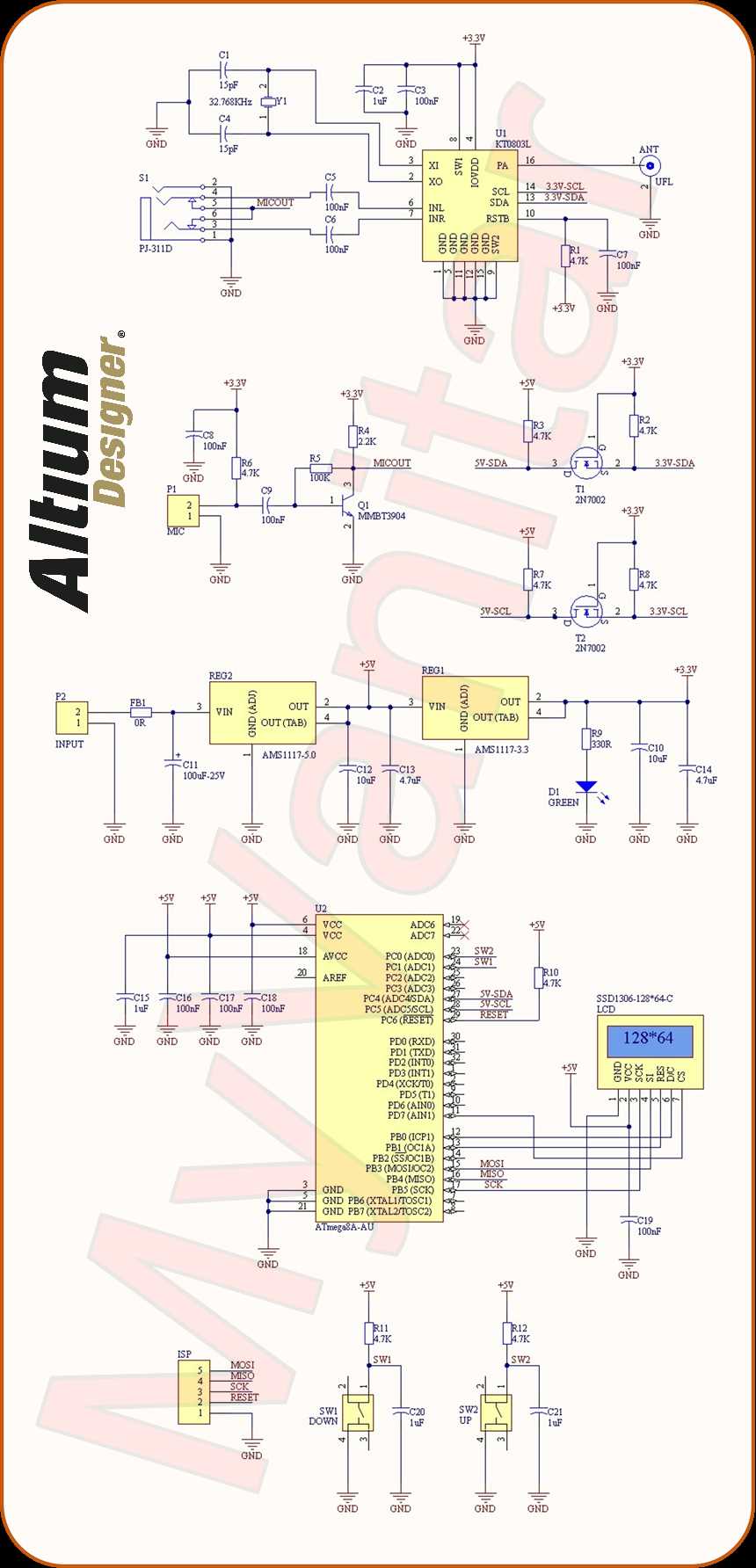

Building a Wireless Signal Emitter: Core Circuit Layout
Start with an oscillator stage as the foundation–use a Colpitts or Hartley configuration for stable frequency generation. A 2N3904 transistor paired with a 10-40 pF variable capacitor allows fine-tuning within the HF band (3-30 MHz). Keep inductor values between 0.5-5 µH depending on the target wavelength; air-core coils reduce losses compared to ferrite-core alternatives.
For modulation, insert a microphone amplifier before the oscillator. An LM386 IC amplifies audio signals efficiently, requiring only a 10 kΩ potentiometer to adjust gain levels. Avoid direct coupling to the oscillator–use a buffer stage like a common-emitter amplifier (e.g., BC547) to prevent frequency drift caused by impedance mismatches.
Power the circuit with 9-12V DC, regulated via an LM7808 if sensitive components demand stable voltage. A smoothing capacitor (1000 µF) at the input eliminates ripple noise; position it close to the power entry point to minimize interference. For portable setups, replace linear regulators with a buck converter (e.g., MP2307) to improve efficiency.
Key component placement rules:
- Separate analog and digital grounds, connecting them at a single star point near the power source.
- Isolate RF paths from low-frequency traces using ground pours or isolation gaps of at least 3 mm.
- Position tuning capacitors within 2 cm of the oscillator coil to reduce parasitic inductance.
- Use shielded cables for audio inputs to block 50/60 Hz hum from power lines.
To avoid parasitic oscillations, decouple each stage with 0.1 µF ceramic capacitors across power rails–place them no further than 1 cm from the relevant IC or transistor. For VHF frequencies (30-300 MHz), replace through-hole components with SMD equivalents (e.g., 0603 size) to reduce lead inductance and improve stability.
Test output power with a dummy load (e.g., 50 Ω resistor bank) before connecting an antenna. A directional coupler or SWR meter helps detect reflections; adjust antenna length (typically ¼ wavelength of the center frequency) to maximize radiated energy. For legal compliance, limit ERP to 10-50 mW unless licensed–higher outputs risk violating regulations like FCC Part 15.
Critical fail-safes:
- Add a series fuse (250 mA) to prevent overloads from damaging the final amplifier stage.
- Include reverse-polarity protection via a Schottky diode (e.g., 1N5817) at the power input.
- Use ferrite beads on audio lines to suppress RF feedback into the microphone.
For digital signal integration, bypass the analog modulator and feed pre-encoded data (e.g., FSK, OOK) directly into the final amplifier via an optocoupler (e.g., PC817) to isolate logic levels from RF noise. Keep digital traces orthogonal to RF paths to minimize crosstalk–ground planes should separate the two domains entirely.
Key Components of a Basic RF Emission System
Start with an oscillator stage built around a high-frequency transistor like the 2N2222 or BC547, configured in a Colpitts or Hartley topology. For 40-meter band operations, a crystal between 7–7.2 MHz ensures stability, while variable capacitors in the tank circuit allow fine-tuning. Keep lead lengths minimal–every millimeter above 10 MHz introduces parasitic inductance, degrading efficiency.
Amplification demands a class-C power stage, where a push-pull pair of IRF510 MOSFETs handles 5–10W outputs with less than 1% harmonic distortion. Heatsinks are mandatory; transient loads spike junction temperatures to 125°C. Decouple the supply with 100nF ceramic capacitors placed within 5mm of each drain terminal to suppress RF feedback.
Modulation and Matching
AM systems need a balanced modulator–an MC1496 IC simplifies mixing the audio and carrier signals. Drive levels above 1V RMS saturate the modulator; attenuate inputs with a 10kΩ potentiometer. FM variants use a varactor diode (e.g., BB139) reverse-biased at 4V, achieving ±75 kHz deviation with 1V audio swing.
Impedance matching transforms the final stage’s 50Ω output to the antenna’s load. A pi-network with two 5–50 pF trimmer capacitors and an air-core inductor (10 turns of 18AWG wire, 10mm diameter) covers 3.5–30 MHz. For dipole feeds, include a 1:1 balun–ferrite core size depends on power: FT50-43 for
Step-by-Step Assembly of a Crystal-Controlled RF Generator
Begin with a 2N3904 transistor, a 10 MHz quartz resonator, and a 47 pF coupling capacitor. Secure the crystal between the transistor’s base and emitter, ensuring minimal lead length to reduce parasitic capacitance. Solder a 1 kΩ resistor in series with the base to stabilize biasing–values above 2.2 kΩ risk insufficient drive current. Verify the crystal’s resonant frequency with an oscilloscope before proceeding; drift beyond ±50 Hz indicates a faulty or mismatched component.
Power regulation demands precision: a 9V battery with a 5.1V Zener diode (1N4733) prevents overvoltage. Connect the diode’s cathode to the supply rail and ground its anode via a 100 Ω current-limiting resistor. This setup clamps voltage spikes that could desolder joints or fry the transistor. Test the rail with a multimeter; expect 4.8–5.2V–deviations suggest a weak battery or improper soldering.
For the antenna matching network, use an air-core inductor wound with 22 AWG enameled wire (12 turns, 10 mm diameter). Pair it with a variable capacitor (5–60 pF) to fine-tune impedance. Attach the inductor’s tap to the transistor’s collector via a 1 nF blocking capacitor to isolate DC. Trim the antenna length to λ/4 (7.5 meters for 10 MHz) for optimal radiation–shorter wires increase harmonic distortion.
Final testing requires isolation: place the circuit on a non-conductive surface (acrylic or wood) and power it via a floating ground (battery, not mains). Probe the collector with a frequency counter; deviations beyond ±100 Hz necessitate retuning the crystal’s load capacitors (try 22–33 pF). If interference persists, wrap the assembly in copper foil (connected to ground) to shield stray RF. Log all adjustments–drifting frequency often stems from thermal expansion in the quartz.
Common Modulation Methods for Analog Signal Generation Circuits
Amplitude Modulation (AM) remains the most straightforward technique for analog front-end designs due to its minimal component requirements. A basic AM stage involves feeding the carrier signal through a nonlinear device–typically a transistor–while superimposing the audio input onto the DC bias. Adjusting the modulation depth below 100% prevents overmodulation artifacts, which manifest as harmonic distortion and splatter. For 80-meter band applications, a modulation percentage of 70–85% yields optimal audio clarity while maintaining regulatory compliance.

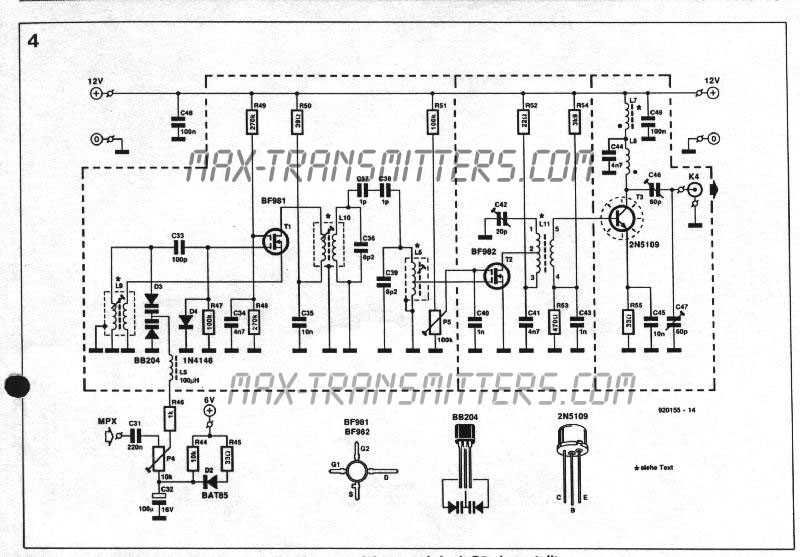

Frequency Modulation (FM) demands a voltage-controlled oscillator (VCO) core, where the instantaneous frequency deviates in proportion to the applied signal amplitude. Colpitts or Hartley oscillators serve as effective VCO foundations, with varactor diodes enabling dynamic frequency shifts. Deviation control is critical: excess bandwidth leads to adjacent channel interference, while insufficient deviation degrades signal-to-noise ratio. For narrowband FM (NBFM), a maximum deviation of ±5 kHz suffices for voice-grade transmissions, whereas wideband FM (+75 kHz) accommodates high-fidelity audio.
Single Sideband (SSB) modulation eliminates carrier and one sideband, halving bandwidth while preserving all information. The filter method employs a sharp crystal or mechanical filter (e.g., 9 MHz IF) to suppress the unwanted sideband post-mixer. Balanced modulators–using diode rings or Gilbert cells–ensure carrier suppression exceeding 40 dB. Transmitter power efficiency improves significantly, as 100% of the output power contributes to the desired signal, unlike AM’s 50% carrier waste.
| Modulation Type | Typical Bandwidth | Power Efficiency | Complexity |
|---|---|---|---|
| AM (DSB-LC) | 6–10 kHz | 33–50% | Low |
| SSB (USB/LSB) | 2.4–3 kHz | 85–95% | High |
| NBFM | 10–15 kHz | 70–80% | Medium |
| WBFM | 150–200 kHz | 60–75% | Medium |
Phase Modulation (PM) leverages frequency multiplication to encode information via phase shifts. A common implementation uses a crystal oscillator followed by a phase-locked loop (PLL) with an analog phase detector. PM’s advantage lies in its immunity to amplitude noise, but it requires linear amplifiers to prevent spectral regrowth. For digital modes like PSK31, a deviation sensitivity of 1 radian/volt ensures sufficient resolution without excessive harmonic generation.
Double Sideband Suppressed Carrier (DSB-SC) finds niche use in linear amplifier chains, where the carrier is reintroduced at the final stage. This method simplifies filtering but demands precise phase alignment to avoid ghost signals. A typical DSB-SC exciter uses a diode double-balanced mixer followed by a 10–15 MHz IF stage, with the carrier reinserted via a low-level injection port. Power efficiency reaches 60–70%, though thermal stability of the injection source becomes critical at higher power levels.
Hybrid modulation schemes combine techniques to exploit individual strengths. For instance, a common configuration pairs AM for voice clarity with FM for noise immunity in mobile environments. The exciter generates an AM signal with ~30% modulation, then applies FM deviation of ±3 kHz via a varactor-tuned VCO. This dual-mode approach requires careful impedance matching between stages to prevent intermodulation distortion, which manifests as mixed-frequency spurs in the output spectrum.
For vintage designs, reactance modulators offer a simple alternative to varactor-based FM. By varying the reactance of a transistor’s collector-emitter junction, the oscillator’s frequency tracks the input signal. A 2N2222 transistor with a 100 pF coupling capacitor can achieve ±7.5 kHz deviation at 10 MHz, though temperature drift necessitates compensation via negative feedback or a thermistor network. This method is cost-effective but limited to narrowband applications due to nonlinearity at higher modulation indices.
