The most reliable way to construct a bidirectional current flow circuit begins with a complementary pair of transistors–one NPN and one PNP–arranged in a totem-pole configuration. Select parts with matched voltage ratings and current handling capabilities to prevent thermal runaway. A 2N3904 (NPN) and 2N3906 (PNP) pair works well for low-power signals up to 200 mA, while MJE15030/MJE15031 pairs handle currents exceeding 1 A. Ensure base resistors (typically 1 kΩ–4.7 kΩ) limit current to safe levels without compromising switching speed.
Ground the midpoint node via a pull-down resistor (10 kΩ–100 kΩ) to define a default state when neither transistor conducts. Without this, floating potentials risk erratic behavior. Add a 0.1 µF decoupling capacitor across the supply rails near the transistors to suppress high-frequency noise. For inductive loads, insert a flyback diode (1N4007 or similar) in parallel with the load to clamp voltage spikes during transitions.
To drive the arrangement from a microcontroller, use a logic-level MOSFET (e.g., AO3400) or an open-collector buffer (ULN2003) to handle the base current. Avoid direct connection–most GPIO pins cannot sink/source enough current. Calculate transistor saturation by ensuring IB ≥ IC/β, where β is the minimum current gain from the datasheet. For high-speed applications, reduce base resistor values (470 Ω–1 kΩ) and add a Baker clamp diode to the NPN emitter to prevent minority carrier storage delay.
Test the setup with a resistive load first (1 kΩ for small signals, 10 Ω–100 Ω for power stages). Monitor voltage at the midpoint node; it should swing rail-to-rail within nanoseconds. If slew rate is insufficient, replace the transistors with faster variants (e.g., 2SC2500/2SA1020 for medium power) or add a small emitter resistor (10 Ω–50 Ω) to linearize the transition. For analog signals, add a series resistor (10 Ω–100 Ω) to each emitter to improve linearity at the expense of output impedance.
Key Configurations for Complementary Signal Drivers
Use a totem-pole arrangement with an NPN and PNP transistor pair for balanced current sourcing and sinking. Connect the emitters of both devices to a shared node tied to a reference potential (e.g., ground or Vcc/2 for AC coupling). Base terminals should be driven by a phase-splitter stage–an op-amp or complementary emitter follower–ensuring
Parasitic Mitigation
Route traces symmetrically–equal lengths for sourcing and sinking paths–to prevent skew. Shield the input phase-splitter with a copper pour tied to the midpoint voltage; leakage currents above 1 µA degrade linearity. For inductive loads, insert a antiparallel diode (1N4148) across each transistor emitter-collector junction with 15% indicates uncompensated inductance or poor bypassing.
Building a Balanced Drive Circuit: A Practical Walkthrough
Select complementary transistors with matched current gains (β) within 10% to prevent crossover distortion. For small-signal applications, pair a 2N3904 (NPN) with a 2N3906 (PNP); for higher currents, use TIP31C/TIP32C. Verify β at your target collector current–measure using a curve tracer or calculate from datasheets at VCE = 5V and IC = 10mA.

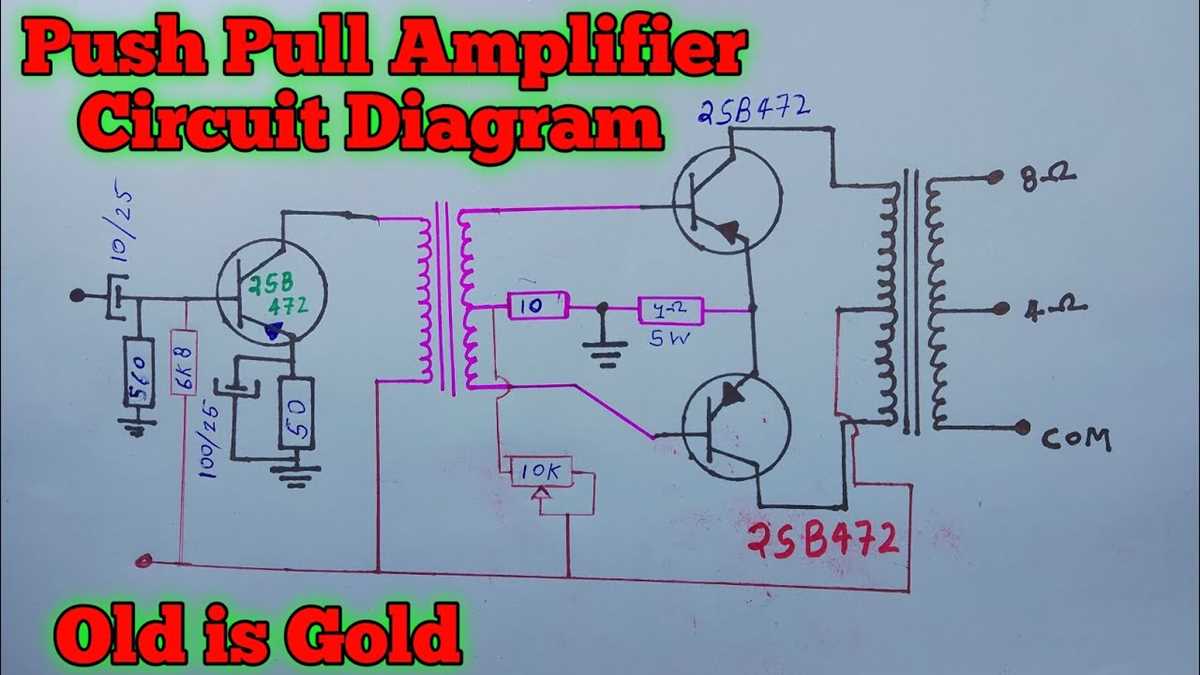

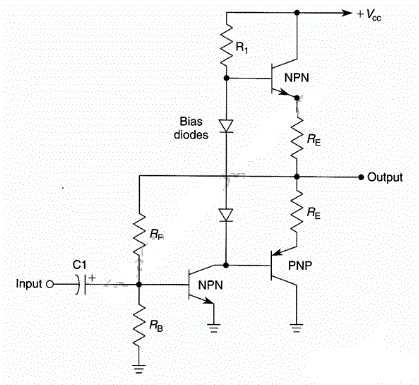

Design the bias network using a VBE multiplier for stability. A single diode (e.g., 1N4148) creates ~0.7V drop, but a transistor diode (e.g., BC547 with R1 = 1kΩ and R2 = 470Ω) allows adjustable bias. Target 2–2.5VBE across the complementary pair to eliminate dead zone during signal transitions. Use this reference table for common configurations:
| Bias Method | Components | Adjustment Range | Thermal Stability |
|---|---|---|---|
| Single diode | 1x 1N4148 | Fixed (~0.7V) | Poor |
| VBE multiplier | 1x BC547 + 2x resistors | 0.6V–3V | Excellent |
| Resistor divider | 2x resistors (±1%) | 0.1V–5V | Moderate |
Calculate emitter resistors (RE) to set quiescent current. For ICQ = 50mA, use RE = 0.22Ω (1W power rating) for each transistor. These resistors improve thermal stability but introduce a small voltage drop (ICQ × RE). Include bypass capacitors (100μF) in parallel with RE to maintain AC performance.
Choose the driver stage based on input impedance requirements. A common-emitter configuration (e.g., 2N2222) provides voltage gain but inverts the signal; add a second stage or use an emitter follower if phase preservation is critical. For low-distortion applications, implement active loading with a current source (LM334) instead of collector resistors to enhance linearity.
Stabilize the circuit against temperature variations by mounting the bias transistor and complementary pair on the same heatsink. Use thermal compound and ensure the heatsink’s θJA < 1°C/W for >5W dissipation. For TO-220 packages, a 15°C/W heatsink is sufficient for PD = 10W. Attach a 10kΩ NTC thermistor near the transistors to dynamically adjust bias–typical values: 10kΩ at 25°C, β = 4000.
Verify performance with a dual-power supply (±12V to ±48V). Connect a 1kHz sine wave to the input and measure crossover distortion at the output using an oscilloscope. Ideal waveforms should show <0.1% THD; if spikes are present, increase bias voltage in 50mV increments until they disappear. For class-AB operation, aim for ICQ = 5–10% of peak current.
Optimize the coupling capacitor for your bandwidth requirements. Use C = 1/(2πfCRLOAD), where fC is the –3dB cutoff frequency. For RLOAD = 8Ω and fC = 20Hz, C ≥ 1000μF. Select Low-ESR electrolytics (e.g., Nichicon UHE) to minimize phase shift at low frequencies. Add a 10Ω resistor in series with the capacitor to prevent high-frequency oscillations during load transients.
Core Elements and Their Functions in Complementary Current Driver Designs
Select matched transistor pairs (e.g., NPN/PNP or NMOS/PMOS) with identical gain, breakdown voltage, and thermal coefficients. Mismatched devices create crossover distortion–target ±5% tolerance on β or gm for Class B stages, or ±1% for Class AB to minimize quiescent current drift. For high-frequency applications (e.g., >50 MHz), prioritize transistors with low Cob (≤5 pF) and transition frequencies 10× the operating frequency to avoid phase lag and parasitic oscillations. Include emitter/source resistors (0.22–1 Ω) to stabilize operating points and prevent thermal runaway; their value should balance stability against power dissipation (e.g., 0.47 Ω for 1 W dissipation in TO-92 packages).
Biasing and Load Matching
Use a diode-resistor network for Class AB biasing to set quiescent current between 1–10 mA, depending on load impedance. For 8 Ω loads, aim for 5 mA; for 4 Ω, increase to 8 mA to compensate for higher current swing. Replace diodes with a Vbe multiplier (e.g., transistor diode) for adjustable biasing–this allows fine-tuning to within 10 mV to eliminate crossover clicks. Include a Zobel network (series RC: 10 Ω + 100 nF) across the load to dampen high-frequency ringing from inductive speakers. For transformers or long cables, add a series damping resistor (1–5 Ω) to prevent reflections; its value should equal the characteristic impedance of the line (e.g., 50 Ω for coaxial cables). Capacitor-coupled outputs require a bleed resistor (100 kΩ–1 MΩ) to discharge the capacitor and avoid pops during power-down.
Common Configurations: Transistor-Based vs MOSFET-Based Designs
For low-power driver stages requiring precise current handling under 500 mA, bipolar junction transistors (BJTs) remain the optimal choice due to their predictable voltage drop and linear response. Use a complementary pair (NPN/PNP) in common-emitter mode for symmetric drive capability, ensuring base resistors are sized for saturation (typical IB ≥ IC/20). Avoid exceeding 50 VCE to prevent secondary breakdown, a failure mode absent in MOSFETs.
MOSFET-based stages dominate in high-current applications (>1 A) where switching efficiency is critical. Enhancement-mode devices (logic-level for ≤4.5 VGS) eliminate gate drive complexity, but require careful layout to mitigate parasitic inductance–keep gate traces under 2 cm and use a 10 Ω series resistor to dampen oscillations. For 60 V+ systems, trench MOSFETs reduce RDS(on) by 40% compared to planar types, though they exhibit higher input capacitance (Ciss ≈ 2–5 nF). Always include a flyback diode (Schottky for
Trade-offs in Dynamic Performance
- BJTs: Propagation delay scales linearly with current gain (hFE), typically 50–200 ns at 100 mA. Thermal runaway risk mandates emitter degeneration (0.1–0.5 Ω resistor) in high-power designs.
- MOSFETs: Switching speed is limited by gate charge (Qg), with rise/fall times of 20–100 ns for Qg = 10–50 nC. Body diode recovery (~100–300 ns) introduces shoot-through in half-bridge topologies unless synchronous rectification is implemented.
- Miller Plateau: MOSFET gate voltage stalls until drain-source voltage completes transition; design gate drivers with ≥2× the plateau current (e.g., 2 A/mm for a 10 nF load).
Select BJTs for analog stages where linearity outweighs efficiency–e.g., audio preamplifiers (THD GS(th) = 2–4 V) demand dedicated gate driver ICs for 3.3 V logic compatibility. Hybrid designs (e.g., IGBTs) bridge the gap for 600 V+ industrial applications, combining BJT-like current handling with MOSFET-switching agility–but at a 3–5× cost premium.
Diagnosing Waveform Degradation in Complementary Stage Circuits
Begin by verifying the symmetry of the drive waveforms at the bases of the complementary transistors. Use an oscilloscope with differential probes to measure the voltage swing on both devices simultaneously. Asymmetry exceeding 5% between the positive and negative half-cycles typically indicates mismatched base-emitter voltages or unequal drive currents. Replace transistors in pairs to maintain matched characteristics, even if only one appears faulty.
Inspect the biasing network for thermal drift. The quiescent current should stabilize within milliseconds of power-up; slow creeping or sudden spikes suggest unstable bias resistors or failing diodes. Measure the voltage across each emitter resistor–ideal values range from 25–50 mV for Class AB operation. Values above 70 mV risk crossover distortion, while below 20 mV causes excessive current draw and thermal runaway.
- Check coupling capacitors for leakage using a capacitance meter. A drop below 80% of rated value introduces phase shifts, altering frequency response.
- Test slew rate performance by applying a 10 kHz square wave. Rise/fall times exceeding 1 μs indicate insufficient current delivery from the preceding stage.
- Verify power supply rail stability under load. Ripple above 50 mVpp at the rails modulates the midpoint, injecting low-frequency artifacts.
Examine the feedback loop if the circuit employs negative feedback. A broken or improperly sized feedback resistor reduces gain stability and accentuates high-frequency peaking. Calculate the feedback factor using the formula β = Rf / (Rf + Rin); values below 0.1 typically degrade linearity. Swap feedback components with precision metal-film resistors of 1% tolerance to minimize thermal noise contributions.
Isolate parasitic oscillations by probing the stage with a spectrum analyzer. Frequencies above 2 MHz often stem from inductive loads or improper grounding. Add small-value capacitors (10–100 pF) across the load to dampen resonances, but ensure their reactance remains above 1 kΩ at the highest signal frequency. Bypass capacitors should be placed no farther than 5 mm from each rail pin, with ground returns star-connected to a single point.
Assess thermal management under sustained operation. Measure case temperatures after 30 minutes of continuous drive; values above 70°C accelerate degradation of junction characteristics. Replace silicone grease layers annually–dried grease increases thermal resistance, causing localized hot spots. For TO-220 packages, torque mounting screws to 6–8 in-lbs; overtightening warps the heatsink, reducing contact area.
Review printed circuit board traces for corrosion or micro-fractures. Leakage currents as low as 10 nA across the output stage input can shift DC operating points, introducing second-harmonic distortion. Clean traces with isopropyl alcohol and reflow suspect solder joints using no-clean flux. For high-current paths, ensure trace widths exceed 2.5 mm per ampere of RMS current to prevent voltage drops exceeding 50 mV.
