For optimal performance, a dual-switching topology with symmetric winding configuration ensures minimal switching losses. Use a center-tapped transformer core–ferrite EE or toroidal–to reduce leakage inductance below 2%. Configure the primary winding with a turns ratio of 1:1.5 for input voltages between 12V and 48V, balancing conduction losses against secondary voltage regulation.
Select MOSFETs with RDS(on) under 10 mΩ and recovery time under 50 ns. IRF3205 or IPB027N10N3 are proven choices. Gate drivers must deliver 1A peak current to ensure sub-100 ns rise/fall times–UCC27524 or ISL55110 meet this requirement. Snubber circuits (RC networks, 10Ω + 1nF) suppress ringing above 50 MHz, critical for EMI compliance.
Pulse-width modulation should operate at 100–200 kHz for cost-effective magnetics while avoiding audible noise. Dead time of 100–150 ns prevents shoot-through without increasing conduction losses. Output rectification demands Schottky diodes (e.g., STPS20M100S) with forward voltage under 0.45V or synchronous MOSFETs (IRFB4115) for currents above 5A. Thermal management: 25 cm² of copper per watt dissipated on the PCB keeps junction temperatures under 125°C.
Ground planes must separate primary and secondary sides to prevent high-frequency coupling. Via stitching (minimum 8 vias per cm²) reduces ground bounce. Feedback loops require Type III compensation (PID controller) to achieve a phase margin of 45–60° and bandwidth of 10–20 kHz. TL431 or LM4041 provide precise voltage reference (±0.5%).

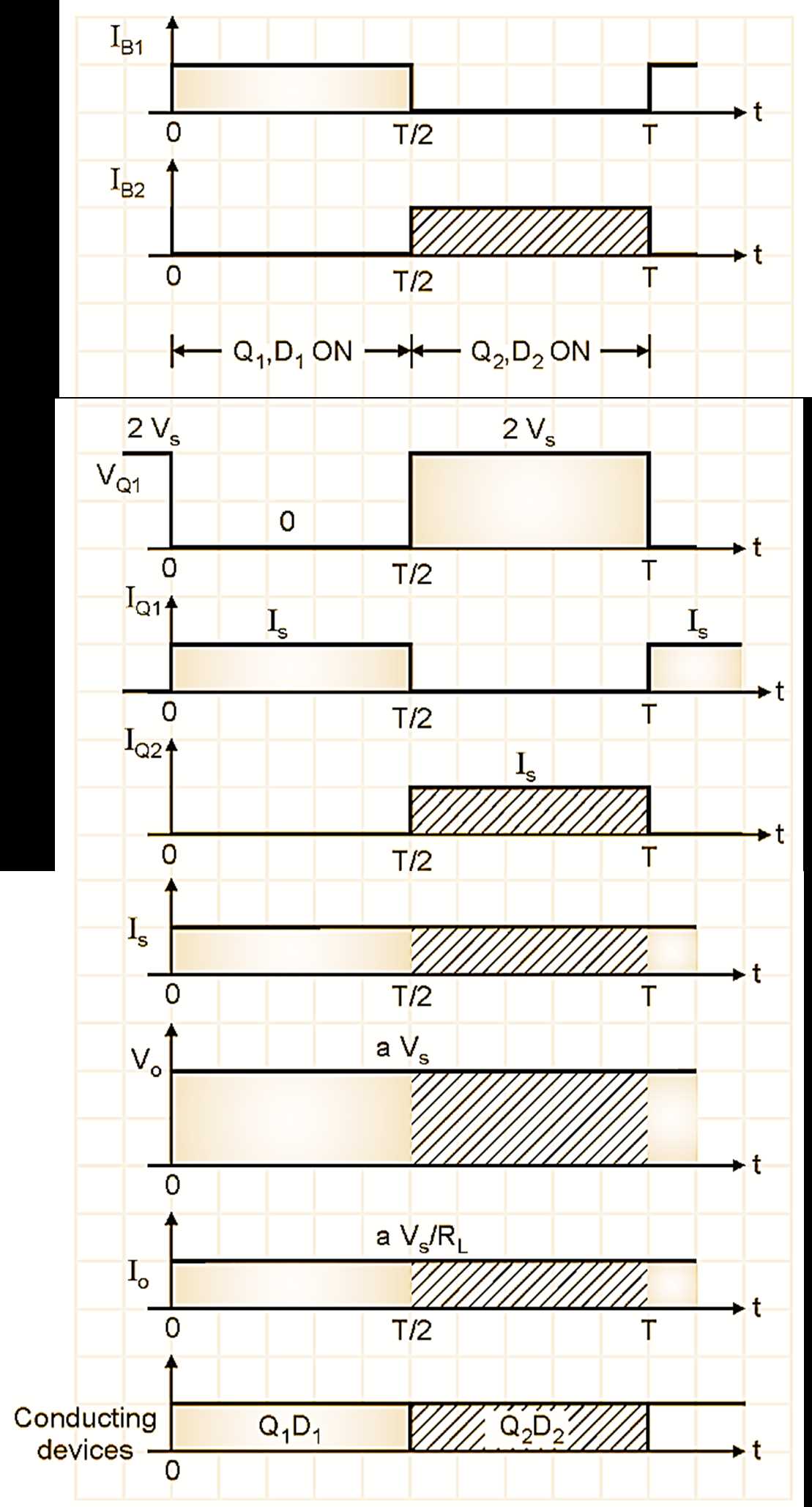

Dual-Switch Forward Transforming Schema
Begin by selecting a center-tapped transformer with a turns ratio tailored to your input and output voltage requirements. For example, if stepping down from 24V to 5V, aim for a 4.8:1 ratio–this minimizes duty cycle extremes, improving efficiency and reducing core losses. Ensure the core material suits switching frequencies above 50kHz; ferrite (e.g., PC40 or N87) outperforms powdered iron in high-frequency applications due to lower hysteresis and eddy current losses.
Pair the transformer with two MOSFETs (e.g., IRFZ44N or SiHG47N60E) driven by complementary gate signals from a PWM controller like the TL494 or UC3843. The dead time between switching phases must exceed 100ns to prevent shoot-through; adjust via the controller’s timing resistors (typically 1kΩ–10kΩ) and capacitors (100pF–1nF). Faster transitions reduce switching losses but increase EMI–balance with gate resistors (4.7Ω–22Ω) and snubber networks (RC: 10Ω, 1nF).
On the secondary side, use Schottky diodes (e.g., SB560) for rectification due to their low forward voltage drop (~0.3V) compared to ultrafast diodes (~0.6V). Place a small LC filter (10µH inductor + 470µF capacitor) to smooth output ripple; aim for
Calculate the required inductance for the output filter using L = (Vout × (1 – D)) / (fsw × ΔI), where D is the duty cycle, fsw is the switching frequency, and ΔI is the allowable ripple current (typically 20–40% of full load). For a 5V/5A output at 100kHz and 30% ripple, L ≈ 5µH. Use a toroidal core (e.g., T106-26) to minimize radiated EMI.
Gate Drive Optimization
Isolate the gate drive with a dedicated driver IC (e.g., UCC21520 or Si8271) to prevent ground bounce. The driver’s supply should be 12–15V, regulated via a bootstrap circuit (10Ω resistor + 1µF capacitor) for high-side MOSFETs. Avoid relying solely on the controller’s internal driver–external drivers improve rise/fall times (target 200kHz), use a driver with built-in Miller clamp (e.g., NCP51510) to mitigate gate ringing.
Thermal management dictates reliability. Place MOSFETs on a heatsink with a thermal interface material (e.g., Arctic MX-6) if power dissipation exceeds 1W. For a SiHG47N60E (600V/47A), Pdiss = Irms² × Rds(on); at 5A and 0.1Ω, this yields 2.5W. A 3°C/W heatsink suffices for ambient temperatures under 50°C. Monitor die temperature with an NTC thermistor (10kΩ at 25°C) placed near the MOSFET tab.
Input and output capacitors dictate transient response. Use low-ESR electrolytic capacitors (e.g., Nichicon UHE series) for bulk energy storage, paired with film capacitors (e.g., WIMA MKS2) for high-frequency noise suppression. For a 24V input at 5A output, combine 47µF electrolytic + 1µF film at the input and 1000µF electrolytic + 0.1µF film at the output. Measure ESR with an LCR meter at 100kHz–the lower, the better (
Stability requires loop compensation. Use a Type II compensator (two-pole, one-zero) in the feedback path. Adjust the crossover frequency to 1/10th of the switching frequency (e.g., 10kHz for 100kHz operation) via resistors and capacitors on the PWM controller’s error amplifier. For TL494, start with Rf = 100kΩ, Cf = 1nF, Rc = 10kΩ, then fine-tune using a network analyzer or step-load test. Protect against overcurrent with a sense resistor (
Critical Elements and Their Functions in a Two-Switch Power Stage
Select a high-frequency transformer with a core material optimized for bidirectional flux operation–ferrite (e.g., PC40 or N87) is ideal due to its low hysteresis losses below 300 kHz. Wind primary coils symmetrically (e.g., bifilar winding) to minimize leakage inductance; a mismatch above 5% between primary halves causes uneven current sharing and thermal stress on switching elements. Secondary windings should use Litz wire for frequencies above 100 kHz to reduce skin effect losses–#38 AWG strands work well for outputs under 50W.
Switching Devices and Drive Requirements
- MOSFETs (e.g., IPA60R160P6): Choose devices with RDS(on) under 200 mΩ and Qg below 30 nC to reduce conduction and switching losses; ensure VDSS exceeds input voltage by 30% (e.g., 200V for 150V DC bus).
- Gate drivers (e.g., UCC27322): Implement dead-time of 50–100 ns to prevent shoot-through; use isolated drivers for half-bridge configurations to avoid ground loops.
- Snubber network: Add RC snubbers across drain-source (e.g., 1 nF + 10 Ω) to clamp voltage spikes above 50V; film capacitors (e.g., MKT) reduce ESR-linked heating.
Output rectification demands fast recovery diodes (trr
Step-by-Step Assembly of a Dual-Switching Core Device
Select a ferrite core with an ETD or EE shape, ensuring the cross-sectional area matches the power rating–typically 20–50 mm² for 50–200W applications. Wind the primary coils first, using bifilar or trifilar wiring to minimize leakage inductance. Each winding should have an equal number of turns (e.g., 20 turns of 0.8 mm enameled copper wire for a 12V input). Secure layers with polyester tape at 180° intervals to prevent layer shifting during operation.
- Prepare the bobbin: Drill two 2 mm holes at opposite ends for lead anchoring.
- Strip 5 mm of insulation from wire ends; tin with 60/40 solder to prevent fraying.
- Align the first primary coil’s start and finish leads at the same bobbin edge to simplify phasing.
- Apply 0.1 mm Nomex insulation between primary and secondary layers if voltage exceeds 100V.
For secondary windings, use a single layer of thicker wire (e.g., 1.2 mm for 5A output) with the number of turns calculated as N_sec = N_prim * (V_out + V_diode) / V_in_min. Terminate secondary leads with crimp connectors rated for 20% above the expected current. Verify phasing by applying a 1kHz, 5Vpp signal to the primary and measuring secondary voltage with an oscilloscope–opposite polarities indicate correct alignment. Seal the assembly with a two-part epoxy (e.g., Araldite 2011) cured at 60°C for 2 hours to eliminate microphonics.
Common Faults and Troubleshooting in Symmetrical Power Stages
Check for uneven transistor switching immediately–mismatched duty cycles between primary-side switches cause transformer core saturation, leading to excessive current draw. Measure gate drive signals with an oscilloscope: asymmetric waveforms exceeding ±5% deviation between high-side and low-side MOSFETs indicate driver failure or improper dead-time settings. Replace faulty drivers if rise/fall times differ by more than 20 ns.
Core saturation manifests as audible buzzing, overheating, or erratic output voltages. Verify primary inductance with an LCR meter: a drop below 90% of nominal value confirms core degradation. Replace the magnetic component if DC bias tests reveal saturation at 50% of rated current–common with low-quality ferrite cores. For immediate mitigation, reduce input voltage by 10% until a replacement is installed.
Output voltage instability often stems from failed output diodes. Test reverse recovery times: excessive leakage (above 5 µA) or slow switching (>100 ns) degrades efficiency. Use Schottky diodes for voltages under 60 V; ultrafast recovery types for higher ranges. Poor solder joints on diode leads create thermal hotspots–reflow connections with lead-free solder if infrared imaging reveals temperature gradients exceeding 20°C across the diode.
Diagnostic Table for Key Symptoms
| Symptom | Root Cause | Verification Method | Corrective Action |
|---|---|---|---|
| Excessive primary current | Transformer core saturation | Measure inductance at full load; check for >10% drop | Replace core or reduce input voltage by 15% |
| Overheating MOSFETs | Gate drive asymmetry >±5% | Oscilloscope analysis of gate waveforms | Recalibrate dead-time or replace driver IC |
| Noisy operation (acoustic) | Loose core gap or fractured ferrite | Visual inspection + tap test with non-conductive tool | Resecure core halves with epoxy or replace |
| Low output voltage | Open output diode or failed rectifier stage | Diode forward voltage drop test at operating current | Replace diode; check PCB traces for hairline cracks |
Snubber networks fail when resistor values drift or capacitors develop ESR above 1 Ω. Replace RC components in batches–individual replacement risks transient voltage spikes during turn-off. For 24 V stages, optimal values are 2.2 Ω/2 W resistors paired with 1 nF/250 V X7R capacitors. Verify snubber efficacy by monitoring drain-source voltage overshoot: values exceeding 20% of input voltage require component upgrades.
PCB trace overheating occurs when copper thickness is insufficient for current density. Calculate trace width using 1 A/mm² rule for outer layers, 0.5 A/mm² for inner layers–add 20% margin for thermal derating. Infrared thermography reveals hot traces: reinforce with 2 oz copper or external busbars if temperatures exceed 85°C. Solder-wick shorts between adjacent traces are common after rework–use a magnifier and multimeter continuity test to locate.
Control loop instability appears as output voltage oscillations. Measure error amplifier gain and phase margin with a frequency response analyzer: bandwidth below 1 kHz or phase margin under 45° confirms inadequate compensation. Replace the feedback network’s capacitor with a C0G/NP0 type–avoid X7R for stability-critical paths. For 12 V stages, a 10 nF feedback cap with a 100 kΩ resistor typically stabilizes the loop; adjust in 10% increments until ringing ceases.
Component-Specific Failure Modes
MOSFETs degrade via gate oxide breakdown–test gate-source threshold voltage: values below 2 V or above 4 V signal imminent failure. Drivers fail when output impedance exceeds 5 Ω; replace with matched-pair ICs (e.g., UCC27211) if pulling currents above 2 A. Transformers suffer from winding shorts–test secondary winding resistance: deviations above 5% indicate insulation failure. Replace the entire magnetic assembly if inter-winding capacitance exceeds 100 pF, as this accelerates core loss.
