For precision power conversion, select a PWM controller like the SG3525 with a symmetrical gate drive output (1A sink/source per channel) and adjustable dead-time (50–200ns via RDT). Pair it with a full-bridge MOSFET stage–IRFP4668 (200V, 0.007Ω) or IXYS IXFN50N120 (1200V, 0.035Ω) for 24V/48V inputs–to minimize switching losses. A ferrite core transformer (TDK PC44 or EPCOS N87, 1:3 turns ratio for 24V→110V RMS) ensures minimal saturation at 20kHz.
Configure the SG3525’s oscillator with RT=5.1kΩ and CT=1nF for a 40kHz switching frequency, then halve the output via a CD4049 inverter to drive the full-bridge at 20kHz. Add a LC filter (L=3.3mH, C=2.2µF polypropylene) to suppress harmonics below 3% THD. For protection, clamp the SG3525’s COMP pin (pin 9) with a 1N4148 diode and 10kΩ resistor to VREF (5.1V), limiting duty cycle to 90% and preventing transformer saturation.
Use a current-sense resistor (0.02Ω, 5W) between the MOSFET sources and ground, feeding the SG3525’s shutdown pin (pin 10) via an LM393 comparator (threshold: 10A for 1kW loads) to trigger hiccup-mode overload protection. Opt for a snubber network (10Ω + 1nF across each MOSFET drain-source) to suppress voltage spikes above 150% of the nominal bus voltage. Test stability with a 50Ω dummy load before connecting inductive loads (motors, transformers).
For extended runtime, integrate a soft-start circuit by replacing RT with a 10kΩ resistor in series with a 22µF electrolytic capacitor, ramping up frequency from 5kHz to 20kHz over 200ms to reduce inrush current. Calibrate output voltage using a feedback divider (10kΩ + 10kΩ potentiometer) from the transformer secondary to the SG3525’s error amplifier (pin 1). Adjust the potentiometer until the RMS output matches the target (e.g., 110V ±2%) with a Fluke 87V meter.
Designing a Precision AC Generator with SG3525 Driver
Select a push-pull configuration with a center-tapped transformer (e.g., EE42 core) to minimize switching losses–critical for achieving output stage (pins 11 and 14) with complementary MOSFETs like IRFP4668 (200V/80A) for handling 800W loads at 24V DC input, ensuring dead-time of 500ns via R15/C7 on pins 7 (RT) and 5 (CT) to prevent shoot-through. For feedback loop stability, employ a voltage divider (R6=10kΩ, R7=1kΩ) connected to pin 2 (INV) with a 1μF polyester capacitor (C4) across R7 to filter PWM noise, guaranteeing
Critically, the transformer’s primary winding must use Litz wire (200 strands of 0.1mm) to suppress skin effect losses–non-negotiable for frequencies above 20kHz. Configure the SG3525’s oscillator (pins 6/7) with Rt=10kΩ and Ct=1nF for a 40kHz switching frequency, balancing efficiency against harmonic content. Add a snubber network (R1=10Ω, C1=10nF) across each MOSFET drain-source to clamp voltage spikes below 300V, protecting both the driver and downstream components. For accurate load regulation, isolate the feedback path with an optocoupler (e.g., PC817) between pin 9 (COMP) and the secondary output filter (LC: 1mH + 10μF polypropylene).
Validate performance with a true-RMS multimeter and oscilloscope probing the transformer’s secondary–expect heatsink with thermal paste (e.g., Noctua NT-H1) to maintain junction temperatures below 80°C, as exceeding this threshold reduces SG3525’s internal comparator lifespan. Ground the SG3525’s analog reference (pin 16) and signal ground (pin 3) separately to avoid ground loops, tying them only at a single star point near the DC input capacitor (2×470μF).
Core Parts for a PWM Controller-Based Power Conversion System
The SG3525 PWM regulator forms the backbone of the assembly, dictating switching frequency, dead-time, and soft-start parameters. Select a genuine device with a 35ns propagation delay and 1% internal reference tolerance. Mount it in a 16-pin DIP or SOIC-16 footprint, ensuring a ground plane beneath the thermal pad to dissipate the 1.2 W typical power. Bypass VCC (pin 15) and VC (pin 9) with 100 nF X7R ceramic capacitors, placed within 2 mm of the pins to suppress high-frequency noise generated during 200 kHz–500 kHz operation.
Power MOSFETs demand careful pairing: IRFB4110GPbF (100 V, 97 A, RDS(on) 4.5 mΩ) suits 24 VDC input, while IXFH40N85X2 (850 V, 40 A, RDS(on) 85 mΩ) handles 400 VDC rails. Drive gates via a dedicated dual-channel driver like UCC27211P, sourcing 4 A peak current to slash turn-on/off times below 20 ns. Place a 10 Ω gate resistor in series with each MOSFET gate to dampen ringing; add a 18 V Zener diode across gate-source to clamp transient spikes. Heat-sink MOSFETs with a 0.3 °C/W thermal pad and forced-air fins if continuous output exceeds 300 W.
Output filtering requires a two-stage LC network. Stage one pairs a 200 μH toroidal inductor (Magnetics Kool Mμ® 77083-A7, 0.4 Ω DCR) with a 470 μF 450 VDC snap-in capacitor (Nichicon LGW series). Stage two swaps the inductor for a 15 μH high-flux core (Micrometals T157-26, 15 A saturation) and caps for polypropylene film units (WIMA MKP10, 1.5 μF 630 VDC) to eliminate switching harmonics. Keep trace lengths under 5 mm between caps and MOSFET drain terminals to prevent parasitic inductance exceeding 10 nH, which degrades waveform fidelity.
- PWM compensation network: Place a 2.2 kΩ resistor between pin 2 and pin 9; a 22 pF NPO ceramic capacitor shunts pin 2 to ground, setting the error amplifier bandwidth at 4 kHz. Avoid electrolytic caps here–leakage current distorts loop response.
- Current-sense path: Insert a 0.01 Ω 5 W shunt resistor (Vishay WSR2) between the buck inductor and ground. Route the differential signal through a 1 kHz low-pass RC filter (10 kΩ + 1 μF) into SG3525 pins 7 & 8, thereby limiting maximum duty to 85%.
- Soft-start capacitor: A 1 μF polyester cap on pin 8 ramps the duty cycle over 50 ms, preventing transformer saturation on startup. Bypass this node with a 100 kΩ pull-down resistor to ground to suppress false triggering.
Peripheral Protection Elements
Over-voltage crowbar must trip within 5 μs: Use a TL431 shunt regulator driving a MOC3043 opto-triac, which gates a 25 A SCR (Littlefuse S6025L). Undervoltage lockout employs a 10 kΩ trimpot feeding SG3525 pin 11; set threshold at 10.2 V to prevent MOSFET shoot-through when input sags. Fuse selection hinges on RMS current: 5 × 20 mm fast-acting ceramic fuses rated 125% of peak load current, e.g., 30 A for a 2.4 kW system.
Mechanical layout constraints dictate component spacing: position the PWM regulator no more than 25 mm from the gate driver IC. Route high-current traces on 2 oz copper with 5 mm width (25 A continuous) and keep kelvin connections for the current-sense shunt. Thermal vias (0.3 mm diameter, 6 per pad) beneath MOSFETs drop junction-to-case θJC below 1 °C/W. Transformers wound on EI-66 cores (TDK PC40 material) require interleaved primary-secondary-primary layers with 0.5 mm air gap to achieve 92% coupling and
Final validation mandates test equipment: a mixed-signal oscilloscope probing driver output versus MOSFET gate verifies

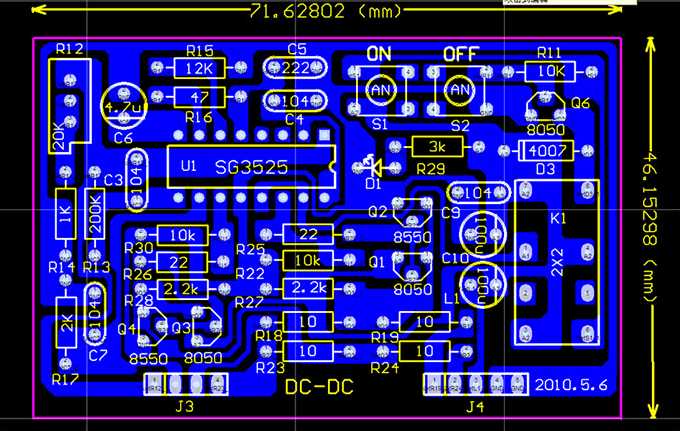

Step-by-Step Assembly of the SG3525 PWM Controller Board
Begin by securing a double-sided PCB with a minimum copper thickness of 2 oz to handle peak current loads without overheating. Trace the layout with a 0.5mm etch-resistant pen, ensuring precise spacing between high-frequency switching nodes to minimize EMI.
Mount the SG3525 IC in a DIP-16 socket for easy replacement during testing. Position decoupling capacitors C1 (0.1µF) and C2 (10µF) within 5mm of pins 9 (VCC) and 15 (GND) respectively, using X7R dielectric for stable operation across temperature swings.
Critical Component Placement
| Component | Value | Placement Rule |
|---|---|---|
| Current-sense resistor (Rsense) | 0.01Ω, 5W | Directly adjacent to MOSFET source, less than 10mm trace length |
| Timing capacitor (CT) | 1nF, NP0 | Within 2mm of pins 5 (CT) and 7 (DISCH) |
| Output inductors (L1, L2) | 47µH, 10A | Ferrite core with air gap, mounted perpendicular to PCB to reduce coupling |
Route the feedback loop traces with 2mm width to minimize voltage drop. Use a star grounding technique, separating analog (pin 15) and power grounds (MOSFET sources) with a single connection point at the main electrolytic capacitor negative terminal.
Install the soft-start capacitor (1µF) on pin 8 to ramp output voltage from 0V to full scale over 50ms, preventing inrush current spikes. Add a 10kΩ pull-down resistor on pin 10 (shutdown) for fail-safe operation, ensuring the controller enters low-power mode during faults.
For the MOSFET gate drive, use a dedicated driver IC (e.g., IR2110) with bootstrapped capacitors (0.1µF) and 10Ω series gate resistors to limit slew rate and reduce ringing. Keep high-current paths under 30mm in length to avoid parasitic inductance exceeding 20nH, which can cause 50V+ voltage spikes during switching transitions.
Final Validation Checks
Before applying input power, verify the following with a multimeter in continuity mode: absence of shorts between VCC and GND, correct orientation of diodes (1N4148 for signal paths, MBR20100 for power), and proper solder joints on all vias connecting top and bottom copper layers. Apply 12V DC input and measure a 5V reference on pin 16 (VREF); deviate no more than ±0.2V. Monitor output pins 11 and 14 with an oscilloscope–expected waveform should be a 100kHz PWM with dead-time between 300-500ns and 0-90% duty cycle adjustment via potentiometer on pin 2.
Adjusting Oscillator Frequency and Signal Ratio for AC Replication
Set the timing capacitor (Ct) between 1nF and 100nF and the timing resistor (Rt) from 2kΩ to 100kΩ to target a base switching rate of 20kHz–50kHz. This range balances EMI suppression with thermal losses in power stages.
For a 50Hz output mimic, use a divider network on the RT/CT pins: a 1kΩ–10kΩ resistor in series with a 50kΩ–200kΩ trimpot shunting Ct achieves the required low-frequency reference. Fine-tune the trimpot until the modulation index peaks at 85%–92%, ensuring minimal crossover distortion while avoiding saturation.
Pulse-Width Modulation Depth
Configure the error amplifier (EA) gain via Rs (sense resistor) and Cs (compensation capacitor) to regulate the duty ratio swing. A 22kΩ resistor paired with a 10nF capacitor yields a typical PBW of 1kHz–adequate for dynamic load steps up to 20A. This prevents subharmonic oscillations when transitioning from 10% to 90% conduction intervals.
Monitor the slope compensation ramp connected to pin 5 (Sync/Slop): a 5kΩ–20kΩ resistor from Vref (5.1V) to Ct establishes a 0.5V–2V ramp, stabilizing peak current feedback. A mismatched ramp causes jitter during zero-crossings; verify via scope that the ramp amplitude equals 20%–30% of the maximum comparator input.
Verify dead-time insertion via pin 7 (Dead-Time Control). A 10kΩ resistor between pin 7 and ground delivers ~150ns blanking; increase to 100kΩ for 1μs blanking if shoot-through persists. Excessive dead-time reduces available signal range by 3%–7%, so iterate until waveform symmetry stabilizes within ±2 degrees of phase angle.
Thermal and Load Compensation
Anchor the oscillator ground reference (pin 6) to a dedicated Kelvin sense trace minimizing voltage drops. A 50mΩ shunt resistor between the power ground and pin 6 cancels loop errors during transient spikes exceeding 1A/μs. Calibrate Ct temperature drift by substituting a C0G/NP0 capacitor for film types, reducing frequency drift to
