Start with a Wheatstone bridge configuration for linear response in platinum-based resistive elements. A 3-wire setup cancels lead resistance errors–use matched copper traces for all conductors. Excitation current should not exceed 1 mA to prevent self-heating; 0.5 mA yields optimal stability for 0–100°C ranges.
Select 1 kΩ nickel-chromium resistors for bridge arms, pairing them within ±0.1% tolerance. This ensures minimal zero drift and maximizes sensitivity–typical output spans 2–12 mV/°C when paired with a 5 V reference. For amplification, choose an instrumentation amplifier with gain of 100–200; AD8221 or INA125 reject common-mode noise up to 100 dB.
Isolate the analog front-end from digital circuitry using ground planes–no shared traces between high-impedance sensor leads and microcontroller I/O. Decouple the bridge supply with a 10 µF tantalum capacitor at the source, bypassed by a 100 nF ceramic to suppress high-frequency artifacts. Sample at 10 Hz or slower; faster rates introduce aliasing without improving resolution.
Calibrate using two fixed points–ice-water slush (0°C) and boiling distilled water (100°C). Adjust offset and gain potentiometers to match ADC readings ±0.2°C. For extended spans, use oven-controlled calibration blocks set to 50°C and 150°C. Never short sensor leads–open-circuit detection requires a pull-up resistor (47 kΩ) tied to the excitation rail.

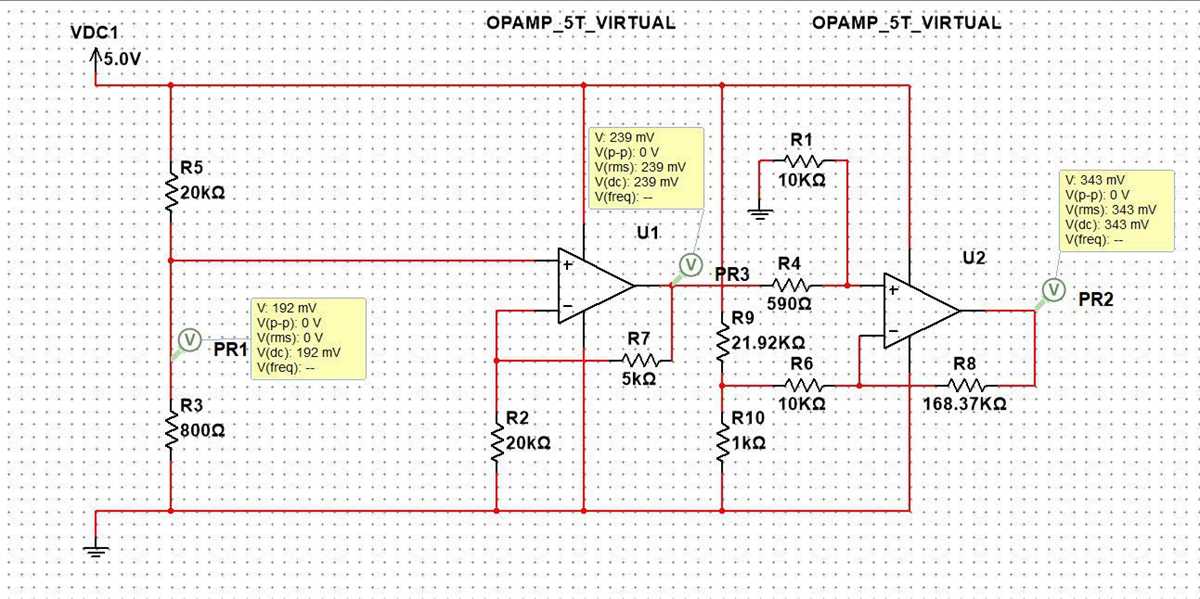

Precision Resistance Measurement Setup for 1000Ω RTDs
Connect a stable 1 mA constant-current source to the resistive element’s leads. Use a four-wire Kelvin arrangement to eliminate lead resistance errors–this is non-negotiable for readings below ±0.1°C accuracy. Place the sensing paths on separate conductors, ensuring minimal length differences between them to avoid thermal EMF interference.
A precision instrumentation amplifier with a CMRR above 120 dB should bridge the voltage tap points. Select an AD8221 or equivalent–its gain drift remains under 10 ppm°C, critical for maintaining consistency across -50°C to 250°C spans. Bypass the amplifier’s power pins with 0.1 µF ceramic capacitors, positioned within 2 mm of the package to suppress high-frequency transients.
Linearize the output with a microcontroller using the Callendar-Van Dusen equation in its full form:
R(T) = R₀ [1 + AT + BT² + C(T – 100)T³].
Precompute coefficients A = 3.9083×10⁻³, B = -5.775×10⁻⁷, and C = -4.183×10⁻¹² for platinum elements conforming to IEC 60751 Class A. Ensure floating-point arithmetic precision–rounding errors amplify exponentially below -40°C.
Isolate the analog front end with a low-noise LDO regulator like the LT3094. Its 0.8 µVrms output noise outperforms switching supplies, which introduce sub-millivolt ripple detectable by sensitive bridges. Ground the reference star-point directly beneath the resistive element’s mounting tab to minimize thermocouple effects from dissimilar metals.
Calibrate at two fixed points: ice-water slurry (0°C) and boiling distilled water at local barometric pressure. Log the raw ADC counts alongside ambient readings–use a secondary reference thermistor immersed alongside the element for cross-verification. A deviation exceeding 0.05°C between successive runs indicates drift in either the current source or amplifier gain, necessitating component replacement.
For high-speed acquisition, buffer the amplifier output with a unity-gain op-amp (e.g., OPA350) before feeding into a 24-bit delta-sigma ADC. Configure the ADC’s sampling rate to 10 Hz–oversampling beyond 100 Hz captures noise rather than signal bandwidth, corrupting the temperature resolution. Shield the signal paths with twisted-pair cables, grounding the shield only at the source end to prevent ground loops.
Validate the setup against a certified SPRT in a stirred liquid bath. Monitor long-term stability by logging daily zero-drift readings over a 72-hour period. A baseline shift above 0.02°C/week suggests contamination in the resistive element or oxidation at the lead junctions; replace the sensing probe if this threshold is breached.
Key Components for Precision Resistance Measurement Setup
Begin with a precision excitation source delivering 1 mA constant current to avoid self-heating errors while maintaining linearity. Use a low-noise, low-drift current source like the LT3092 or REF200, ensuring compliance voltage margin exceeds the resistive element’s drop at maximum span (e.g., 3.3 V for a 3 kΩ span at 1 mA). Bypass the source with a 10 µF ceramic capacitor to suppress high-frequency noise, and add a 100 nF film capacitor for stability under transient loads.
Select a differential amplifier with input impedance above 1 GΩ (e.g., LTC1050 or AD8628) to prevent loading the bridge. Configure the amplifier for a gain of 10–100, matching the ADC’s input range; use 0.1% tolerance resistors for gain setting. Implement a guarding trace on the PCB to reduce leakage currents, and place a 1 kΩ resistor in series with each input to limit fault currents during overvoltage events. For 24-bit resolution, pair with an ADC like the AD7799, using its internal reference at 1.17 V for full-scale calibration.
Include a three-wire compensation network if lead resistance exceeds 0.1 Ω: route identical-length traces from the resistive element’s terminals to the amplifier inputs, and use a Kelvin connection at the sensing junction. Add a 1 kHz low-pass filter with a 1.5 kΩ resistor and 100 nF capacitor to reject power-line interference. For cold-junction correction in thermocouple-like applications, bond a 1N4148 diode to the resistive element’s reference terminal and measure its forward voltage with an additional ADC channel; correct numerically in firmware using the diode’s –2 mV/°C slope.

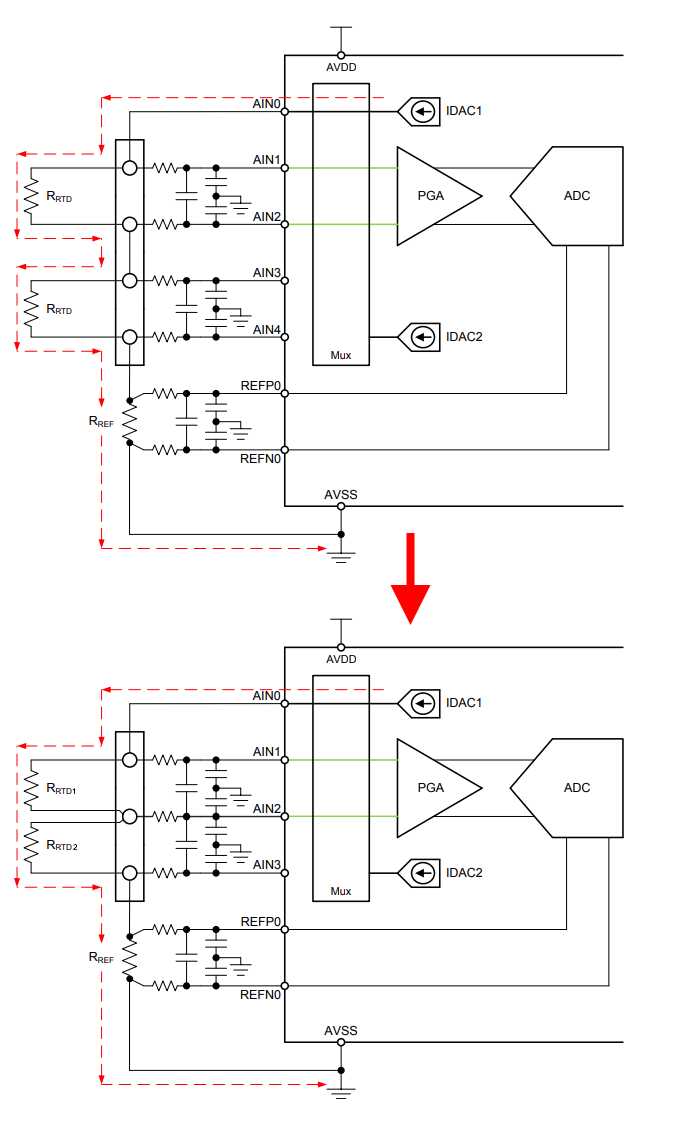

Wiring Configurations: 2-Wire vs. 3-Wire vs. 4-Wire Connections
For most industrial applications where accuracy better than ±0.5 °C is required, skip the 2-wire layout altogether. Lead resistance in a typical 2 m copper cable adds about 0.38 Ω per meter–enough to shift readings by 0.1 °C per meter at 0 °C. If you must use 2 wires, keep the total cable run under 3 m and calibrate the offset once the installation is complete.
3-Wire Compensation–When and How
Use a 3-wire bridge only if the excitation current is identical in both lead pairs; mismatched currents introduce a proportional error. Select bridge resistors that match the cable gauge–499 Ω for 0.5 mm² copper, 1 kΩ for 0.75 mm²–and verify the bridge balance at ambient before energizing the loop. Despite the added wire, 3-wire setups still suffer from uncompensated resistance asymmetry in the third lead, so restrict it to applications where ambient stays within ±20 °C of calibration temperature. For anything beyond that range, switch to a 4-wire Kelvin connection: two wires carry the excitation, the other two–shielded and twisted–carry the signal, eliminating lead-resistance errors entirely.
Designing a Wheatstone Bridge for Precision Resistance Measurement
Select reference resistors with a tolerance of ±0.1% or better to minimize offset errors at zero excitation. For a 1 kΩ element, pair it with three precision resistors of equal value (e.g., 1 kΩ ±0.05%) to form a balanced bridge configuration. Apply a low-noise DC excitation of 1 V or less–higher voltages risk self-heating, introducing a 0.2°C error per mW of dissipated power. Use a low-temperature-coefficient foil resistor for one arm to compensate for ambient drift, targeting less than 5 ppm/°C drift over a -20°C to 85°C range.
- Ground the bridge mid-point to reduce common-mode noise pickup, especially in long cable runs.
- Implement a 4-wire Kelvin connection for the sensing element to eliminate lead resistance errors–typically 0.39 Ω/m for 24 AWG copper wire.
- Choose an instrumentation amplifier with a CMRR > 120 dB to reject 50/60 Hz interference and a input noise density
- Add a 100 nF bypass capacitor across each power supply pin of the amplifier to filter high-frequency noise.
- Trim the bridge balance by replacing one reference resistor with a 10-turn 250 Ω potentiometer–this allows a ±25 Ω adjustment range for fine-tuning.
- Verify linearity by sweeping the element resistance from 900 Ω to 1.1 kΩ; non-linearity should stay below 0.05%.
Precision Signal Enhancement: Choosing the Right Amplifier for High-Accuracy RTDs
For sub-1°C accuracy with platinum resistors, select an instrumentation amplifier with input bias currents below 1 nA and offset voltages under 25 µV. The AD8421 or INA333 stand out for their laser-trimmed resistors and chopper-stabilized architecture, eliminating 1/f noise that corrupts low-level DC signals. Ensure the amplifier’s input impedance exceeds 1 GΩ to avoid loading errors–critical when excite currents are constrained to 0.5 mA or less to limit self-heating.
Single-supply configurations are viable with rail-to-rail output stages like the LMP2021, but beware: headroom requirements tighten as supply drops below 2.7 V. A 5 V supply leaves ~200 mV margin above the 3.3 V dynamic range typical of 1 kΩ platinum elements; budget 100 mV for offset drift and 50 mV for noise peaks. Below this threshold, resolution suffers nonlinearly–quantization errors in 12-bit ADCs can exceed 0.1 °C.
Avoid generic operational amplifiers for front-end conditioning; their open-loop gain rolls off at 1 kHz, inadequate for capturing the 10 Hz bandwidth of thermal transients. Instead, use a composite loop: a low-drift op-amp (e.g., OPA2188) drives a high-speed buffer (LT6015) to isolate capacitive loads from cable lengths exceeding 3 m. The table below summarizes trade-offs:
| Amplifier | Input Offset (µV) | Bias Current (nA) | Gain Bandwidth (MHz) | Supply Current (µA) |
|---|---|---|---|---|
| AD8421 | 0.5 | 0.2 | 3 | 600 |
| INA333 | 5 | 0.02 | 0.35 | 50 |
| LMP2021 | 3 | 0.003 | 1.7 | 550 |
For ratiometric measurements, match the excitation source to the ADC reference. A 2.048 V reference driving a 1 kΩ element yields 2.048 mV/°C sensitivity–ideal for 24-bit delta-sigma converters. If using a multiplexer, select devices with
Thermal gradients between amplifier and sensing element introduce Seebeck voltages. Copper-clad PCB traces or paired copper wires reduce this to
Finally, validate the setup with a 100 Ω precision decade box at three points: 800 Ω (–50 °C), 1000 Ω (0 °C), and 1200 Ω (+50 °C). Measure output drift over 8 hours; targets are
