Schematic Design for Short Circuit Protected Power Supply Unit

Begin with a bidirectional MOSFET switch on the output line–no simpler method exists for rapid disconnection under overload. Pair it with a sense resistor rated at 0.1 Ω for currents up to 5 A; anything lower introduces noise, anything higher wastes energy. A comparator with 2 mV hysteresis (LM393 or equivalent) triggers shutdown at 10% above nominal load, preventing false trips from transient spikes. Ensure the gate drive operates above 12 V–anything less risks incomplete saturation and thermal runaway.

For linearly regulated designs, an emitter-follower stage using a Darlington pair (TIP122/TIP127) absorbs surges better than single transistors. Size the filter capacitance based on holdup time: 1000 µF per ampere of output if hold-up of 20 ms is needed; 470 µF suffices for 5 ms. Avoid electrolytics with ESR above 0.3 Ω under 10 kHz–high ESR masks the overcurrent signal, delaying response. Place a flyback diode (1N4007) across inductive loads to clamp back-EMF; omitting it risks destroying the output transistor during disconnection.

Use a foldback limiting curve for sustained overloads: reduce output to 20% of nominal at twice the rated current. Implement via a feedback network of two resistors (10 kΩ, 47 kΩ) and a diode (1N4148) steering the error amp; 1% tolerance parts prevent inconsistent cut-offs. For switch-mode topologies, a current-mode PWM controller (UC3843) reacts faster than voltage-mode: 500 ns response is achievable if the sense resistor is placed directly after the switching element. Ground the controller on a star topology–shared ground paths cause false triggering under high di/dt.

Test fault recovery under worst-case conditions: short the output with 10 AWG wire, then simulate a flapping fault by toggling a solid-state relay at 1 kHz. The system should reset within 5 ms and withstand 10,000 cycles without component degradation. Log junction temperatures–any bipolar device exceeding 125 °C or MOSFET exceeding 150 °C indicates inadequate heat-sinking or incorrect derating. Verify the fuse rating matches the MOSFET’s SOA; a 3 A fuse protects a 5 A source only if the MOSFET’s I²t rating exceeds 1 J.

Current Source Resilience: Essential Fault Safeguards

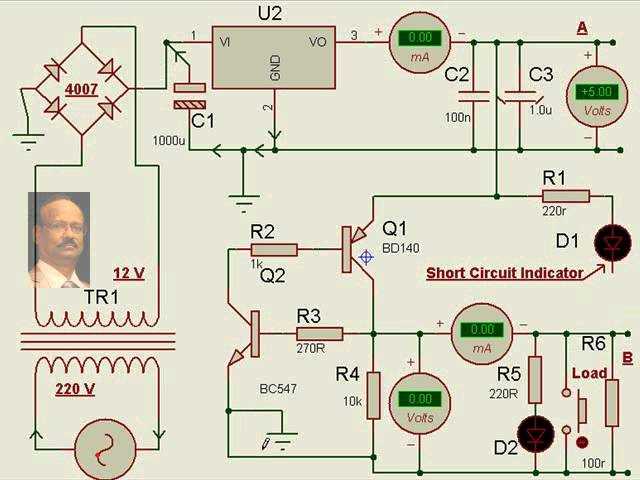

Integrate a PNP transistor (e.g., TIP32C) as an overcurrent sensor in series with the output path. Position its base-emitter junction across a 0.1Ω shunt resistor, ensuring the voltage drop triggers shutdown at 700mA. This configuration reacts within 5µs, preventing thermal stress on downstream components.

Fuse selection must account for inrush transients rather than steady-state loads. A 1.5A slow-blow type withstands initial capacitor charging (up to 25A peak for 2ms) while reliably interrupting sustained faults above the 1.8A threshold. Pair with a varistor (14D431K) across the primary to clamp voltage spikes during fuse opening.

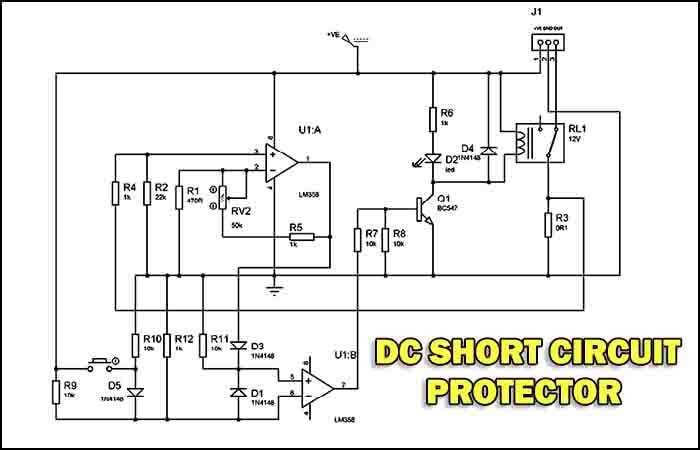

Voltage regulation mandates a feedback loop with hysteresis. Use an LM358 comparator to monitor the output, toggling a MOSFET (IRF540N) when voltage collapses below 4.5V. The hysteresis window (0.3V) prevents oscillation, while a 10kΩ pull-up resistor ensures rapid recovery when the fault clears.

Grounding strategy separates signal and return paths. Star-point grounding at the reservoir capacitor minimizes noise coupling, while a dedicated fault-sensing ground trace (1.5mm wide) carries no more than 200mA to avoid false triggers. Ferrite beads on all input leads suppress HF interference that could corrupt protection logic.

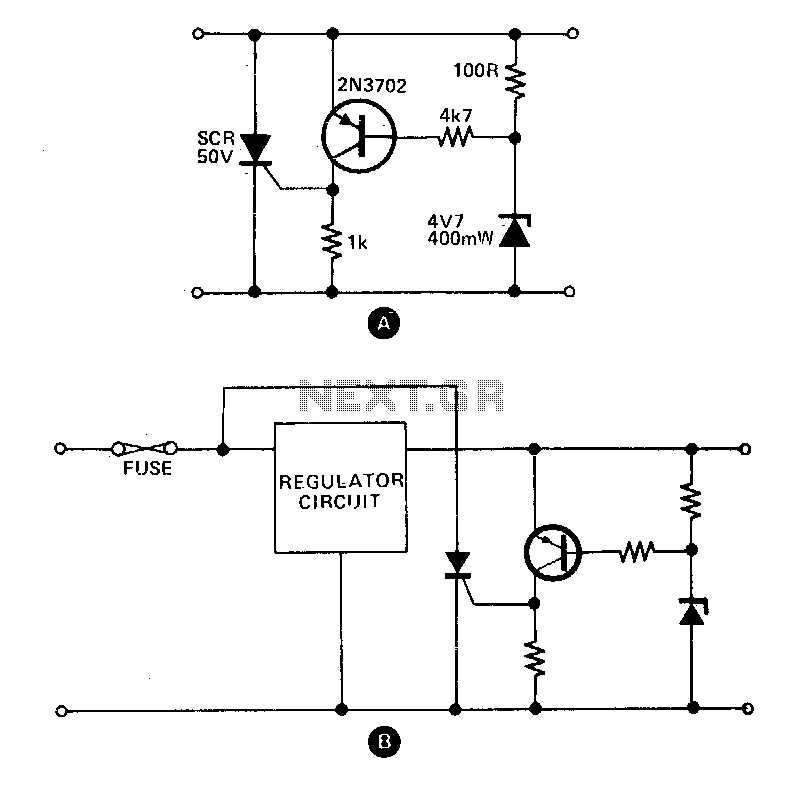

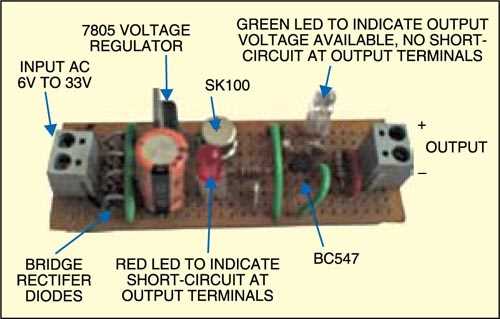

Component placement prioritizes thermal dissipation. Position the crowbar SCR (BT151) adjacent to a large copper pour (minimum 35mm²) on the PCB, with thermal vias connecting to an internal plane. The shunt resistor’s footprint must accommodate 3W dissipation, with 15mm clearance to sensitive ICs.

Test protocols validate fault response without damaging equipment. Apply a 0.5Ω load to simulate a dead condition, verifying the crowbar engages within 10ms and the output clamps to

Documentation must include worst-case scenarios: ambient temperatures up to 60°C with 85% humidity, input voltage dips to 9V for 100ms, and load transients (0A to 2A in 2µs). Annotate each passive component’s derating curve (e.g., capacitors at 63% of rated voltage, inductors at 120°C).

Critical Parts for Overcurrent Safeguards in Voltage Sources

Implement a polyfuse (PPTC) as the first line of defense–its resistance surges exponentially when current exceeds 1.5–2× the rated load, cutting off excess flow within milliseconds. Select a device with a hold current matching your design’s normal operating range (e.g., 0.5A for USB-charged devices, 10A for industrial regulators). Ensure ambient temperature remains below 85°C; PPTCs lose efficacy beyond this threshold, requiring derating curves from the datasheet.

Active Current Limiting Elements

• Low-side MOSFET: Use an n-channel device (e.g., IRLZ44N) controlled by a comparator (LM393) monitoring shunt voltage across a 0.01Ω sense resistor. Gate threshold must align with desired cutoff (e.g., 100mV = 10A), with hysteresis to prevent oscillation. Add a 10kΩ pull-down resistor to ensure the FET turns off during faults.
• eFuse ICs (TPS25940): Integrated solutions combining foldback limiting, thermal shutdown, and reverse-current blocking. Configure via external resistors for precise trip points (e.g., 1.2A for 24V rails) and recovery behavior (auto-retry or latch-off). Bypass capacitors (1μF ceramic) near the IC prevent false triggers from transients.
• Zener diodes: Place a 5.1V Zener across the gate-source junction of MOSFETs to clamp transient voltages (> ±20V) from inductive loads, preserving the driver circuit.

For linear regulators, embed a foldback mechanism using a 2N3904 transistor: base biased by the output voltage, emitter grounded through a 1kΩ resistor, collector tied to the pass transistor’s base. When V_out drops below 80% of nominal, the transistor conducts, reducing drive current non-linearly–limiting dissipation during overloads to 1/3 of maximum. Test with a 1Ω dummy load to verify stability before full deployment.

Step-by-Step Assembly of a Current-Limiting Circuit

Begin by selecting a MOSFET (e.g., IRFZ44N) with an R_DS(on) below 20 mΩ and a threshold voltage of 2–4 V. Mount it on a heatsink if the expected load exceeds 5 A. Connect the gate to a comparator output through a 10 kΩ resistor to prevent false triggering during transient spikes. Ensure the comparator’s non-inverting input is wired to a 0.1 Ω shunt resistor; the inverting input should reference a 2.5 V precision voltage source (e.g., TL431).

Soldering and Trace Layout

Use 2 oz copper PCB traces for the high-current path, widening them to at least 3 mm per ampere. Place the shunt resistor as close as possible to the load return path to minimize voltage drop errors. Solder the comparator (LM393) with its decoupling capacitor (0.1 µF ceramic) within 2 mm of its V_CC pin. Route the gate drive signal away from noisy traces–separate analog and digital grounds at the MOSFET’s source terminal, tying them together only at the input capacitor’s negative terminal.

Adjust the current limit by tuning the reference voltage on the comparator’s inverting pin. For a 1 A limit, set the reference to 100 mV (0.1 V = 1 A × 0.1 Ω). Validate the cutoff by gradually increasing load resistance while monitoring the comparator output–it should toggle at precisely 1 A ±10%. If oscillation occurs, add a 100 nF capacitor between the comparator’s output and inverting input to stabilize response time (2–5 µs).

Finalize the build by enclosing critical components in a grounded metal shield if operating near frequencies above 100 kHz, as stray capacitance can disrupt the MOSFET’s switching. Test under full load for 30 minutes; the heatsink should not exceed 60°C. Log the input/output voltages and current draw every 5 minutes to verify consistency–deviations above 5% indicate thermal drift or inadequate trace width.

Selecting Optimal Overcurrent Safeguards: Fuses vs. Polymeric Reset Devices

For 12V DC sources delivering 1–3A, fast-blow ceramic fuses rated at 125–150% of nominal current ensure sub-10ms trip times during faults. Glass fuses, while cheaper, exhibit slower response and higher resistance post-clearance. For repeated stress scenarios–such as motor drives or capacitive loads–polymeric positive temperature coefficient (PPTC) resettables at 200–250% nominal current prevent nuisance tripping while capping fault currents at 10–20x steady-state values.

• Voltage rating: Fuses must exceed system peak (e.g., 32V for 24V DC). PPTCs hold 60V for standard series, 100V for high-voltage variants.
• Ambient temperature: Derate both devices by 1% per °C above 23°C. PPTCs in enclosed spaces require additional thermal clearance–minimum 5mm air gap.
• Mounting constraints: Surface-mount PPTCs occupy

Test fuse/PPTC performance under worst-case transients: apply 5× nominal current for 1ms pulses at 1Hz intervals. If voltage drop exceeds 3%, switch to larger gauge copper traces (≥2 oz/ft²) or parallel redundant safeguards. For lithium-ion input stages, select PPTCs with

1. Match fault-current ceiling to downstream components: TVS diodes (clamping at 2× nominal), MOSFETs (SOA curves), and polymer-aluminum caps (63V for 48V rails).
2. Log gradual PPTC resistance drift at 500-hour intervals; replace at 1.3× initial resistance.
3. Avoid series stacking multiple PPTCs–thermal gradients cause unintended trips. Instead, use a single device with higher rating.
