Begin with a linear regulator for low-noise applications under 1A. Select an LM7805 for fixed 5V output or an LM317 for adjustable voltage ranges–ensure input exceeds output by 2V minimum. Heat dissipation calculations are critical: P = (Vin – Vout) × I. Use a TO-220 package with a heatsink if dissipation exceeds 1W.
For higher efficiency, implement a buck converter like the LM2596. Set the feedback resistor ratio to match target voltage: Vout = 1.23 × (1 + R1/R2). Input capacitors (22µF) absorb voltage spikes; output capacitors (47µF) stabilize transient response. Add a Schottky diode (1N5822) for reverse polarity protection.
Isolate sensitive components with a transformer-based solution. A 12V center-tapped transformer paired with a bridge rectifier (KBPC2510) reduces ripple–use 1000µF smoothing capacitors per 1A load. Current-limiting resistors (0.1Ω) protect against inrush; fuse selection follows Ifuse = 1.2 × Iload.
Ground separation prevents ground loops: star topology with a single reference point. Noise-sensitive circuits (MCUs, analog sensors) require dedicated regulators (LD1117V33). Label all components with designators (C1, R2) and voltage/current ratings. Validate using a multimeter: measure input/output voltage, ripple (
For battery-driven systems, prioritize low dropout (MIC29302). Lithium-ion charging circuits (TP4056) need thermal protection–monitor charge termination (4.2V ±50mV) and discharge cutoff (2.5V). Always include EMI filtering (ferrite beads, 10µH inductors) for compliance with conducted emissions standards (CISPR 22).
Designing Reliable Energy Sources for Electronic Systems
Select a linear regulator for noise-sensitive applications like audio amplifiers. Use the LM7805 for fixed 5V outputs with a dropout of 2V–ensure input exceeds 7V to maintain regulation. For variable outputs, pair an LM317 with a 240Ω resistor and adjustable potentiometer; calculate the output voltage using Vout = 1.25 × (1 + R2/R1). Reduce thermal stress by mounting the regulator on a heatsink rated for at least 5°C/W when dissipating over 1W.
Switching converters offer higher efficiency for battery-operated devices. A buck converter like the LM2596 can step down 12V to 3.3V at 90% efficiency with a 3A load. Add a 22µF input capacitor and a 100µF output capacitor to minimize ripple; use a 33µH inductor with a saturation current 20% above the peak load. For compact layouts, prioritize short traces between the IC, diode, and inductor to prevent EMI.
Protection and Stability Enhancements
Integrate reverse polarity protection using a P-channel MOSFET (e.g., SI2301) on the input line. For overcurrent limits, place a 0.1Ω shunt resistor in series with the load and amplify the voltage drop with an LM358 comparator to trigger a shutdown transistor. Add a fast-acting 1A fuse as a secondary safeguard. Snubber circuits across relays or inductive loads: combine a 10Ω resistor in series with a 0.1µF capacitor to suppress transients above 50V/µs.
Grounding schematics demand separate analog and digital grounds tied at a single star point near the main reservoir capacitor. Use a ground plane for high-current paths to reduce noise coupling. For isolated designs, employ a flyback transformer with a turns ratio of 1:1.25 (input:output) for 5V outputs from 12V; include a TL431 shunt regulator on the secondary side to improve load regulation to ±1%.
Thermal management dictates component placement. Position transformers and regulators away from heat-sensitive ICs like ADCs. For forced-air cooling, specify a fan with 50 CFM airflow for enclosures exceeding 15W dissipation. Use thermal adhesive to bond heatsinks to TO-220 packages if mechanical fastening isn’t feasible–ensure a thermal resistance below 1.5°C/W.
Component Selection and Layout Practices
Choose capacitors based on ESR: low-ESR tantalums (e.g., 22µF at 16V) for switching IC inputs, and X5R/X7R ceramics (e.g., 10µF at 25V) for outputs. Place decoupling capacitors within 2mm of IC power pins; use 0.1µF ceramics for general decoupling and 10µF tantalums for bulk storage. For high-frequency designs, add a 1nF capacitor in parallel to ceramic units to filter GHz-range noise.
Trace widths on PCBs must handle current loads: 25µm copper with 1mm width per ampere for continuous loads. For transient spikes, double the width. Use via stitching around high-current paths to distribute heat–arrange vias at 5mm intervals. Route feedback loops for switching regulators away from noisy traces; keep the path between the output capacitor, inductor, and IC under 10mm to prevent instability.
Test prototypes with an oscilloscope to verify ripple below 50mVpp at full load. Use a 10× probe with a ground spring to avoid false readings from probe inductance. For conducted EMI compliance, add a common-mode choke (e.g., 1mH) on the input lines and ensure the enclosure’s chassis ground connects to earth via a 1nF Y-capacitor. Document test points for voltage, ripple, and ground noise in the schematic to streamline troubleshooting.
Core Elements of a Linear Regulator Layout

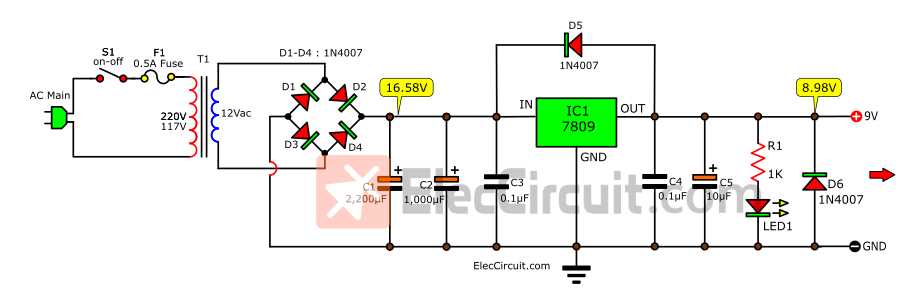

Select a transformer with a secondary voltage 1.2–1.5 times the target output to account for dropout margins. For a 12V output, opt for an 18V AC secondary winding; this ensures the smoothing capacitor receives adequate headroom while preventing excessive heat in the pass element. Pair the transformer with a bridge rectifier rated for at least double the peak current of the load–exceeding 1A continuous draw demands a GBPC15 or similar module to avoid thermal saturation.

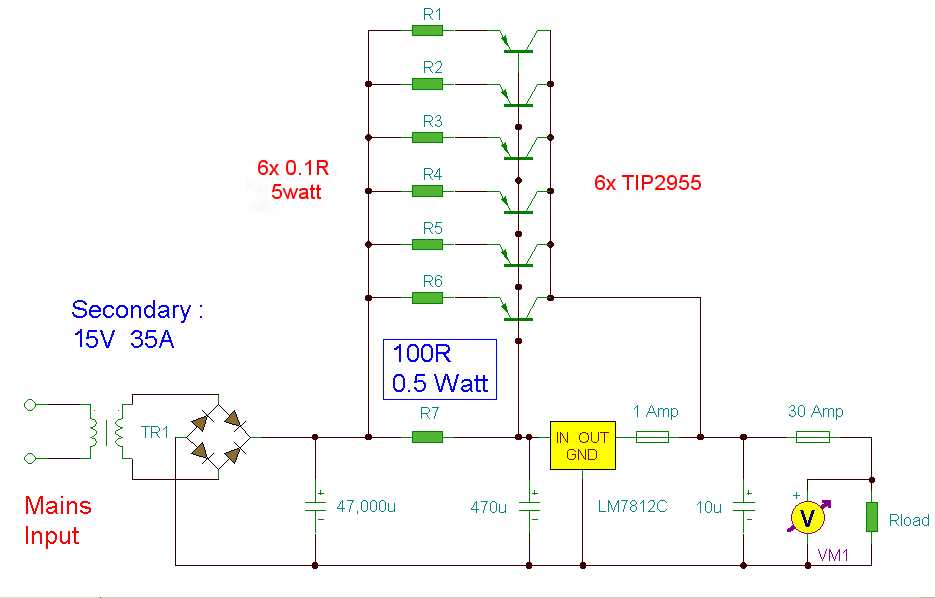

Use a low-ESR electrolytic capacitor (minimum 2200µF per ampere of output) post-rectification to reduce ripple to under 50mV peak-to-peak at full load. Match the pass transistor (e.g., TIP3055 for up to 5A) with a heat sink sized for 3°C/W thermal resistance or better; without forced air, expect 1W of dissipation per 0.5°C rise. For feedback stability, place a 10µF tantalum capacitor directly between the output and the error amplifier’s inverting pin, alongside a 1kΩ-10kΩ resistor divider to set the reference voltage.
How to Select the Right Transformer for Your Design
Choose a core material based on frequency and efficiency targets. Ferrite cores suit high-frequency applications (20 kHz–1 MHz) due to low eddy-current losses, while laminated silicon steel outperforms below 1 kHz–especially at 50/60 Hz–where flux density reaches 1.5 T without saturation. For toroidal transformers, calculate required VA rating by multiplying primary RMS voltage (Vpri) by RMS current (Ipri); derate by 20 % to accommodate inrush transients during startup.
Key Parameters Verification
- Measure winding resistance: ensure DC resistance stays under 0.1 Ω per turn for 24 AWG wire to minimize copper losses.
- Check voltage regulation: target under 5 % drop from no-load to full-load; higher regulation indicates insufficient core size or poor coupling.
- Insulation class dictates temperature rise: Class B (130 °C) allows 80 °C rise above ambient, Class H (180 °C) extends lifespan but increases cost.
- Verify leakage inductance via short-circuit test: values exceeding 2 % of magnetizing inductance degrade transient response.
For PCB-mounted designs, prefer EE or EI cores with bobbin separation exceeding 2 mm to meet UL 60950 creepage requirements. Multiply output current by 1.4 to determine wire gauge, ensuring cross-sectional area exceeds 4 A/mm² to prevent overheating.
Step-by-Step Guide to Wiring a Rectifier Assembly
Select a bridge configuration–either single-phase full-wave or three-phase–based on load demands, with the latter handling currents exceeding 5A more reliably. For low-current applications (under 2A), a single-phase bridge suffices, though heat dissipation requirements vary: 1.5W dissipation per amp for silicon diodes versus 3W for germanium.
Mount diodes on a heat sink if the expected current exceeds 1A, using thermal paste and insulating washers to prevent shorts. The table below outlines heat sink size recommendations for ambient temperatures up to 40°C:
| Current (A) | Heat Sink Area (cm²) | Material Thickness (mm) |
|---|---|---|
| 1–3 | 25 | 1.5 |
| 3–5 | 40 | 2 |
| 5–10 | 60 | 3 |
Wire the AC input leads to the transformer secondary, ensuring polarity matches the diode layout. For a full-wave bridge, connect alternating current terminals to the outer diode pairs; center-tapped transformers require linking the tap to the load’s negative rail. Measure AC voltage across the transformer secondary–multiply this value by 0.9 for full-wave or 0.45 for half-wave outputs to estimate unloaded DC levels.
Add a smoothing capacitor after the diodes, selecting capacitance based on ripple tolerance. Use the formula C = I_load / (2 × f × V_ripple), where f is the ripple frequency (100Hz for full-wave, 50Hz for half-wave). Typical values for a 1A load at 12V with 5% ripple: 2200µF for full-wave, 4700µF for half-wave. Solder capacitors with short leads to minimize inductance.
Verify connections with a multimeter before energizing. Probe the AC inputs–expected readings should mirror transformer secondary voltage. Check DC output: full-wave configurations yield near-transformer voltage; half-wave outputs halve it. If readings deviate, trace wiring for reversed diodes or open circuits.
Install a fuse inline with the AC source, sized at 120% of expected current. For a 3A load, use a 3.5A slow-blow fuse. Position it as close to the transformer as feasible to protect against short-circuit faults. Replace ceramic fuse holders with glass types only for currents under 1A to avoid arcing.
Secure all components to a chassis using standoffs, keeping high-voltage traces separated by at least 5mm. Route load wires away from AC lines to reduce noise. For adjustable outputs, insert a linear regulator post-rectification, referencing datasheets for dropout voltage (e.g., LM317 requires 2V overhead). Confirm output stability under load with an oscilloscope–ripple should not exceed 10% of nominal voltage.
