Start with a dual-slope ADC configuration paired with a hall-effect sensor cluster for non-invasive current sampling. This setup eliminates shunt resistor heat losses while maintaining ≤0.5% accuracy across 1A–100A ranges. A 24-bit delta-sigma converter (e.g., AD7793) processes sensor data–ensure 32 kHz sampling to prevent aliasing during transient loads like motor startup.
For voltage sensing, deploy a resistive divider with temperature-compensated thick-film resistors (≤10 ppm/°C drift). Pair this with an isolation amplifier (e.g., ISO124) to reject common-mode noise in industrial environments. Ground loops are catastrophic–use a star grounding scheme with the ADC’s analog ground tied to a single copper pour, separated from digital grounds by ≥5 mm traces.
Energy accumulation requires a high-speed FPGA or dedicated DSP (e.g., STM32H7 with hardware multiplier). Multiply sampled current/voltage data in real-time using 32-bit fixed-point arithmetic–floating-point introduces unacceptable latency. Store results in dual-port SRAM with ECC protection; volatile memory corruption in energy systems risks billing disputes. Isolation barriers (e.g., ADuM540x) must exceed 2.5 kV RMS for IEC 61010 compliance.
Calibration demands a zero-crossing detector for phase alignment. Even 0.1° errors create ≥1% energy inaccuracies in reactive loads. Use a precision reference IC (e.g., LTZ1000) for stable thresholds–avoid bandgap references below 10 ppm/°C. For transient response, add a feed-forward capacitor (10–100 nF) across the ADC’s input to filter 20–100 kHz switching noise from variable-speed drives.
Output interfaces should prioritize isolated RS-485 (with fail-safe biases) over Ethernet–Cat5 cables act as antennas for EMI. For rapid prototyping, 3D-printed enclosures with embedded shielding (nickel-coated PLA) reduce radiated emissions by ≥15 dB compared to ABS. Always include firmware watchdog timers; power measurements failing for >2 seconds must trigger a hard reset to prevent false zero readings.
Energy Measurement Device Blueprint Guide
Begin by selecting a high-precision shunt resistor (0.01Ω to 0.1Ω) with a low temperature coefficient (below 50 ppm/°C). Position it in series with the load to capture current flow accurately. Pair it with an instrumentation amplifier (e.g., INA125) set to a gain of 100–1000, ensuring minimal signal distortion. Route the amplifier’s output to a microcontroller’s ADC pin–opt for a 12-bit or higher ADC for resolutions finer than 1 mV.
To measure voltage, use a resistor divider network (e.g., 10 kΩ and 1 kΩ) scaled to half the input range, protecting the ADC from overvoltage. Add a 1 nF capacitor across the lower resistor to filter noise. For AC applications, deploy a precision rectifier using an op-amp (e.g., LT1001) and fast diodes (1N4148) to convert RMS values, adjusting gain to match the expected amplitude.
Calibrate the setup by applying known loads (e.g., 1A, 5V) and logging ADC readings. Store calibration constants in EEPROM for dynamic adjustment during operation. Use a sampling rate of at least 1 kHz for transient analysis, synchronizing current and voltage measurements within 10 µs to avoid phase errors in apparent energy calculations.
Choosing Key Parts for a Homemade Energy Monitoring Device
Start with a precision ADC like the ADS1115 (16-bit, 860 SPS) or MCP3424 (18-bit, 240 SPS). These ICs handle low-voltage signals from current and voltage sensors without excessive noise, critical for accurate readings. The ADS1115 includes a programmable gain amplifier (PGA) that adjusts input range from ±256 mV to ±6.144 V, simplifying signal conditioning. Pair it with a bidirectional current sensor such as the ACS712 (20A version) for non-invasive measurements or a shunt resistor (0.01 Ω, 1% tolerance) for higher precision at lower costs. Ensure the sensor’s bandwidth exceeds your target frequency–ACS712 peaks at 80 kHz, sufficient for most AC applications.
Voltage dividers must use precision resistors (1% or better) to avoid drift. A 1 MΩ and 10 kΩ pair reduces 230V AC to ~2.3V RMS, safe for the ADC. For DC systems, scale resistances to match the expected voltage–e.g., 470 kΩ and 4.7 kΩ for 48V input. Add a TVS diode (e.g., P6KE6.8CA) across the lower resistor to clamp spikes from inductive loads. Isolate high-voltage paths with optocouplers (PC817) or isolated amplifiers (AMC1301) if safety certifications are required. For MCU selection, prioritize low-power options like the STM32G0 series or ESP32-C3, which offer sufficient ADC channels, DMA support for continuous sampling, and built-in Wi-Fi/Bluetooth for data logging without external modules.
Calibration requires stable references. Use a 2.5V voltage reference IC (LT1009) fed into the ADC’s reference pin instead of relying on the MCU’s internal reference, which varies with temperature. For current sensing, zero-drift amplifiers (OPA333) eliminate offset errors when amplifying shunt voltages. Log data to an SD card via SPI or send it to a Raspberry Pi for real-time processing, but avoid flash-heavy MCUs (Arduino Mega) if memory constraints apply. Account for thermal effects–derate resistors by 50% of nominal wattage (e.g., 0.5W for 1W resistors) to prevent drift during prolonged operation.
Step-by-Step Assembly for AC Energy Tracking Device

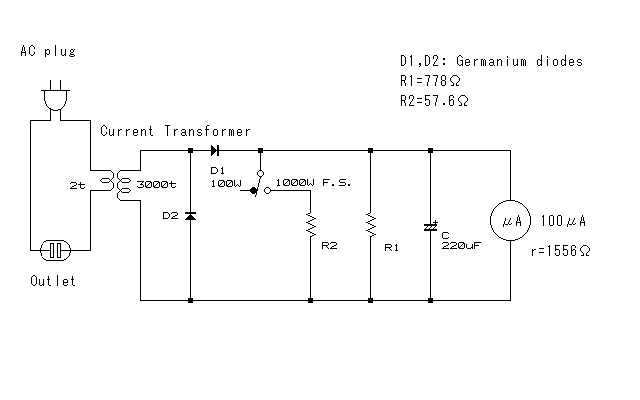

Begin by securing a non-polarized sensing element rated for at least 20A to withstand typical household loads. Opt for a current transformer with a 1:2000 turns ratio to ensure accurate measurements across a wide range–0.1A to 15A–while preventing saturation. Mount it on the live conductor only; avoid neutral or ground connections to eliminate interference from stray currents.
Select a precision shunt resistor with a low temperature coefficient (≤50 ppm/°C) for voltage drop readings. A 0.01Ω, 1% tolerance resistor provides a safe 100µV drop at 10A, balancing sensitivity and power dissipation (≤0.5W). Place it in series with the load, as close to the transformer as possible to minimize parasitic inductance. Verify the absence of nearby magnetic fields before finalizing its position.
Integrate an isolated ADC module with 16-bit resolution or higher to capture microvolt-level signals. The ADS1115 or similar offers built-in PGA (programmable gain amplifier) settings to adapt to varying signal amplitudes. Calibrate the ADC’s reference voltage to 4.096V for optimal dynamic range, ensuring it covers both low standby currents (≤0.5A) and transient peaks (≤20A). Use shielded twisted-pair wiring for all signal paths to reject noise.
Critical Assembly Order:
- Strip and tin conductor ends to prevent oxidation; stranded wire (AWG 14 or thicker) is mandatory for currents above 5A.
- Solder the shunt resistor directly to the transformer’s secondary terminals to avoid connection resistance errors.
- Apply heat-shrink tubing over soldered joints; exposed conductors risk short circuits under high loads.
- Route signal wires away from AC lines, switching power supplies, or motor-driven appliances (e.g., fridges, pumps).
- Ground the ADC’s negative reference to the same point as the sensing element’s return path–never to mains earth.
For voltage sensing, use a step-down transformer (230V/9V) or a high-impedance differential amplifier with galvanic isolation. The latter avoids phase shifts inherent in transformer-based designs but requires a precise voltage divider (e.g., 2x 270kΩ, 1% resistors for 230VAC). Calibrate the divider’s scaling factor in software to compensate for component tolerances.
Configure the microcontroller’s sampling rate to ≥1kHz to capture harmonics up to the 11th order (600Hz for 50Hz mains). Enable oversampling (4x–8x) to reduce quantization noise, then apply a moving average filter in firmware. Use an interrupt-driven approach for ADC readings; busy-wait loops introduce jitter in timing-critical applications.
Avoid These Common Pitfalls:
- Omitting a bypass capacitor (100nF) across the shunt resistor leads to HF noise corrupting measurements.
- Using a single-ended ADC input without differential wiring results in false readings due to ground loops.
- Neglecting to fuse the live conductor causes hazards if the transformer or shunt fails short.
- Mounting components near heat sources (e.g., resistors, motors) drifts calibration over time.
Test the device under known loads before deployment. A 60W incandescent bulb draws ~0.26A at 230VAC–verify this baseline within ±1%. For reactive loads (e.g., motors), ensure the firmware accounts for phase angles by computing apparent energy (VA) alongside active (W). Log raw ADC values during peak hours to identify interference patterns; adjust shielding or sampling rate if spikes exceed 3% of expected values.
Calibrating Voltage and Current Sensors Accurately
Begin calibration by sourcing a precision reference standard with ±0.05% tolerance or better. Fluke 5520A or Keysight 3458A multi-function calibrators suit most applications. Connect the reference directly to the sensor under test, bypassing any signal conditioning stages initially. For voltage measurements, set the reference to the sensor’s nominal operating range–e.g., 0–10 V for industrial transducers. Record the displayed value against the reference output in 10% increments across the full scale.
Current sensors require a stable, traceable shunt as the reference. Use a 4-terminal shunt with temperature coefficient below 10 ppm/°C. A Vishay VCS1625 or similar offers milliohm stability. Inject a known current using a precision current source–e.g., Keithley 6221–while monitoring the sensor’s output. Compare the sensor’s readings to the calculated voltage drop across the shunt. Deviations above 0.1% indicate miscalibration or drift in the sensor’s gain.
Temperature Compensation Adjustments
Measure sensor drift across the expected operating temperature range–typically -20°C to +80°C. Place the assembly in a thermal chamber and stabilize at each test point for at least 30 minutes. Use a PT100 RTD or thermocouple alongside the reference to log ambient conditions. For voltage sensors, expect a ±50 ppm/°C drift; current sensors often exhibit higher drift, sometimes ±150 ppm/°C. Apply polynomial correction factors if the sensor’s datasheet provides coefficients, or derive them empirically from chamber test data.
| Temperature (°C) | Reference Voltage (V) | Sensor Output (V) | Deviation (%) |
|---|---|---|---|
| -20 | 10.0000 | 9.9852 | 0.148 |
| 0 | 10.0000 | 10.0015 | 0.015 |
| +40 | 10.0000 | 10.0123 | 0.123 |
| +80 | 10.0000 | 10.0321 | 0.321 |
If manual adjustment is needed, locate the sensor’s trim potentiometers. Voltage dividers typically use a 20-turn 10 kΩ pot; current sensors may include a separate gain pot. Make adjustments in 1 mV increments for voltage or 10 μA increments for current using the reference as the feedback source. Avoid adjusting at extremes–focus on the 20–80% range where linearity is most critical.
Verification and Long-Term Stability
After initial calibration, verify repeatability by cycling the sensor through full-scale sweeps three times. Log each sweep and calculate the peak-to-peak variance. Target 0.1%.
For AC-coupled sensors, introduce a known sine wave at the nominal frequency–e.g., 50 Hz or 60 Hz–and amplitude. Use a lock-in amplifier or FFT analyzer to extract the RMS value. Compare against the reference’s RMS output. Phase shifts >1° or amplitude errors >0.2% indicate miscalibration in the sensor’s AC coupling or filtering stages. Adjust compensation capacitors or resistors in the signal path if necessary, referencing the sensor’s datasheet for component values.
