Select a switched-mode regulator (buck-boost) with an efficiency rating above 90% for the primary conversion stage. Models like the TI TPS63020 or Analog Devices LT8490 handle input voltages from 2.5V to 18V and output currents up to 5A with minimal heat dissipation. Avoid linear regulators–they waste energy as heat at ratios exceeding 30% when stepping down voltage.
Integrate dual N-channel MOSFETs (e.g., STMicroelectronics STB50NF06) for charge/discharge switching. These handle peak currents of 20A with 2.5mΩ on-resistance, reducing conduction losses. Pair them with a dedicated fuel gauge IC like the BQ27421 to monitor state-of-charge (SoC) within ±1% accuracy. Skip resistive dividers–parasitic drain can exceed 50µA, depleting standby capacity by 5% per month.
For overcurrent protection, use a bidirectional current sense amplifier (e.g., INA219) with a 12-bit ADC. Configure it to trip at 120% of nominal load (e.g., 6A for a 5A unit) with a response time under 10µs. Combine this with a PPTC resettable fuse (TE Connectivity RXEF series) rated for 1.1x max current–it self-resets after cooling, unlike one-time thermal fuses.
Opt for multi-layer ceramic capacitors (MLCCs) in the output filter stage. Size them at 2x the required ripple current (e.g., 22µF/6.3V X5R for a 5V/2A output) to suppress voltage sag below 50mV pk-pk. Polymer tantalums (Nichicon F96) offer lower ESR but limit max temperature to 85°C–thermal runaway risks rise above 100°C.
Include a microcontroller (e.g., STM32G030) to manage charging algorithms (CC/CV) and communication protocols (USB-PD, QC). Program it to terminate charging when the battery voltage reaches 4.2V ±0.05V–overvoltage by 0.1V reduces lithium-ion cycle life by 20%. Add a watchdog timer to reset the unit if the MCU stalls for >1s.
Housing layout must separate high-current traces (≥2mm width per amp) from signal traces () to minimize noise. Use polyimide stiffeners under critical components like the MCU–flexible PCBs crack solder joints under 1.5mm deflection. Mount the USB-C connector (Molex 211834) with through-hole reinforcement; surface-mount variants fail under 30N lateral force.
Understanding Portable Energy Storage Schematics
Begin by identifying the primary charging module–typically a lithium-ion management chip like the TP4056 or IP5306. These components regulate input from USB ports, ensuring safe voltage transition to 5V or 9V for device compatibility. Avoid generic ICs; branded variants include built-in overcharge protection, reducing failure risks to near-zero under standard usage.
Examine the battery cluster layout: series-parallel configurations dictate capacity and output stability. A 4S2P arrangement (four cells in series, two in parallel) delivers 14.8V at 6000mAh, balancing portable size with runtime. Trace connections to the protection PCB–critical for cutting off current during shorts or thermal runaway. Look for MOSFET switches like the DW01, which isolate cells automatically when thresholds breach.
Key Components for Efficient Load Distribution
Switching regulators like the MT3608 boost converter step up voltage from internal batteries to standard USB levels. Locate the inductor coil near it; its gauge determines maximum current handling (e.g., 3A for 22AWG wire). Add a Schottky diode post-regulator to prevent backflow, which extends lifespan by preventing reverse polarity damage during disconnection.
Charge indication LEDs should connect to dedicated pins on the control IC. A three-LED setup (red for charging, blue for 50%+, green for full) requires resistors sized per Ohm’s law–220Ω for red, 470Ω for blue/green–to limit current to 10mA per LED. Bypass capacitors (10µF ceramic) near input/output pins dampen voltage spikes, ensuring clean energy delivery during sudden load shifts.
For multi-port models, incorporate OR-controllers like the FP6601, which intelligently share current between ports without overloading the main storage. Each port should have independent fuses (500mA for data, 2.1A for power) to isolate faults. Test continuity from the fuseholder to the USB connector’s power pin using a multimeter; resistance above 0.5Ω signals corroded traces or poor solder joints.
Troubleshooting Common Schematic Errors
If heat builds near the charging module, verify the thermal pad’s connection to the PCB ground plane. Missing vias or inadequate solder mask openings force heat into adjacent components, causing premature shutdown. Resolve by reflowing thermal paste directly onto exposed copper pads.
Unstable output often stems from insufficient filtering: add a 1000µF electrolytic capacitor at the output stage to smooth current. For noise-sensitive devices (e.g., wireless earbuds), include a ferrite bead on the power line before the USB connector. Measure ripple voltage with an oscilloscope; anything above 120mVpp indicates poor filtering or a faulty inductor.
Essential Elements of a Portable Charger PCB Design
Prioritize the placement of the charging controller IC within 5mm of the input connector to minimize voltage drop and thermal losses. Opt for a synchronous buck converter with at least 90% efficiency at 2A load to reduce heat generation and extend runtime. Example models include the TPS61230 or MP2632, which integrate both step-up and step-down regulation in a single package.
Allocate a dedicated ground plane on the underside of the layout, ensuring it covers at least 70% of the surface area. This stabilizes reference voltages and reduces electromagnetic interference (EMI) from switching components. Use thermal vias under high-current traces, spacing them no more than 1.5mm apart to conduct heat away from the converter IC and battery protection MOSFETs.
Battery Management System (BMS) Integration
Position the BMS IC adjacent to the lithium-ion cell terminals, with no more than 30mm of trace length to prevent voltage sensing inaccuracies. Key components to include:
- Current sensing resistor (0.01Ω, 1% tolerance) for overcurrent protection
- Dual MOSFET array (e.g., Toshiba SSM3K16TU) for charge/discharge control
- Fuel gauge IC (e.g., BQ27441) for accurate capacity monitoring
Isolate the BMS ground from the main ground plane using a star-point topology to avoid noise coupling into sensitive measurements.
Input/Output Optimization
Use 2oz copper for all traces carrying ≥1.5A, widening them to at least 2mm for every 1A of current. For USB outputs, implement the following:
- Dual TPS2549 controllers for USB-C Power Delivery negotiation
- 22µF ceramic capacitors on each output to suppress voltage spikes during device plug/unplug events
- Polyfuse (e.g., MF-SM5010) rated for 2.5A to protect against short circuits
Place the output capacitors within 10mm of the USB connectors to comply with USB-IF transient response requirements.
Incorporate a 100kΩ NTC thermistor near the lithium cell’s center to monitor temperature rise during fast charging (>1C). Route the thermistor signal through a 1kΩ series resistor before connecting to the BMS IC to filter noise. For enhanced safety, add a redundant bimetallic thermal cutoff (e.g., Klixon 2BT) in series with the primary current path, calibrated to open at 70°C.
Separate analog and digital sections using a moat (1.5mm air gap) around sensitive traces like the BMS communication lines (I2C/SMBus). Decouple supply pins of ICs with 0.1µF and 10µF capacitors in parallel, placed within 2mm of the pin. For microcontrollers (if included), use a dedicated 3.3V LDO (AP2112K) with an output capacitor bank of 47µF to ensure stable operation during load transients.
Label all test points with silkscreen markers (e.g., TP1-BAT, TP2-USB) for post-assembly debugging. Include fiducial marks (1mm diameter, non-soldermasked) near fine-pitch components like ICs and connectors to aid automated optical inspection (AOI). For double-layer designs, use via stitching along high-current paths (8–10 vias per 25mm) to reduce resistance and prevent localized heating.
Step-by-Step Wiring Guide for USB Output in Portable Chargers

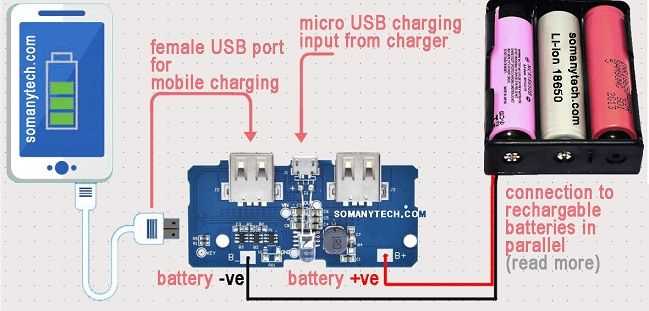

Begin by identifying the charging module’s positive (+) and negative (-) terminals–most units mark these clearly, but verify with a multimeter if labels are absent. Connect the USB port’s +5V pin (typically pin 1 on a standard Type-A socket) to the module’s positive output using 22 AWG silicone wire, ensuring solder joints are insulated with heat-shrink tubing. Avoid relying on generic wiring colors; red and black can vary across manufacturers.
For the ground connection, link the USB port’s GND pin (pin 4) to the charger’s negative terminal. Use a shared ground trace if integrating multiple outputs to prevent voltage drops. Test continuity with a multimeter before finalizing connections–resistance above 0.1 ohms indicates flawed joints requiring rework. Include a 1000µF electrolytic capacitor near the USB port to stabilize voltage spikes during load changes.
Select a USB socket with reinforced plating for durability; cheaper variants corrode under frequent use. When soldering, maintain a tip temperature of 350°C and limit dwell time to 2 seconds to prevent PCB trace delamination. For dual-port models, separate traces for data pins (D+ and D-) if supporting rapid charging protocols like Quick Charge–cross-wiring these causes handshake failures.
Introduce a resettable fuse (e.g., 2A hold, 4A trip) inline with the positive line to prevent overheating from short circuits. Position it within 5cm of the module’s output to maximize protection. For enhanced safety, add a 5.1V Zener diode across the output–cathode to +5V, anode to GND–to clamp voltage transients exceeding 5.6V, critical for lithium-based storage units.
Finalize the build by enclosing the assembly in a non-conductive case, ensuring no exposed traces contact metal surfaces. Verify USB output under load (e.g., 1A with a resistor dummy) for 30 minutes; excessive heat (>60°C) signals inadequate cooling or undersized components. Label wires internally if integrating advanced features like LED indicators–miswiring here voids overcurrent safeguards.
