Start by shutting off power at the circuit breaker–verify absence with a non-contact voltage tester. Exposed terminals pose immediate shock risks, especially in damp conditions. For single-bulb setups, connect the black (hot) wire to the brass screw, white (neutral) to silver, and bare copper (ground) to the green screw. Twist strands tightly before securing wire nuts to prevent resistive heating faults.
For motion-activated models, run a 12-gauge cable from the switch box to the sensor. Wire the sensor in series between the power source and the fixture: incoming hot to sensor’s LOAD, outgoing hot to SWITCH. Ground all components without exception. Test functionality before sealing junction boxes–loose connections arc at 20x normal current, degrading insulation.
Use weatherproof junction boxes (IP65 rated) if mounting outdoors. Seal entry points with silicone to block insects that corrode contacts. Avoid backstab connections–side screws handle 60% more current before failing. If retrofitting an existing setup, note wire gauge: 14 AWG supports 15A circuits, 12 AWG handles 20A loads. Overloading generates heat–calculate total wattage (fixture + bulb) and divide by 120V to confirm compatibility.
For dusk-to-dawn units, connect the photocell between power and fixture: red wire to LINE, black to LOAD. Verify polarity–reversing renders cells inoperative. Install near uninterrupted sky view–obstructions delay activation by 12+ minutes. Replace photocells every 5 years; degradation causes erratic behavior.
Twist conductors 4+ full rotations under wire nuts, then tug firmly–proper tension prevents loosening under thermal cycling. For conduit runs, pull strings must not exceed 40% box fill capacity. Label all junctions with circuit ID and date–unmarked systems increase troubleshooting time by 3x.
How to Connect Your Exterior Entry Illumination Step-by-Step
Start by shutting off the circuit breaker controlling the target fixture to prevent electrocution. Verify power is off using a non-contact voltage tester before touching any conductors. For a standard single-pole installation, you’ll need a 14-2 NM cable (with ground) if the circuit is 15 amps, or 12-2 NM for 20 amps–never mix gauges. Strip 1/2 inch of insulation from each wire end using wire strippers calibrated for the correct gauge to avoid nicks that could lead to breakage under tension.
Attach the black (hot) conductor from the feed cable to the brass terminal on the new switch or fixture base. If using a switch loop configuration, connect the white wire marked with black tape to this same terminal–this indicates it’s functioning as a hot conductor, not neutral. Secure all connections with wire nuts rated for the gauge (e.g., yellow for 12-14 AWG) and wrap them clockwise to prevent loosening. Tug test each connection to confirm a solid hold before proceeding.
Connect the bare or green grounding conductor to the green grounding screw on the switch or fixture housing, ensuring no exposed copper remains outside the screw’s clamping area. If the box is non-metallic, run a separate grounding pigtail to the switch or fixture. For metal boxes, attach the pigtail to the box itself first, then to the switch’s grounding terminal–this creates a continuous ground path mandated by NEC 250.148.
Neutral conductors (white) must only connect if the fixture requires it–basic incandescent or LED bulbs with integral drivers often don’t. However, smart devices, motion sensors, or photocells may need a neutral; in these cases, splice the white wire from the feed cable directly to the white wire from the device using a wire nut. Never omit or repurpose neutral conductors for other uses–violations can trip AFCIs or create shock hazards.
For installations with a three-way switch setup, use 14-3 or 12-3 NM cable between switches, containing red, black, white, and ground conductors. Connect the black “common” screw on each switch to the black or red traveler wire from the cable, and attach the red and black travelers to the brass screws. The white wire serves as neutral or return current path, depending on configuration–always label it with tape if it carries current. Verify continuity with a multimeter after installation.
After securing all conductors, push them carefully into the electrical box, ensuring no insulation is pinched or exposed. Mount the switch or fixture using #8-32 or #10-24 machine screws–metal boxes require proper threading, while plastic boxes accept drywall screws (but only once to avoid stripping). Restore power and test operation with the bulb or device installed. If the circuit trips, recheck connections for reversed polarity, loose grounds, or incorrect neutrals before proceeding.
Essential Equipment for Exterior Fixture Circuit Setup
Begin with a non-contact voltage detector to confirm the circuit is de-energized before handling any connections. Choose a model with a sensitivity range of 50–1000V AC to ensure reliable detection through insulation and walls. Check the detector’s battery before each use–faulty readings can lead to dangerous assumptions.
Select cable strippers with precision cutting slots for 12–14 AWG conductors, the standard gauges for residential outdoor feeds. Avoid multi-tools with broad jaws; they crush copper strands, increasing resistance at splice points. Verify the strippers’ calibration by testing on a scrap wire–excessive scoring weakens the conductor, while insufficient stripping causes loose terminal connections.
- Insulated screwdrivers: 1 Phillips (#2) and 1 flathead (3/16″), rated for 1000V minimum. Non-conductive shafts prevent accidental shorts if the tool slips across live terminals.
- Wire nuts (UL-listed): Red for 2–4 conductors (14–12 AWG), yellow for larger bundles. Pre-twist the wires manually before applying the nut to ensure a secure mechanical bond–loose joins generate heat.
- Weatherproof junction box: Non-metallic, NEMA 3R-rated for exterior use. Mount it vertically to prevent water entry; gasketed covers must seal completely when closed.
Use solid copper THWN-2 wire for outdoor runs–it resists corrosion better than aluminum and handles moisture exposure without pitting. For underground feeds, encase the cable in schedule 40 PVC conduit (minimum ½” diameter) buried 18″ deep, or 12″ if protected by a concrete slab. Avoid flexible LFMC conduit for long runs; rigid conduit prevents rodent damage and simplifies future replacements.
Install a dual-function circuit breaker (15–20A) combining ground-fault and arc-fault protection. This exceeds NEC requirements for outdoor circuits, where moisture and mechanical wear accelerate failure risks. Label the breaker clearly–mislabeled panels cause delays during troubleshooting.
- Fish tape (¼” width, fiberglass or nylon) for pulling wire through conduit. Lube with silicone-based pulling compound–never soap–to reduce friction burns on the insulation.
- Torque screwdriver (0.5–5 Nm range) to tighten terminal screws to manufacturer specs. Loose connections account for 30% of electrical fires; verify torque values printed on the fixture’s junction box.
- Multimeter with continuity and voltage modes. Test leads should have CAT III 600V or higher rating for outdoor circuits. Probe insulation must remain intact–exposed metal creates shock hazards.
How to Install an Outdoor Entry Lamp
Switch off the circuit at the breaker panel. Verify power is off by testing the wires with a non-contact voltage detector–hold it near each conductor until the indicator confirms absence of current. Strip ½ inch of insulation from the black (hot) and white (neutral) wires; leave the bare ground wire intact. If the fixture includes a grounding screw, wrap the bare wire clockwise around it once before tightening.
Align the stripped ends of the black conductors from the house and fixture, then twist them together clockwise. Secure with a wire nut, twisting until snug–pull firmly to ensure no slippage. Repeat for the white wires. Fold the connected wires carefully into the junction box, keeping them separated from metal edges. Attach the lamp’s mounting bracket to the box using the provided screws, ensuring it sits flush against the wall or ceiling surface.
Position the unit over the bracket and fasten it with the included hardware. If the fixture has a lens, install it now–most snap into place or are secured with small screws. Restore power at the breaker, then test the switch to confirm operation. If flickering occurs, recheck all connections for tightness or exposed strands touching the box.

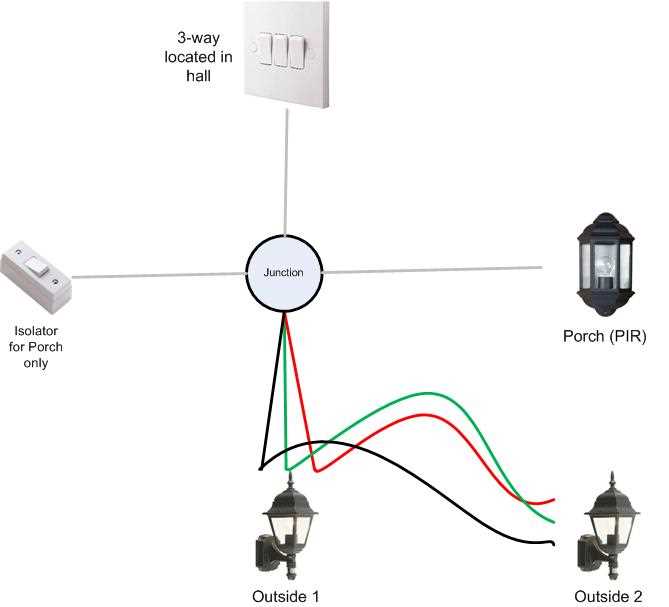

Connecting Exterior Fixtures Sequentially: A Step-by-Step Guide
Begin by mapping each fixture’s position on paper, noting distances between junctions. Measure cable runs precisely–allow 10% extra length per segment to accommodate bends and slack. Use 14 AWG copper conductor for circuits drawing under 15 amps; upgrade to 12 AWG for 20-amp circuits.
Install a dedicated breaker sized according to total load: sum all bulbs’ wattage, divide by 120 volts, then add 20% for safety margin. Label the breaker clearly “Exterior Sequence Load” to prevent future confusion.
Strip 5/8″ of insulation from each conductor end. Twist strands clockwise before inserting into terminal screws–this prevents stray strands from causing shorts. Secure connections with a torque screwdriver: 12 in-lbs for 14 AWG, 18 in-lbs for 12 AWG.
| Segment | Wire Gauge | Max Load (Watts) | Voltage Drop (3% Rule) |
|---|---|---|---|
| First to second junction | 14 AWG | 1440 | 20 ft max |
| Second to third junction | 14 AWG | 960 | 30 ft max |
| Third to final fixture | 12 AWG | 1920 | 40 ft max |
Run all cables through rigid conduit outdoors, buried 18″ deep where exposed to traffic. Use Schedule 40 PVC for above-ground runs; switch to galvanized steel where physical impacts are likely. Seal each conduit entry with silicone to block moisture.
Test each segment with a multimeter before energizing: check for continuity between hot-neutral, hot-ground, and neutral-ground. Probe should read OL; reading under 0.5 ohms indicates a fault. Re-check after 24 hours–thermal cycling can reveal latent shorts.
Fit each fixture with a weatherproof cover meeting NEMA 3R standards. Secure covers with stainless steel screws; rubber gaskets must compress uniformly to prevent leaks. Verify gasket compression by marking edges with a pencil–if marks smudge, re-seat the cover.
