Start by disconnecting the battery to prevent shorts before tracing circuits in your fold-out trailer. Use a multimeter set to continuity mode to verify connections–probe between the battery terminal and each component’s input wire. If readings exceed 0.5 ohms, corrosion or loose terminals are likely present. Clean contacts with a wire brush and dielectric grease before reassembling.

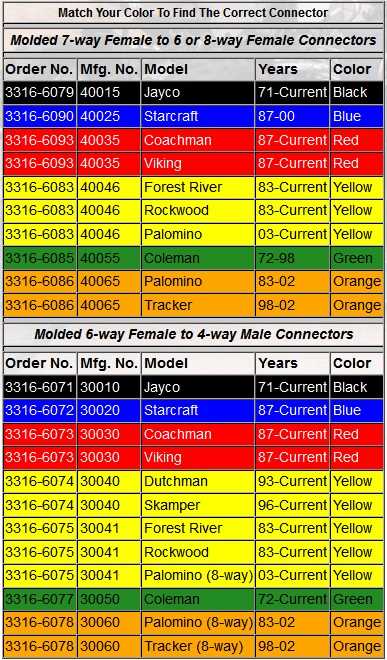

Label every wire with masking tape and a permanent marker, noting its origin (e.g., “brake lights,” “fridge 12V”). Remove the interior panel in sections to expose the harness; avoid cutting into bulkheads or structural supports. For 7-way trailer connectors, test pin functionality in this sequence: running lights (pin 3), left turn/brake (pin 5), right turn/brake (pin 6), and ground (pin 1). A 12V test light should illuminate when touching each live pin while the tow vehicle’s ignition is on.
Replace any brittle insulation by sliding split-loom tubing over splices, securing with zip ties spaced every 12 inches. Use crimp connectors with heat-shrink seals for reliable joints; soldering adds protection against vibration in mobile setups. For LED upgrades, ensure resistors match the original bulb’s wattage–typical incandescent tail lights draw 2.1 amps per side, while LEDs require only 0.2 amps.
Install a 30-amp circuit breaker within 7 inches of the battery for overcurrent protection. Route the positive cable through a grommet when passing through metal frames to prevent chafing. Ground wires should terminate directly to the trailer’s main frame, not to separate bolts or painted surfaces. Verify grounding integrity by measuring voltage drop–less than 0.2V indicates a solid connection.
For solar panel integration, wire a 20-amp charge controller between the panel and battery, using 10-gauge wire for runs under 10 feet. Fuse both sides of the circuit at the battery terminal and controller input. Test charging voltage at the battery with a full sun load; expect 13.6–14.4V for healthy absorption.
Tent Trailer Electrical Blueprint Essentials

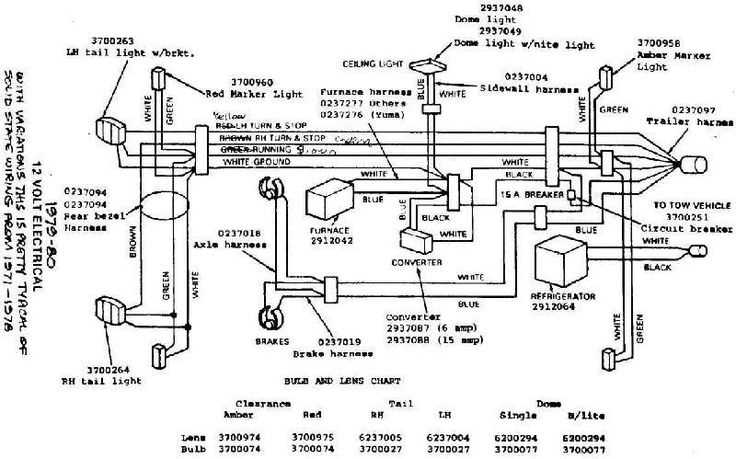

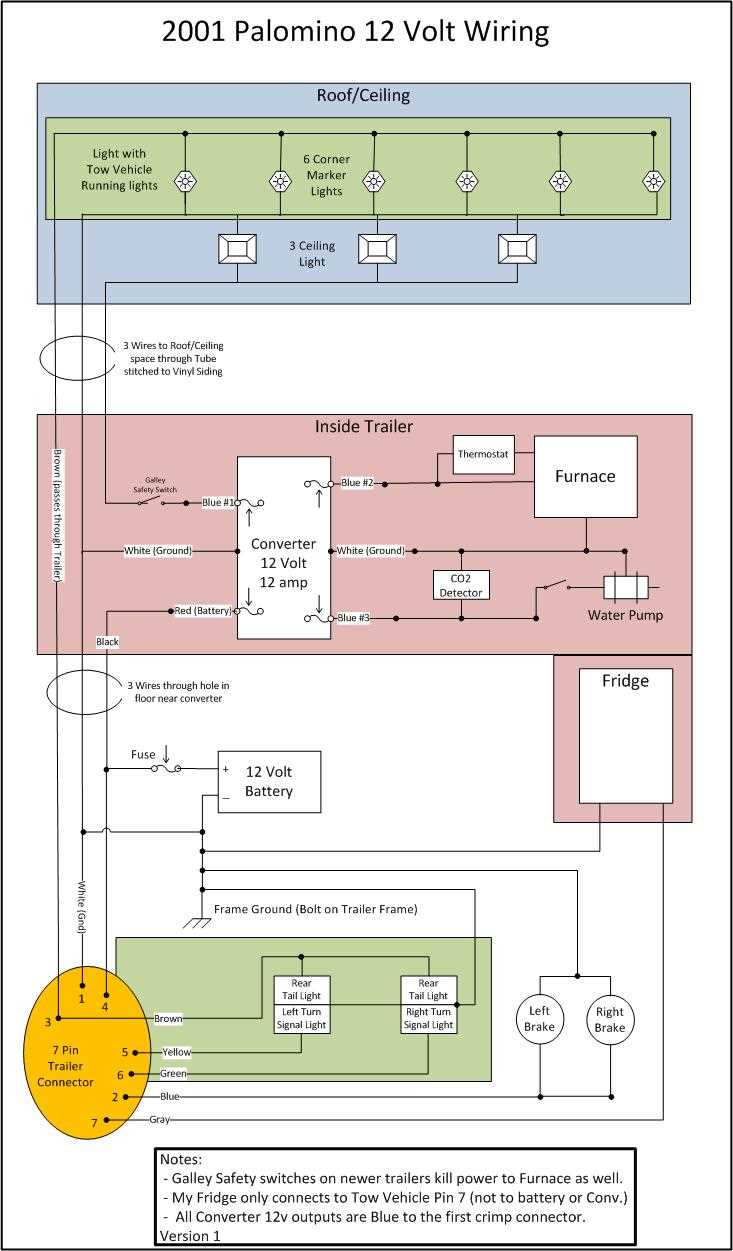

Start by mapping your folding trailer’s 12V system with a color-coded schematic–red for positive, black for ground, yellow for auxiliary circuits, and blue for brake or turn signals. Factory layouts often omit splice points for aftermarket upgrades; preemptively label these with heat-shrink tubing to avoid voltage drops. Use a 14-gauge wire for lighting loads under 15 amps and 12-gauge for appliances like a roof vent or water pump to prevent overheating.
Test every connection with a multimeter before finalizing–set to DC volts and probe terminals at 0.1-volt increments. A loose terminal can drain a deep-cycle battery in under 48 hours; apply dielectric grease to exposed joints to repel moisture. For solar panel integration, wire a 10A charge controller directly to the battery bank, avoiding intermediate fuse blocks that introduce resistance.
Install a four-way fuse panel rated for 30 amps total–distribute circuits by priority: 10A for interior LED strips, 15A for the converter/charger, and 5A for USB ports. Route wires along the frame’s underside using adhesive-backed clips every 18 inches; avoid sharp edges that chafe insulation. If retrofitting a trailer with slide-outs, add a relay to isolate the mechanism from the main system–trigger it via a momentary switch to prevent accidental activation.
Mapping Core Elements in a Folding Trailer Electrical Setup
Trace the main power cable from the battery to the converter–this thick, insulated line (usually 6-8 AWG) carries direct current under the chassis. Mark connection points with numbered labels to avoid confusion when reconnecting terminals. Use a multimeter to verify 12V output at the converter’s input before proceeding; fluctuations above 13.8V or below 11.5V indicate regulator failure.
Identify the breaker panel next–it distributes power to branch circuits like lights, fans, and outlets. Check each breaker’s amp rating (typically 15A for lighting, 20A for receptacles) and match it to the gauge of attached wires (14 AWG for 15A, 12 AWG for 20A). Corroded or discolored terminals here signal potential shorts; replace breakers exhibiting heat damage immediately.
The 120V AC system relies on an RV power cord (30A or 50A) connecting to an external pedestal. Inspect the shore power inlet for bent prongs or melted plastic–these compromise grounding and risk overheating. Test the ground-fault circuit interrupter (GFCI) outlet near wet areas by pressing its “Test” button; if it doesn’t trip, the unit requires replacement.
Examine the interior fuse block, often located near the entry or under a bench. Fuses protect low-voltage DC circuits (usually 5A–10A) powering USB ports, stereos, or slide mechanisms. Replace any fuse with a blown filament–the same amp rating only–and log the incident; recurring failures suggest a deeper issue like a shorted wire harness.
Last, locate the battery disconnect switch to isolate power during maintenance. Test its functionality by turning off the system and confirming all circuits go dead. If accessories remain powered, the switch may be bypassed or faulty–trace its wiring to the battery’s negative terminal, where a loose or corroded connection is often the culprit.
Step-by-Step Guide to Mapping and Identifying Electrical Connections in Your Mobile Shelter
Begin by equipping yourself with a multimeter set to continuity mode and a roll of colored electrical tape. Disconnect the main power source–battery or shore connection–to prevent shorts or accidental activation. Locate the primary fuse box; most lightweight trailers position it beneath the galley or near the entry door for accessibility. Probe each fuse slot with the multimeter while an assistant toggles switches inside–lights, fans, outlets–to isolate active circuits. Mark confirmed connections with tape: red for 12V positive, blue for negatives, and yellow for switched outputs. Record findings in a notebook with circuit numbers, suspected functions, and fuse ratings.
- Trace the heavy-gauge cables from the battery terminals first. These supply line pairs typically measure 6–8 AWG and route directly to the converter or inverter. Label the positive lead at both ends–one tag at the battery post, another where it splices into downstream circuits–using waterproof labels. Examine cable runs for heat damage or rodent chewing; replace compromised sections with the same gauge and insulation rating.
- Inspect junction boxes, usually mounted on frames or behind wall panels. Use a flashlight angled from the side to spot wire nuts or terminal blocks. Loosen each connector, verify wire color consistency with your initial tape markings, and re-secure. For splices without boxes, probe directly at the wire nut with the multimeter to confirm zero resistance–indicating a solid connection–then wrap the splice in self-fusing silicone tape.
- Check device terminals next. Remove panel covers on appliances–refrigerator, water pump, furnace–to expose wiring. Compare the on-device labels (often printed on the rear) with your notes. If discrepancies exist, measure voltage at the appliance plug with the main breaker on to correlate wire function. Secure terminal screws to 12–15 inch-pounds torque to prevent loosening during transit.
Conclude by drafting a schematic on grid paper. Plot every labeled circuit path from power source to endpoint, noting splice points, gauge changes, and device terminals. Include voltage readings taken during the process. Store the diagram in a sealed plastic sleeve beneath a seat or inside a cabinet compartment. During seasonal storage, reread the schematic quarterly and probe five random connections to catch corrosion early–especially critical in humid or salt-air environments where oxidation accelerates.
Typical Electrical Problems in Collapsible Trailers and Fixes
Check fuses first–corroded or blown units are the most frequent culprits. Use a multimeter set to continuity mode; a reading of zero ohms indicates a good fuse, while an open circuit means replacement is needed. Don’t rely on visual inspection alone–microscopic cracks can disrupt current flow without visible damage.
Inspect all ground connections for oxidation or loose terminals. A weak ground often mimics complex faults, causing intermittent failures or dim lights. Sand contact points with 220-grit emery cloth, apply dielectric grease, and secure with stainless steel lock washers to prevent future corrosion.
Voltage drops across connectors typically stem from undersized cables or poor crimps. Measure voltage at the battery, then at the farthest device; a difference exceeding 0.2V signals excessive resistance. Replace suspect cables with gauge-appropriate tinned copper wire–standard automotive wire degrades faster under vibration and moisture.
Lighting and Outlet Failures
LED fixtures flickering or failing to illuminate often result from incompatible dimmer switches or fluctuating input. Test with a 12V test light; if stable, the issue lies within the fixture’s internal driver. Replace entire assemblies rather than attempting board-level repairs–most units aren’t serviceable.
120V outlets drawing power from inverters can trip due to overload or poor waveform compatibility. Verify the inverter’s continuous wattage rating exceeds total load by at least 20%. Use pure sine wave inverters for sensitive electronics; modified sine wave units may cause premature failure in induction motors and compressors.
Battery and Charging Anomalies
Parasitic drains exceeding 50mA indicate hidden loads–disconnect all circuits systematically until the drain disappears. Common offenders include stereo memory, LP gas detectors, and faulty converter chargers. Isolate each circuit with a clamp meter to pinpoint the offender before rewiring.
Sulfated batteries exhibit high internal resistance even when fully charged. Test with a conductance tester; values below 80% of rated CCA require replacement. Equalization charges at 15.5V for 4-6 hours can restore marginally sulfated units, but avoid this on AGM or gel types–it will damage them.
Aging converter/chargers often fail to regulate voltage, causing batteries to overcharge or undercharge. Measure output at the battery terminals; voltages above 14.4V or below 13.6V indicate controller failure. Replace with a three-stage charger featuring temperature compensation for optimal battery longevity.
