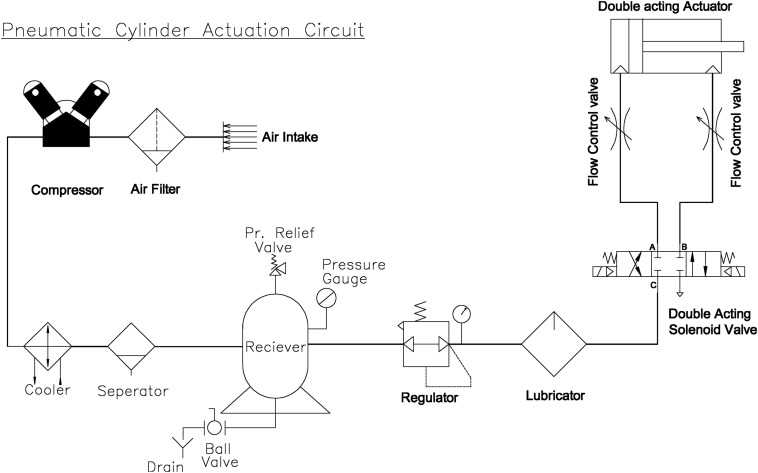

Begin with a 5-port solenoid valve–it’s the core of any high-performance setup. Use a 24V DC coil for industrial stability, ensuring faster response than AC alternatives. Connect port 1 directly to the main air supply, filtered and regulated to 6-8 bar. Ports 2 and 4 should feed the cylinder’s chambers, while port 3 and 5 must vent to atmosphere through silencers to prevent pressure buildup. Avoid rubber diaphragms; opt for modular poppet valves with PTFE seals for temperatures up to 80°C.
Wire the coil through a PLC or relay output, but insert a snubber diode across the terminals if switching inductive loads. For precision, add a 0.01µF capacitor in parallel to suppress voltage spikes. Use 1.5mm² shielded cables for runs exceeding 5 meters to prevent signal interference from nearby VFDs. If cylinder speed needs adjustment, install needle valves directly at the cylinder ports–rotating clockwise reduces flow, counterclockwise increases it. Avoid throttle-check valves unless bidirectional speed control is critical.
Mount a pressure gauge between the regulator and valve to monitor supply consistency. If system pressure drops below 4 bar during operation, check for leaks at push-in fittings–replace nylon lock rings if cracked. For fail-safe designs, route the solenoid’s spring-return port to the exhaust, ensuring the cylinder defaults to the retracted position on power loss. Never omit the manual override button; a recessed push-button near the valve allows emergency actuation without tools.
Test the assembly with a 4mm pneumatic hose first, verifying stroke times with a stopwatch. Expected extension/retraction cycles should fall between 0.2-0.5 seconds for a 25mm bore cylinder at 6 bar. If delays occur, inspect the needle valves–fully open them during initial tests. For frequent cycling (over 60 operations per minute), replace the standard solenoid with a latching type to prevent coil overheating. Always ground the valve body to the machine frame to dissipate static buildup.
Document every connection with labeled terminals–use DIN EN 81346-1 codes (e.g., *Q1* for solenoid, *M1* for cylinder). Store spare seals and fittings near the setup; polyurethane tubes last longer than polyethylene but require more precise cutting. If modifying the design later, ensure the new valve’s Cv matches the existing one–even a 0.2 difference can halve cylinder speed under load.
Designing an Air-Powered Control Schematic: Best Practices
Start by selecting a 5/2-way valve as the core switching element for bidirectional motion. Ensure it includes manual overrides–lever or push-button types–for immediate intervention during failures. Position it no further than 300mm from the drive unit to minimize pressure drops; use 6mm OD tubing for distances under 2m, switching to 8mm for longer runs.
Integrate a pressure regulator with a built-in filter upstream of the valve. Set it to 6 bar for standard industrial applications, but drop to 4 bar for lightweight materials or precision tasks. Add a lubricator only if the manufacturer specifies oil mist; modern synthetic seals often eliminate this need. Place a quick-exhaust valve at each actuator port to accelerate return strokes, cutting cycle times by 18-22%.
Include limit switches with adjustable cams at both stroke ends. Mount them on slotted rails to fine-tune positions without disassembling. Use snap-action switches rated for 10 million cycles; reed or inductive types require separate signal conditioning. Wire them in series to a PLC input module, sourcing 24V DC from a dedicated transformer with short-circuit protection.
- Diaphragm-based drives: fit a 0.5L surge tank before the valve to smooth jerky movements.
- Rotary vane units: add a flow control valve at the exhaust port to prevent overshoot.
- High-frequency cycles: install heaters on airlines to prevent condensation buildup in valves.
Ground all metal components using 4mm² copper wire, terminating at a central earth busbar. Label every conductor at both ends with heat-shrink sleeves showing signal type (e.g., “LS-FWD”, “24V+”). Color-code tubing per ISO 14726: red for supply, blue for exhaust, black for actuator lines.
Test the arrangement with a digital pressure gauge at three points: regulator outlet, valve inlet, and actuator port. Verify no more than 0.2 bar drop across any connection. Time the full stroke with a stopwatch and compare it to the manufacturer’s data sheet; deviations greater than ±5% indicate misalignment or internal leakage. Document these readings in a logbook for predictive maintenance tracking.
Critical Elements for Building a Compressed Air Control System
Select a 5/2-way solenoid valve with a response time under 30ms for precise motion control in high-cycle applications. Brands like Festo or SMC offer models with integrated silencers to reduce noise below 70 dB, improving workplace compliance. Ensure the valve’s flow rate matches the cylinder’s bore size–1/4″ ports typically handle 100-300 NL/min, while 1/2″ ports support 500-800 NL/min. Overlooking this leads to sluggish operation or incomplete strokes, especially in multi-stage setups.
Core Hardware Requirements
| Component | Specification | Purpose | Common Pitfalls |
|---|---|---|---|
| Directional control unit | 5/2 or 3/2 spool type, 24V DC coil | Routes air flow to extend/retract linear drives | Voltage mismatch, seal wear from contamination |
| Linear drive | Double-acting, bore 25-100mm, stroke 50-500mm | Rod bending, air leaks at seals | |
| Speed regulator | Needle valve, 0-10 turns adjustable | Fine-tunes movement (0.5-5 sec per stroke) | Clogging from debris, inconsistent throttling |
| Filter-regulator-lubricator (FRL) | 10-5 micron filter, 0-10 bar regulator | Cleans air, stabilizes pressure, adds lubrication | Water buildup, incorrect pressure setting |
Fit an FRL unit upstream of the solenoid valve to remove particles larger than 5 microns. Set the regulator to 0.2 bar below system pressure for stable operation; deviations cause erratic cylinder behavior. Add a lubricator to inject 1-2 drops of ISO VG 32 oil per minute–skipping this accelerates seal wear in high-duty cycles (over 1,000 strokes/hour). Use push-to-connect fittings for tubing with an outer diameter of 6-12mm; smaller diameters create excessive pressure drops, reducing efficiency.
Integrate limit switches or proximity sensors at stroke endpoints to trigger valve reversal. Reed switches (2-3mm sensing range) work for non-ferrous setups, while inductive sensors (4-8mm range) suit metal frames. Wire sensors to a relay or PLC input rated for 24V DC; 12V systems require an additional step-down module. Include a manual override push-button (momentary, NO contact) for emergency stops and debugging–position it within 300mm of the work area for quick access during maintenance.
Step-by-Step Wiring Guide for a Basic Air-Powered Drive
Start by securing a 24V DC power supply with a current rating 20% higher than the solenoid’s maximum draw–for most industrial valves, a 2A unit suffices. Cut two 18 AWG copper wires, each 3 meters long, stripping 10mm of insulation from both ends. Use heat-shrink tubing to seal connections after soldering.
Connect the positive lead from the power supply to the solenoid’s input terminal, marked “+” or “IN.” Attach the negative lead to the common ground terminal of a 5/2-way valve, ensuring the polarity matches the manufacturer’s label–reverse polarity risks permanent coil damage.
For manual override testing, wire a single-pole toggle switch in series with the positive line. Mount the switch on a control panel using a 22mm knockout, securing it with a locking nut. Label both positions clearly: “ON” and “OFF” using engravable plastic tags.
If integrating a pressure sensor, splice its signal wire (typically 4-20mA output) into the control line using a DIN rail terminal block. Set the sensor’s range to 0-10 bar for standard compressed air systems, adjusting the zero point with a precision screwdriver during calibration.
Route all wiring through 16mm flexible conduit, clamping it every 30cm with nylon P-clips to prevent vibration-induced chafing. Ground the conduit to the same common earth as the power supply using a 6 AWG green-yellow wire, crimped with a ring terminal.
Verify circuit integrity with a multimeter: measure 24V across the solenoid terminals when activated, and confirm resistance of 12-20 ohms across the coil. Replace any wire showing resistance above 0.5 ohms per meter–oxidized strands degrade performance under pulsed loads.
Common Valve Configurations in Compressed Air Control Schematics
For single-acting spring-return mechanisms, use a 3/2-way valve with one port vented to atmosphere. This setup ensures fail-safe operation by defaulting to the spring-driven position when air supply is lost. Specify a normally closed (NC) configuration for applications requiring shutdown during power or pressure loss, such as safety interlocks or emergency stops. For bidirectional control, pair the valve with a quick-exhaust port to accelerate cylinder retraction–reduce response time by up to 40% compared to standard venting.
Key Variations and Their Applications
- 5/2-way valves: Optimal for double-acting systems demanding precise, rapid strokes. Use solenoid-operated versions with integrated silencers to limit noise below 70 dB in industrial environments. For high-cycle applications (e.g., packaging machinery), select spool valves with PTFE-coated seals to extend life beyond 10 million cycles before maintenance.
- 4/2-way valves: Adequate for simpler dual-action setups, particularly when minute leakage is tolerable. Prioritize piston-type designs over poppet valves for dirty air environments–they tolerate particulate contamination up to 5 microns without performance degradation.
- Pilot-operated valves: Deploy in high-flow scenarios (e.g., large bore cylinders) where direct solenoid actuation lacks sufficient force. Ensure pilot pressure remains within ±10% of system pressure to prevent unstable switching. For remote operations, add a manual override button rated for at least 500,000 actuations.
For proportional or throttling applications, integrate a 3/3-way valve with a closed-center position. This prevents cylinder drift during idle states, critical for positioning tasks in CNC tool changers or robotic arms. Pair with a pressure regulator set to 60-70% of maximum supply pressure to maintain control linearity–exceeding this range introduces hysteresis, reducing accuracy by up to 15%. Always include a 5 µm particulate filter upstream; even minor debris degrades valve performance in under 500 hours of continuous use.
