Begin by placing the p-type and n-type materials in direct contact, ensuring minimal interface defects. A silicon-based setup typically requires doping concentrations between 1015 and 1018 cm-3 for optimal performance. Overlap the depletion zone by applying a forward bias of 0.6–0.7V (for Si) or 0.2–0.3V (for Ge), which collapses the barrier and enables current flow. Reverse bias extends the zone–limit this to ≤ 50V for standard components to prevent avalanche breakdown.
Connect the anode to the p-side and the cathode to the n-side using copper traces at least 1oz/ft² thick to handle currents up to 1A without resistive losses. Add a series resistor of 100Ω–1kΩ when testing to protect against voltage spikes during switching transitions. For AC rectification, pair two elements in a bridge configuration–this doubles the usable output voltage compared to a single-element half-wave setup.
Thermal management dictates lifespan: operate below 125°C (Si) or 85°C (Ge) junction temperatures. Use a heatsink with thermal resistance <5°C/W if ambient exceeds 50°C. Spike suppression capacitors (10nF–100nF) should be placed within 2mm of the contact points to filter high-frequency noise exceeding 1MHz. Verify polarity markings–an inverted connection results in zero conduction and potential device failure.
For precise biasing, employ a voltage divider with ≤ 1% tolerance resistors. Measure the forward voltage drop with a multimeter set to DC 2V range; deviations beyond ±5% indicate degraded material or poor solder joints. When prototyping, laser-trim the leads to lengths no shorter than 5mm to avoid stress fractures under thermal cycling.
Constructing a Semiconductor Boundary Visual Representation
Begin by placing the anode symbol–a triangle–pointing toward the cathode, marked with a vertical line. Use this orientation consistently across schematics to prevent misinterpretation. The anode (p-type material) should always connect to the positive side of the voltage supply, while the cathode (n-type) links to the negative or ground. Deviating from this convention risks reverse bias, which restricts current flow.
For precision, label each terminal with “A” (anode) and “K” (cathode) adjacent to the symbols. This clarity eliminates guesswork when tracing paths in complex layouts. In prototyping, verify the physical component matches the schematic: most commercial variants have a stripe on the cathode side. Mismatched connections lead to non-functional assemblies.
Incorporate a current-limiting resistor in series with the boundary component. Select values based on the forward voltage drop (typically 0.6–0.7V for silicon, 0.2–0.3V for germanium) and desired current. The table below specifies common resistor values for 5V and 12V supplies:
| Supply Voltage | Target Current (mA) | Resistor Value (Ω) | Power Rating (W) |
|---|---|---|---|
| 5V | 10 | 430 | 0.25 |
| 5V | 20 | 220 | 0.25 |
| 12V | 10 | 1.1k | 0.5 |
| 12V | 30 | 360 | 0.5 |
For AC applications, such as rectification, place two boundary elements in a bridge configuration. Each should face opposite directions to ensure unidirectional flow through the load during both halves of the waveform. Failures often occur when one element conducts while its counterpart remains reverse-biased, creating an open path.
Thermal considerations dictate mounting heat sinks if the component dissipates over 0.5W. Calculate power dissipation as P = Vf × I, where Vf is the forward drop and I is the current. Exceeding the rated power invariably shortens lifespan or causes immediate damage.
Test continuity with a multimeter in diode mode: the anode-to-cathode measurement should show low resistance (
Advanced Configurations
In high-frequency designs, parasitic capacitance between terminals introduces signal distortion. Use fast-switching variants (e.g., Schottky types) with lower reverse recovery times. These feature a metal-semiconductor boundary, reducing charge storage effects. Parallel configurations increase current handling but require matched forward drops to prevent imbalance. Series stacking elevates reverse voltage tolerance for elevated input sources, such as in voltage multipliers.
Essential Elements and Notations in a Semiconductor Valve Schematic
Begin by identifying the anode (p-type) and cathode (n-type) regions in your schematic–these define the charge carrier flow direction. The anode is marked with a vertical line or plus sign, while the cathode uses a horizontal band or arrowhead pointing toward the current path. Always verify polarity before assembling; reversing these leads to blocking behavior instead of conduction.
Represent fixed-value resistors adjacent to the semiconductor valve to limit surge currents–1kΩ to 10kΩ is typical for low-power signals. For AC applications, pair the valve with a capacitor (usually 10nF to 100µF) to smooth rectified output. Label each component with reference designators (e.g., D1, R2, C3) to avoid confusion during prototyping or troubleshooting.
Use ground symbols–either triangle (chassis) or three horizontal lines (signal)–to establish a common reference point. Connect the cathode to ground in reverse-bias setups; this prevents unintended conduction. For multi-stage designs, separate power rails (e.g., VCC, VEE) to isolate noise from sensitive sections like amplifiers or oscillators.
Include a battery or DC source symbol (two parallel lines: longer for positive, shorter for negative) to supply bias voltage. Forward-bias requires 0.6V–0.7V for silicon valves, 0.2V–0.3V for germanium. Mark voltage polarities near connections to highlight active regions–this clarifies whether the component is in conduction or cutoff mode.
For protection, add a fast-acting fuse (rated 20% above expected current) before the anode. Replace generic symbols with manufacturer-specific footprints (e.g., DO-41, SOD-123) if PCB layout is involved–this ensures compatibility with physical constraints. Double-check schematic netlist exports for missing nodes, especially in high-speed or mixed-signal designs where parasitic capacitance impacts performance.

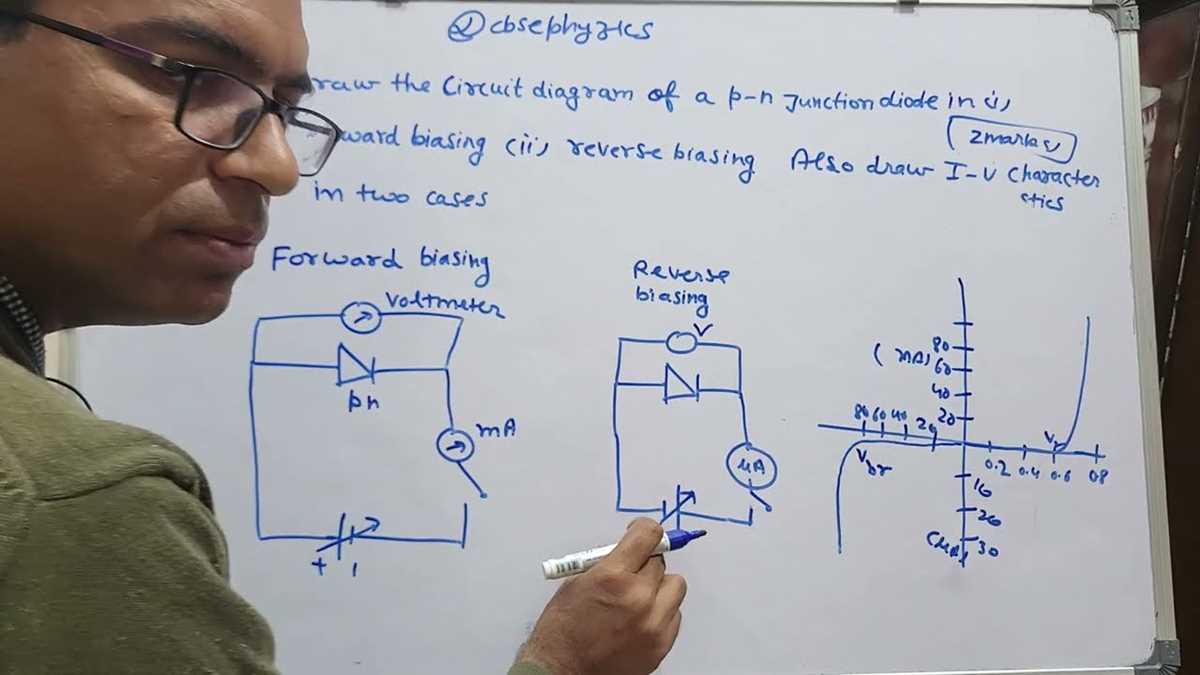

Building a Forward-Bias Semiconductor Element Setup
Select a silicon or germanium solid-state component rated for at least 1N4007 (1A, 1000V) to handle typical low-voltage experiments safely. Verify the component’s polarity markings–cathode (-) and anode (+)–before proceeding, as incorrect alignment will prevent conduction.
Connect a 5V DC power source (e.g., battery or regulated supply) to a 1kΩ current-limiting resistor to avoid thermal damage. Attach the resistor’s free end to the anode (+) terminal, then link the cathode (-) to the power source’s negative terminal, forming a closed path. Use alligator clips or breadboard jumpers for temporary testing.
Measure voltage across the component with a multimeter–expect ~0.7V for silicon or ~0.3V for germanium in active mode. If readings deviate, recheck connections or increase source voltage incrementally (max 10V) until stable forward voltage appears. Avoid exceeding the component’s peak inverse voltage (PIV) specification.
For observable behavior, add an LED (2V–3V) in series to visualize conduction; it will illuminate once threshold voltage is reached. Alternatively, insert an ammeter in series to quantify current flow, which should align with Ohm’s law calculations (e.g., ~4.3mA for 5V source with 1kΩ resistor).
Secure components permanently by soldering if prototyping long-term setups. Use heat-sinks for high-current applications (e.g., >100mA) to dissipate thermal stress. Document resistor power rating (P = I²R) to ensure it exceeds expected dissipation (e.g., ¼W resistor for 5mA).
Reverse-Bias Behavior and Voltage Suppression in Semiconductor Assemblies
Apply a negative potential to the p-region and a positive potential to the n-region to initiate reverse-blocking mode. This orientation forces majority carriers away from the boundary layer, widening the depletion zone and preventing current flow except for a negligible reverse saturation current, typically in the nanoampere (nA) range for silicon-based components. Ensure the applied reverse voltage stays below the breakdown threshold–commonly 50V to 1000V for general-purpose devices–to avoid irreversible damage from avalanche or Zener effects.
Select a component with a reverse voltage rating at least 20% higher than the maximum expected blocking voltage in your application. For high-voltage scenarios (e.g., 600V+), opt for devices designed with thicker depletion regions or specialized doping profiles, such as superjunction structures, which distribute electric fields more evenly. Verify the manufacturer’s datasheet for derating curves, as leakage current doubles approximately every 10°C increase in temperature, compromising voltage suppression at elevated operating conditions.
Minimize parasitic capacitance by choosing low-current parts with smaller cross-sectional areas when reverse bias stability is critical. Stray capacitance (often 1–10 pF) can resonate with inductive loads, causing transient voltage spikes that exceed nominal ratings. Use a snubber network–parallel RC combination with values calculated based on the load impedance–to dampen oscillations if switching inductive elements like relays or transformers.
Material-Specific Reverse Characteristics
Silicon carbides (SiC) and gallium nitrides (GaN) outperform traditional silicon in reverse voltage handling, exhibiting breakdown voltages above 1700V with leakage currents below 1 µA at 25°C. Their wider bandgaps (3.26 eV for 4H-SiC vs. 1.12 eV for Si) enable steeper reverse recovery times, reducing power losses in fast-switching applications. Conversely, germanium and Schottky-type constructs degrade rapidly under reverse stress due to higher leakage currents and lower thermal stability–limit their use to low-voltage (≤50V) or low-frequency designs.
When designing for high-temperature environments, account for the thermal coefficient of reverse breakdown voltage. For silicon, this coefficient is typically −0.1% per °C, meaning a 100V-rated element may tolerate only 80V safely at 150°C. Eliminate thermal runaway risks by integrating active cooling or selecting wide-bandgap alternatives, which maintain nearly constant breakdown characteristics across temperature ranges.
Test reverse performance under pulsed conditions using a curve tracer or oscilloscope with high-voltage probes. Apply incremental reverse voltage steps while monitoring current spikes–any sudden increase beyond the datasheet’s specified leakage current indicates latch-up or surface defects. For reliability-critical systems, perform accelerated life testing (ALT) at 80% of the rated reverse voltage for 1000 hours to identify early failures from material imperfections.
Isolate reverse-biased elements from forward-biased paths using optocouplers or galvanic isolation transformers in mixed-signal assemblies. Direct coupling risks unintended current paths during transient events, such as supply voltage fluctuations, which may forward-bias the component unexpectedly. For multi-stage voltage multipliers, stagger reverse voltage ratings to ensure each stage blocks only its designated fraction of the total potential, preventing cascading failures.
