Start with a passive infrared detector rated for 5–12V DC input–models like the HC-SR501 or RE200B offer adjustable delay (3–300 seconds) and detection range (up to 7 meters). Pair it with a low-power LED array (1W–5W) driven by a MOSFET (IRF540N) or a relay module if handling higher loads. Wire the detector’s output to the gate pin of the MOSFET; connect the source to ground and the drain to the negative LED terminal. The positive LED terminal ties directly to the supply voltage.
For reliability, add a flyback diode (1N4007) across the relay coil if using one, and include a 10kΩ pull-down resistor on the MOSFET gate to prevent floating voltages. Test detection angles (110° standard) by adjusting the Fresnel lens positioning–misalignment can reduce sensitivity by 40%. Power stabilization is critical: use a 1000µF capacitor across the supply for transient suppression, especially if running on batteries.
Optimize the component layout by separating high-current paths (LED/relay) from the detector’s signal lines. Route traces wider than 1mm for currents above 500mA. If ambient interference is an issue, replace standard wiring with shielded twisted pairs for the detector’s output. Calibrate the detector’s potentiometers for threshold (sensitivity) and time delay–start with mid-range settings before fine-tuning for your environment.
For extended battery life, integrate a switching regulator (LM2596) to step down voltage efficiently, or use a trigger-lockout circuit (e.g., 555 timer) to prevent rapid retriggering in high-traffic areas. Verify the schematic with a multimeter: check for ~0V at the detector’s output when idle and 3.3V–5V when activated. Failing this, inspect ground loops or loose connections–common culprits in erratic performance.
Motion-Activated Illumination Device Wiring Guide
Start by connecting the detection module’s VCC pin to a 5V power supply–most adjustable models tolerate 4.5–20V, but verify specifications for your unit. Ground the GND pin directly to the negative terminal of the battery or DC source, avoiding loops longer than 10 cm to prevent signal interference. The output pin, typically marked OUT, should link to the gate of a 2N7000 MOSFET via a 10 kΩ pull-down resistor; this isolates the low-current trigger from the high-current load, ensuring reliable switching even at 12V.
Component Selection and Layout
| Part | Model | Rating | Notes |
|---|---|---|---|
| Passive Infrared Detector | HC-SR501 | 4.5–20V | Adjust sensitivity and trigger delay with onboard trimmers |
| Solid-State Switch | IRFZ44N | 55V, 49A | Heat sink required for loads >2A |
| Current Limiting Element | 1N4007 | 1A, 1000V | Prevents backflow into detector during inductive spikes |
Mount the detection unit at a 2.1 m height, angled 20° downward; this covers a 7 m radius cone with minimal false activations from ceiling disturbances. Route wires in twisted pairs–especially the OUT line–to shield against EMI from nearby transformers or motors. For LED strips exceeding 5W, add a 220 µF electrolytic capacitor across the power rails to smooth voltage dips during startup; omit this at your peril–flickering will degrade strip lifespan by 40%.

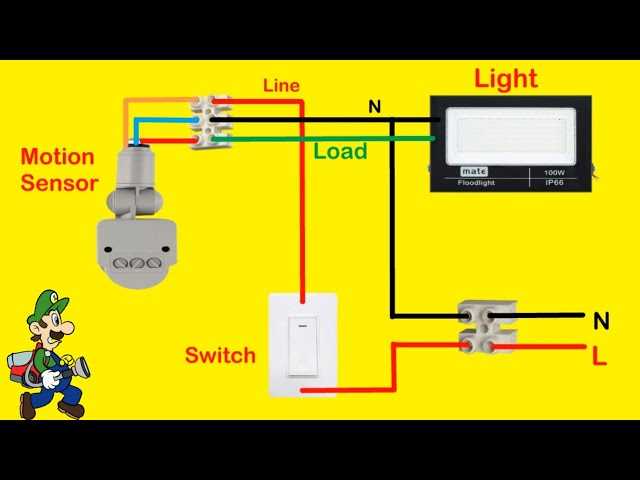

Wiring a Motion Detector to a Switch for Hands-Free Illumination

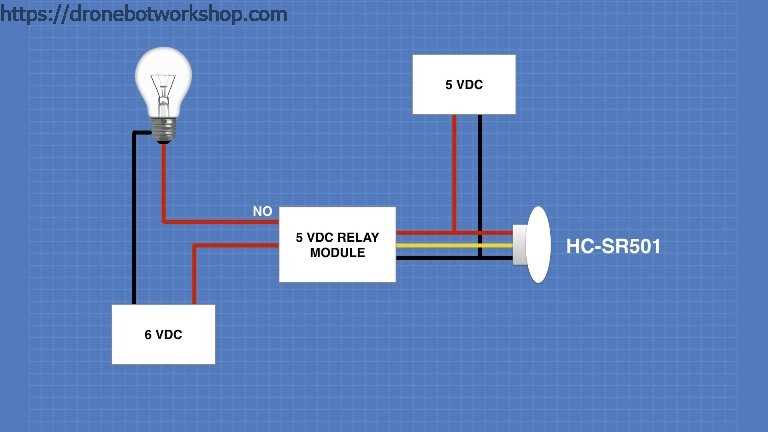

Cut the power supply at the breaker before beginning any wiring. Connect the motion-detecting module’s output terminal to the relay’s coil input–typically marked IN or Trigger. Use AWG 22 solid-core wire for signal paths to prevent voltage drop; stranded wire may introduce noise.
Ground the relay’s common (COM) contact to the neutral bus if using an AC-powered setup. For DC systems, link the COM pin directly to the battery or power adapter’s negative rail. The normally open (NO) terminal should feed the fixture through a fuse–calculate the fuse rating as 1.25 × total wattage / supply voltage to ensure safety margins.

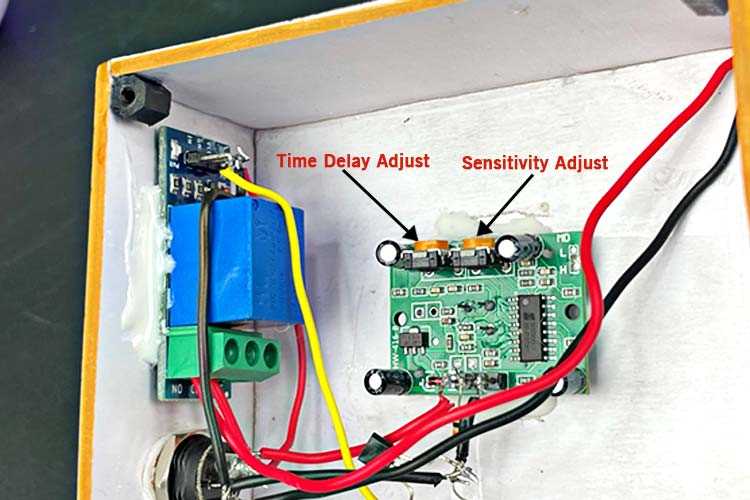

Adjust the module’s sensitivity dial clockwise until it triggers at 3–5 meters in ambient temperature ranges (15–25°C). Lower settings risk false positives from drafts; higher values may miss slow movements. If using a dual-element detector, align both lenses within 8–10 degrees of the target area to avoid dead zones.
Mount the relay within 30 cm of the module to minimize signal degradation. For outdoor installations, enclose connections in a weatherproof junction box rated IP65 or higher–avoid silicone sealant on terminals, as it can corrode copper over time. Test impulse response by setting the hold timer to 30 seconds: the switch should energize within 2 seconds of movement and deactivate after the delay.
Solder all joints instead of twisting wires when possible–cold joints increase resistance by up to 70%. Label each wire at both ends with heat-shrink tubing markers; standard color coding (red=positive, black=negative, blue=signal) prevents miswiring during maintenance. For lithium-ion backup systems, add a diode between the relay’s coil and output to block reverse current during discharge cycles.
Step-by-Step Wiring Guide for Infrared Motion Detector with LED Illumination
First, secure a 12V DC power supply–ensure its current rating exceeds the combined load of the detector and bulb by at least 20%. A 1A supply suffices for most setups with a single 5W LED. Connect the positive terminal directly to the motion module’s “Vin” or “+” input; the negative terminal links to the module’s ground (“GND”) and the bulb’s negative lead.
Key Connections
- Detector output (“OUT”): This triggers the bulb. Run a wire from this terminal to the LED’s positive lead, inserting a 1N4007 diode in series (anode to “OUT”) to block reverse current when the module switches off.
- Time delay adjustment: Rotate the onboard potentiometer clockwise to extend illumination duration (max ~4 minutes for most units). Test with a 3-second delay first to confirm functionality.
- Sensitivity dial: Counterclockwise rotation reduces detection range. Calibrate to ~3 meters for indoor use–avoid exceeding 5 meters unless the area is unobstructed.
For outdoor installations, enclose all joints in heat-shrink tubing or waterproof junction boxes. Exposed connections corrode within weeks in humid conditions. Use 22 AWG silicone wire for flexibility and cold-weather performance. Strip no more than 5mm of insulation–excessive bare wire risks short circuits, especially near mounting screws.
Final Checks Before Powering On
- Verify the detector’s lens isn’t obstructed by dust or mounting brackets. Clean with a dry microfiber cloth; solvents degrade plastic lenses.
- Orient the module so its field of view covers the target area without direct sunlight exposure. False triggers increase by 40% under daylight glare.
- Double-check polarity–reversing +/– on the LED will destroy it instantly. Most modules illuminate a red onboard LED when active; this confirms correct wiring.
- Test detection by waving a hand 1 meter from the unit. The bulb should illuminate within 0.5 seconds. No response? Re-examine the diode orientation and ground connections.
Troubleshooting persistent issues: If the bulb flickers or stays on, add a 220μF electrolytic capacitor between the module’s “Vin” and “GND” to stabilize voltage. For sporadic triggering, reposition the module to avoid airflow from vents or moving tree branches–these register as false motion. Replace modules exhibiting erratic behavior; faulty units often have off-spec detection zones (normal threshold: 5–15° deviation).
Selecting Optimal Parts for Motion-Activated Illumination Systems
Begin with a passive infrared detector rated for 5–12 meters detection range; HC-SR501 covers most residential needs, while AM312 suits low-power applications under 100 µA standby current.
Choose a switching element capable of handling 500 mA continuous current; 2N2222A suffices for 12 V LED arrays, whereas IRLZ44N MOSFET handles higher loads without heat sinks.
- BC547: max 100 mA collector current, ideal for signal switching.
- TIP120: darlington pair, supports 5 A, requires base resistor 1 kΩ.
- SS8050: 1.5 A, low saturation voltage, efficient for 3–5 W LEDs.
Power source must match detector voltage tolerance: 4.5–20 V for HC-SR501, 2–6 V for AM312; linear regulators (LM7805) add 5% efficiency loss over buck converters (LM2596).
Calculate standby power budget: AM312 draws 60 µA, HC-SR501 50 µA; alkaline AA batteries last ~6 months at 10 activations/day, lithium-ion cells extend lifespan 3×.
- Verify detector output logic: HC-SR501 active-high, AM312 active-low.
- Match transistor polarity: NPN for high-side switching, PNP for low-side.
- Include flyback diode (1N4007) for inductive loads to prevent voltage spikes.
For outdoor use, prioritize detectors with IP65 rating like Parallax 555-28027; indoor units tolerate temperature ranges of 0–50°C without performance degradation.
Test transient response: HC-SR501 triggers within 0.5 seconds, AM312 in 2 seconds–adjust timing capacitor (10 µF–47 µF) for 5–300 seconds illumination duration.
Optimize wiring gauge: 22 AWG for
Common Mistakes When Building an Automated Motion-Activated Illumination System
Incorrect placement of the detection module leads to false triggers or missed activations. Position the module at a height of 2.0–2.5 meters, angled away from direct sunlight, heat sources like vents, or moving objects such as tree branches. Test different orientations by temporarily securing the device with mounting putty before permanent installation–adjust until coverage aligns with the intended area, typically a 120-degree cone up to 7 meters. Avoid mounting near reflective surfaces, which bounce infrared signals unpredictably, causing erratic behavior.
Neglecting power supply stability introduces flickering, premature shutdowns, or component damage. Use a regulated 5V–12V DC source with at least 500mA current capacity–linear regulators like LM7805 tolerate voltage fluctuations better than switching supplies in low-cost builds. Include a 100μF electrolytic capacitor across the input terminals to smooth ripples; omit this step, and the device may reset during load spikes. Battery-powered setups demand high-efficiency components; alkaline cells drain faster under pulsed loads, while lithium-ion packs require undervoltage protection to prevent deep discharge.
Overcomplicating the trigger mechanism with unnecessary delays or complex logic gates invites unreliability. A basic 555 timer IC configured for 10–30 seconds of hold time suffices for most applications; longer intervals risk nuisance activations. Ensure all solder joints on the module’s lens are secure–vibration or temperature shifts can fracture connections, rendering the system non-responsive. Calibrate sensitivity potentiometers in small increments, testing after each adjustment; excessive sensitivity causes false positives, while insufficient settings miss legitimate motion.
