Use a pyroelectric sensor like the HC-SR501 or AM312 as the core element–these modules integrate signal amplification and adjustable delay features. The HC-SR501 supports a detection range of up to 7 meters with a 110-degree field of view, while the AM312 offers a more compact footprint with 5-meter sensitivity. Select based on application constraints: the former excels in battery-powered setups due to low quiescent current (<50 µA), whereas the latter fits high-traffic zones with its 1-second trigger lockout.
Connect the sensor’s VCC pin to a regulated 5V source–avoid direct connections to microcontrollers unless decoupled with a 100 µF capacitor to filter noise. Ground the GND pin to the power supply’s common rail. Route the output signal through a 470 Ω resistor to a transistor (e.g., 2N3904) for load switching, or directly to a GPIO pin if interfacing with logic-based controllers like ESP8266 or Arduino–ensure input pull-down (10 kΩ) to prevent false triggers.
Optimize sensitivity by adjusting the potentiometers on the module: the time delay (1–300 seconds) controls how long the output remains active post-detection, while the sensitivity dial scales the threshold for infrared variance. For outdoor use, pair with a Fresnel lens to focus ambient heat signatures, but shield from direct sunlight to avoid saturation–blackout tape on adjacent surfaces reduces false positives from thermal reflections.
Power efficiency demands attention: if idle current exceeds 1 mA, replace the linear regulator with a buck converter (e.g., MP2307) to drop consumption to <200 µA. For mobile deployments, a 3.7V LiPo battery paired with a TP4056 charging module sustains operation for >72 hours with the AM312. Validate the schematic with an oscilloscope–ripple on the VCC line should remain below 50 mVpp to avoid erratic behavior.
Passive Infrared Sensor Schematic: Key Components and Assembly
Begin with a HC-SR501 module–its reliability and low power consumption make it ideal for most setups. Connect the VCC pin to a 5V power source; ensure stable voltage to prevent false triggers. The GND pin must share a common ground with the power supply to avoid signal interference.
Use a 10kΩ resistor between the output and ground to pull the signal low when inactive. Without this, the sensor may produce erratic readings. For applications requiring extended detection range (up to 7 meters), adjust the time delay potentiometer to 3-5 seconds and set the sensitivity dial to maximum, but expect trade-offs in power draw.
| Component | Specification | Role |
|---|---|---|
| HC-SR501 | Adjustable delay, 3.3V/5V | Core sensing unit |
| BIS0001 IC | DIP-16 package | Signal processing |
| Fresnel lens | 12x24mm, 11.3° FOV | Focuses IR radiation |
| 2N2222 transistor | TO-92 package | Output amplification |
For battery-powered systems, replace the default LD1117V33 voltage regulator with an AMS1117-3.3 to reduce quiescent current by 40% (typical 5µA vs. 8µA). Add a 100µF electrolytic capacitor across the power input to filter noise–critical in environments with fluorescent lighting or mains hum.
If false positives persist, increase the hysteresis threshold by soldering a 4.7nF ceramic capacitor across the BIS0001 IC’s pins 9 and 10. This extends the confirmation window to 200ms, filtering brief disturbances like insects or moving foliage. For outdoor use, seal the lens area with clear silicone adhesive to prevent moisture ingress, which scatters IR patterns.
To integrate with a microcontroller, connect the output to a Schmitt-trigger inverter (e.g., 74HC14) to square the pulsed signal. This ensures clean edge transitions for precise timing measurements. Avoid using long cables (>50cm) between the sensor and processing unit; if unavoidable, twist the wires and add a 10nF bypass capacitor at the MCU input to suppress EMI.
For solar-powered deployments, use a TPS63000 buck-boost converter to maintain consistent performance across varying input voltages (3V–12V). Pair the sensor with a low-power RF module (e.g., HC-12) for wireless transmission, ensuring the burst interval exceeds the sensor’s timeout period to prevent collisions.
When prototyping, verify the pyroelectric elements’ alignment using an oscilloscope–wave a warm object (e.g., soldering iron) across the lens at 1-2Hz to confirm a clear differential signal on pins 14 and 2 of the BIS0001. Misalignment causes 30%+ sensitivity loss. For final assembly, mount the sensor at 1.2–2.1 meters height, angled downward at 15°–25° to optimize detection zones without blind spots.
Selecting the Optimal Infrared Presence Sensor for Your Application
For indoor projects requiring detection ranges up to 5 meters, the HC-SR501 module remains the most cost-effective choice at under $2 per unit with 3.3V–12V compatibility. Its adjustable delay (3–300 seconds) and sensitivity potentiometers allow fine-tuning for ambient temperature fluctuations between -20°C and +50°C. Verify the Fresnel lens quality–opaque or cracked lenses degrade performance by 40%. The LR4 module offers similar specifications but includes a retriggering jumper for continuous signal output during sustained activity, ideal for occupancy logging systems.
Key Parameters to Cross-Reference
- Voltage range: 5V modules (e.g., AM312) draw 15µA standby current vs. 50µA for 12V variants–critical for battery-powered deployments.
- Detection angle: Narrow 80° sensors (e.g., Parallax 555-28027) suit corridor monitoring, while 110° models (HC-SR505) cover 9m2 rooms with single units.
- Lens type: Translucent dome lenses false-trigger less in direct sunlight than flat-to-planar alternatives, but reduce max range by 12%.
- Output Type: Digital outputs (TTL) simplify interfacing with microcontrollers; analog variants (e.g., Panasonic NaPiOn) provide raw signal data for custom algorithms.
Outdoor projects demand modules with built-in temperature compensation like the Zilog ePIR (operational at -30°C to +60°C) or those with anti-masking features (e.g., Bosch ISF-B31). Budget $5–$8 for waterproofed IP65-rated units; cheaper modules will fail within weeks due to condensation. For high-traffic zones, prioritize sensors with EMI shielding–unshielded units (e.g., cheaper HC-SR501 clones) register false positives near fluorescent lighting or switching power supplies. Always test mounting height: 2.1m–2.4m optimizes detection of human torso movement while minimizing pet interference below 0.3m.
Step-by-Step Assembly of a Basic Passive Infrared Sensor Setup

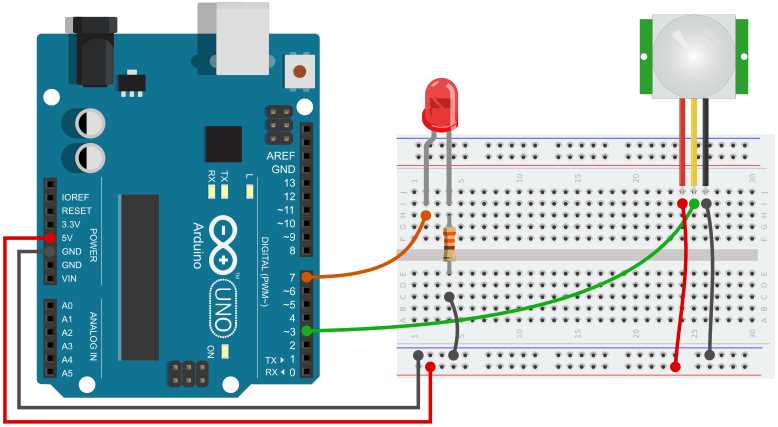

Begin by arranging the key components on a breadboard: a sensor module, a microcontroller (e.g., Arduino Uno), a 5V relay module if switching higher loads, and a 220Ω resistor for an optional LED indicator. Verify the sensor’s datasheet for pinout–most modules expose VCC, GND, and OUT terminals. Avoid connecting power directly to OUT; this can damage the internal comparator.
Attach the sensor’s VCC to the microcontroller’s 5V pin. For stability, bridge the sensor’s GND to the microcontroller’s ground rail. Use jumper wires rated for at least 500mA, as undersized wires can introduce voltage drops during transient events. If testing indoors, position the sensor away from direct sunlight, HVAC vents, or fluctuating light sources–these can trigger false positives.
Connect the sensor’s OUT pin to a digital input on the microcontroller (e.g., pin 2 on Arduino). Enable the internal pull-up resistor in code or add a 10kΩ pull-down resistor externally–this prevents floating signals when the sensor remains idle. For debugging, wire a 220Ω resistor in series with an LED from the same digital pin to GND. The LED should illuminate when the sensor detects changes.
Fine-Tuning Sensitivity and Delay
Most sensor modules feature two trimpots: one adjusts range (typically 3–7 meters), the other hold-time (1–300 seconds). Start with both trimpots at mid-position. To increase sensitivity, rotate the range trimpot clockwise until the sensor responds to subtle movements (e.g., a hand wave at 4 meters). Counterclockwise rotation reduces sensitivity–useful for ignoring pets or distant activity. Test changes incrementally; abrupt adjustments can make the sensor overly responsive to ambient heat fluctuations.
Modify the hold-time trimpot to control how long the OUT pin stays high after activation. Clockwise rotation extends the timeout (e.g., 5 minutes for security lighting), while counterclockwise shortens it (e.g., 2 seconds for occupancy detection). Use a stopwatch during testing–many modules lack precise labeling, so rely on empirical measurements. If the sensor resets too quickly, add a 100nF decoupling capacitor between VCC and GND; this smooths voltage spikes that may prematurely reset the output.
Power Considerations and Load Integration
If powering the microcontroller via USB, ensure the port provides sufficient current (minimum 500mA). For standalone operation, use a 7–12V DC supply connected to the microcontroller’s barrel jack, but verify the sensor’s voltage tolerance–some modules accept 12V directly, while others require a linear regulator (e.g., LM7805) to step down to 5V. Avoid sharing the same power rail with inductive loads (e.g., relays, motors); their back-EMF can corrupt sensor readings.

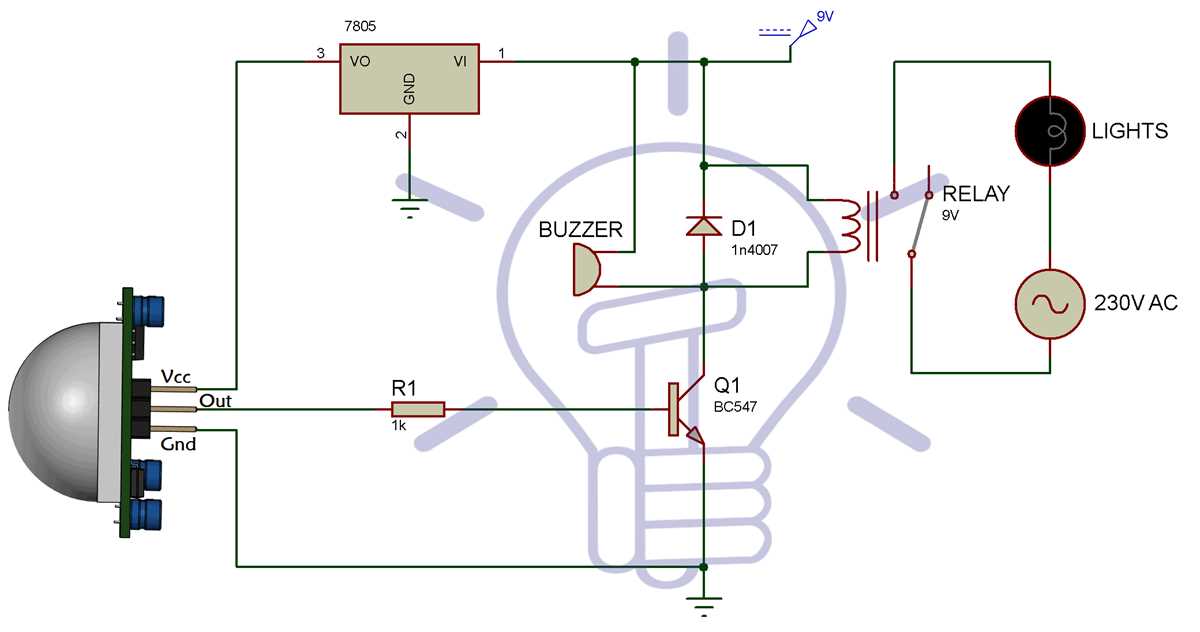

For driving external loads (e.g., lights, alarms), connect a relay or solid-state switch to the microcontroller’s output pin. Use an NPN transistor (2N2222) or MOSFET (IRFZ44N) as an intermediary if the sensor’s OUT pin cannot source enough current. Wire the load to the relay’s common and normally-open terminals, ensuring the power supply matches the load’s requirements. Add a flyback diode (1N4007) across the relay coil to suppress spikes. Test load switching with a multimeter to confirm isolation between low-voltage and high-voltage sides.
