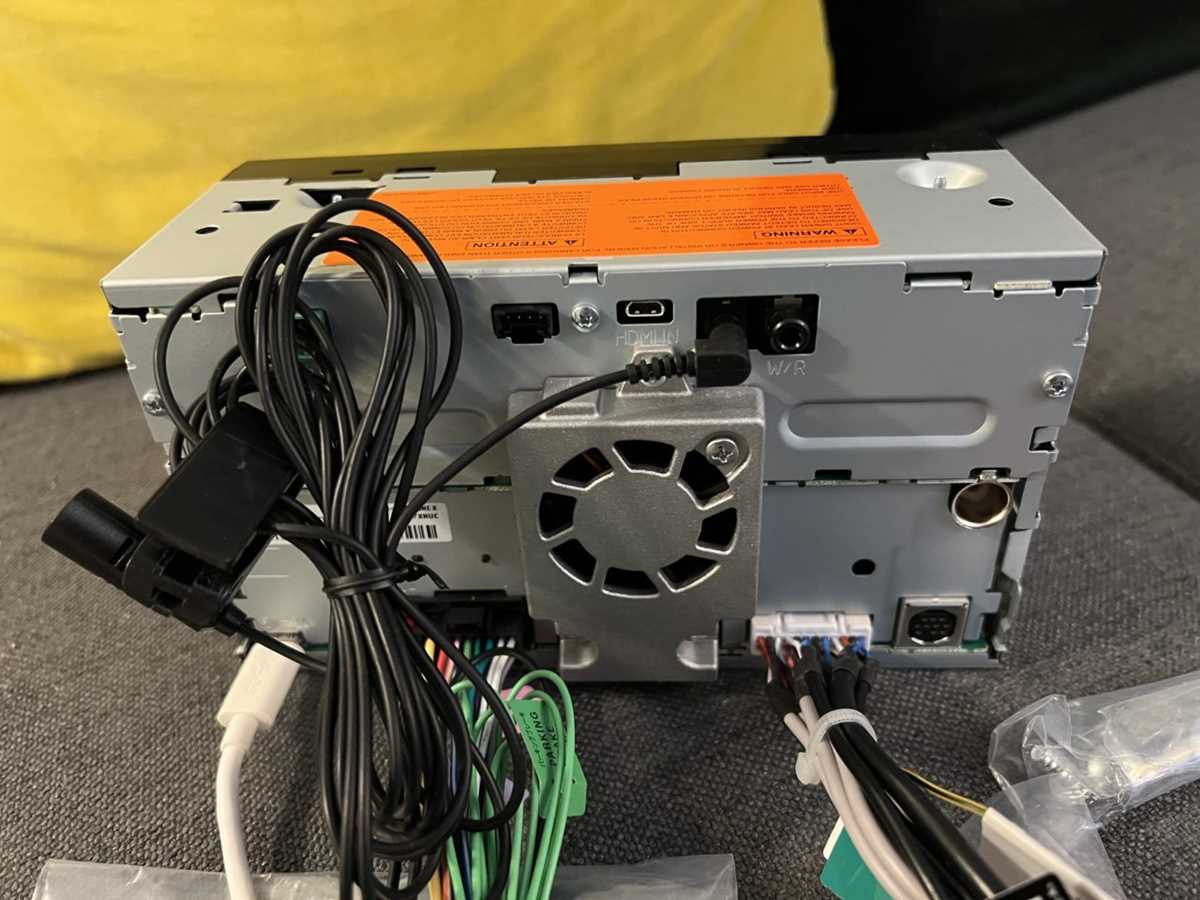

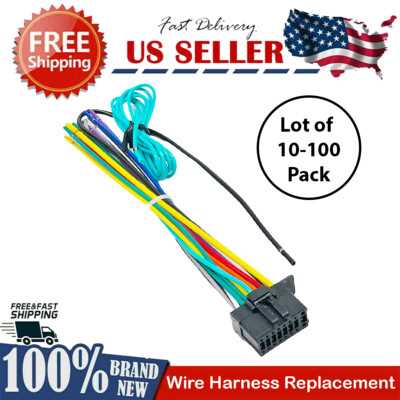

Start by identifying the main harness connectors on the back of your in-dash system–typically a 16-pin A/V connector and a 20-pin power/speaker interface. Match each pin to the corresponding wires in your vehicle’s wiring loom using a multimeter to verify voltage and continuity. The yellow 12V constant wire (always hot) and the red accessory wire (switched power) must connect directly to the battery via a 15-amp fuse to prevent overload. Reverse polarity or incorrect fusing will damage the unit’s internal circuitry.
For audio output, locate the front left, front right, rear left, and rear right speaker wires, usually color-coded white/gray (FL), gray/black (FR), green (RL), and purple (RR). Each speaker wire pair includes a solid color (positive) and a striped variant (negative)–crossing these will cancel sound or distort output. Use crimp connectors or solder joints with heat-shrink tubing to prevent shorts; twisted or exposed wires cause interference and signal loss.
Ground the system via the black grounding cable–attach it to the vehicle’s chassis using a bolt or screw, ensuring bare metal contact. A weak ground causes static, poor radio reception, or spontaneous resets. For RCA preamp outputs, connect the subwoofer (purple) and auxiliary (blue) lines to external amplifiers if needed, but bypass this step if using the head unit’s built-in amplification. Verify all connections with the vehicle’s ignition off before powering up.
If the display remains dark or the unit fails to power on, recheck the yellow and red wires for proper voltage (12V at yellow, 12V switched at red). A missing ground or loose connection to the dimmer/illumination wire (orange) often disrupts backlighting. For steering wheel controls, use an adapter harness compatible with your vehicle’s make–generic harnesses may lack the necessary OEM-specific resistors or data protocols.
Always refer to the original equipment schematics for your vehicle’s model year, as wiring configurations vary. Substituting aftermarket harnesses without verifying pin assignments risks incompatibility with factory systems like OnStar, navigation, or backup cameras. Label each wire before disconnecting to avoid misrouting during reinstallation.
Head Unit Installation Guide: Electrical Connections
Start by identifying the main power lead–marked in red on the harness–and connect it to a switched 12V source, ideally the ignition wire. Use a fuseholder inline with a 10A fuse within 15 cm of the battery terminal to prevent fire hazards. Avoid splicing into factory alarm or accessory circuits, as voltage drops can trigger erratic behavior.
Ground the device via the black wire to a bare metal chassis point, sanded clean to ensure solid contact. Poor grounding causes noise, static, or screen flickering. For optimal performance, route the ground wire directly to the vehicle’s central grounding block rather than sharing it with other components.
Audio Output Integration
Match the 4-channel speaker outputs (front left/right, rear left/right) to the vehicle’s existing harness using crimp connectors or solder. Verify impedance compatibility–most aftermarket stereos handle 4Ω, but factory premium systems may use 2Ω loads. Mismatches distort sound or damage amplifiers. High-pass crossovers at 80Hz reduce strain on door woofers.
For subwoofer output, locate the purple/white RCA preouts and connect them to an external amplifier with a minimum 500mV sensitivity rating. Use shielded cables and route them away from power leads to avoid engine noise. Adjust gain levels after installation to prevent clipping.
Additional Circuit Configurations
If retaining the factory steering wheel controls, use an interface module like Metra ASWC-1. Connect the module’s data wire to the radio’s SWC input (usually blue/white) and program the module via the vehicle’s specific protocol. Failures often stem from incorrect wiring sequences–refer to the module’s pinout guide.
Parking brake and reverse signal inputs require separate attention. Link the parking brake wire (light green) to the vehicle’s brake circuit, ensuring the connection activates the safety lockout feature. Connect the reverse signal (purple) to the backup light circuit to enable rear-view camera automatic switching. Test these functions before finalizing panel assembly.
Locating Power Supply and Chassis Reference Points on Your In-Dash Multimedia System
Begin by securing the harness adapter at the rear of the unit–locate the red ignition-controlled line (ACC) and the constant twelve-volt yellow cable (B+). Both require direct connection to the vehicle’s fused distribution block; the ACC feed must originate from a switched source to prevent battery drain during shutdown. Verify voltage levels with a multimeter before coupling: ACC should toggle between 0V (off) and 12V (on), while B+ must maintain steady twelve volts regardless of ignition state.
Attach the black chassis reference wire (GND) to a factory-mounted bolt on the vehicle’s frame–avoid painted surfaces, which introduce resistance and signal noise. If corrosion is present, clean the contact point with fine-grit sandpaper and apply dielectric grease to inhibit future oxidation. Confirm grounding integrity by measuring continuity between the GND terminal and the negative battery post; resistance should register below 0.5 ohms.
- The yellow constant-power line carries the highest current–use a minimum 14-gauge wire and inline fuse holder positioned within 12 inches of the battery terminal.
- Never splice the ACC or B+ feeds into existing lighting circuits; these often lack sufficient amperage and introduce voltage drops during load spikes.
- For vehicles with start-stop systems, the B+ wire must connect upstream of any power-saving modules that temporarily disconnect accessories.
Identify the dimmer control wire (orange with a white stripe) if the vehicle supports automatic display dimming–this input modulates screen brightness in sync with dashboard lighting. Connect it to the appropriate factory lead, typically found at the headlight switch or instrument cluster harness. If left unconnected, the display will remain at full brightness, causing glare at night.
After securing primary connections, test functionality: power the unit, check touch responsiveness, validate audio output, and confirm display illumination toggles with headlight activation. If the screen exhibits flickering or color distortion, re-examine ground integrity–poor chassis reference is the leading cause of display anomalies. Measure voltage at the unit’s rear terminals while simulating load: ACC and B+ lines should hold within 0.5V of battery voltage under all conditions.
- If the unit fails to power on, separately verify ACC and B+ inputs–begin by probing the harness side before assuming internal faults.
- For installations using aftermarket amplifiers, reroute the chassis reference directly from the battery negative to prevent ground loops.
- Retain all original factory grounding straps; removing or bypassing them can introduce radio frequency interference.
Document every connection using heat-shrink tubing and labeled tags–this simplifies troubleshooting and future upgrades. Avoid twisting wires together without soldering; mechanical joints degrade over time, increasing resistance. Finalize by securing excess wiring away from moving components and heat sources to ensure long-term reliability.
Step-by-Step Guide to Connecting Speaker Leads on Your Multimedia System
Measure the distance from the unit’s rear panel to each speaker location before cutting wires. Use 16-gauge oxygen-free copper cable for runs under 12 feet and 12-gauge for longer distances to prevent signal degradation. Strip 5 mm of insulation from each end, exposing bare conductors without nicking the strands.
Match terminals precisely: front left (FL) and front right (FR) use the upper pair of clamps, rear left (RL) and rear right (RR) the lower pair, while the subwoofer output is the single center clamp marked SW. Insert each stripped end vertically into the corresponding clamp, ensuring no loose strands touch adjacent terminals to avoid shorts.
- Twist the exposed strands clockwise before insertion to maintain bundle integrity.
- Press the clamp lever fully downward while holding the wire steady–partial closure causes intermittent connections.
- Label each wire with masking tape at both ends to verify routing after installation.
Terminate woofers with banana plugs for secure, corrosion-resistant connections if the enclosure lacks spring clips. Crimp plugs firmly using a dedicated tool, then tighten set screws until the conductor expands slightly beneath the collar–loose crimps introduce resistance. For passive setups, omit the subwoofer lead; powering dual-voice-coil subwoofers requires bridging both channels with a Y-adapter.
Test polarity before finalizing mounts: reverse one channel momentarily during a mono test tone. Correct phase produces deeper bass and centered imaging; reversed polarity thins the output. Secure cables with adhesive clips every 18 inches and route them away from power leads and moving components to prevent interference.
How to Correctly Configure the Safety Switch Override for Full Touchscreen Access
Locate the vehicle’s handbrake signal wire–typically a single solid-color lead (often green or brown) exiting the factory harness near the brake pedal assembly. Strip 5mm of insulation from this lead and crimp a male spade connector to ensure a secure, vibration-resistant connection without solder. Attach this to the head unit’s designated brake input terminal, verifying polarity with a multimeter set to 12V DC; the resting state should register 0V when the brake is disengaged and 12V when engaged.
For systems requiring continuous activation during navigation or video playback, insert a 1.5KΩ ¼W resistor between the brake signal input and a constant 12V source (e.g., accessory or battery line). This simulates a “brake engaged” state, bypassing the manufacturer’s safety interlock while avoiding false triggers from transient voltage spikes. Route the resistor through a small inline fuse holder containing a 2A fuse to prevent short circuits from damaging the interface circuit board.
If the unit intermittently disables touchscreen functions at low speeds, integrate a momentary push-button switch in parallel with the resistor. Mount the switch near the driver’s seat within easy reach, wiring it to momentarily disconnect the 12V feed when pressed, forcing a reset of the head unit’s internal safety logic. Label the switch clearly to prevent accidental activation while driving, which could violate local vehicle code regulations.
Ground the unused end of the brake input wire directly to the vehicle chassis–preferably a factory grounding stud–to eliminate signal noise. Avoid splicing into lighting or sensor circuits, as induced current fluctuations may corrupt the head unit’s firmware, leading to erratic touchscreen lockouts. Perform a continuity test from the ground point to the negative battery terminal to confirm resistance below 0.2Ω before final assembly.
After installation, initiate a system reboot by disconnecting the battery for 30 seconds to clear any stored fault codes. Test touchscreen functionality in both stationary and moving conditions, ensuring no unintended disablements occur when shifting between gears or engaging cruise control. Document the exact connections made–including wire gauge, resistor value, and fuse rating–for future diagnostics or legal compliance verification.
Models with dual-zone controls or rear-seat entertainment may require separate overrides for each screen. Inspect the service manual for hidden jumpers or dip switches labeled “brake bypass” or “video mute” before modifying wiring, as some units include factory-programmable solutions. If factory settings are insufficient, consider an aftermarket relay harness that isolates each display’s safety circuit without voiding warranty coverage.
