Before connecting wires, verify the color-coding against the manufacturer’s documentation. Yellow (B+) must attach to a constant 12V source–never use accessories or ignition-switched circuits. Red (ACC) requires a fuse no larger than 10A; exceeding this risks damage to the head unit’s memory. Black (GND) demands a direct chassis connection–sand paint to bare metal for a corrosion-free bond.
Speaker outputs follow a striped pattern: gray (+) / gray-black (-) for front right, white (+) / white-black (-) for front left. Reversing polarity will cancel frequencies below 200Hz, ruining bass response. Do not bundle speaker wires with power cables–induced noise will create audible hum at idle.
For amplified setups, blue (REM) triggers external amplifiers only after confirming a 1kΩ load pull-down resistor is present. Skipping this step can fry the remote circuit. If integrating a subwoofer, purple (+) / purple-black (-) delivers the pre-out signal; use RCA cables with at least 22 AWG shielding to prevent static.
Measure voltage at each connection with a multimeter before powering on. A drop below 11.5V under load indicates insufficient charging system output–address that first. When routing cables, avoid sharp edges and engine heat sources; PVC insulation degrades above 80°C (176°F), leading to shorts or signal loss.
Understanding Audio Head Unit Connection Schematics
Begin by locating the manufacturer’s color-coded harness guide–most aftermarket systems include a 16-pin connector with distinct hues for power, ground, speakers, and auxiliary inputs. Match these to the vehicle’s harness using a digital multimeter to verify continuity before splicing; a mismatch here risks short circuits or blown fuses. For instance, the constant 12V line (often yellow) must connect to the battery via a 10A fuse, while the ignition switch wire (red) should engage only when the key is turned.
- Solid color wires (e.g., white, gray) typically link to positive speaker terminals.
- Striped variants (white/black, gray/black) denote negative leads–reversing these distorts sound.
- Blue/white wires control power antenna or amplifier turn-on signals.
Skip universal adapters if your vehicle’s harness differs–hardwired connections last longer and reduce signal interference. For vehicles with fiber optics or amplified systems, consult the OEM manual to avoid damaging factory components. Always secure connections with solder and heat-shrink tubing rather than crimp connectors; vibrations loosen crimps over time.
Test each channel incrementally: play a mono track (like a 1kHz tone) through one speaker at a time to confirm polarity and volume balance. If one channel is silent, recheck the corresponding pair of wires for breaks or misalignment. For steering wheel controls, use an adapter module compatible with your model’s protocol (e.g., CAN bus, resistive).
- Disconnect the battery negative terminal before starting.
- Group wires by function (power, ground, outputs) to minimize tangling.
- Label each wire with masking tape for future reference.
- Avoid routing power cables near RCA jacks to prevent whine.
Integrate a line output converter if retaining factory subwoofers–these convert high-level signals to RCA-friendly voltages. For rearview camera inputs, use shielded coaxial cable to maintain video quality. Finalize by wrapping the harness in split loom tubing to protect against abrasion.
Matching the Right Connector Adapter to Your Audio Head Unit
Start by locating the model number on the rear plate of your multimedia receiver–typically etched near the serial tag or printed on a sticker beneath the mounting frame. Cross-reference this code with the official compatibility chart released by the manufacturer; third-party databases often mismatch pinouts for similar but distinct product lines.
Verify the connector’s shape and pin count before purchasing an aftermarket adapter. OEM harnesses differ even within the same brand family–some use 12-pin Molex plugs, others rely on 16-pin rectangles or split dual-row designs. A mismatched plug risks shorting the power line or muting the amplifier when switching ignition states.
Key Markings to Spot Differences
Check the harness plug for color-coded labels printed beside each terminal. Factory harnesses usually mark constant 12V lines in yellow, switched 12V in red, ground in black, and illumination wires in orange. Missing or faded labels suggest a low-quality clone that can cause intermittent power loss.
Use a multimeter set to DC voltage mode (20V range) and backprobe the connector while the ignition cycles between off, accessory, and start. Voltage readings should transition cleanly: 0V off, 12V accessory, 10–14V start. Any fluctuation outside this pattern indicates a wiring mismatch requiring a different harness variant.

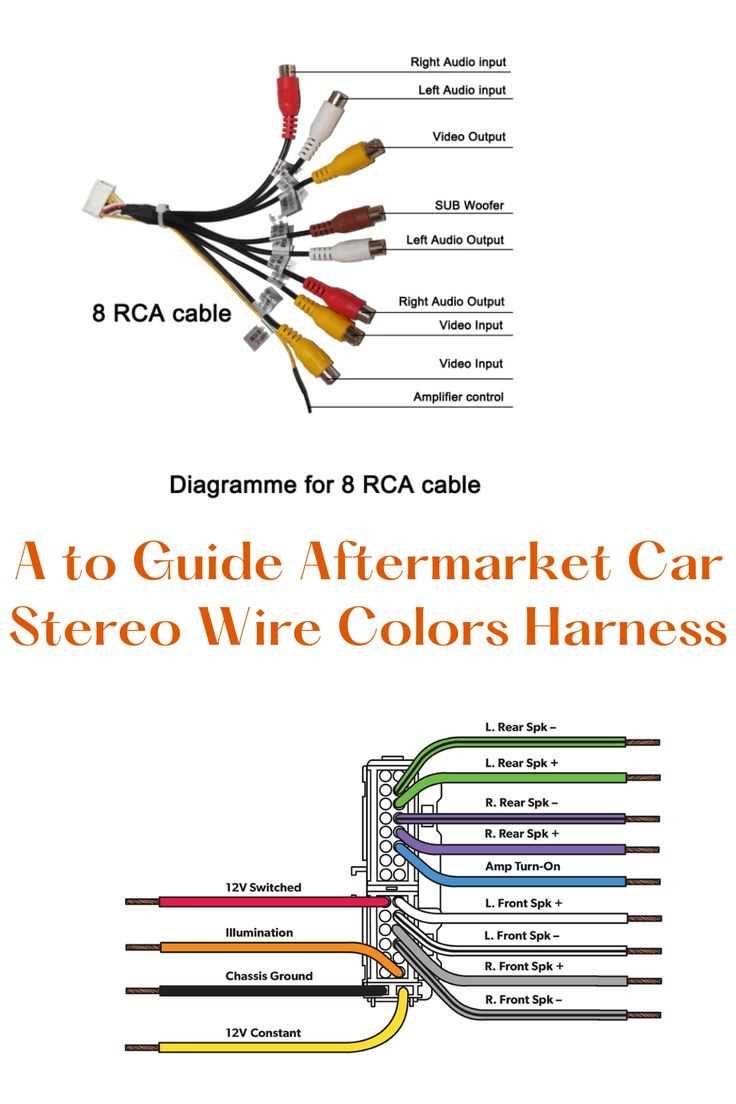

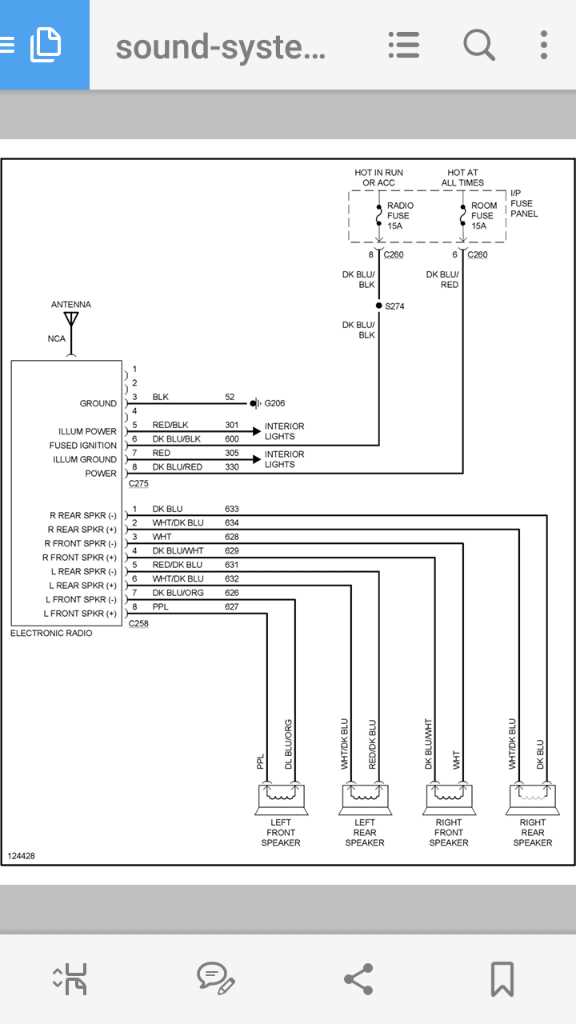

Step-by-Step Color Coding Guide for Factory-Installed Audio System Cables

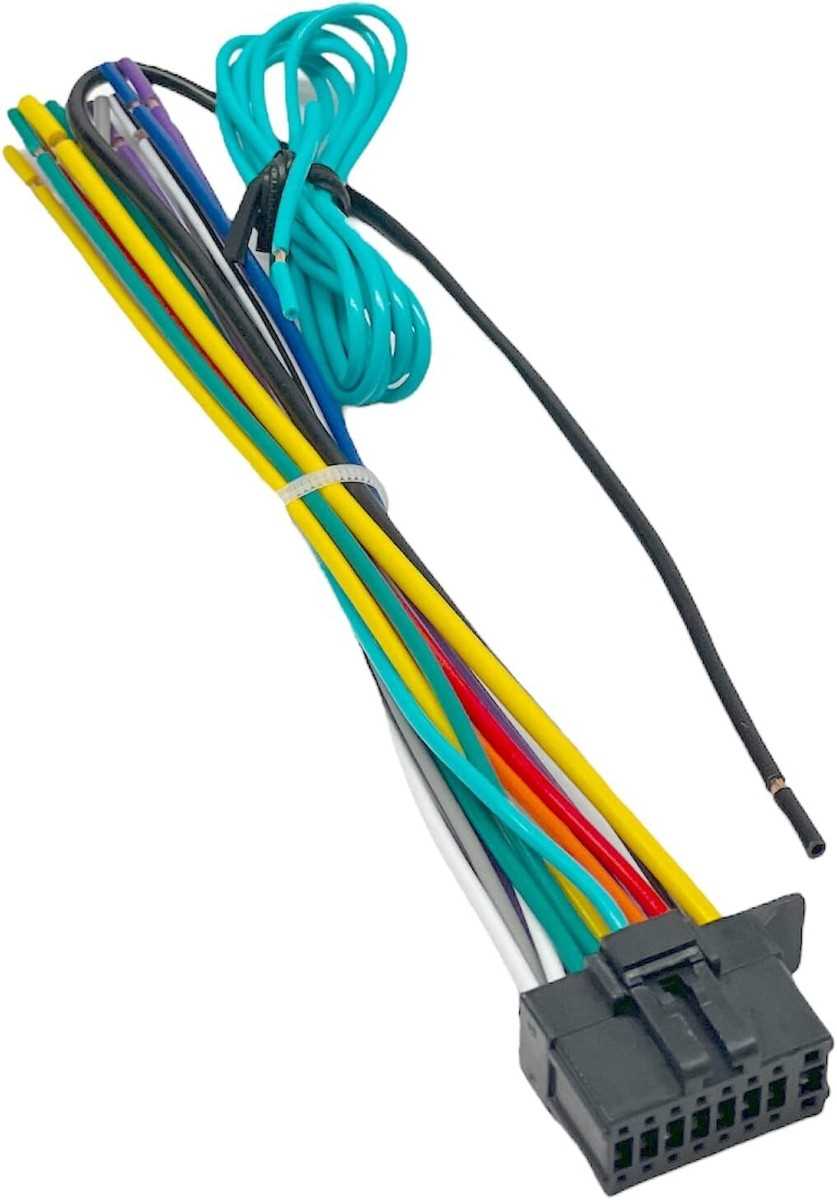

Begin by identifying the 12-pin or 16-pin connector on the rear of the head unit. Locate the yellow wire–this is the constant 12V supply, often the thickest in the harness.
Match the red ignition-controlled cable next. This lead activates the device when the key turns, preventing battery drain. Verify its connection with a multimeter set to 12V DC.
Ground the black cable first–secure it to bare metal, scraping away paint or rust. A loose or corroded ground causes noise, signal dropouts, and erratic display behavior.

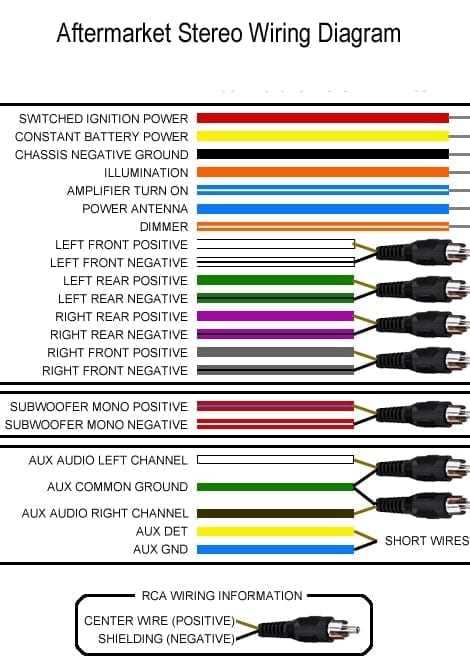

| Wire Color | Function | Voltage (Key On) |
|---|---|---|
| Yellow | Battery constant | 12V |
| Red | Switched ignition | 12V |
| Black | Chassis ground | 0V |
| Blue (white stripe) | Amplifier remote turn-on | 12V |
| White / White+black | Left front speaker (+/-) | ±4V peak |
| Gray / Gray+black | Right front speaker (+/-) | ±4V peak |
| Green / Green+black | Left rear speaker (+/-) | ±4V peak |
| Purple / Purple+black | Right rear speaker (+/-) | ±4V peak |
Connect the blue lead with a white stripe to the amplifier’s remote input–this closes the circuit when the head unit powers up, preventing popping sounds during startup.
Route the violet and green speaker cables to the rear door or deck mounts: solid color carries positive, striped negative. Twist each pair 2-3 turns per inch to reduce interference from the engine or alternator.
Avoid combining ground wires–dedicate one for the chassis and another for the antenna motor if equipped. Share grounds only when necessary, ensuring no shared return paths with high-current circuits like cooling fans.
Tape unused cables; if the system lacks rear outputs, cap the ends individually with heat-shrink tubing. Verify all connections with a continuity tester before buttoning up panels–mismatched wiring risks shorting the circuit board or blowing fuses.
Common Audio System Installation Errors and Prevention
Misidentifying the constant 12V line is the most frequent blunder. Many default-supplying electronics confuse it with the ignition-switched wire, leading to drained batteries. Always verify with a multimeter–continuous power maintains memory settings and should hold voltage when the key is off. For vehicles manufactured after 2005, check for a dedicated “memory” circuit in the fuse box documentation; some luxury models route this separately to support security systems.
Incorrect speaker phase connections degrade soundstage clarity. Even slight polarity mismatches–positive crossed with ground or negative–create cancellation effects at low frequencies. Use an AA battery test: touch the positive terminal to the speaker wire while watching the cone movement. If it pushes outward, the phase is correct; inward indicates a swap. Mark wires immediately with colored tape during disassembly to prevent rework.
Neglecting proper grounding introduces noise and instability. A weak chassis ground generates buzzing or intermittent shut-offs, especially under load. Scrape away paint from the mounting surface until bare metal is exposed. Use a dedicated bolt near the unit’s installation location rather than relying on factory fasteners shared with other components. For fiberglass panels, install a grounding strap to the nearest structural metal frame.
Avoid daisy-chaining power cables for amplifiers. Each device should tap into the battery directly via an appropriately rated fuse–typically 20A–60A within 18 inches of the battery terminal. Undersized wires overheat, risking fires. For multiple units, use a distribution block; never splice into thinner accessory circuits. Verify wire gauge against the manufacturer’s current draw specifications–12V systems often underestimate resistance over distance.
- Reversing illumination wires (dim+ and dim–) causes erratic display behavior. Test with a 1K ohm resistor: apply 12V between the dim+ and ground–if the screen dims correctly, the circuit is functional. Many aftermarket kits assume white/orange is dim+ (Toyota standard), but Volkswagen and Hyundai use green/red.
- Ignoring factory integration modules leads to silent interfaces. Modern vehicles route steering wheel controls, CAN bus data, and ambient lighting through intermediate adaptors. Bypass these only if absolutely necessary–some interfaces rely on proprietary handshakes. Check the telematics manual for pinout deviations before hardwiring.
- Soldering connections without proper heat shrink invites corrosion. Crimp first with a ratcheting tool, then solder only if signal integrity is critical (e.g., RCA cables). Always slide shrink tubing before joining–never after–to seal the joint completely. For outdoor installations, use dual-wall adhesive-lined tubing.
Underestimating parasitic draw ruins installations quickly. Even minor currents–40mA from a poorly insulated cable–can flatten a battery in days. Disconnect the negative terminal, insert a multimeter in series, and measure total draw. Factory alarm systems and GPS trackers often hide 100–300mA loads; disable them temporarily during testing. If draw exceeds 50mA, trace each circuit systematically using a thermal camera–hot spots indicate faulty relays or capacitors.
Skipping load testing after installation risks field failures. Apply a 10-second 14.4V simulated alternator output test to all power inputs–miniature fuses should remain cool. For signal wires, inject a 1kHz sine wave and verify distortion remains below 0.1% THD. Many failures manifest under voltage spikes, so test with a purpose-built load simulator before final reassembly.
