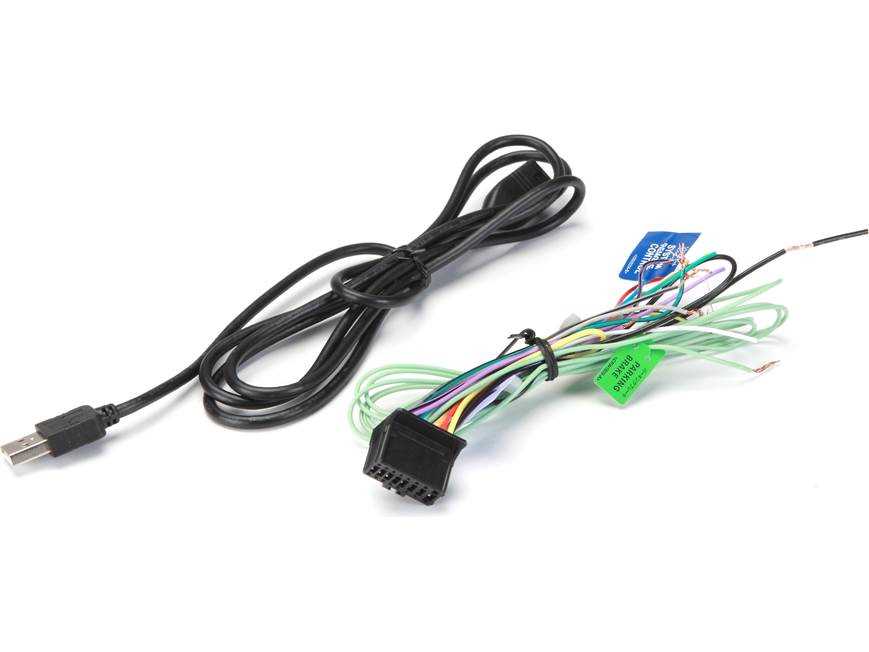

Begin by matching the 14-pin ISO harness of your in-dash receiver to your vehicle’s wiring loom. The yellow wire (B+) ties to constant 12V, usually from the battery, protected by a 15A fuse no more than 30 cm away. Red (ignition) must connect to an accessory-powered source–verify with a multimeter that voltage appears only when the key is turned. Mistaking these two wires will either drain the battery or prevent the system from powering on.
Ground (black wire) needs a direct bolt-to-chassis connection, bare metal only–remove paint and oxidation. A poor ground causes intermittent operation, distorted audio, or failure to boot. For speaker outputs, gray (front right +), gray/black (front right −), white (front left +), white/black (front left −) take priority; reverse polarity here produces phase cancellation, weakening bass and stereo imaging. Secure crimp connectors with heat-shrink tubing–solder alone fractures under vibration.
For parking brake safety circuit, the light green wire (brake input) must pull to ground through the vehicle’s parking brake switch. Bypassing this locks video playback while driving; attempt only if local laws allow. Rear camera input (purple/white) requires a composite video signal–ensure the camera outputs 1 Vpp at 75 Ω impedance. Route camera cable away from high-current leads to prevent interference patterns on screen.
The orange (illumination) wire reduces screen brightness in sync with dashboard dimming; test by toggling headlights–failure here strains night vision. Subwoofer control (violet) connects to an external amplifier’s remote turn-on lead–verify with a 12V test light before finalizing. If retrofitting a legacy harness, document every splice; one misstep undoes hours of installation.
Head Unit AVH-X1500DVD Connection Schematics: Full Breakdown
Begin by locating the harness adapter matching your vehicle’s make–Ford, Toyota, or GM systems often require distinct pinouts. The yellow 12V constant wire (usually 16-18 AWG) must connect directly to the battery terminal, protected by a 15A fuse no farther than 18 inches from the power source. Avoid splicing into existing circuits; voltage drop across shared loads can trigger protection modes or dim display brightness during engine crank.
For speaker outputs, verify impedance compatibility. Most aftermarket amplifiers expect 4-ohm loads; bridging two 2-ohm door speakers incorrectly risks overheating the internal amp. Use crimp connectors with heat-shrink tubing for reliability–twist-and-tape methods degrade within months due to vibration and temperature cycles. Rear fill channels (if applicable) should route separately from front-stage wiring to prevent phase cancellation at higher volumes.
Grounding and Signal Integrity
Secure the black ground cable to a bare metal chassis point within 12 inches of the unit’s mounting location. Sand away paint or corrosion until shiny metal appears; even minor resistance here introduces alternator whine or intermittent power loss. If the factory ground bus is unavailable, drill a dedicated hole near the firewall–avoid utilizing bolted body panels shared with motors or relays.
- Parking brake wire (light green/white) requires grounding to engage DVD playback–bypassing this via resistor tricks violates safety regulations and risks ticketing.
- Reverse signal input (purple) links to the backup light circuit; a missing connection prevents rear camera activation even if powered.
- Steering wheel control interface kits (ASWC-1 or Axxess) demand precise data bus tapping–consult model-specific guides for resistor values.
Illumination wire (orange) varies by brand: Toyota uses 5V square-wave pulses, while Ford applies variable 12V. Measure with a multimeter before connecting; mismatched voltages cause flickering backlights or dashboard warning lights. For OEM amplifier retention, the blue/white remote turn-on lead must switch at least 200mA–verify output capability before cascading multiple devices.
Final checks include verifying dimmer functionality–some European vehicles invert polarity, requiring a relay for consistent operation. Test all inputs (USB, AUX, HDMI) before finalizing trim panel reassembly; loose plugs often mimic component failure. Retain the original schematic printout in the glove box for reference during future troubleshooting.
Power and Ground Connections for Your Multimedia Head Unit
Locate the yellow cable in the harness bundle–this is your constant 12V power lead. Connect it directly to the vehicle’s battery positive terminal using an inline fuse holder with a 10-amp fuse. Skip the ignition switch; this wire must stay live at all times to retain memory settings and clock time. Verify continuity with a multimeter before finalizing the connection to avoid accidental shorts.
For the red accessory wire, attach it to a switched 12V source that activates when the key is turned to the ACC or ON position. Common donor points include the fuse box (tap into an empty slot with a fuse tap) or the radio harness if retaining factory audio controls. Confirm voltage with the key in both ACC and OFF positions to prevent battery drain.
Grounding is critical for signal clarity and system stability. Use the black wire in the harness and secure it to a clean, bare-metal surface on the vehicle’s chassis. Sand away any paint or rust at the attachment point and ensure the bolt is tight–loose grounds cause intermittent issues like screen flickering or audio distortion. Avoid daisy-chaining grounds; run a dedicated lead to the chosen point.
Check the manual’s pinout for the pink/white illumination wire if your model supports dimming. Attach it to the vehicle’s dimmer circuit (typically found in the instrument cluster harness) to ensure the display brightness syncs with dashboard lights. Failure to connect this may result in blinding glare at night or no backlighting at all.
Resist the temptation to splice power wires into the factory radio connectors unless absolutely necessary. Factory harnesses often include anti-theft coding or load resistors; tapping them can trigger error codes or erratic behavior. Instead, use a dedicated wiring adaptor or solder direct connections for reliable performance.
Troubleshooting Connection Issues
If the unit fails to power on, first check fuse integrity on both the inline holder and the vehicle’s fuse box. A blown fuse often indicates a short–inspect all exposed connections for stray strands or crossed wires. Use heat shrink tubing on all splices to prevent corrosion and vibration-related failures.
For persistent ground loop hum, reroute the ground wire away from high-current components like the starter or alternator. Adding a secondary ground wire to a different location (e.g., the seat belt anchor bolt) can resolve interference. Test audio outputs with a pair of headphones before reassembling the dash to isolate the source of noise.
Connecting Speaker Cables to Your Multimedia Receiver
Use high-quality oxygen-free copper (OFC) cables with at least 16-gauge thickness for front and rear channels to minimize signal loss. Thinner wires risk overheating under prolonged high-volume playback, degrading sound clarity over time.
Strip 6–8 mm of insulation from each wire end using a proper stripping tool–never scissors or teeth. Twist the exposed strands tightly to prevent fraying, which can short circuits or create intermittent connections. Tin the ends with solder if working in a high-vibration environment.
Polarity matters: Match the positive (+) terminal on the unit’s harness to the positive lead on each speaker. Swapping polarity causes phase cancellation, flattening bass response and reducing stereo separation. Verify connections with a 9V battery test–positive to positive should make the speaker cone move outward, negative to negative inward.
- Locate the speaker outputs on the back of the system, typically labeled FL+ / FL–, FR+ / FR–, RL+ / RL–, RR+ / RR– (front left/right, rear left/right).
- Insert stripped wire ends fully into the corresponding push terminals–press until you feel a click, then tug lightly to confirm secure engagement.
- Avoid forcing mismatched gauges into terminals; trim excess wire if necessary to prevent shorts.
Troubleshooting Common Issues
- No sound from one channel: Check for loose connections, broken wires, or reversed polarity. Use a multimeter to test continuity between the unit and speaker.
- Distorted output: Inspect for damaged insulation exposing bare wire, which can touch metal chassis ground. Re-route cables away from power wires to reduce interference.
- Overheating wires: Downsize amplifier gain if wires feel warm after 10 minutes of use. Persistent heat indicates under-gauged wires or a faulty connection.
Secure cables with zip ties every 15–20 cm to prevent movement inside door panels or behind dashboards, where friction can wear through insulation. Route wires separately from power cables to avoid induction hum–keep at least 5 cm of clearance where possible.
For premium systems, consider adding in-line fuse holders (2A) near each speaker connection to protect against short circuits without compromising high-frequency response. This is especially critical in installations with aftermarket amplifiers driving multiple drivers.
After connecting, power on the system and test each channel individually using a pink noise track. Adjust fader/balance settings to confirm all speakers are active–any imbalance suggests a wiring error, not a unit malfunction.
