Begin with a basic voltage divider configuration using a cadmium sulfide (CdS) resistor as the variable element. A 10kΩ fixed resistor paired with the CdS unit–rated between 5kΩ (bright) and 200kΩ (dark)–creates a reliable threshold switch. Apply a 5V supply and connect the midpoint to a transistor’s base (2N3904 or BC547). This setup ensures the transistor saturates when ambient light drops below 50 lux, activating a relay or LED load without false triggers.
For outdoor applications, replace the fixed resistor with a 22kΩ potentiometer. This adjustment compensates for varying daylight conditions–tighten it to 5kΩ in urban areas with streetlights, or loosen to 47kΩ for rural settings. Add a 0.1µF capacitor across the CdS resistor to suppress noise from fluorescent lighting flicker. Ensure the transistor’s collector-emitter voltage rating exceeds your supply by at least 20% to prevent thermal runaway during prolonged operation.
To isolate high-current loads, use an optocoupler (4N25 or PC817) between the transistor and relay coil. The optocoupler’s LED side connects to the transistor’s collector via a 220Ω current-limiting resistor, while the detector side drives the relay directly. This method eliminates ground loops and protects sensitive components from inductive spikes. For AC loads, pair the relay with a snubber circuit (100Ω resistor + 0.1µF capacitor) across the coil terminals.
For microcontroller integration, measure the voltage divider’s midpoint using an ADC pin. Sample at 10Hz to avoid ambient fluctuations; apply a 5-point moving average filter in firmware. Use a 10-bit resolution ADC (0–1023) with a 3.3V reference–target a threshold of 500 counts for consistency. If noise persists, add a 100nF decoupling capacitor near the ADC input. Program hysteresis: activate load at 450 counts, deactivate at 550 to prevent chatter.
In battery-powered designs, reduce quiescent current by replacing the relay with a MOSFET (IRF540N). Drive the gate via the optocoupler’s detector side, using a 10kΩ pull-down resistor. The MOSFET’s RDS(on) of 0.04Ω minimizes power loss, extending battery life by 30% compared to relays. For very low-power applications, substitute the CdS resistor with a phototransistor (BPW34)–but note its narrower spectral response (400–1100nm), requiring recalibration of the threshold resistor.
Light-Dependent Resistor Electrical Layout Guide
For reliable ambient light detection, pair an LDR (e.g., GL5528) with a 10kΩ pull-down resistor in a voltage divider configuration. Apply 5V to the LDR’s free terminal and measure the output between the LDR-resistor junction and ground. At 10 lux, this setup yields ~1.2V; at 100 lux, ~0.3V. Calibrate thresholds using these empirical values to avoid false triggers in automated lighting systems.
To filter noise from fluorescent or PWM-driven luminaires, insert a 0.1µF ceramic capacitor between the divider’s output and ground. This low-pass filter attenuates frequencies above 16Hz, ensuring stable readings in environments with 50/60Hz flicker. For outdoor applications, enclose the assembly in a waterproof housing with a UV-stabilized lens to prevent drift from prolonged sunlight exposure–GL5528’s resistance degrades ~5% annually under direct UV.
| Component | Specification | Purpose |
|---|---|---|
| LDR (GL5528) | 1MΩ dark, 10kΩ at 10 lux | Converts light intensity to resistance |
| Pull-down resistor | 10kΩ ±1% | Creates voltage reference |
| Capacitor | 0.1µF X7R | Noise suppression |
For microcontroller interfacing (e.g., Arduino UNO), connect the divider’s output to an analog input pin with a 1kΩ series resistor to limit current during ADC failures. Use the formula lux = (10^((Vout - 3.3)/-0.6)) * 0.1 to convert voltage to lux, where Vout is the ADC reading scaled to 5V. This logarithmic relationship matches the LDR’s response curve within ±10% accuracy from 1–1,000 lux.
In battery-powered designs, replace the pull-down resistor with a MOSFET (e.g., 2N7000) to reduce quiescent current to
For industrial applications requiring 10ms response time, substitute the LDR with a silicon photodiode (e.g., BPW34) biased at 10V reverse voltage. Couple it with a transimpedance amplifier (LM358, 100kΩ feedback resistor) to achieve 5nA/lux sensitivity–detecting moonlight (~0.05 lux) reliably. Shield signal traces with grounded copper pours to block EMI from adjacent relays or inverters.
Key Elements for Assembling a Light-Dependent Resistor Setup
Begin with a high-quality light-dependent resistor (LDR) with a resistance range tailored to your application–typically 5kΩ to 500kΩ in darkness and 100Ω to 10kΩ under bright illumination. Opt for cadmium sulfide (CdS) variants for general-purpose use due to their stability and fast response times. Avoid models with slow reaction speeds if detecting rapid light changes is critical.
Select a voltage divider configuration as the foundation. Pair the LDR with a fixed resistor (10kΩ is a reliable starting point) to balance sensitivity and power consumption. The fixed resistor’s value directly impacts the output voltage range: lower values increase sensitivity but may drain more current. Test combinations under expected lighting conditions before finalizing.
- For low-power applications, use a 1MΩ resistor to minimize current draw while maintaining responsiveness.
- For high-precision setups, integrate a trimmer potentiometer (e.g., 10kΩ) to fine-tune the threshold.
- Avoid carbon film resistors in humid environments; metal film types resist corrosion better.
Incorporate an operational amplifier (op-amp) like the LM358 or TLC272 when signal amplification is needed. Configure it as a comparator with a reference voltage (Vref) derived from a voltage divider or precision voltage source (e.g., 1.25V from an LM317). This ensures a clean digital output transition when light levels cross the threshold.
For microcontroller interfacing, include a Schmitt trigger (e.g., 74HC14) or enable the built-in hysteresis feature on many MCUs. This prevents erratic switching caused by ambient light fluctuations or electrical noise. Without hysteresis, rapid toggling at the threshold point will false-trigger connected devices.
Power supply considerations vary by use case:
- For battery operation (3V–5V), use low-power components and minimize static current leakage.
- For mains-powered setups, isolate the high-voltage section with optocouplers (e.g., PC817) to protect low-voltage components.
- Regulate voltage with an LM7805 or buck converter to ensure consistent performance across input fluctuations.
Add a pull-down resistor (10kΩ) on the output line if connecting to a microcontroller’s GPIO pin. This prevents floating inputs during power-up or when the op-amp/comparator is inactive. For standalone applications, a relay or MOSFET (e.g., IRLZ44N) can directly drive loads up to 20A, but always include a flyback diode (1N4007) to protect against inductive spikes.

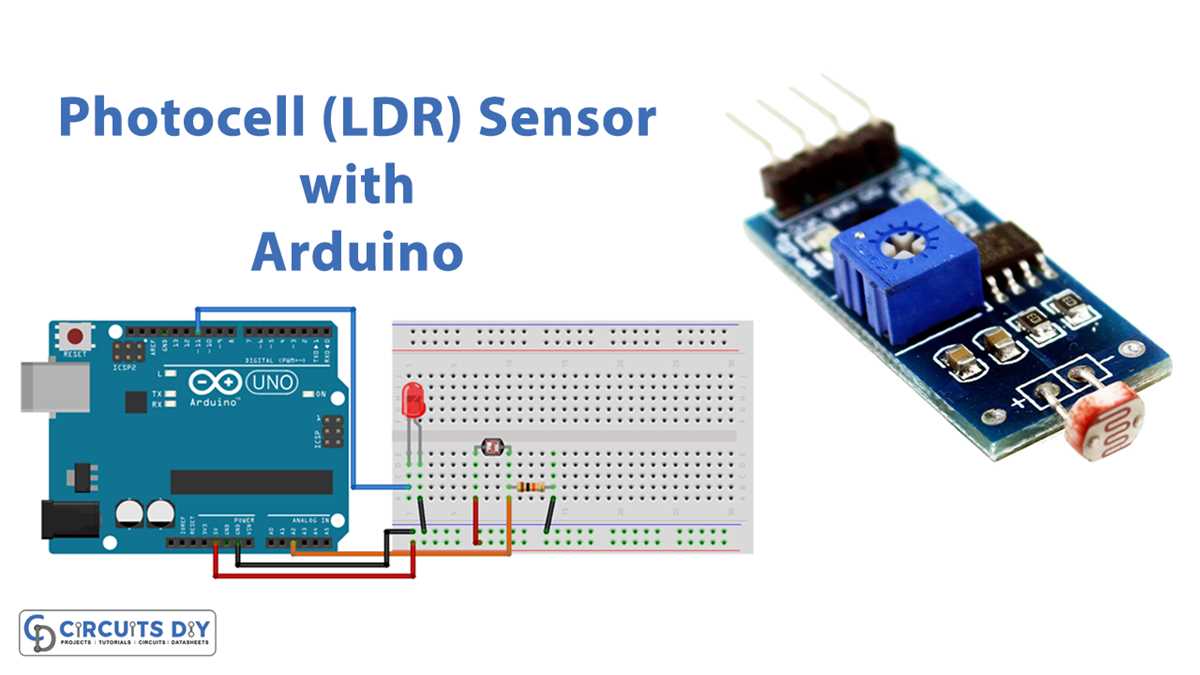

Step-by-Step Wiring of a Light-Dependent Resistor to a Microcontroller
Power the microcontroller and connect the LDR between a 5V pin and an analog input (e.g., A0 on Arduino). Wire a 10kΩ pull-down resistor from the analog pin to ground to stabilize readings–this forms a voltage divider, ensuring the ADC reads fluctuating voltage as ambient light shifts. Verify correct polarity: the LDR’s anode connects to 5V, while its cathode bridges the analog pin and resistor junction. Configure the microcontroller’s ADC reference to default (typically 5V) unless noise is detected, in which case switch to INTERNAL (1.1V on ATmega328P) for improved resolution. Compile and upload code with `analogRead(A0)` to confirm raw values range between 0 (bright) and 1023 (dark).
Debugging Common Issues
If readings flatline, swap the LDR’s leads–polarity misplacement creates shorts. For inconsistent data, replace the 10kΩ resistor with a 4.7kΩ or 22kΩ variant, matching the LDR’s resistance curve. Add a 0.1µF ceramic capacitor between A0 and ground to filter high-frequency noise, critical in environments with fluorescent lighting or PWM interference. Validate wiring with a multimeter: measure
Fine-Tuning Light-Dependent Response Parameters
Begin by identifying the target illumination range for your application–ambient light activations typically require a 10–100 lux threshold, while precise object detection may demand 1–5 lux. Use a trimmer potentiometer (10kΩ–100kΩ) in series with the resistive component to adjust the switching point without altering the main loop. For bipolar junction transistor (BJT) designs, a 47kΩ resistor between the base and ground lowers sensitivity, while a 10kΩ resistor increases it; field-effect transistor (FET) configurations follow similar scaling but with steeper curves above 2MΩ.
Calibration Techniques
Attach a multimeter in voltage mode across the sensing element’s output node before powering up. Gradually increase input intensity (e.g., using a dimmable LED at 50cm) while monitoring the voltage shift–ideal transients should swing from 90% to 10% of supply voltage within a 20% change in lux. If hysteresis exceeds 15%, add a 0.1µF capacitor between the wiper of the potentiometer and ground to smooth transitions, reducing false triggers in fluctuating conditions. For microcontroller-based setups, implement a 32-sample moving average filter to discard noise below 2% of the full-scale reading.
Select reference resistors based on the ambient conditions: 5kΩ–10kΩ for indoor use with controlled lighting, 50kΩ–200kΩ for outdoor applications where sunlight variability must be ignored. Always verify adjustments with a lux meter–most low-cost models have ±3% accuracy, sufficient for ensuring the transition point matches the intended 30–70 lux activation window. Record paired values of resistor settings and corresponding voltage shifts to replicate consistency across multiple units.
