Start with a BPW40 or TEPT5600 for reliable optical detection–these components offer high sensitivity in low-light conditions. Pair them with a 10kΩ resistor at the collector to balance response speed and noise suppression. A 470Ω resistor on the emitter stabilizes output for consistent voltage swings when ambient light varies.
For power, use a 5V regulated supply–anything above 10V risks thermal drift in the sensor. If working with pulsed signals, add a 0.1µF decoupling capacitor close to the sensor’s power pins to filter high-frequency interference. Avoid long leads between components; parasitic capacitance can degrade rise times by 30% in 10kHz+ applications.
Test calibration with a controlled light source. Position a 650nm LED at 20cm–adjust resistor values until output voltage swings between 1.2V (dark) and 4.5V (illuminated). For outdoor use, shield the sensor from direct sunlight with a neutral-density filter (ND2) to prevent saturation.
When interfacing with microcontrollers, connect the output to an ADC pin and configure for 10-bit resolution. Sampling rates above 1kHz may require hardware debouncing; use a Schmitt trigger IC (e.g., 74HC14) if triggering digital logic directly.
For battery-operated designs, replace standard resistors with 0.1% tolerance metal-film types–this reduces current draw by 12µA while maintaining accuracy. If size constraints apply, consider SMD sensors like APDS-9008 (2x2mm footprint), though signal strength drops by 20% compared to through-hole alternatives.
Building a Light-Sensitive Switch: Key Schematics
Use a bipolar NPN component with a clear lens (e.g., BPW40 or LTR-4206E) for optimal responsiveness in low-light conditions. Connect the emitter to ground, the collector to a 5–12V supply via a 1kΩ–10kΩ resistor (adjust based on ambient brightness), and place a 10μF capacitor parallel to the resistor to filter noise. For precise threshold tuning, add a 10kΩ potentiometer between the base and ground–this allows fine control over sensitivity without recalibrating resistor values. Test under target lighting (e.g., 200–800 lux) to confirm the output voltage swing meets logic-level requirements (0.8V low, 2.4V high for TTL).
Advanced Configurations for Specific Applications
For interrupt-driven systems, replace the pull-up resistor with a 47Ω–220Ω resistor to the MCU input, enabling microampere-level current draw while maintaining fast edge detection. High-speed detection (e.g., optical encoders) demands a Darlington pair (e.g., MCT6) with a 1MΩ bias resistor to amplify weak signals. In noisy environments, insert a 1nF–10nF capacitor across the sensor’s collector-emitter to suppress EMI; for long cable runs (>1m), twist signal wires and shield with grounded foil. Calibrate using a known light source–an 880nm IR LED with 50mA drive current yields consistent results–and log voltage curves at 10ms intervals to map hysteresis.
Light-Sensing Component Setup for New Engineers

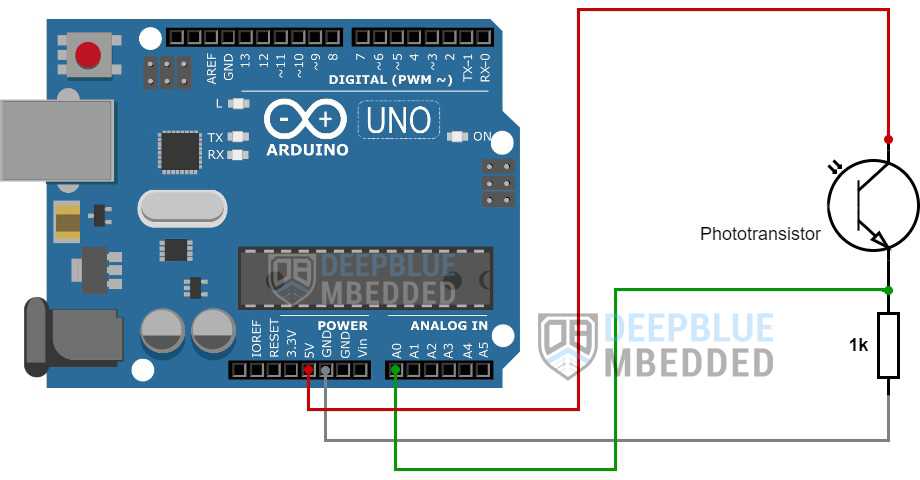

Begin with a 5mm optoelectronic sensor connected to a 5V supply via a 1kΩ resistor–this forms the simplest working arrangement. The resistor prevents excess current through the sensitive junction while allowing sufficient response to visible light at 400-700nm wavelengths. For infrared detection, swap the sensor for a 940nm variant; lower the resistor to 470Ω to compensate for weaker signal strength.
Attach the output to a microcontroller analog pin or comparator like LM393 for threshold-based switching. A 100nF decoupling capacitor between the sensor’s collector and ground stabilizes readings in noisy environments. If using a bipolar element (npn/pnp), ensure the load resistor matches the expected illumination range–10kΩ for indoor use, 22kΩ for outdoor conditions with strong ambient light.
Adjusting Sensitivity Without Complex Calculations
Position the sensing element perpendicular to the light source at a 15° angle to minimize false triggers. For adjustable response, replace the fixed resistor with a 10kΩ potentiometer; turn clockwise to increase sensitivity. When interfacing with logic gates, add a 4.7kΩ pull-down resistor to prevent floating inputs. Test with a constant 1mW/cm² light intensity for consistent calibration.
Isolate the setup from heat sources–thermal drift alters dark current by 2nA/°C. Use a shielded cable (minimum 10cm) for connections beyond the prototyping board to avoid EMI interference. If powering from batteries, select a 3.7V LiPo and boost to 5V via MT3608 module; this combination extends operation to 48 hours with a 2000mAh cell.
Pull-Up and Pull-Down Resistor Selection for Optoelectronic Sensors
For ambient light detection, 10 kΩ pull-up resistors dominate low-power designs due to balanced response speed and noise immunity. Current-limited sources below 1 mA benefit from higher values–47 kΩ to 100 kΩ–reducing dark current while maintaining µs-range switching. Industrial automation favors 4.7 kΩ for aggressive rise/fall times, sacrificing quiescent current to combat EMI in fast-paced environments.
Pull-downs for NPN collectors typically settle at 2.2 kΩ in high-brightness applications, ensuring VCE(sat) remains below 0.4V under 5 mA load. Edge-case designs with 1 MΩ trade sensitivity for ultra-low power, requiring additional hysteresis through Schmitt triggers when ambient thresholds fluctuate ±20%. Automotive-grade circuits mandate 20 kΩ as a compromise between leakage resilience and transient response, especially in 12V systems.
Resistive networks must align with downstream logic: 3.3 kΩ pull-ups suit 3.3V CMOS, while 1.5 kΩ optimizes 5V TTL margins. For pulsed operation, derate values by 30% to prevent thermal drift–5.6 kΩ replaces 4.7 kΩ when duty cycles exceed 20%. Always validate against worst-case luminosity and voltage rails; a ±5% tolerance prevents false triggers in precision instruments.
Optimal Voltage Supply Selection for Reliable Optoelectronic Sensor Performance
Select a supply voltage between 3.3V and 12V for most silicon-based light-sensitive components, ensuring minimal dark current while maintaining sufficient sensitivity. For low-power applications, 5V is ideal–balancing response speed and noise immunity. For high-speed or long-range detection (e.g., industrial proximity sensors), 9V–12V maximizes signal-to-noise ratio but requires thermal management to prevent drift.
Key factors influencing voltage choice:
- Material composition: GaAsP devices tolerate 1.5V–5V, while Si sensors demand ≥3V for linear operation.
- Ambient light levels: Indoor (3.3V–5V; outdoor (>10k lux) may need 9V+ to overcome saturation.
- Load resistance: 1kΩ–10kΩ at 5V yields optimal rise times (
- Temperature range: Voltage stability varies: ±0.5%/°C for Si, ±2%/°C for GaAs. Compensate with LDO regulators for precision.
Fine-Tuning for Specific Scenarios
For pulsed applications (e.g., time-of-flight systems), use 5V–9V with a ≤50% duty cycle to prevent junction overheating–calculate power dissipation as P = VCE × IC × ton. In battery-driven designs, prioritize 3.3V with a switching regulator (efficiency >90%) to extend lifespan. Always verify the collector-emitter breakdown voltage (VCEO>15V for most discrete components) to avoid catastrophic failure under transient spikes.
Load Resistor Calculations for Optimal Light Sensor Performance
Select a load resistor within 10 kΩ to 1 MΩ for standard NPN light-detecting components, adjusting based on ambient conditions. Lower values (≤50 kΩ) suit high-intensity environments, while higher (≥200 kΩ) work better in dim settings. For precise tuning, use the formula RL = (VCC - VCE(sat)) / Idark, where VCE(sat) typically ranges 0.1–0.3 V and Idark is the leakage current specified in the datasheet (usually 1–100 nA).
For a 5 V supply, begin with 47 kΩ if the sensor’s dark current is 10 nA: RL = (5 - 0.2) / 10-8 ≈ 4.8 × 105 Ω. Round to the nearest standard value (470 kΩ) and verify with an oscilloscope under expected lighting. If response linearity suffers, reduce resistance incrementally by 10–20% until signal-to-noise ratio stabilizes.
Below is a reference table for common resistor values based on supply voltage and sensor leakage:
| Supply Voltage (V) | Leakage Current (nA) | Recommended RL (kΩ) | Typical Application |
|---|---|---|---|
| 3.3 | 5 | 620 | Low-power indicators |
| 5 | 10 | 470 | General automation |
| 12 | 50 | 220 | High-sensitivity detectors |
| 24 | 100 | 220 | Outdoor security systems |
When parasitic capacitance (CCE) exceeds 10 pF, include a parallel resistor-capacitor network to prevent signal distortion. For example, pair a 47 kΩ resistor with a 10 nF capacitor to filter 50 Hz interference–critical in AC-powered setups. The cutoff frequency fc = 1 / (2πRC) should align with the signal’s bandwidth (e.g., 3.4 kHz for a 47 kΩ/10 nF combination).
Sensor gain (hFE) inversely affects resistor choice: devices with hFE ≥ 500 tolerate lower resistances (≤100 kΩ), while those with hFE ≤ 200 require ≥500 kΩ for detectable voltage swings. Multiply the calculated RL by hFE / 300 for rough adjustments, then fine-tune empirically.
Temperature Compensation Techniques
For accuracy across -20°C to +85°C, use a negative temperature coefficient (NTC) thermistor in series with RL. A 10 kΩ NTC (beta ≈3450) compensates for 0.5%/°C drift in leakage current. Calculate the thermistor’s parallel resistance at 25°C: RNTC = RL × (1 - 0.005 × ΔT), where ΔT is the deviation from 25°C. For ΔT = 60°C, increase RL by 30%.
In pulsed-light applications (e.g., Lidar), add a 1 MΩ pull-down resistor to VCC for rapid transitions. This counteracts the sensor’s intrinsic 1–5 µs rise/fall time, ensuring Vout reaches 90% of VCC within one pulse cycle. For frequencies above 10 kHz, reduce RL to 10–50 kΩ and couple with a 100 pF capacitor to ground to prevent signal integration.
Microcontroller-Specific Adjustments
For 3.3 V microcontrollers with 10-bit ADC, target a 3 V swing to maximize resolution. If the sensor’s saturation voltage (VCE(sat)) is 0.2 V, RL = (3.3 - 0.2) / Ilight, where Ilight is the photocurrent under expected illumination (typically 1–10 mA). For Ilight = 2 mA, use RL = 1.55 kΩ (E24 series: 1.5 kΩ). Validate with a 10-bit ADC formula: ADC value = (Vout / Vref) × 1023, ensuring Vout stays below Vref.
