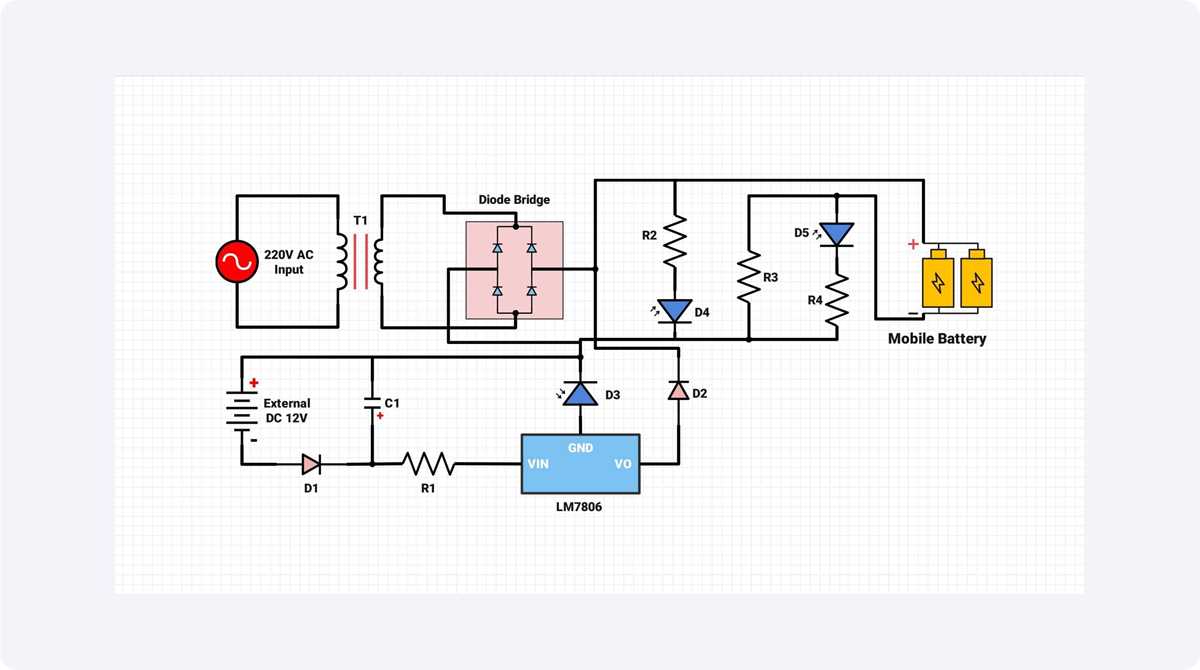

Start by identifying key components: a step-down transformer rated for 5V output at 1A minimum, a bridge rectifier (four 1N4007 diodes), a 7805 voltage regulator, and a 1000µF electrolytic capacitor. These form the core of any reliable power supply design for handheld devices. For extra stability, add a 0.1µF ceramic capacitor across the output terminals to filter high-frequency noise.
Connect the transformer’s secondary winding to the bridge rectifier, ensuring correct polarity. The rectifier converts AC to pulsating DC–smooth this with the electrolytic capacitor before feeding it into the 7805 regulator. The regulator’s input should never exceed 12V to avoid overheating; a 9V transformer is optimal. Ground the regulator’s metal tab to a common ground plane using a heat sink if continuous operation is expected.
Verify each stage with a multimeter: 6–9V AC at the transformer output, 8–12V DC after rectification, and 5V ±0.2V at the final output. Deviations suggest incorrect component values or soldering errors. For safety, fuse the primary side (250V/500mA) to prevent fire hazards from short circuits. Use thick gauge wire (at least 22 AWG) for all power-carrying paths to minimize voltage drop.
Avoid cheap PCB layouts–keep high-current traces short and wide. Separate analog and digital grounds to reduce interference, especially if adding USB compatibility later. Test under load (e.g., a 5Ω resistor) for at least 30 minutes; the regulator should remain cool to the touch. If thermal shutdown occurs, upgrade the heat sink or reduce input voltage.
For advanced designs, replace the 7805 with a TI TPS54060 buck converter for higher efficiency (up to 95%). This requires additional components: an inductor (10µH), a 30V Schottky diode (e.g., 1N5822), and precise feedback resistors. Calculate values using TI’s Webench tool to ensure stability. Always simulate the circuit in LTspice before prototyping.
Document every connection in a netlist format for replication. Include component tolerances (±5% for resistors, ±20% for capacitors) and note critical parameters like maximum ambient temperature (40°C for consumer-grade builds). Store schematics in KiCad or Altium Designer for future reference.
Understanding Power Adapter Circuit Blueprints
Begin by identifying the input AC voltage range labeled on the primary side of the transformer–typically 100–240V for universal adapters. Verify this matches your local mains supply to prevent component stress. For 110V regions, confirm the bridge rectifier’s voltage rating exceeds 200V; for 230V, opt for diodes rated at 400V or higher.
Select capacitors with care: the primary smoothing capacitor should have an ESR below 1Ω and a capacitance of 4.7–10µF per watt of output power. For a 5W adapter, aim for 22–47µF; anything lower risks ripple exceeding 100mV, degrading regulation. Use X2-class capacitors on the AC side to meet EMI standards.
Implement a flyback or buck converter topology if efficiency above 85% is required. Flyback designs dominate below 10W due to simplicity; buck converters excel above 10W but demand larger inductors. Ensure the switching MOSFET’s RDS(on) is below 0.5Ω for 5V/1A outputs to minimize heat dissipation.
Critical Component Parameters
| Component | Voltage Rating | Current/Tolerance | Key Spec |
|---|---|---|---|
| Bridge Rectifier | >300V (110V) / >600V (230V) | 1.5× output current | Low forward drop ( |
| Switching MOSFET | ≥2× input max | RDS(on) | Fast recovery ( |
| Output Capacitor | >2× output voltage | ESR | Low leakage ( |
| Feedback Optocoupler | Isolation >3kV | CTR 50–200% | Response time |
Incorporate a feedback loop using an optocoupler with a current transfer ratio (CTR) between 80–160% for stable regulation. Avoid CTR below 50%, as it leads to erratic output fluctuations. The TL431 shunt regulator is a common choice; pair it with a 10kΩ resistor at the cathode for 2.5V reference calibration.
For overcurrent protection, add a 1Ω resistor in series with the MOSFET source; calculate power dissipation as I2×R. A 0.5W resistor suffices for 1A outputs, but upgrade to 1W for 2A+. Alternatively, use a dedicated IC like the FAN7601 for built-in protection, reducing external component count.
Route high-current traces with 2oz copper pours, keeping traces wide enough to handle 10A/cm2 density. For a 1A adapter, this translates to 0.1cm (39mil) minimum width. Separate noisy switching nodes from sensitive feedback paths using a ground plane split–connect them only at a single star point to suppress EMI.
Test the assembled device under load using a dummy resistor bank: 5Ω for 1A/5V, 2.5Ω for 2A/5V. Monitor output ripple with an oscilloscope; spikes exceeding 150mV indicate insufficient capacitance or poor grounding. For certification compliance, measure conducted emissions per CISPR 32–clamp a line impedance stabilization network (LISN) to the input and sweep from 150kHz to 30MHz.

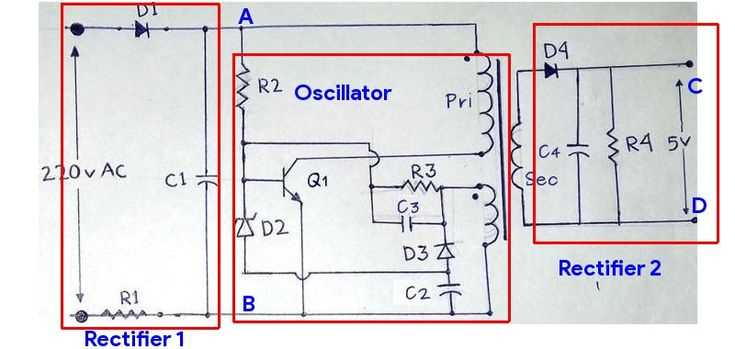

Core Elements of a Power Adapter Circuit
Select a flyback transformer with a turns ratio tailored to your input voltage range (e.g., 85–265V AC) and desired output (5V DC). A 10:1 ratio suits most compact designs, balancing efficiency and component stress. Confirm the core material–ferrite (e.g., N87 or PC44) minimizes losses at switching frequencies above 100 kHz.
Use a MOSFET with a breakdown voltage of at least 650V (e.g., STP7N65M5 or Infineon IPA50R280) to handle voltage spikes during transition. Gate charge should be under 25 nC to reduce switching losses; threshold voltage must align with your PWM controller’s drive capability (typically 3–10V).
Opt for a PWM IC like the OB2263 or Diodes Inc. AP8802 for primary-side regulation. Ensure it supports burst-mode operation under light loads (below 100 mA) to meet standby power standards (≤ 30 mW). Check for built-in overcurrent and short-circuit protection–external RC networks for timing (e.g., 10 kΩ + 10 nF) fine-tune switching frequency (60–130 kHz).
Rectify AC input with a bridge rectifier (e.g., GBU4K) or discrete diodes (UF4007 for 1A designs). Capacitors on the DC bus require low ESR (≤ 100 mΩ) and voltage ratings 1.5× the peak input (e.g., 400V for 230V mains). Film or X2-rated caps (e.g., R46KN22205030J) prevent failure under transient surges.
Add a snubber circuit (RCD network) across the MOSFET’s drain-source to clamp voltage spikes. Values typically range: 22–100 Ω resistor (2W rating), 10–47 nF cap (630V), and a fast-recovery diode (MUR160). Without this, switching noise can exceed component breakdown limits, causing premature failure.
Output regulation demands a Schottky diode (1N5822 or SB560) for low forward voltage drop (≤ 0.5V at 1A). Pair it with a 1000 µF aluminum electrolytic cap (low ESR) and a 0.1 µF ceramic cap to filter ripple. For efficiency, consider synchronous rectification (e.g., TPS2491) if thermal constraints allow.
Include a Y1-rated capacitor (e.g., 470 pF/250VAC) between primary and secondary grounds to suppress EMI. Fuse selection depends on power rating: 1A slow-blow for 5W adapters, 2A for 10W+. Test compliance with EN 55022 Class B by measuring conducted emissions (≤ 66 dBµV at 0.15–0.5 MHz).

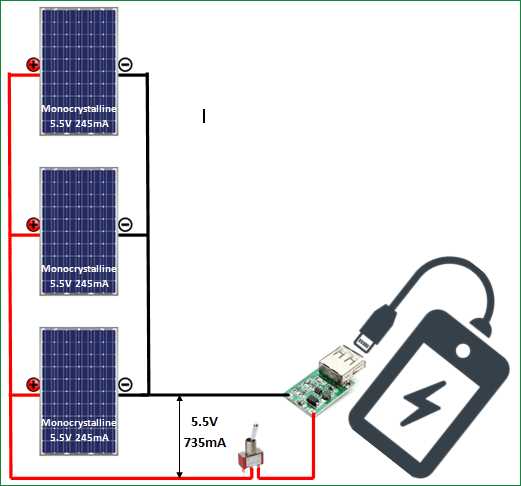

Step-by-Step Guide to Designing a USB Power Supply Circuit Layout

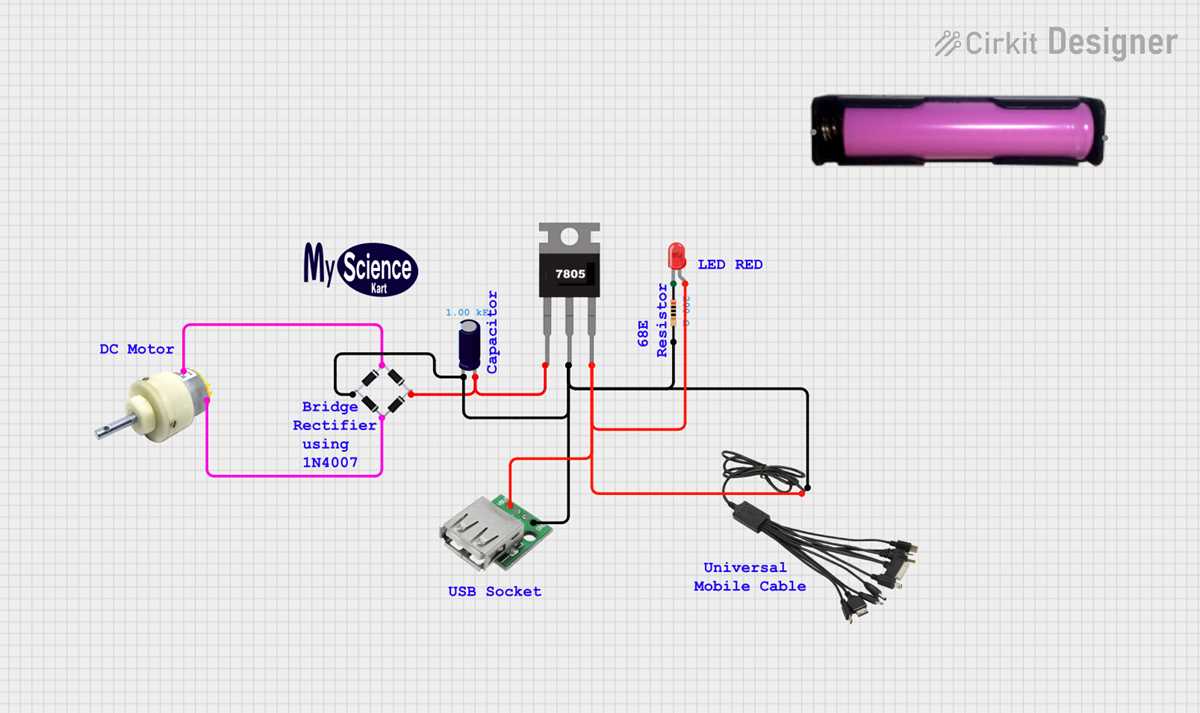

Begin with a 5V linear regulator like the AMS1117 or LM7805, sourcing input from a 230V AC to 9V DC transformer or a 6-12V DC wall adapter. Place a 1N4007 diode at the transformer’s output to rectify AC, followed by a 1000µF electrolytic capacitor to smooth voltage ripple. Connect the regulator’s input pin to this node, ensuring the ground pin ties to the common ground, while the output pin feeds a 470µF capacitor to stabilize the 5V rail. Add a 330Ω resistor in series with an LED to indicate power.
- Feed the 5V output into a USB Type-A female connector, pin 1 (+5V) and pin 4 (GND).
- Include a 0.1µF ceramic capacitor near the USB’s +5V pin to suppress high-frequency noise.
- Use 22 AWG wire for power paths; thinner traces risk voltage drop.
- Label every component with its value–e.g., R1 330Ω, C2 1000µF–to avoid errors.
- Verify continuity with a multimeter: transformer’s secondary → diode → capacitor → regulator input.
- Test under load (1A) with a resistive dummy (e.g., 5Ω 10W) to confirm output stability.
Critical Errors in Power Supply Design and Solutions
Failing to calculate trace widths for expected current loads causes overheating and voltage drops. For a 2A circuit, use at least 2mm width for 1oz copper or 1mm for 2oz. IPC-2221 provides formulas: W = (I/(k * ΔT^b))^(1/c). Many designers ignore this, especially in compact layouts, but even short traces handle thermal dissipation poorly. Measure actual current with a multimeter–assume 20% safety margin above calculated values.
Incorrect component selection degrades performance or destroys the circuit. Swap a 1N4007 for a 1N5819 when reverse recovery time matters–0.7μs vs. 0ns. Linear regulators like LM7805 need heat sinks at >300mA; switch to buck converters (e.g., LM2596) for >1A loads. Capacitor ESR affects stability–use tantalum or ceramic for low-ESR applications, not electrolytic. Always check datasheets for derating curves at max temperature.
- Omitting input/output capacitors creates ripple. Add 10μF electrolytic + 0.1μF ceramic at input; 100μF + 0.1μF at output. Place ceramics within 2mm of IC pins.
- Ignoring ground loops introduces noise. Use a star topology, not daisy-chaining. Keep high-current grounds separate from signal grounds.
- Overlooking thermal pads on MOSFETs drops efficiency. Use vias under TO-220 packages–minimum 3x 0.5mm vias per pad.
Inadequate protection invites failures. Add a 1.1A PTC fuse (e.g., 0ZCJ0050AF2C) for overcurrent; a TVS diode (SMBJ5.0A) for surge suppression. Ensure isolation if designing for >30V–creepage distance must be ≥2.5mm (IEC 60950). Test prototypes with a load step from 10% to 100% to catch stability issues. Skipping these steps risks dead short circuits or fire hazards.
