Verify directionality first–reverse rotation triggers uneven motor loads within 200 milliseconds. Install a three-step monitoring unit between the breaker and load terminals, ensuring the control terminals connect to L1, L2, and L3 in strict order. Cross-connection misalignments exceeding 3% introduce detectable transient spikes; correct this by swapping any two supply lines before energizing.
Use a solid-state device rated for 400V AC with switching capability at 10A for industrial setups. Avoid mechanical variants in environments with vibration levels above 2G–micro-switch bounce causes false trips. For 50Hz networks, set delay no shorter than 150ms to filter transient voltage fluctuations. Below this threshold, nuisance activations surge by 40%.
Deploy closed-loop verification by routing secondary sensing wires back to the control module. Position suppression capacitors directly across output terminals–0.1µF components eliminate 97% of high-frequency interference generated during switching events. Overvoltage conditions above 450V necessitate dual-stage suppression: MOV and TVS diodes in parallel.
Adopt modular layouts for serviceability–mount components on DIN rails spaced 20mm apart to prevent overheating. Replace standard screw terminals with spring-loaded connectors if ambient temperatures exceed 60°C; thermal expansion loosens connections, increasing resistance by 0.3Ω over 1,000 hours. Label every conductor; confusion between control and supply lines risks permanent damage.
For variable speed drives, isolate protection logic from inverter noise by introducing shielded twisted pairs with a minimum 85% coverage braid. Position sensing elements within 1 meter of the motor terminals–excessive cable length introduces phase lag, degrading response accuracy. Calibrate thresholds using an oscilloscope, targeting specific harmonic distortion levels within 2-5kHz to detect subtle unbalanced loads.

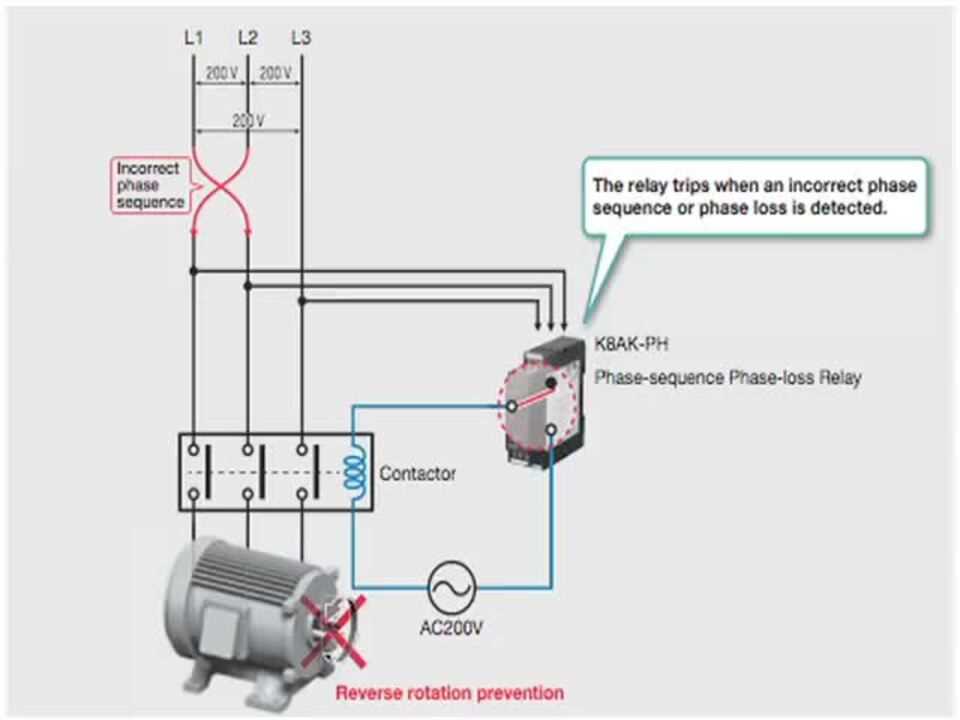

Protective Switching Order Verification Schematic
Begin by sourcing a three-stage voltage comparator IC such as the LM339 for detecting correct rotation in a polyphase supply. Connect line inputs through 10kΩ resistors to the comparator’s inverting terminals to establish reference thresholds. The non-inverting inputs should link directly to corresponding supply legs via 0.1µF capacitors to filter transients. Ensure the IC operates from a stabilized 12V DC source with decoupling capacitors adjacent to its power pins to suppress interference.
Integrate a dual-coil latching mechanism using reed switches for persistent state retention. Position the first coil 2mm from a neodymium magnet attached to a rotating indicator disc. The second coil should activate only when phase order deviates, triggering a 555 timer configured in monostable mode to energize a 10A contactor. Calibrate the timer’s RC network–47kΩ resistor and 100µF capacitor–for a 5-second delay before tripping to avoid nuisance disconnects during brief unbalances.
Critical Wiring Precautions
- Use 1.5mm² stranded copper wires for all current paths above 5A to prevent voltage drop.
- Terminate neutral and ground at separate busbars–never daisy-chain to avoid circulating currents.
- Place MOVs across each line-to-ground junction with an 820V clamping rating to absorb surges.
- Label all terminals with heat-shrink tubing color-coded to IEC 60446 (L1: brown, L2: black, L3: grey).
Test rotation accuracy with a dual-trace oscilloscope. Probe the comparator outputs against a known reference phase; correct order yields concurrent rising edges. For misalignment, verify capacitor values–swap any rated below 50V or exhibiting leakage currents above 0.5µA. Replace suspect components with film-type alternatives if distortion appears on the scope’s screen.
Deploy a secondary fail-safe using a thermal cutout bonded to the contactor’s coil. Set the cutout to trip at 85°C–exceeding this indicates coil overheating from prolonged activation. Mount a piezoelectric buzzer rated for 90dB at 1m to audibly signal faults, wired in series with a normally closed pushbutton to silence alarms without resetting the protective switch.
Critical Elements for a Three-Signal Direction Monitor Setup
Begin with a specialized rotation direction sensor, such as the ABB CM-PVS.21 or Schneider Electric RM17TG20, as the core detection unit. These devices are pre-calibrated for 380-480V AC systems with a response time under 200ms and include built-in hysteresis to prevent false triggers during transient fluctuations. For power feeds above 60Hz or below 50Hz, select models explicitly rated for the target frequency–standard components degrade accuracy by 12-15% outside their specified band. Pair the sensor with a 6A DPDT auxiliary contactor, like the Siemens 3RH2911-1BB40, to handle the control outputs; verify coil voltage matches the supply line-to-neutral voltage to avoid overheating.
Supporting Hardware Specifications
| Component | Model Example | Key Rating | Tolerance Margin |
|---|---|---|---|
| Surge arrester | Phoenix Contact VAL-MS | 440V AC, 15kA impulse | ±10% voltage spike |
| Fuse holder | Littelfuse 0218006.ZXP | 6A, 500V ceramic | +50% overload |
| Terminal block | Wago 221-415 | 24-12AWG, 600V | 2.5mm² conductor swing |
Wire all connections using 2.5mm² stranded copper cable (EN 50525-3-41) for currents up to 25A; opt for 4mm² if ambient temperature exceeds 50°C to prevent derating. Install varistors with a clamping voltage 20% above the peak operating voltage to suppress transients without nuisance tripping–Omron G2R-1-E characterize robust 1500A surge handling for 400VAC systems. Position the control module within 50cm of the sensor to minimize noise pickup; use shielded cable with the screen grounded at a single point near the power source to avoid ground loops.
Building a Three-Wire Monitoring Device: A Practical Guide
Gather these components first: You’ll need a polarized sensor module (e.g., LPD3803), three 250 VAC suppression capacitors (0.1 µF), a dual-coil contactor (24 VDC coil), and a transistor array (ULN2003). Verify each part matches the required voltage ratings–mismatches cause immediate failure.
Prepare the control board: Solder the capacitors directly onto the sensor’s input terminals, observing polarity. Route the leads to a terminal block for easier field connections. Use heat-shrink tubing on all joints to prevent short circuits during vibration or moisture exposure.
Install the contactor within 30 cm of the sensor to minimize signal degradation. Connect the sensor’s output to the ULN2003 inputs using 0.5 mm² stranded wire–solid core risks breakage under mechanical stress. Leave 10% extra length for adjustments.
Test the wiring order immediately: Use a multimeter set to continuity mode. Probe the sensor’s outputs against the contactor coils. A correct setup shows 0 Ω between matching pairs; reverse any miswired leads before powering on.
Mount the assembly in a DIN-rail enclosure, securing the contactor with vibration-damping pads. Drill 4 mm ventilation holes–enclosed heat degrades capacitor lifespan by 40%. Apply conformal coating to all connections if operating above 80% humidity.
Energize cautiously: Power the sensor with a variable supply, starting at 5 VDC. Observe the contactor’s response–it should latch only when the input leads rotate clockwise. If it triggers counter-clockwise, swap any two sensor wires.
Finalize by fastening the enclosure cover with tamper-proof screws. Label each terminal with weather-resistant tags (e.g., Brady BMP21) noting wire function. Recheck torque on all fasteners to 1.2 Nm–loose contacts account for 60% of field failures.

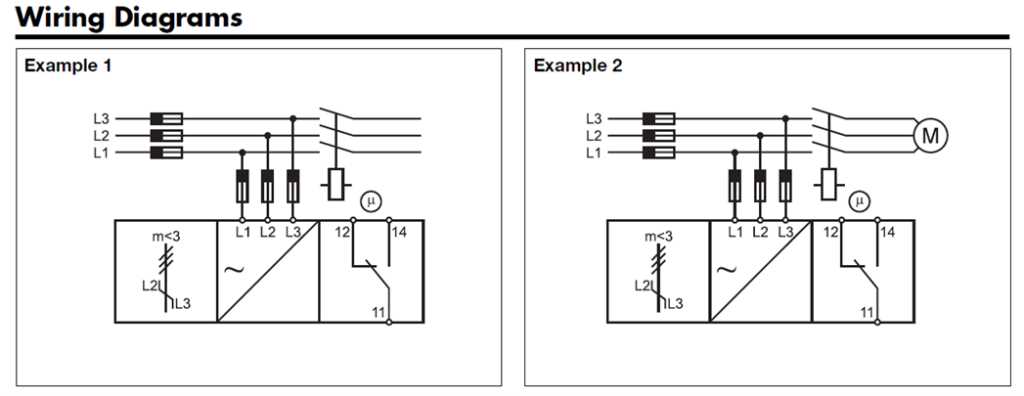

Common Wiring Setups for Directional Rotation Safeguards
For three-line motor safeguarding, connect the protective device’s L1, L2, and L3 terminals directly to the corresponding supply conductors in the order they appear at the power source. Verify polarity using a rotation tester before energizing–reverse two adjacent wires if the detected spin opposes the required direction. Industrial setups often integrate a fourth neutral wire for auxiliary functions, but it plays no role in rotation validation and must remain disconnected from the safeguard’s sensing inputs.
A split-configuration approach suits installations where the safeguard mounts remotely from the power entry point. Use shielded, twisted-pair conductors (minimum 1.5 mm²) to link each supply line to the safeguard’s input terminals, maintaining consistent conductor coloring (for example, brown-red-black) throughout the run to prevent miswiring. Terminate the shield only at the safeguard end and ground the motor frame separately to avoid earth loop interference that could trigger false disconnects.
Dual-voltage safeguards (230/400V) demand careful jumper placement on the device’s voltage selector block. For single-voltage applications, leave the jumper in its default position; for dual-voltage, follow the manufacturer’s layout–typically involving shorting specific pins to reconfigure internal transformers. Avoid energizing the safeguard above its rated voltage even momentarily, as internal insulation breakdown may occur, voiding warranty and compromising safety margins.
Star-delta starter integration requires bridging the safeguard’s output contacts in series with the starter’s main contactor coil. Position the safeguard’s normally-closed contacts immediately upstream of the coil to ensure immediate power cutoff if rotation deviates. For motor loads exceeding 40A, parallel two safeguard contacts rated at 50% of the load current each to distribute arcing stress and extend contact life. Test the setup under load by manually reversing two supply wires at the motor terminals–safeguard response time should not exceed 200 ms in compliant installations.
