To construct a reliable electrochemical sensing setup, begin with a high-impedance operational amplifier such as the TL072 or AD8605. These components ensure minimal signal distortion when interfacing with the probe, which typically outputs a mV-range signal proportional to hydrogen ion activity. Position the amplifier as close as possible to the electrode to reduce noise pickup from external sources.
Incorporate a temperature compensation stage using a 10kΩ NTC thermistor or a dedicated IC like the LM35. Place the sensor adjacent to the probe tip for real-time thermal feedback–fluctuations above ±2°C introduce errors exceeding 0.03 pH units. Use a voltage divider with a precision resistor (1% tolerance) to convert the thermistor’s output into a stable reference for the analog front-end.
For signal conditioning, apply a low-pass RC filter with a cutoff at 0.5 Hz to eliminate 50/60 Hz mains interference. A 10 μF capacitor paired with a 33 kΩ resistor delivers optimal noise rejection without introducing phase lag. Follow this with a buffer amplifier to prevent loading effects on the probe, whose internal resistance can exceed 1 GΩ.
Power the circuit from a dual-rail ±5V supply to accommodate the probe’s bipolar output range (typically -414 mV to +414 mV at 25°C). Use LC filters on each rail to suppress power supply ripple, targeting . For portable applications, the TPS60400 charge pump regulator generates the required negative rail from a single 3.3V or 5V input without bulky inductors.
Calibration requires a two-point method using pH 4.00 and pH 7.00 buffer solutions. Integrate a push-button interface to initiate an auto-calibration sequence stored in non-volatile memory (e.g., 24LC02 EEPROM). Accuracy improves by +30% when incorporating a third reference point (pH 10.00) for non-linear compensation, achievable with the AD7793 24-bit ADC.
Output the processed signal to a 4–20 mA loop for industrial compatibility or to a microcontroller via I²C/SPI. The ADS1115 16-bit ADC provides 15-bit noise-free resolution, translating to 0.002 pH/bit sensitivity. For long-term stability, use a gold-plated connector for the probe to minimize oxidation-driven drift, which can shift readings by 0.1 pH/month.
Label all components with silkscreened identifiers (e.g., R1: 10kΩ 0.1%, C3: 10 μF X7R) to streamline troubleshooting. Include test points at the probe input, amplifier output, and ADC stage to verify signal integrity. For groundwater or soil applications, add a salt bridge using 3% agar gel in 0.1 M KCl to prevent junction potential errors in low-conductivity samples.
Building a pH Sensor Circuit: Key Design Principles
Start with an operational amplifier (op-amp) in non-inverting configuration to amplify the high-impedance signal from the glass electrode. Use a TL072 or OPA2134 op-amp, as they offer low noise and input bias currents below 10 pA. The reference electrode should connect to the inverting input through a precision resistor–values between 10 MΩ and 100 MΩ work best, depending on the electrode’s internal resistance. A 0.1 µF decoupling capacitor placed between the op-amp’s power rails and ground stabilizes the circuit against high-frequency interference.
A temperature compensation network is critical for accurate readings. Use a 10 kΩ NTC thermistor in a voltage divider configuration, feeding into the ADC’s second channel. Calibration requires two buffer solutions (pH 4.01 and 7.00) to determine offset and slope. Store these values in non-volatile memory for automatic scaling. For power, a dual ±2.5V supply derived from a single 5V source via a charge pump (e.g., MAX1044) ensures symmetrical rails, reducing drift. Below is a comparison of common op-amps for this application:
| Amplifier | Input Bias Current (pA) | Noise (nV/√Hz @ 1 kHz) | Offset Voltage (µV) | Supply Voltage (V) |
|---|---|---|---|---|
| TL072 | 30 | 18 | 3000 | ±5 to ±18 |
| OPA2134 | 5 | 8 | 250 | ±2.5 to ±18 |
| LT1013 | 25 | 20 | 150 | ±1.2 to ±20 |
Signal conditioning must include a low-pass filter to attenuate noise above 10 Hz. Implement a second-order Sallen-Key filter with a cutoff frequency of 2 Hz, using 1% tolerance resistors (10 kΩ) and 5% tolerance capacitors (10 µF). The filtered signal then feeds into a 12-bit ADC like the MCP3202, which provides sufficient resolution (±1.22 mV per LSB at 5V reference). For digital interfaces, opt for I2C or SPI–avoid UART due to potential grounding issues in noisy environments.
Grounding and shielding are non-negotiable. Use a star grounding topology, connecting all grounds (analog, digital, power) at a single point near the ADC. Shield the electrode cables with braided copper, grounding the shield only at the instrument end to prevent ground loops. For field deployments, add a transient voltage suppressor (e.g., SMAJ5.0A) across the electrode inputs to protect against electrostatic discharge. Test the circuit with a precision voltmeter: the output should swing ±414 mV per pH unit at 25°C, with less than 2 mV drift over 24 hours.
Key Components of a pH Sensor Circuit Design
Select an operational amplifier with ultra-low input bias current (below 1 pA) like the LMP7721 or INA116 to prevent signal distortion from the electrode’s high-impedance output (106–109 Ω). Avoid generic op-amps–leakage currents above 10 pA will introduce drift, especially in low-conductivity samples. For dual-supply designs, ensure the amplifier’s input common-mode range includes the reference potential (typically 0 V); rail-to-rail models simplify single-supply configurations. Include a guarding ring around the input traces to reduce parasitic capacitance by up to 80%, critical when measuring slow-changing pH signals.
- Reference Electrode: Use a silver/silver chloride (Ag/AgCl) reference with a 3 M KCl junction to maintain stable potential (±0.1 mV/°C drift). Replace porous ceramic junctions with sleeve-style designs if frequent clogging occurs in protein-rich or colloidal samples. For high-temperature applications (above 60°C), opt for a double-junction reference to prevent AgCl dissolution.
- Temperature Compensation: Integrate a 10 kΩ NTC thermistor (B value: 3435 K) adjacent to the electrode. Isolate the thermistor’s leads with shielded cable to avoid noise coupling from the excitation current (typically 100 µA). Logarithmic amplifiers like the AD8400 simplify conversion of the thermistor’s resistance to a temperature-corrected voltage, but ensure the circuit’s time constant matches the electrode’s response (95% settling in <30 seconds).
- Calibration Controls: Implement trimpots with ≤10 ppm/°C stability for offset (10 kΩ) and slope (50 kΩ) adjustments. Replace through-hole trimpots with SMD versions (e.g., Bourns 3224W) if PCB space is constrained. Store calibration coefficients in EEPROM (e.g., 24LC02B) to avoid zero-drift after power cycles; update values only during periodic verification against pH 4.01 and 7.00 buffers.
Filter the raw signal with a 2-pole Sallen-Key low-pass filter (cutoff: 1 Hz) to suppress 50/60 Hz noise without attenuating the 0.1–0.5 Hz pH response. Use 1% tolerance resistors and C0G/NP0 capacitors (≤50 ppm/°C drift) to maintain filter accuracy. Isolate the analog ground from digital circuits with a ferrite bead (e.g., Murata BLM18PG121SN1) and separate power planes to prevent ground loops. For portable designs, add a lithium polymer cell with a quiescent-current <1 µA regulator (e.g., TPS7A02) to extend battery life beyond 1,000 hours.
Step-by-Step Assembly of a pH Probe Interface
Select a high-impedance operational amplifier (op-amp) like the LF356 or AD712 to buffer the pH sensor’s signal. The op-amp input impedance should exceed 1012 Ω to avoid loading the probe, which generates microvolt-level potentials. Solder the op-amp to a prototyping board, ensuring minimal trace length between the probe input and the non-inverting (+) op-amp terminal. Use a 1% tolerance resistor network for gain setting–typically 1 MΩ for Rf and 100 kΩ for Rg–to achieve a gain of 11, matching the probe’s 0–14 pH range to a 0–3.3 V output.
Add a 100 nF decoupling capacitor across the op-amp’s power supply pins (±5 V or ±12 V) to suppress high-frequency noise. Position the capacitor within 2 mm of the IC leads to maximize effectiveness. For reference voltage stabilization, attach a precision voltage reference (e.g., LM4040) to the inverting (–) op-amp terminal via a 10 kΩ resistor, creating an offset to center the output at 1.65 V for single-supply operation.
Probe Connection and Signal Conditioning
Connect the pH probe’s BNC connector to the interface using a shielded coaxial cable. Strip 5 mm of the outer insulation, then solder the core wire to the op-amp’s + input through a 10 MΩ resistor to limit current. Shield the cable’s braid to the circuit ground but isolate it from the analog ground at the op-amp to prevent ground loops. For probes with built-in temperature compensation, integrate a 10 kΩ NTC thermistor near the op-amp input, connecting it to an ADC channel via a 47 kΩ series resistor to form a voltage divider.
Implement a low-pass RC filter after the op-amp output using a 1 kΩ resistor and a 1 µF film capacitor. This attenuates noise above 160 Hz, critical for avoiding aliasing if sampling via ADC. For calibration, include a trimpot (10 kΩ multi-turn) between the op-amp output and an external test point–adjust this to align readings with standard buffer solutions (pH 4, 7, 10) during final testing. Avoid using breadboards for permanent setups; solder all components to reduce parasitic capacitance.
Testing and Validation
Power the circuit and measure the op-amp output with a multimeter. With the probe in pH 7 buffer, the output should stabilize at ~1.65 V (±0.1 V). If offset errors persist, tweak the reference voltage or adjust the trimpot. Test response time by moving the probe from pH 7 to pH 4 buffer–the output should settle within 5–10 seconds. For long-term stability, encase the board in a grounded metal enclosure to shield against EMI from surrounding electronics.

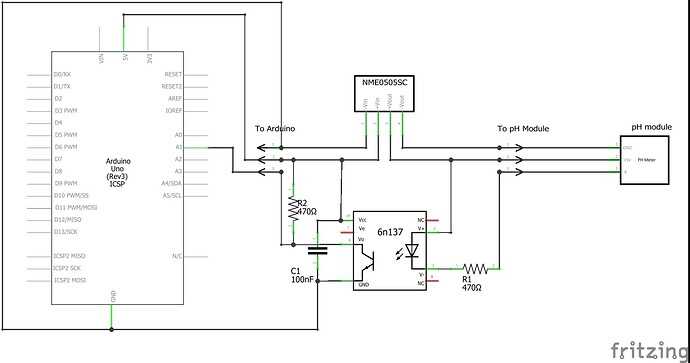

If interfacing with a microcontroller, connect the filtered signal to an ADC pin configured for 12-bit resolution (e.g., STM32 or Arduino’s analog input). Use a sampling rate of 10 Hz and average 10 samples to smooth readings. Validate linearity by plotting measured ADC values against known pH buffers–deviation greater than ±0.1 pH indicates a calibration error or faulty probe. Document probe slope (typically 59.16 mV/pH at 25°C) after measurements; slopes outside 50–65 mV/pH suggest probe degradation and require replacement.
