Design failures in printed layouts often trace back to overlooked details in the schematic stage. Prioritize clarity by separating power rails from signal lines–use distinct colors or net labels for high-current paths (e.g., VIN at 12V/5A) versus low-voltage signals (3.3V logic). Tools like KiCad’s eeschema or Altium’s Schematic Editor enforce hierarchical organization; adopt this early to prevent spaghetti wiring in later revisions.
Critical components demand precise annotation. Label decoupling capacitors (C1, C5) with exact values (e.g., 100nF X7R 0603)–not “small cap”–to avoid impedance mismatches. For switching regulators, specify inductor saturation current (Isat ≥ 2× Iout) and core material (ferrite vs. powder). Omitting these risks thermal runaway.
Net classes streamline design rules. Group USB data lines (D+, D-) into a class with 50Ω impedance and 30mil trace width, while I2C buses (SCL, SDA) require pull-up resistors (4.7kΩ for 3.3V) and stub lengths under 2cm. Automotive or medical gear? Tag nets with IEC 60601 or ISO 26262 compliance flags before routing.
Footprint mismatches derail prototypes. Verify pad sizes against datasheets–BGA packages (e.g., STM32H743) need ball pitch +0.1mm for stencil alignment. Test points (TP1, TP3) should use 1.27mm (50mil) holes for scope probes. Export Gerbers and cross-check with GerbView or DFM tools; missing apertures cause fab delays.
Firmware integration starts here. Add hidden power pins for microcontrollers (e.g., VSSA on ARM Cortex) and annotate boot mode straps (BOOT0=1). For programmable logic, embed JTAG/SWD headers with VREF tied to IO voltage. Document all configuration resistors (R_BOOT, R_nRST) to simplify debugging.
Practical Guide to Designing Electronic Board Schematics
Begin by defining component placement rules before routing traces. Group related elements–power regulation near inputs, MCUs adjacent to sensors–to minimize noise and signal degradation. Use a grid spacing of at least 0.5mm for hand-soldered prototypes; 0.2mm for automated assembly. Prioritize decoupling capacitors (100nF ceramic) within 2mm of IC power pins to suppress voltage spikes. For high-speed signals (e.g., USB, HDMI), maintain 3W rule–keep traces three times their width apart–to avoid crosstalk.
Layer stack-up directly impacts performance. A four-layer board with dedicated power and ground planes reduces impedance and electromagnetic interference (EMI). Route critical signals on inner layers, sandwiching them between planes, for shielding. For two-layer designs, assign 70% of top copper to ground fills–connect all fills to a single point (star grounding) to prevent ground loops. Use vias liberally (minimum 0.3mm drill, 0.6mm pad) but avoid stitching vias closer than 1mm to prevent drill breakage.
Key Routing Checklist
- Avoid 90° traces–use 45° bends to reduce reflection.
- Differential pairs (e.g., Ethernet, LVDS) must have matched lengths (±2.5mm for Gigabit speeds); use serpentine traces if necessary.
- Thermal relief pads improve solderability–limit to 4 spokes (0.2mm wide) for power components.
- Silkscreen references must be ≥1mm tall, placed on a clean copper-free area to ensure legibility.
- Test points (minimum 1mm diameter) should be added for every 5–10 active nets, especially near connectors or MCU pins.
Validate designs with DRC (Design Rule Check) before production. Set clearance rules to 0.2mm for signal traces, 0.3mm for high-voltage lines (>30V). Export Gerber files in RS-274X format with %FSLAX33Y33*% for 3.3 mil (0.08mm) resolution–confirm with a Gerber viewer. For RF boards, include a ground pour on all layers with vias spaced ≤λ/10 (e.g., 12mm for 2.4GHz). Include fiducials (1mm diameter, non-soldermask-covered) for pick-and-place machines, positioning them 5mm from board edges.
How to Interpret Electronic Board Schematics for Newcomers
Identify power rails first–they often appear as thick horizontal or vertical lines labeled VCC, +5V, GND, or similar. Trace these back to their source components (regulators, batteries) to establish the foundation of the layout.
- Ground symbols (⏚ or ↓) cluster near connectors or large capacitors.
- Positive rails (+) usually connect to pins marked V+ on ICs.
- Observe if power splits into branches–this hints at multi-stage designs.
Locate the central processing component, typically the largest chip with the most pins. Count its connections: a 14-pin DIP suggests a simple logic IC, while a 64-pin QFP indicates a microcontroller. Cross-reference pin numbers with datasheet labels.
Follow signal paths from inputs to outputs. Buttons, sensors, or edge connectors serve as starting points, leading to amplifiers, converters, or memory chips before terminating at indicators (LEDs) or actuators (motors). Look for:
- Resistive dividers dropping voltage for analog sensors.
- Capacitors shunting noise to ground near high-speed lines.
- Diodes (▷|) preventing reverse current.
Decode component annotations–R1, C3, Q2–and match them to footprint silkscreen. R = resistor, C = capacitor, L = inductor, D = diode, Q or T = transistor. Numbers indicate sequence on the board.
Note net labels–small text beside connections like I2C_SDA or PWM1. These reveal communication protocols or function groups. If absent, trace the line manually to the next node.

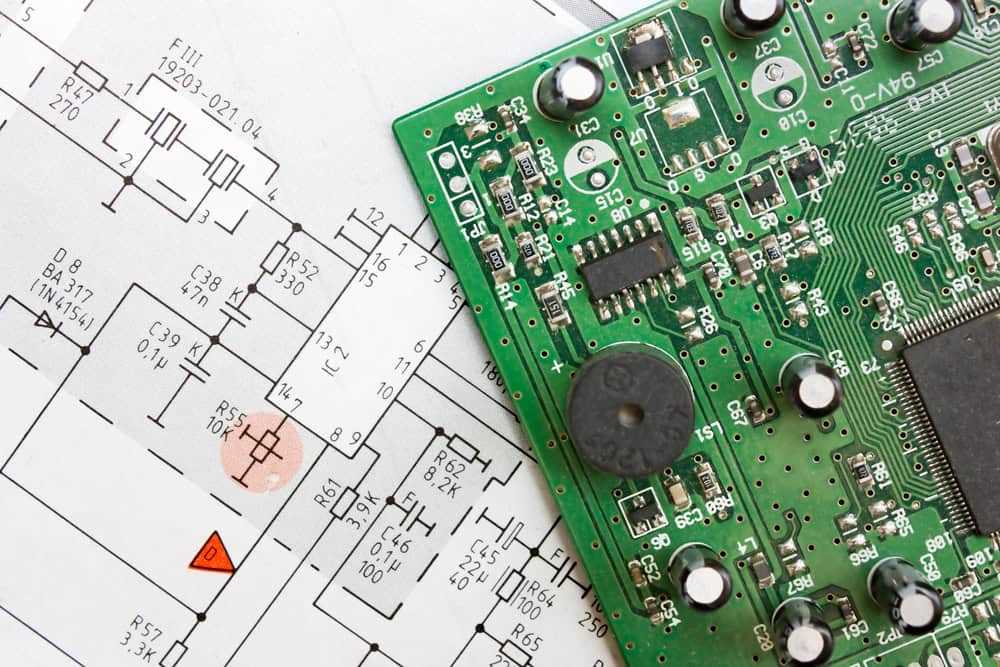

Compare the schematic’s topological layout with the physical board. Rotate the drawing mentally to align with components’ actual orientation. Tools like:
- Multimeter in continuity mode to verify connections.
- Magnifying glass to spot hidden vias or thin traces.
- Highlighter to mark followed paths on a printed copy.
Verify feedback loops–oscillators (crystals + capacitors), voltage regulators (IC + passives), or operational amplifiers (op-amps). Look for symmetrical pairs or mirrored subcircuits, common in differential signaling.
Key Components and Their Symbols in Schematic Designs
Begin by identifying resistors–denoted by a zigzag line (IEC standard) or rectangle (ANSI)–to ensure correct resistance values match the application. Label each with its ohmic rating (e.g., 10kΩ) and tolerance (e.g., ±5%) directly on the draft to avoid ambiguity during layout. Use prefixes like “R” for resistors, “C” for capacitors, and “L” for inductors to maintain consistency across projects. Assign unique identifiers (e.g., R1, R2) sequentially to simplify debugging and bill-of-materials generation.
Capacitor symbols vary by type: polarized units (electrolytic, tantalum) use a curved or “+” marked plate alongside a straight line, while non-polarized types (ceramic, film) show two parallel lines. Specify capacitance in farads (e.g., 100nF, 10µF) and voltage ratings (e.g., 16V) clearly–underrating voltage leads to premature failure, especially in power filtering stages. For high-frequency designs, note equivalent series resistance (ESR) values in annotations to optimize decoupling performance.
Active Elements and Their Annotations
Transistors require precise notation: NPN/PNP bipolars use a circle with an arrow indicating emitter direction, while MOSFETs show a gap between gate and channel. Add part numbers (e.g., 2N3904, IRFZ44N) next to symbols to streamline procurement. For diodes, distinguish Schottky (S-symbol), Zener (line with a “Z”), and LEDs (arrows pointing outward) to prevent mismatches during assembly. Include forward voltage drop (e.g., 0.7V, 1.8V) for LEDs to confirm compatibility with supply rails.
Integrated packages (ICs) demand meticulous pin labeling–align schematic symbols with datasheet pinouts to prevent footprint errors. Group related pins (e.g., power, grounds, data buses) and connect them to net names (e.g., VCC, GND, SCL) instead of direct lines to improve readability. For microcontrollers, mark reset pins, clock inputs, and digital/analog domains separately to ensure correct placement of decoupling components. Use hierarchical sheets for complex chips to avoid clutter.
Switches and connectors use simplified symbols: momentary push-buttons show a “T” shape, while slide switches use parallel lines with a gap. Relay coils appear as a rectangle with contacts drawn as normally open (NO) or closed (NC) pairs. Label connector pins (e.g., J1:1, J1:2) and indicate mating orientations (e.g., “keyed” or “polarized”) to prevent reversed wiring. For RF designs, coax connectors (e.g., SMA) should include impedance (50Ω) and shield isolation notes to maintain signal integrity.

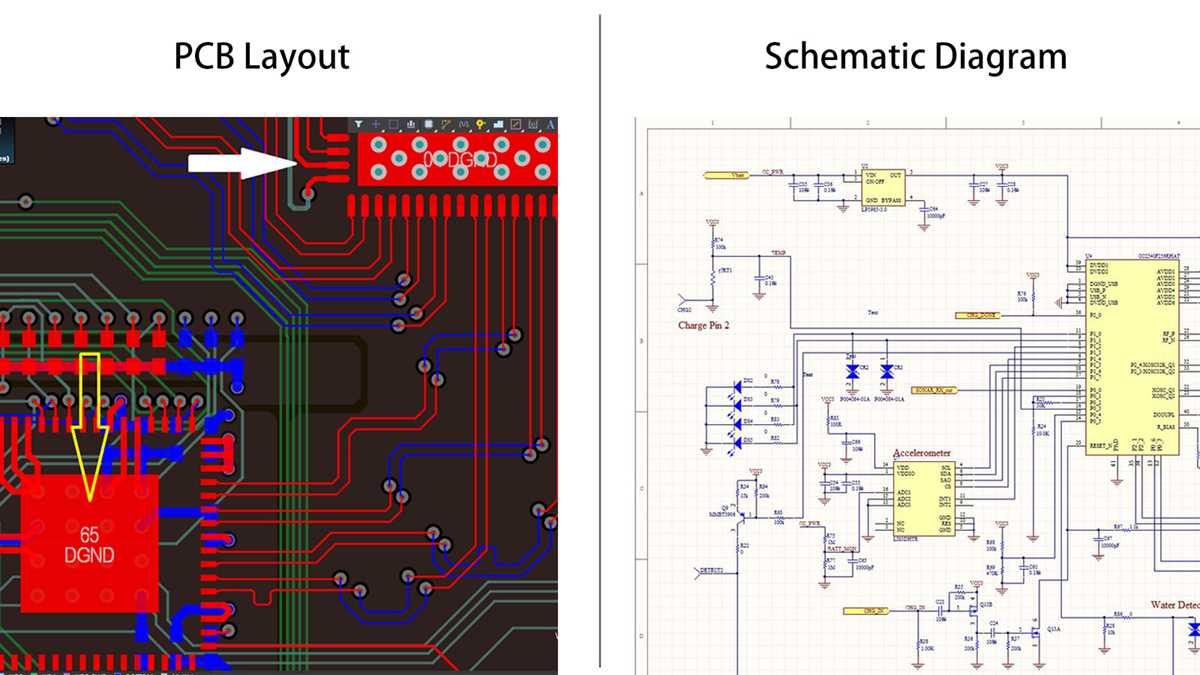

Step-by-Step Process to Design a Board Layout from a Schematic
Begin by exporting the netlist from your schematic editor to ensure all component connections are accurately captured. Use the export tool specific to your software–KiCad’s Netlist Generator, Altium’s Design > Netlist, or Eagle’s ULP scripts. Verify the netlist immediately to catch missing pins or incorrect net assignments, as errors here propagate to later stages and demand tedious rework. Save the netlist in a standardized format like IPC-D-356 for compatibility with most layout tools.
Define board constraints before placing components. Set the outline, mounting holes, and keep-out zones for critical signals (clock lines, high-speed traces). Specify layer stack-up based on signal integrity needs–4-layer boards (signal-GND-power-signal) handle GHz ranges better than 2-layer ones. Assign trace widths using the IPC-2221 calculator: 0.5 oz copper at 20°C requires 10 mil traces for 1A, 50 mil for 3A. Document these rules in the design rules file (KiCad: File > Board Setup; Altium: Design > Rules) to enforce consistency.
Arrange components methodically. Place connectors and fixed-position parts (USB ports, displays) first, then group related ICs (MCU, memory, power regulators) with minimal trace lengths. Rotate components for optimal orientation–crystals should sit within 1 inch of their driver IC, decoupling capacitors within 0.1 inches of power pins. Use ratsnest (Airwires) to visualize connections and reduce crossing lines. For dense boards, apply hierarchical clustering–group analog sections separately from digital to minimize noise coupling. Check clearances with the DRC tool after each placement iteration.
Routing High-Priority Signals
Route differential pairs and high-speed signals first. Match lengths within 5 mils for USB 2.0, 1 mil for PCIe. Use 45° or curved traces to minimize reflections–sharp corners spike impedance. For impedance-controlled traces, calculate widths using Saturn PCB Toolkit or Polar Instruments (e.g., 50Ω microstrip on FR-4 requires 8 mil width for 3.2 mil dielectric). Avoid vias on these traces–instead, route them on a single layer. After routing, flood unused areas with copper pours, stitching them to GND at multiple points to reduce loop inductance. Use teardrops at pad-to-trace junctions to prevent acid traps during etching.
Finalizing the Design
Validate all connections with a Design Rule Check (DRC) and Electrical Rule Check (ERC). KiCad’s DRC (Inspect > Design Rule Checker) flags violations like insufficient clearances, unrouted nets, or silkscreen overlaps. Generate Gerber files (RS-274X) and an NC drill file, then verify them in a viewer like GerbView or ViewMate. Export a Bill of Materials (BOM) with manufacturer part numbers, not just generic values–substitutions during assembly often cause failures. Include test points for critical nets (reset, power rails) and fiducials for automated pick-and-place machines. Submit files to the fab house with explicit instructions: e.g., “ENIG finish, 1 oz copper, 6 mil trace/space, no via tenting.”
