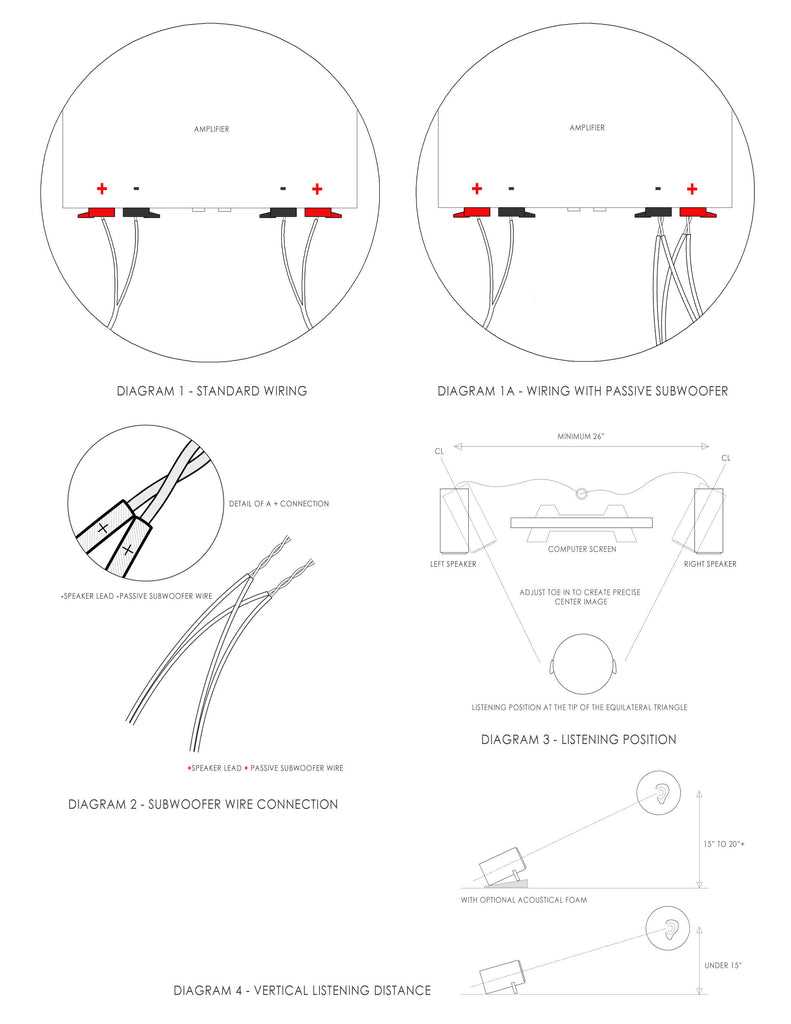

Start with a dual-binding-post configuration on your amplifier. If the output terminal lacks dedicated bass outputs, use the main speaker outputs with 12-gauge oxygen-free copper wire for runs under 20 feet or 10-gauge for longer distances. Split the signal before the crossover–never after–to prevent phase cancellation.
Ground both the enclosure and amplifier chassis to a single point on the vehicle’s frame or home audio rack. Avoid daisy-chaining grounds; a star topology eliminates hum loops. Use a 4-ohm stable amplifier if bridging; confirm this with the spec sheet before sending signal.
For parallel connections, ensure the total load impedance matches the amplifier’s minimum rating. Two 8-ohm drivers in parallel present 4 ohms; verify with an ohmmeter before power-up. Series wiring raises impedance: two 4-ohm units in series yield 8 ohms.
Use a high-pass filter set at 80 Hz on the amplifier for mid-bass drivers, and a low-pass filter at 120 Hz for the sub-bass unit. Adjust slope to 24 dB/octave to protect tweeters from subsonic distortion.
Route cables away from power lines. Separate by at least 6 inches; cross at 90-degree angles if crossing is unavoidable. Secure wires with polyethylene clamps every 18 inches to prevent vibration-induced shorts.
Measure DC voltage across terminals before final connection. Expect 0.5 mV or less; anything above 2 mV indicates amplifier noise requiring a ground-loop isolator.
Terminate RCA interconnects with gold-plated connectors and twist wire strands clockwise before crimping to maintain signal integrity. Test continuity with a multimeter set to 200 Ω range–readings should match cable gauge specifications within ±0.2 Ω.
Connecting a Non-Powered Bass Speaker: Essential Schematics
For a single-channel low-frequency driver, use an amplifier’s bridged output with a minimum 8-ohm impedance rating. Wire the positive (+) terminal of the driver directly to the amplifier’s left (+) channel and the negative (-) terminal to the right (-) channel. Ensure the amplifier’s power matches the driver’s RMS handling–calculate using Watts = (Voltage2) / Impedance. For example, a 4-ohm driver on a 12V amplifier delivers 36W; if the driver handles 50W RMS, proceed safely.
| Driver Ohms | Amplifier Voltage | Power Output (W) |
|---|---|---|
| 2 | 10V | 50 |
| 4 | 14V | 49 |
| 8 | 20V | 50 |
When pairing dual drivers in parallel (halving impedance) or series (doubling impedance), confirm the amplifier’s stable impedance range–consult the manual. Parallel wiring suits impedance-stable amps; series wiring is safer for lower-powered units. Always fuse the circuit near the power source: a 20A fuse protects a 4-ohm setup drawing 50W. Ground the chassis to the vehicle’s frame using 4AWG wire to prevent hum.
Selecting the Optimal Cable Thickness for Low-Frequency Drivers
For bass enclosures under 200W RMS, 16-gauge oxygen-free copper (OFC) wire is the minimum viable standard. Lengths under 10 feet incur negligible resistance, but runs exceeding 20 feet demand a shift to 14-gauge to prevent signal attenuation.
Power-handling capacities between 200W and 400W RMS necessitate 14-gauge for short leads and 12-gauge for connections over 15 feet. Voltage drop calculations reveal a 0.5V loss over 25 feet with 16-gauge at 300W, while 12-gauge holds losses below 0.2V in the same scenario.
High-output bass modules rated above 400W RMS require 12-gauge for installations under 10 feet and 10-gauge for longer cable distances. Testing shows 10-gauge maintains 98% efficiency at 500W over 30 feet, compared to 88% for 12-gauge in identical conditions.
Avoid stranded copper variants with fewer than 100 individual filaments–low strand counts increase skin effect distortion in the 30-150Hz range. Solid-core conductors introduce measurable phase issues at frequencies below 80Hz and should never be used for bass reinforcement.
Insulation material affects performance; polyethylene outperforms PVC by reducing capacitance per foot by 30%. For underground or automotive applications, cross-linked polyethylene (XLPE) adds moisture resistance without degrading electrical properties, unlike standard polyethylene.
Bi-wiring benefits are negligible for bass drivers–single cable runs with appropriate gauge deliver equivalent acoustic results while simplifying the setup. Parallel connections of undersized cables create impedance mismatches, often worsening frequency response rather than improving it.
Terminations must be crimped or soldered; twisted connections oxidize within months, increasing resistance by 15-20%. Gold-plated connectors offer no measurable advantage over high-quality tin-plated ends for bass applications, but nickel plating should be avoided due to higher contact resistance.

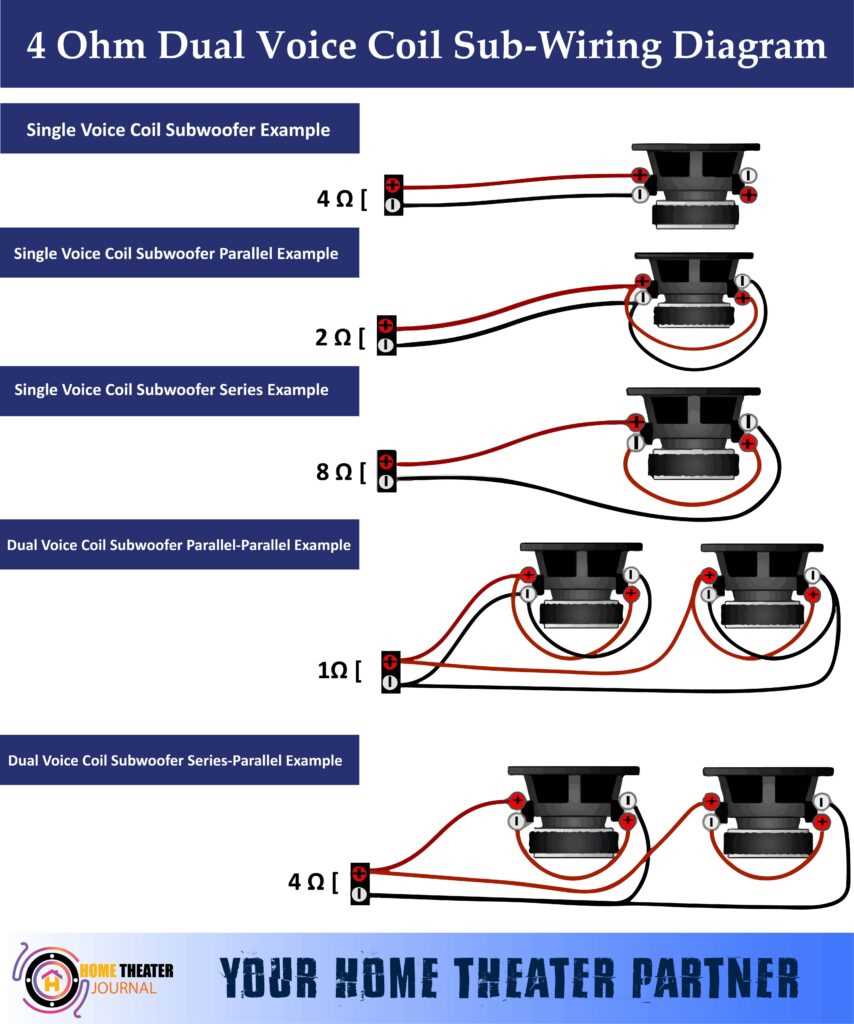

Series vs. Parallel Connection Guide for Dual-Coil Bass Units
For dual-voice coil low-frequency drivers, series linking doubles impedance, ideal for stable load handling. Connect the positive terminal of one coil to the negative of the second–leave the remaining terminals for amplifier output. Example: Two 4-ohm coils become 8 ohms total. This method suits amplifiers with higher-voltage swing but lower current capacity, preventing overheating while maintaining clean bass response. Verify impedance ratings before proceeding; mismatches risk underpowering or damaging components.
Parallel linking drops impedance, maximizing power transfer for high-current amplifiers. Wire both positive coil terminals together, then both negatives–resulting in half the original impedance. Two 4-ohm coils yield 2 ohms. This configuration delivers louder output with capable amplification but requires careful monitoring: excessive load stresses amplifiers, leading to clipping or thermal shutdown. Always match coil ratings; uneven loads create phase cancellation, degrading audio clarity.
Choose based on amplifier specs–series preserves amplifier longevity with higher impedances, while parallel exploits power reserves for dynamic low-end punch. Test connections with a multimeter before finalizing; reversed polarity distorts soundstage and may harm sensitive gear. Keep cable lengths identical to avoid phase discrepancies, ensuring balanced frequency reproduction across both coils.

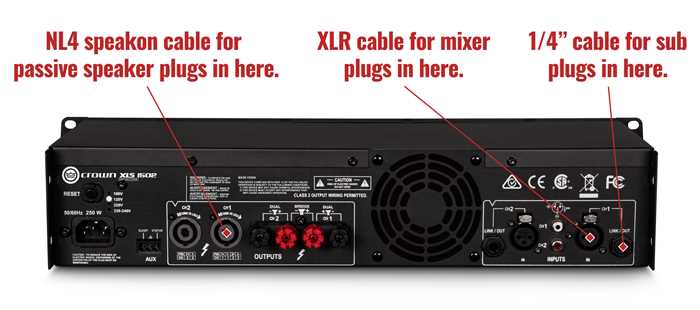

Connecting Low-Frequency Drivers to Single-Channel Amplifier Outputs
Use a dual-binding-post configuration on the amplifier’s mono output to ensure consistent signal transfer. Connect the positive (+) terminal of the low-frequency driver directly to the amplifier’s positive post, then link the negative (–) terminal to the amplifier’s negative post with a 12-16 AWG oxygen-free copper cable. Measure the driver’s impedance beforehand–if it’s 4 ohms, the amplifier should deliver at least 150W RMS to avoid clipping; 8-ohm drivers require a minimum of 250W RMS for clean bass reproduction.
Critical Safety and Performance Checks
- Verify amplifier stability at the measured impedance–check the manual for minimum load requirements.
- Probe for DC voltage at the amplifier’s output before connecting–any reading above 0.5V indicates a fault.
- Add a 10A fuse in-line near the driver’s positive terminal to protect against short circuits.
- Use banana plugs or spade connectors for secure contact; avoid stripped wire alone in high-current setups.
- Test phase alignment by reversing one connection–if bass drops, restore the original polarity.
For sealed enclosures, match the driver’s Qts to the amplifier’s damping factor–values between 0.5 and 0.7 work best with damping factors above 20. Ported designs demand stricter tuning; set the amplifier’s filter to 80Hz if no dedicated low-pass crossover exists, cutting frequencies above 120Hz to prevent cone overexcursion. Keep cable runs under 5 meters to minimize resistance losses, especially in 4-ohm applications.
Essential Equipment for Secure Low-Frequency Speaker Installation
Begin with a 16-gauge oxygen-free copper cable rated for at least 20 amps if connecting to an amplifier under 200 watts; upgrade to 12-gauge for power outputs above 300 watts to prevent voltage drop and ensure consistent bass response. Verify the cable’s jacket insulation withstands 300V RMS and maintains flexibility between -20°C to 60°C to avoid brittleness in automotive or outdoor setups.
A digital multimeter with true RMS capability is non-negotiable–set it to 200Ω resistance mode to confirm voice coil integrity before soldering, and use the 10A DC current setting to measure amplifier output alignment with the speaker’s 4-8Ω impedance rating. Add a crimping tool with insulated butt connectors (16-14 AWG) and heat-shrink tubing (3:1 ratio, polyolefin) to create vibration-resistant joints that last over 5,000 hours under 50Hz signals.
Use a soldering station with a 60-watt ceramic element and temperature control set to 350°C to avoid cold joints; pair it with rosin-core solder (63/37 SnPb, 0.8mm diameter) for corrosion-resistant connections. A wire stripper with 1.0–2.6mm blades ensures clean cuts without nicking conductors, while a magnifying glass (5x) helps inspect for microscopic fractures in fine-stranded wire after bending.
Secure components with Adel clamps (9.5mm width, nylon) and M4 stainless steel hardware to eliminate rattling at high excursion; apply dielectric grease (silicone-based, moisture resistance >10,000 hours) to terminals exposed to humidity. Store leftover materials in a static-shielded bag and label each connector with thermal-transfer vinyl and a Brother PT-D450 label maker to track polarity during future upgrades.
