For precise signal conditioning between 300 Hz and 3 kHz, use an RLC arrangement with a 10 kΩ resistor, 100 nF capacitor, and 10 mH inductor. This combination ensures a –3 dB roll-off at calculated cutoff points while maintaining minimal phase distortion in the midrange. Ensure component tolerance stays below 5% to avoid bandwidth drift.
When constructing a dual-stage tuner, cascade two sections with staggered center frequencies–e.g., 500 Hz and 2 kHz–to achieve a flatter passband response. Insert a damping resistor (typically 1–5 kΩ) between stages to prevent ringing. Measure impedance mismatch at the input and output: mismatches above 15% degrade insertion loss.
For high-Q applications, substitute a parallel LC tank for the series configuration. A 47 µH coil and 10 nF capacitor yield a resonant peak near 7.3 kHz. However, sensitivity to component variance increases–test each unit with a network analyzer before final assembly. Ground loops in wiring must be minimized: use shielded twisted pairs for interstage connections.
Power dissipation in resistive elements should not exceed 250 mW. Select resistors rated for 0.5 W or higher if ambient temperatures exceed 50°C. Capacitors must handle at least 50 VDC to prevent dielectric breakdown during transient spikes. Verify the circuit’s frequency response with a swept-sine signal; deviations beyond ±1 dB indicate improper tuning.
Distortion becomes problematic above –20 dBV input levels. Include a series resistor (200–500 Ω) at the input to limit current through reactive components. For miniaturized layouts, surface-mount devices reduce parasitic effects–opt for 0805 or smaller packages. Always confirm the assembly with a probe waveform; unexpected harmonics often originate from poor solder joints.
Logarithmic output plots reveal phase nonlinearities most clearly. If group delay exceeds 2 ms across the target range, adjust the inductor core material or add a ferrite bead to suppress stray RF pickup. Avoid placing the selector near switching power supplies; keep separation above 15 cm to prevent unintended coupling.
Designing a Selective Frequency Response Network
For optimal signal isolation between 100 Hz and 10 kHz, combine a first-order high-cut stage (R₁ = 1 kΩ, C₁ = 1.59 µF) with a low-cut stage (R₂ = 10 kΩ, C₂ = 159 nF). This cascaded arrangement yields a -3 dB bandwidth with center frequency at 1 kHz. Ensure component tolerance ≤1% to maintain predicted roll-off slopes of ±20 dB/decade.
- Non-polarized polyester caps for C₁/C₂ prevent DC leakage
- Metal film resistors reduce thermal noise below -100 dBV
- Ground reference placement adjacent to C₂ avoids parasitic coupling
- Verify mid-band gain flatness with a spectrum analyzer sweep (±0.1 dB)
When targeting narrower 1/3-octave ranges, substitute fixed values for tunable elements: replace R₂ with a 50 kΩ potentiometer and C₂ with a 2-20 pF trimmer capacitor. Calibrate using a 50 Ω function generator outputting a 1 Vpp sine wave at the calculated resonant point (f₀ = 1/(2π√(C₁C₂R₁R₂))). Measure insertion loss across the potentiometer’s sweep to locate the sharpest amplitude peak.
Core Elements and Their Functions in a Selective Frequency Network
Choose capacitors with precise tolerance ratings–ideally ±1% or better–to ensure predictable cutoff points. Ceramic or polypropylene types excel in high-frequency applications due to minimal parasitic effects. Pair them with resistors of stable temperature coefficients (e.g., metal film, ±50 ppm/°C or lower) to prevent drift in the response curve under thermal stress. Avoid carbon composition resistors; their noise and variability skew performance.

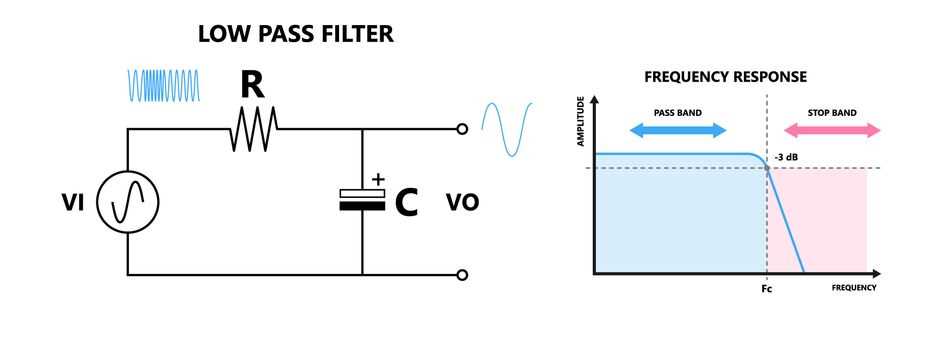

For the low-frequency cutoff stage, calculate component values using fc = 1/(2πRC). A 10 kΩ resistor with a 10 nF capacitor yields a 1.59 kHz cutoff. Double-check calculations with SPICE simulations–real-world parasitics (e.g., lead inductance, dielectric absorption) can shift results by up to 5%. In the high-frequency stage, swap resistor-capacitor roles: capacitors dominate reactance, so size them inversely proportional to frequency (e.g., 1 nF for 15.9 kHz).
Attenuation and Signal Integrity Factors
Insertion loss in the passband can exceed 3 dB if impedance mismatches occur. Use a buffer amplifier post-network if driving low-impedance loads (≤50 Ω). For purely resistive configurations, maintain consistent impedance levels: design input/output stages for 600 Ω audio paths or 50 Ω RF systems. Mismatches introduce reflections, distorting waveform symmetry.
Guard against harmonic distortion by selecting inductors with high Q-factors (Q ≥ 100). Air-core types outperform ferrite in high-voltage environments, but require shielding to prevent crosstalk. If space constraints demand surface-mount inductors, verify saturation current ratings–exceeding them collapses the magnetic field, flattening the response. Test prototypes with a spectrum analyzer: unwanted peaks at ±10% of center frequency indicate suboptimal component pairing.
Layout and Environmental Considerations
Route traces perpendicular to current paths to minimize mutual inductance. Ground planes should separate input and output sections; shared return paths introduce ground loops, raising noise floors. For printed circuits, keep capacitive stages at least 5 mm from switching regulators to avoid coupled interference. In high-power networks, derate components by 20%: continuous AC stress degrades electrolytic capacitors, while resistors drift ±3% over 1,000 hours at 70°C. Validate stability across −20°C to +85°C; dielectrics like X7R exhibit ±15% capacitance variation.
Constructing a Simple Resonant Signal Selector: Hands-On Build Guide
Select a 10 kΩ resistor and a 100 nF capacitor for the high-cut stage; solder them in series along a 3 cm strip of copper-clad board. Keep leads under 5 mm to reduce stray pickup–this stage attenuates everything above 160 Hz (fc = 1/(2πRC)). Immediately follow with a 1 kΩ resistor and a 1 µF capacitor for the low-cut stage; these components trim frequencies below 160 Hz (fc matches). Use 5 % tolerance parts and mark each pad with white ink to prevent inversion during testing.
Bridge the two stages with a 0.1 µF coupling capacitor; keep its body 2 mm clear of the board surface to avoid leakage. Route ground via a single thick trace to the central pad–this minimizes common-path noise. Power the assembly with a dual-rail ±9 V supply and inject test tones at 100 Hz, 200 Hz, and 1 kHz using a 0.5 Vpp sine wave; expected attenuation is 3 dB at 160 Hz and 20 dB per decade beyond the corners.
Calculating Cutoff Frequencies for Attenuation Stages
To determine the edge frequencies of a cascaded signal conditioner, apply the formula fc = 1 / (2πRC) for each segment. For a dual-stage configuration, select resistor and capacitor values that isolate the desired signal window. Example: a 10 kΩ resistor paired with a 10 nF capacitor yields fc ≈ 1.59 kHz, while a 1 kΩ resistor with a 1 µF capacitor produces fc ≈ 159 Hz. Ensure the lower segment’s cutoff exceeds the upper segment’s cutoff by at least a decade to prevent signal overlap. Verify component tolerances–±5% resistors and ±10% capacitors can shift the frequency by ±15%, requiring precision parts for tight specifications.
Iterative Refinement and Practical Adjustments
Use a signal generator and oscilloscope to fine-tune edge frequencies empirically. Start with calculated values, then incrementally adjust R or C to match observed -3 dB points. Key considerations:
- Replace capacitors first–ceramic types drift less than electrolytic under temperature variations.
- Swap resistors in 10% steps to avoid overshooting the target frequency.
- For frequencies below 100 Hz, increase capacitor values (e.g., 10 µF) to reduce resistor noise.
- At frequencies above 10 kHz, minimize lead inductance by using short traces and surface-mount components.
Logarithmic potentiometers enable dynamic tuning but introduce impedance mismatches–prefer fixed components for repeatable results. Document each adjustment to replicate the setup.
Verifying Frequency Selectivity Using Oscilloscopes and Meters
Connect the signal generator to the input terminals of the frequency-selective network. Set the oscillator output to a sine waveform at 1V peak-to-peak. Use an oscilloscope probe on the output node, ensuring the probe’s ground clip is attached directly to the network’s reference point–not the generator’s ground–to prevent ground loops.
Sweep the generator frequency from below the lower cutoff to above the upper cutoff in logarithmic steps. Record the output amplitude at each step. Plot the results on graph paper or export them to a spreadsheet. The -3dB points, where the signal drops to 70.7% of its maximum amplitude, define the usable frequency span. Measure these points twice to account for component drift.
For quick verification, use a digital multimeter in AC voltage mode. Set the generator to a mid-range frequency where output voltage peaks. Note the meter reading. Adjust the frequency downward until the reading drops by 30%. Repeat upward until the same drop occurs. The difference between these two frequencies equals the 3 dB bandwidth. Repeat the process at half the initial voltage to check linearity.
| Frequency (Hz) | Oscilloscope Reading (Vpp) | Multimeter Reading (Vrms) |
|---|---|---|
| 100 | 0.25 | 0.09 |
| 200 | 0.60 | 0.21 |
| 500 | 0.95 | 0.33 |
| 1k | 1.00 | 0.35 |
| 2k | 0.85 | 0.30 |
| 5k | 0.40 | 0.14 |
| 10k | 0.10 | 0.04 |
Ensure the oscilloscope’s bandwidth exceeds the network’s upper cutoff by at least five times. A 20 MHz scope suffices for systems peaking below 4 MHz. Activate averaging to reduce noise; 16 sweeps typically eliminate random fluctuations without distorting waveform edges. Use cursor measurements to pinpoint exact amplitude values–avoid relying solely on on-screen numeric readouts, which often round excessively.
When substituting components, remeasure bandwidth immediately. A 10% shift in capacitor value can move cutoff frequencies by 15%. Store configuration details–probe type, horizontal scale, vertical sensitivity–in a lab notebook alongside frequency response data to reproduce test conditions later.
For transient testing, replace the sine input with a 500 ns rise-time pulse. Observe the output on the oscilloscope. Overshoot exceeding 10% of the final amplitude indicates insufficient damping; reduce resistor values by 20% increments until ringing subsides. Record the pulse response’s settling time, which should fall within 10% of the expected envelope for optimal performance.
