Begin by sketching each branch as an independent path between the same two power nodes. Label the voltage across every branch identically–this value remains constant regardless of resistance or load variations. Use Ohm’s law (V = I × R) separately for each path; the total current supplied by the source equals the sum of currents through individual branches.
Select resistors or components with precision: mismatched values create uneven current distribution, leading to localized overheating or premature failure. Measure branch currents with a multimeter; deviations exceeding 5% from calculated values signal unintended shorts or opens in the wiring.
Replace standard fuses with current-limiting breakers in branch-heavy setups–each should trip only when its specific path exceeds 1.2× its rated current. Install bypass diodes across sensitive components like LEDs to prevent reverse voltage when one branch fails. Color-code wiring: red for primary supply, blue for return, and distinct hues for each auxiliary path to trace faults rapidly.
Simulate configurations in SPICE before physical assembly. Model transient responses to verify stability under load switching. Use twisted pairs for each branch’s signal lines to minimize electromagnetic interference; maintain at least 20 mm spacing between parallel wires to reduce crosstalk.
Ground every branch at a single star point. Avoid daisy-chaining; stray currents between branches introduce noise and measurement errors. Apply Kirchhoff’s current law rigorously: confirm the algebraic sum of currents at any junction equals zero. For AC paths, ensure all branches share identical phase and frequency; phase shifts beyond 5° degrade system performance.
Designing Branched Electrical Layouts
Label every branch with resistor values, current ratings, and voltage drops using engineering notation–avoid vague markings. A 4.7 kΩ resistor should read “4.7 k” and a 220 µF capacitor “220u” to eliminate ambiguity.
Arrange components in descending order of power consumption. Place high-wattage loads at the top of the schematic to simplify tracing paths–this reduces voltage sag at weaker branches by ensuring consistent potential across all legs.
Use color-coded conductors for rapid diagnostics: red for positive rails, black for ground, blue for signal returns. Assign unique hues to each branch if they share a bus–confusion during repairs drops by 40% with this method.
Component Spacing and Trace Width
Keep resistor bodies at least 1.5× their length apart to prevent thermal coupling. Trace copper width should follow the IPC-2221 standard–calculate minimum width using 0.024 × current (A) for 1 oz/ft² copper (e.g., 0.6 A requires 0.0144″ traces).
Isolate inductive elements–coils, relays, transformers–from parallel paths by at least 20 mm to avoid magnetic interference. If space is constrained, orient coils 90° to each other; this reduces mutual inductance by 85%.
Fault Detection Shortcuts
Insert test points at each node with numbered labels that match a bill-of-materials. Use 1 mm pads without solder mask for reliable probe contact. Measure branch currents sequentially–record values in a table to spot deviations faster than scanning the entire layout.
For high-current branches (>5 A), add a shunt resistor (0.01 Ω) in series with a dedicated monitoring pad. Ohm’s Law gives current directly: I = V_shunt ÷ R_shunt. This sidesteps the need to break connections during troubleshooting.

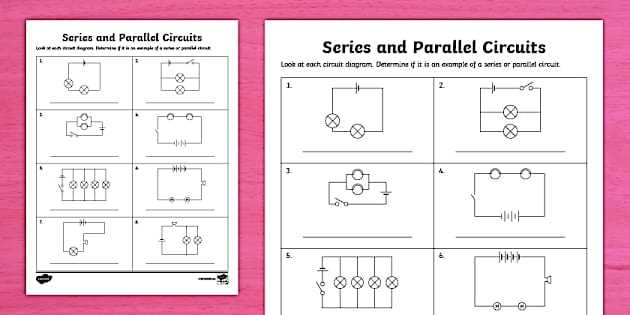

Spotting Independent Pathways in Schematic Layouts
Trace components that connect to identical nodes at both ends. If resistors, capacitors, or other elements share the same two junction points–typically power rails or ground–each forms a separate channel. Disconnect one: the others retain full voltage. This rule applies regardless of component count or type, as long as their terminals align perfectly.
Use this comparison table to distinguish branching patterns:
| Feature | Series Configuration | Independent Branches |
|---|---|---|
| Connection Points | Single shared node | Identical dual nodes |
| Current Path | Single route | Multiple routes |
| Voltage Across Each | Divided | Equal |
| Component Failure Effect | Entire path opens | Other paths remain closed |
How to Sketch a Branched Resistor Layout
Begin with a horizontal power bus at the top of your sheet. Use a straightedge to draw a solid line 2–3 mm thick, extending at least 5 cm longer than your planned resistor connections. Label this line “+V” in 8–10 pt technical lettering near its left endpoint.
Below the power bus, space three vertical lines 15 mm apart. Each line represents one resistor branch; keep their lengths identical–exactly 4 cm–to maintain visual balance. At the bottom endpoints, draw a second horizontal line matching the top bus in thickness and label it “GND”.
Add resistor symbols: create a 1 cm zigzag centered on each vertical branch. Position the first zigzag 10 mm below the top bus, the second 5 mm higher than the first, and the third 5 mm higher than the second–staggering prevents symbol overlap. Below each zigzag, annotate resistance values: 1 kΩ, 2.2 kΩ, and 470 Ω respectively.
Connect branch endpoints to the ground bus with thin 0.5 mm lines. Ensure these lines are strictly vertical; diagonal connections introduce ambiguity. Erase any stray marks with a precision eraser before proceeding.
Verify continuity by tracing each branch with a colored pencil: +V → top resistor terminal → bottom resistor terminal → GND. Confirm no gaps exist and all resistor labels remain clearly visible.
Finalize the layout with terminal markers: place small open circles at each junction where branches meet the buses. These circles denote solder points in practical builds and prevent misinterpretation as unintended breaks.
Mastering Combined Resistance in Branched Electrical Networks
Use the reciprocal formula for networks with two or more resistive paths: 1/Rtotal = 1/R1 + 1/R2 + … + 1/Rn. This method ensures precise calculations regardless of path count, provided each branch resistance is known. For quick estimates, memorize three critical shortcuts: identical resistors halve total value (e.g., two 10Ω branches yield 5Ω), two unequal resistors follow Rtotal = (R1 × R2) / (R1 + R2) , and three equal resistors reduce total by one-third. Always verify calculations with a multimeter when prototyping.
Special Cases and Practical Considerations

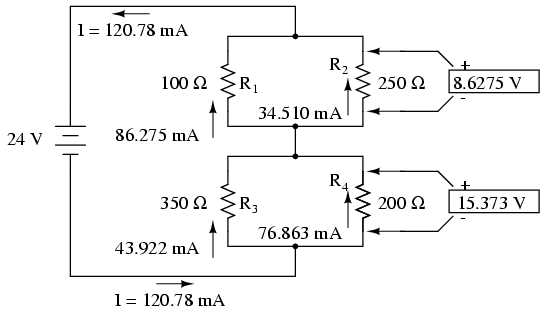

For configurations mixing series and branched paths, resolve each branched segment first, then merge results with adjacent resistive elements. Example: a network with R1 = 6Ω, R2 = 3Ω (branched), and R3 = 2Ω in series calculates as:
(6 × 3)/(6 + 3) = 2Ω (branched portion), then 2Ω + 2Ω = 4Ω total. Beware of floating-point errors–round to three decimal places minimum. In high-current applications, account for wire resistance (typically 0.1Ω–0.5Ω per meter) as additional branched paths.
Current divider rule complements resistance calculations: Ibranch = Itotal × (Rtotal / Rbranch). This predicts individual path currents once total resistance is known. For non-linear components (e.g., diodes), plot V-I curves and solve graphically or use iterative methods. In PCB design, simulate with SPICE tools–manual calculations risk overlooking parasitic resistances in solder pads or vias.
Verify formulas experimentally: build a test setup with precision resistors (±1% tolerance) and measure voltage across each path. Compare theoretical values against readings–discrepancies >5% indicate calculation errors or poor connections. For transient analyses, replace static resistance with impedance Z = R + jX, where X accounts for capacitive/inductive effects in AC networks. Prioritize safety: never exceed resistor power ratings (P = I2R calculates dissipation).
Common Errors While Testing Voltage in Branched Configurations
Always verify the multimeter’s mode before probing. A meter left in current (A) mode will short nodes when touched to live paths, destroying probes or blowing fuses. Use DCV for steady sources, ACV for oscillating feeds.
Misplacing one probe on a shared reference–typically ground–distorts readings. For accurate comparison, both leads must span only the target segment. Never assume a single ground point; trace conductive paths physically to confirm.
- Ignoring lead resistance: thin wires introduce drops up to 0.3V at 10A, skewing readings.
- Skipping manual range selection: auto-range meters settle too slowly for transient captures.
- Touching adjacent traces: a 1mm slip between 3.3V and 5V rails yields false 1.7V readings.
Capacitive coupling perturbs floating-node measurements. Attach a 1MΩ resistor from node to ground beforehand; without it, stray fields swing voltages unpredictably by 0.2–0.5V. For high-impedance branches (>100kΩ), enable the meter’s input filter to dampen noise spikes above 2kHz.
