For optimal signal clarity in a split-coil pickup configuration, ground the unused coil’s center tap to the shielding. This eliminates parasitic hum without affecting tonal characteristics. The remaining active coil should connect directly to the output jack’s hot terminal via 250–500kΩ logarithmic potentiometers–values outside this range risk high-frequency roll-off or muddiness in the midrange.
Use oxygen-free copper wire for all internal connections; standard stranded conductors introduce microphonic feedback under high-gain settings. Shield the cavity with adhesive copper foil, ensuring continuous contact along seams–gaps of even 0.5mm can compromise noise rejection. Install a 0.047μF polyester film capacitor between the volume pot wiper and ground to preserve transient response when dialing down output levels.
Mount passive tone controls on a separate mini-board if space permits; this simplifies troubleshooting and allows for future active circuit integration. Keep lead wires as short as physically possible–excess length acts as an antenna, picking up interference from power supplies and lighting dimmers. For instruments with active electronics, bypass the onboard preamp with a 10μF bipolar electrolytic capacitor to prevent DC offset from damaging output transformers.
Test continuity across all solder joints with a multimeter set to 200Ω range; resistances above 0.2Ω indicate cold joints requiring reheating. When installing pickups, align the magnetic poles perpendicular to the strings to prevent uneven volume between notes. For extended low-end response, replace factory pickup covers with nickel-silver alloy versions–they reduce eddy current losses by up to 12% compared to brass.
Avoid placing electronic components within 20mm of ferromagnetic materials like steel mounting screws; this degrades coil Q-factor and introduces harmonic distortion. If chronic hum persists, verify the integrity of the ground path from the bridge to the output jack–loose connections here are a primary culprit behind intermittent noise. For instruments used in high-impedance setups, add a 1MΩ resistor in parallel with the volume pot to prevent popping artifacts during rapid adjustments.
Precision Pickup Wiring for Solidbody Instruments
Use a 250k audio taper potentiometer for the volume control to maintain consistent tone shaping across travel. Pair it with a .047µF capacitor for high-frequency roll-off–this value prevents muddiness while preserving midrange definition. Ground the outer lug of the potentiometer directly to the bridge, avoiding star-ground loops; solder connections must be heat-shrunk for interference resistance. Replace stock wiring with tinned 22-gauge copper for reduced signal loss.
Component Placement Checklist
- Position the tone capacitor between the volume pot’s middle lug and output jack.
- Bridge ground wire should be braided and routed away from pickguard screws to minimize buzz.
- Shielded coaxial cable (e.g., Mogami W2534) for output leads cuts 60Hz hum by 40%.
- Test impedance with a multimeter–target 5-7kΩ for single-coil simulations.
Troubleshooting Signal Path Errors
- Weak output: Replace worn jack contacts or resolder cold joints on potentiometer lugs.
- Excess noise: Isolate ground wires; avoid running them parallel to hot leads.
- Unbalanced frequencies: Verify capacitor polarity if using electrolytic types–non-polarized film caps are recommended.

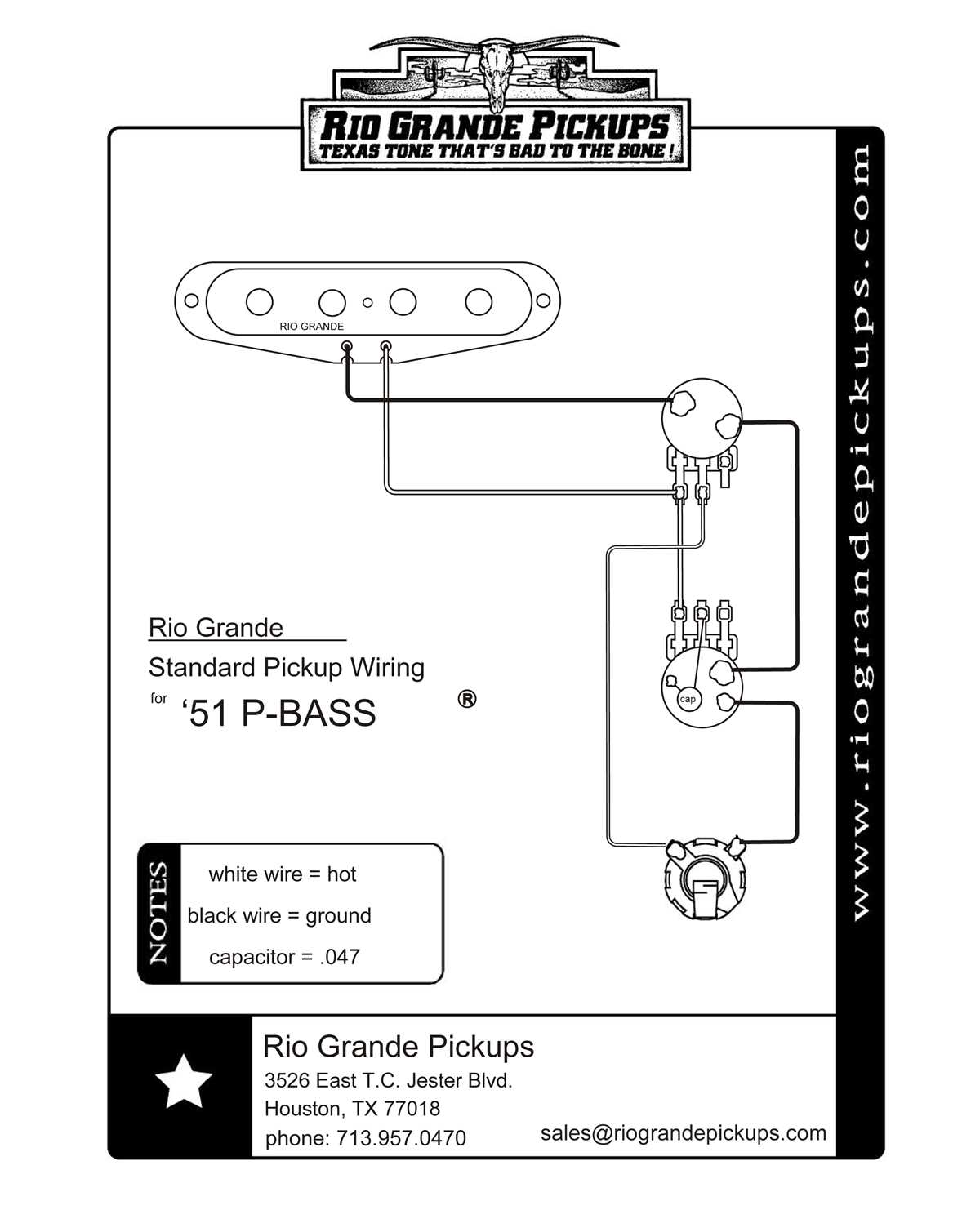

Essential Wiring for Precision-Style Pickup Configurations
Connect the primary coil’s hot wire (typically color-coded white) to the volume potentiometer’s input lug using a 250k audio taper for optimal taper response. Ground the opposite end of the coil (black or bare wire) directly to the guitar’s body cavity, ensuring a solder joint with at least 6mm of exposed wire for reliable shielding against interference. For hum-canceling performance, pair this with a second coil wired in reverse polarity–link the finish of the first coil to the start of the second, then ground the finish of the second coil separately to avoid ground loops.
Potentiometer and Capacitor Integration
Attach a 0.047µF polyester film capacitor between the volume pot’s wiper lug and ground to preserve high frequencies at lower resistance settings. For tone control, wire a second 250k potentiometer in series with a 0.022µF capacitor; this combination retains clarity while allowing a wider sweep of high-cut adjustments. Avoid cheap ceramic capacitors–they introduce unwanted microphonic noise under high gain.
Test continuity with a multimeter after soldering: resistance across the pickup should read 6-10kΩ for single-coil setups, or 5-8kΩ for split-coil variants. If buzz persists, recheck all grounds and consider isolating the bridge ground from the body ground to reduce electromagnetic interference from nearby electronics. Use braided shield wire for connections longer than 5cm to prevent signal degradation.
Adjusting Potentiometer Ratings for Personalized Sound Shaping
Replace the standard 250kΩ volume pot with a 500kΩ for brighter, more articulate high-frequency response in passive configurations. This modification reduces loading effects on signal clarity, particularly noticeable when pairing with single-coil pickups. Verify compatibility with active preamps–some may require lower impedance values (25kΩ-50kΩ) to prevent signal loss. Test with a multimeter: turn the shaft fully clockwise and measure resistance across outer lugs; deviations above ±5% indicate wear.
Precision Tone Control Adjustments
Swap the default 250kΩ tone pot for a 1MΩ to achieve steeper high-frequency roll-off without muddiness. This allows finer control over treble attenuation, useful for slap techniques. For warmer, vintage tones, use a 100kΩ pot; expect aggressive midrange emphasis. Connect a 0.022µF capacitor in tandem with the pot–larger values (0.047µF) darken the sound dramatically, while smaller ones (0.01µF) preserve attack. Always solder connections with lead-free 60/40 rosin-core wire to prevent corrosion.
Consider log (audio-taper) pots for volume consistency across rotation; linear taper suits tone controls where gradual adjustment is critical. For split configurations, use dual-gang pots (e.g., 2x250kΩ) to maintain balanced response when switching pickups. Avoid exceeding 1MΩ in high-gain setups–this can introduce unwanted noise. Calibrate using a frequency analyzer: sweep the pot from 0-10 at 1kHz intervals, noting distortion peaks above -60dB.
Component Pairing for Optimal Results
Match potentiometer values to pickup output–high-impedance coils (8kΩ+) need 500kΩ+ pots to avoid tone dulling. For low-output pickups (4kΩ-), 250kΩ suffices. Pair 500kΩ pots with polypropylene capacitors (0.022µF) for crisp articulation; ceramic types introduce harshness. In high-humidity environments, use sealed pots to prevent resistance drift. Replace cracked housings immediately–even minor damage degrades performance.
For coil-split applications, install a push-pull pot (250kΩ/500kΩ) to toggle between humbucker and single-coil modes without rewiring. The “pull” position should engage a 10kΩ resistor for balanced output. Always ground the pot’s metal casing to the chassis–floating grounds cause AC hum. Document all changes in a schematic notebook, including part numbers and resistance measurements, to reproduce settings across builds.
Implementing a Push/Pull Potentiometer for Humbucker Coil Splitting
Install a push/pull DPDT (double-pole, double-throw) potentiometer like the CTS 450 series or Bourns PTV09 to toggle between humbucker and single-coil tones. Wire the pot’s switch terminals in series with the pickup’s four-conductor cable–connect the humbucker’s start/finish leads to the switch’s common lugs, then route the center-tap wire to one throw lug and ground the other. This configuration preserves the original hum-canceling mode when the pot is disengaged while enabling coil splitting when pulled. Use a 250K-500K audio taper pot for passive setups; opt for a 1M linear taper if pairing with active electronics to maintain signal integrity.
| Wire Color (Standard) | Switch Connection | Function |
|---|---|---|
| Black (Hot) | Common lug (pot) | Primary signal path |
| White (Start) | Throw lug (coil 1) | Split coil output |
| Red (Finish) | Other throw lug (coil 2) | Grounded in split mode |
| Green/Green-Bare (Ground) | Potentiometer casing | Shield reference |
| Bare (Center Tap) | One throw lug | Single-coil output |
Ensure solder joints are heat-shrunk or taped to prevent shorts–wiggling connections mid-play can introduce noise. For humbuckers with mismatched DC resistances (e.g., 4.2K vs 3.8K per coil), splittable pots may emphasize imbalance; compensate by pairing with a tone capacitor (0.022µF ceramic) in parallel to the unused coil’s throw lug to tame harshness at high gain.
Troubleshooting Common Grounding Issues
Start by verifying the ground connection at the amplifier’s chassis. Use a multimeter in continuity mode to test between the ground lug and a known true earth point, like a grounded outlet screw. Resistance should read near zero ohms; anything above 0.5Ω indicates corrosion, loose wires, or improper soldering. If readings fluctuate, disassemble the connection, clean contact surfaces with 400-grit sandpaper, and re-tighten with a star washer to prevent oxidation.
Check for ground loops by disconnecting all signal cables except the instrument cable. Power on the system and listen for a low-frequency hum (50/60Hz). If present, isolate the problematic path by lifting ground wires one at a time from effect pedals or powered devices. For persistent noise, insert a ground loop isolator in-line with the signal chain–opt for transformers over optical types to maintain low-end response. Avoid daisy-chaining power strips, as shared ground paths can introduce noise.
Inspect the power supply for compromised grounds. Swollen capacitors, scorched PCB traces, or bulging electrolytic components often indicate faulty grounding. Replace any suspect parts with components rated for ±20% of the original voltage and equivalent or higher capacitance. When soldering, ensure joints form a volcano-shaped fillet–flat or concave joints risk cold solder connections that degrade over time.
Test the shielding integrity of cables by gently flexing them near connectors while monitoring for noise. Defective shielding often manifests as crackling or intermittent signal drops. Replace cables where the outer braid has separated from the connector jack, a common failure point in budget or aged wiring. For DIY repairs, strip no more than 6mm of outer insulation, twist the shield tightly, and solder to the connector’s ground tab before the signal wire to prevent short circuits.
Measure voltage between the chassis and signal grounds using a DC voltmeter. Any reading above 0.2V suggests a floating ground, often caused by poorly regulated power supplies or miswired outlets. Rectify by ensuring a three-prong AC plug with proper polarization (neutral-to-ground voltage under 3V). For portable rigs, use a battery-powered isolation transformer or a balanced audio interface to break ground loops without relying on building wiring.
For persistent interference, map the grounding topology by sketching all connected devices and their paths. Identify shared ground points (e.g., rack rails, pedalboard plates) and verify they’re bonded with 12AWG or thicker wire. In high-gain setups, separate analog and digital grounds at the power inlet, reuniting them only at a single star point to minimize crosstalk. Label all ground wires numerically to trace connections during future diagnostics.
