Install a single-pole toggle upstream of a power receptacle to cut standby current without touching fixed appliances. Use 12 AWG copper wire for 20 A circuits–14 AWG only on 15 A runs. Keep neutral unbroken; break the live conductor only. Label the neutral bus and toggle terminals with colored tape so polarity stays visible during future checks.
Place the toggle box adjacent to the existing junction or inside the receptacle enclosure if knockout space allows. Knockouts should align with NM-B cable clamps; ½-inch clamps accept both 12 and 14 AWG wire. Secure wires with two wraps around terminal screws–back-wire holes invite loose connections under vibration. Torque screws to 12 inch-pounds with a calibrated driver; over-torquing cracks plastic cases.
Loop live wire between toggle common and receptacle brass screws using pigtailed connections. Cap pigtails with yellow wire nuts; test pull strength by tugging wires–not the nut body. Wrap each nut with UL-approved tape to seal threads against dust. Position the toggle above or beside the outlet height for ADA reach; minimum 15 inches off finished floor, maximum 48 inches.
Test continuity with a multimeter before energizing. Place probes on toggle common and receptacle brass at 0 Ω; switch open should read OL. If readings drift, check screw torque or strip length–excess copper wicks heat and melts insulation. Replace any wire showing gray discoloration or stiff insulation; molecular damage continues even after cooling.
How to Connect a Power Receptacle to a Control Device
Start by turning off the circuit breaker for the targeted wall socket and linked activator to eliminate electrical hazards. Verify the absence of current using a non-contact voltage tester near both components–failure to confirm zero voltage is a leading cause of preventable accidents.

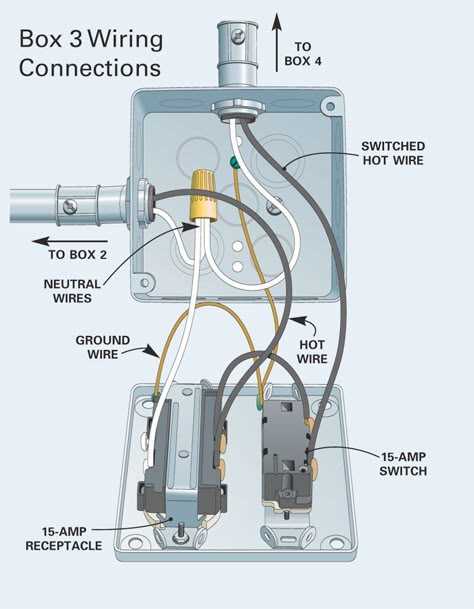

For a standard single-pole setup, you’ll need a 14/2 or 12/2 NM cable depending on the circuit amperage (15A or 20A). Connect the black (hot) conductor from the supply cable to the brass terminal of the control device, then run another black wire from the opposite brass terminal to the matching brass terminal of the receptacle. This establishes the switched power path while keeping the neutral continuous.
Handling Neutral and Ground Correctly
Attach the white (neutral) wires from the source and receptacle directly together with a wire nut–no breaks in this line. Ground wires (bare or green) from all cables must be joined and secured to the green grounding terminal on both the switch mechanism and socket. Omitting or improperly securing grounds violates NEC 250.130 and increases fire and shock risks.
When dealing with older installations lacking a grounded conductor, retrofit a ground bond following NEC 250.130(C) by connecting a grounding wire to the metal junction box if it’s properly grounded. Never substitute the neutral for ground–this miswiring creates lethal voltage potentials on exposed metal parts.
Test the completed assembly before finalizing the wall plates. Turn the breaker back on and activate the control device. Use a multimeter to confirm 120V at the receptacle when the switch is engaged and zero volts when off. Check for unusual buzzing or heat at connections–these signal loose terminals requiring immediate rework.
For multiple sockets controlled by one activator, use a multi-wire branch circuit with a single neutral shared across all hot conductors. Follow NEC 210.4 for proper separation and labeling. Ensure each hot conductor originates from the same phase to prevent neutral overload, which can exceed 60% of the ampacity rating and trip breakers unpredictably.
Essential Gear and Supplies for Installing a Controlled Receptacle
Select a non-contact voltage tester with a 50–1000V AC range to verify circuits before handling; models like Klein NCVT-3 or Fluke 1AC II detect live wires without physical contact. Pair it with a multimeter capable of measuring continuity, resistance (0–200Ω), and voltage (0–600V AC/DC) for precise diagnostics–preferred brands include Fluke 87V or Amprobe AM-510. For cutting and stripping, use wire cutters with 10–14 AWG crimping capacity and insulated handles (e.g., Knipex 09 02 240 or Ideal 45-121). Strip gauges should match 12 AWG (0.08″ / 2.05mm) and 14 AWG (0.06″ / 1.63mm) conductors; Klein’s Katapult or Greenlee’s self-adjusting strippers reduce errors.
| Item | Specifications | Recommended Models |
|---|---|---|
| Wall box | 1-gang, 3.5″ deep, metal/clamp or PVC for retrofit; knockout punch ≤1/2″ for conduit | Carlon B118R, Raco 220 |
| Feed conductors | THHN/THWN-2 12 AWG (20A) or 14 AWG (15A), copper; color-coded: black (hot), white (neutral), red (switched hot), bare/green (ground) | Southwire SIMpull, Cerrowire |
| Device plate | 15A/20A, combo decorator style, thermoplastic nylon (UL 94V-2), 4.5″ x 2.75″ dimensions | Leviton 80320, Eaton 5444 |
| Fasteners | #6-32 machine screws (0.75″ for boxes), 1/4″ Romex clamps (12/2 or 14/2 NM-B), 1.5″ drywall screws for mounting | Gardner Bender GB-200, Arlington NM842 |
| Wire connectors | Twist-on (red for 3×12 AWG, yellow for 4×14 AWG), push-in lever-nut (≤4 ports), or crimp sleeves (14–22 AWG, insulated) | Ideal 74B, Wago 221, Burndy KWC14 |
Use a fish tape (e.g., Gardner Bender Fish Tape) for pulling conductors through 1/2″ EMT or 3/4″ flexible conduit; nylon-coated steel tape prevents snags in walls. For masonry, employ a hammer drill with a 1/2″ carbide-tipped masonry bit (DeWalt D25263K) to bore through brick or concrete. Apply wire nuts rated for 600V and specified conductor ranges–red for three 12 AWG wires, yellow for four 14 AWG wires–securing them with a torque screwdriver set to 12–15 in-lbs to meet NEC 110.14(D) requirements. Keep a flashlight with ≥200 lumens (e.g., Streamlight ProTac 2L) for workspace illumination, alongside safety gear: ANSI Z87.1-rated goggles and NFPA 70E-compliant arc-rated gloves (class 2, ≤8 cal/cm²).
How to Install a Controlled Receptacle Using a Toggle Mechanism

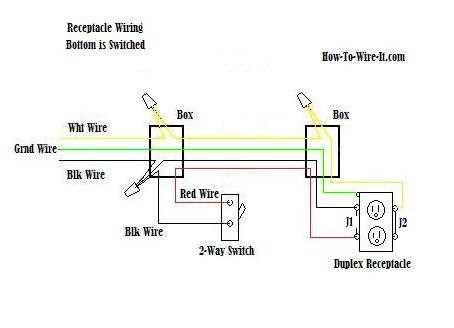

Turn off the circuit breaker supplying power to the area before handling any electrical components. Identify the live, neutral, and ground conductors in the existing junction box–typically black (hot), white (neutral), and bare or green (ground). If the receptacle isn’t already split, remove the brass tab connecting the two brass screws to enable independent operation.
Connect the incoming hot conductor to one brass terminal screw on the receptacle and attach a short pigtail wire to the other. Secure this pigtail to a matching screw on the toggle mechanism’s mounting strap. Run a separate 14-gauge conductor from the toggle’s opposite terminal back to the receptacle’s unoccupied brass screw, ensuring proper strain relief in all connections.
Bundle neutral conductors–keep them continuous if the receptacle must remain partially live. Twist the existing and new neutral wires together with a wire nut, then wrap them clockwise eight times for a secure bond. For ground conductors, join all bare or green wires with a grounding pigtail linked to the toggle’s green screw; never omit this step, even in retrofit scenarios.
Fold wires neatly into the junction box, then fasten the devices securely–avoid over-torquing screws on plastic boxes. Restore power and test the toggle’s function: the lower half of the receptacle should deactivate when switched off, while the upper remains energized. If the toggle operates backward, swap the two conductors attached to its terminals without disassembling the entire setup.
Troubleshooting Common Issues
No power to either section: Verify the circuit breaker’s status and inspect wire nuts for loose strands; re-strip conductors if insulation is nicked. Partial power loss: Confirm the brass tab was removed–failure here mimics a half-hot configuration unintentionally. Toggle controls entire unit: Check for a shared neutral conductor mistakenly linked to the switch loop–split neutrals must remain independent in this setup.
Label the junction box cover with a permanent marker indicating the controlled circuit. Use a non-contact voltage tester to double-check de-energized conductors before final box closure. Secure the cover plate flush against the wall; misalignment can stress wires and cause intermittent failures over time.
For dimming capabilities, replace the basic toggle with a compatible dimmer module–ensure the load rating matches the connected lighting or appliance. Always consult local electrical codes; some jurisdictions require arc-fault protection on modified circuits even in residential settings.
Critical Errors to Sidestep When Integrating a Control into a Receptacle
Skipping the circuit breaker test before handling any connections guarantees a hazardous shock risk. Always verify power is off using a non-contact voltage tester–probing wires with a screwdriver or fingers is reckless.
Mixing up live and neutral conductors leads to reversed polarity, causing appliances to malfunction or create fire hazards. Neutral wires must connect to the silver terminal, while hot wires go to the brass or gold screw–never reverse them. Double-check with a multimeter if the terminals aren’t clearly marked.
Overloading the junction box by cramming too many wires strains the connections, leading to overheating or arcing. Adhere to the box’s cubic-inch capacity; use wire nuts rated for the gauge and quantity of conductors. If space is tight, replace the box with a deeper or larger model.
- Ignoring grounding creates a severe safety risk. Always connect the ground wire to the green screw or ground terminal–uninterrupted grounding prevents electrical shocks and stabilizes voltage surges.
- Using the wrong wire gauge compromises efficiency. For 15-amp circuits, 14 AWG wire suffices; for 20-amp, use 12 AWG. Undersized wires overheat, while oversized ones waste materials and complicate connections.
- Loose terminal screws cause high resistance, generating heat that melts insulation. Tighten screws firmly–use pliers if the screwdriver doesn’t provide enough torque, but avoid stripping the threads.
Failing to secure wires inside the box leads to accidental disconnections or exposed conductors. Staple wires every 4.5 feet and within 12 inches of the box; use cable clamps to prevent chafing.
Signs of Improper Installation
Flickering lights, buzzing sounds, or warm plates indicate a botched setup. Immediately inspect connections if:
- The plate feels hot to the touch–turn off power and recheck circuit integrity.
- Breakers trip repeatedly–short circuits or ground faults are likely.
- Appliances behave erratically–reversed polarity or loose neutrals disrupt performance.
DIY modifications on aluminum wiring require specialized connectors and anti-oxidant compounds. Copper-only wire nuts corrode aluminum, causing dangerous oxidation. Use COPALUM or AlumiConn connectors for reliable long-term joints.
Neglecting local electrical codes invites legal and safety issues. Permits, inspections, and adherence to NEC (or regional equivalents) ensure compliance. Unpermitted work voids insurance claims if a fire or failure occurs.
