Begin by mapping the path from the power source to the fixture. Use #12 AWG copper wire for circuits up to 20 amps and #14 AWG for 15-amp setups. Bury cables at least 18 inches deep in trenches, or 6 inches if encased in PVC conduit. Label each run at both ends to prevent cross-connections.
Install a GFCI-protected outdoor-rated breaker in your main panel. Connect the breaker to a weatherproof junction box near the base of the installation. Use screw-type wire connectors for all splices, wrapped in high-quality electrical tape and sealed with silicone compound to block moisture.
Mount a dusk-to-dawn photocell between the junction box and the light fixture. Wire it in series with the hot leg so the circuit opens at night. Attach the fixture ground to a copper-clad ground rod driven 8 feet into the earth, bonded with #6 AWG bare copper.
Test continuity before sealing all enclosures. Verify less than 3 ohms resistance from the breaker to the fixture ground. Apply 120V AC and check voltage drop with a multimeter; readings below 114V may indicate undersized wire or corroded connections.
Finished installations require a two-layer coating of anti-corrosion paste on all exposed metal parts. Cover junction boxes with NEMA 3R-rated covers and secure mounting hardware with stainless steel screws to withstand wind loads up to 90 mph.
Connecting External Light Fixtures: A Practical Guide
Use 12-gauge THWN-2 copper conductors for circuits under 20 amperes to comply with NEC 310.10 and reduce voltage drop over distances exceeding 50 feet. Bury direct burial cable (UF-B) at a minimum depth of 24 inches, or protect it with ½-inch rigid metal conduit where shallow installation is unavoidable, ensuring compliance with NEC 300.5.

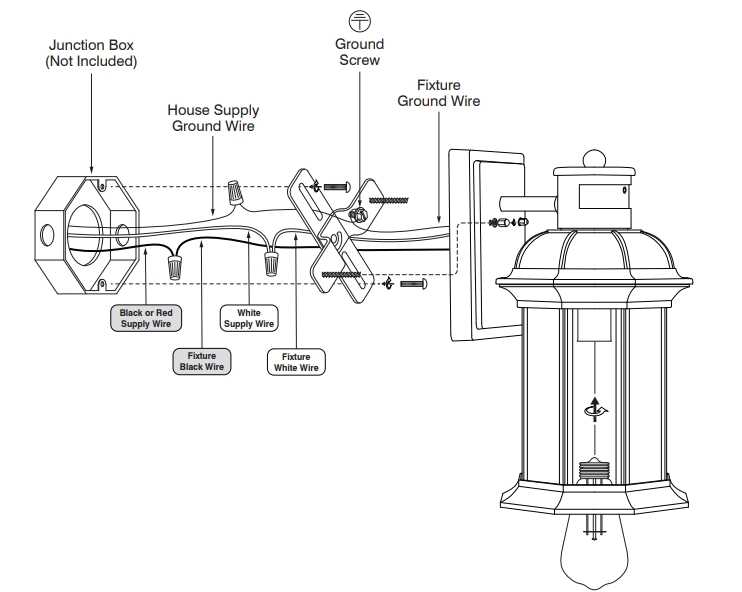

Install a weatherproof junction box at the base of the pole, rated NEMA 3R or higher, to shield connections from moisture and debris. Secure all splices with waterproof wire nuts and seal them with silicone dielectric grease to prevent corrosion. Ground the fixture using an 8 AWG bare copper conductor bonded to a grounding rod driven 8 feet into the earth, following NEC 250.52(A)(5).
Key Steps for Safe Installation
- Verify the circuit breaker matches the conductor ampacity–15A for 14 AWG, 20A for 12 AWG.
- Use a voltage tester to confirm power is off before handling exposed wires.
- Label all conductors in the junction box: hot (black/red), neutral (white), ground (green/bare).
- Apply heat-shrink tubing over splices for added protection against environmental factors.
- Test the fixture with a multimeter after installation; readings should show continuity between live-neutral (120V) and zero ohms between neutral-ground.

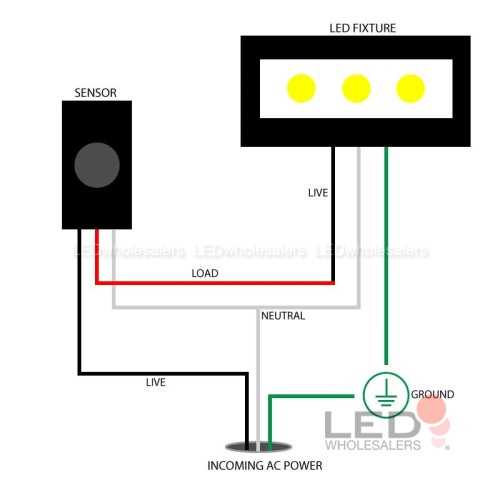

For dusk-to-dawn sensors, connect the red wire to the hot terminal, the white wire to neutral, and the black wire to the load side of the switch. Adjust the sensor’s photocell sensitivity and time delay using the manufacturer’s dial settings–typically 5 lux for activation and 1-10 hours for auto-shutoff.
Essential Gear and Supplies for Installing Garden Light Fixtures
Begin with a voltage tester (non-contact type preferred) to verify circuits are de-energized before handling any connections. A multimeter rated for at least 600V AC/DC will confirm voltage levels, continuity, and resistance across terminals. For safety, select insulated tools like screwdrivers, wire strippers, and pliers with rubber-coated handles to prevent accidental shorts.
Use 14-12 AWG copper conductors for standard residential setups, but upsize to 10 AWG if the run exceeds 50 feet or powers multiple fixtures. THHN/THWN-2 wire is ideal for conduit applications, while UF cable suits direct burial where local codes permit. Ensure all conductors are rated for damp locations–verify markings for “W” (wet) or “UF” (underground feeder) designation.
Select junction enclosures based on environmental exposure. For buried connections, use weatherproof junction boxes (NEMA 3R or 4X) with silicone-gasketed covers. Stainless steel hardware resists corrosion, and brass compression connectors ensure secure, long-term splices. Avoid twist-on wire nuts outdoors; instead, use gel-filled or crimp connectors with heat-shrink tubing for moisture protection.
| Component | Recommended Specifications | Quantity |
|---|---|---|
| Conduit (Schedule 40 PVC) | ½”–¾” diameter, UV-resistant | Flexible length (min. 10’) |
| Breaker | 15–20A single-pole, AFCI/GFCI combo | 1 |
| Mounting Brackets | Galvanized steel or aluminum, ⅜” lag bolts | 4–6 |
| Grounding Rod | 8’ copper-clad, ½” diameter | 1 |
Secure fixtures using heavy-duty mounting straps or L-brackets drilled into concrete bases. For wooden supports, pre-drill pilot holes to prevent splitting, and use deck screws (3”–4”) coated with zinc or polymer for longevity. Anchor buried conduit with PVC cement and straps every 4 feet, sloping it slightly downward toward the base to encourage water runoff.
Avoid common pitfalls: never use Romex (NM-B) in wet locations, and always install a dedicated circuit if the load exceeds 10A. For timers or photocells, choose models with surge protection and NEMA 3R enclosures. Test the system at dusk, checking for voltage drops–if readings vary by more than 3% between the source and fixture, reevaluate wire gauge or connection integrity.

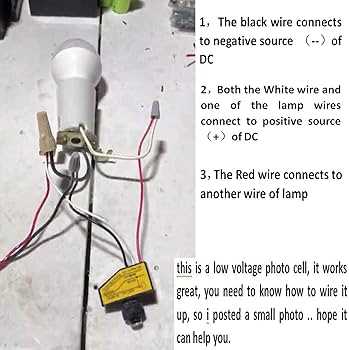

For low-voltage systems (12V/24V), use a Class 2 transformer with built-in photocell and overload protection. Wire with direct burial-rated low-voltage cable (e.g., 12 AWG stranded copper with PVC jacket) and keep splices elevated or encapsulated in waterproof gel. Terminate connections with split-bolt connectors wrapped in vinyl electrical tape and sealed with silicone.
Step-by-Step Guide to Running Beneath-Surface Electrical Connections
Select burial-rated cable with a minimum 12-gauge thickness for residential pathways and 10-gauge for longer distances or higher loads. Direct burial types like UF-B or conduit-protected THWN-2 withstand moisture, soil pressure, and temperature fluctuations without degrading. Verify local regulations–some jurisdictions mandate 24 inches of cover for cables, while others permit 18 inches if encased in PVC conduit.
Mark the route with non-toxic spray paint, avoiding roots, irrigation lines, and property boundaries. Use a trenching shovel or rented walk-behind trencher for straight paths; uneven ground requires hand-digging to maintain consistent depth. For rocky soil, rent a rock wheel trencher–it slices through obstacles with less disruption than manual digging. Keep the trench 6 inches wider than the conduit or cable bundle to allow manipulation during installation.
Lay 1-inch Schedule 40 PVC conduit for protection, sloping it downward at 1% grade (1 foot per 100 feet) to guide water away from connections. Secure joints with PVC primer and cement, ensuring full adhesion to prevent soil infiltration. For cable-only burial, leave extra slack at endpoints–at least 12 inches coiled inside a waterproof junction box–to accommodate settling or future splices.
Thread cable through conduit using a fish tape or flexible rod, pulling gently to avoid damaging insulation. For direct burial, place masonry sand below and above the cable to reduce abrasion and simplify future excavation. Before backfilling, conduct a megger test to confirm insulation resistance exceeds 1,000 ohms per volt–any lower indicates compromised integrity. Cover with 4 inches of sand, then native soil, tamping every 6 inches to prevent settling.
Install waterproof splice kits (e.g., 3M Scotchcast) at connections, sealing with heat-shrink tubing or resin. Connect to a GFCI-protected circuit rated for 20 amps or higher, depending on load. Label the circuit breaker clearly–e.g., “Garden Pathway – 120V/20A“–and burrow a warning tape 12 inches below surface along the route to alert future excavators.

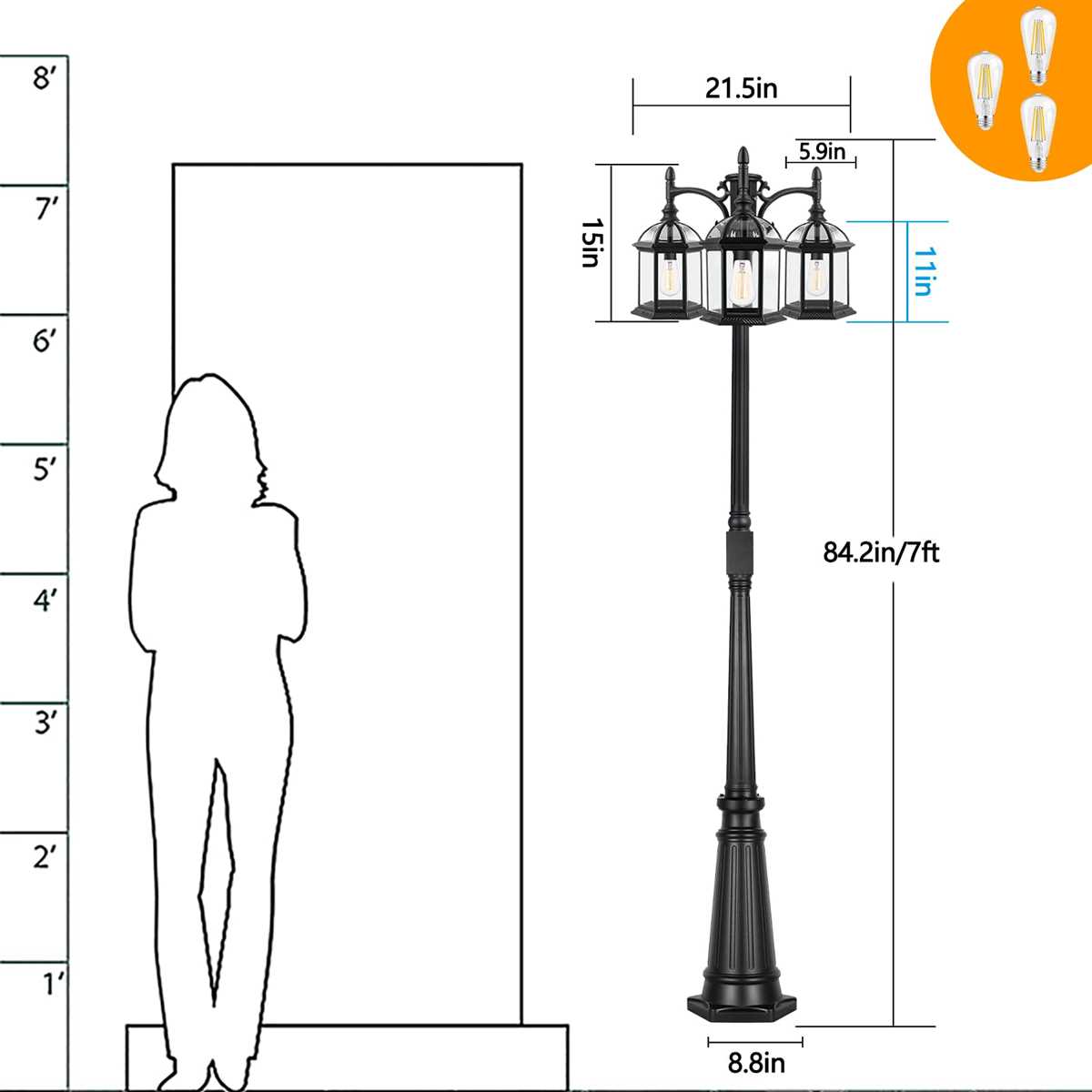

Power Feed Installation for Garden Light Fixtures
Start by burying the supply cable at least 18 inches underground to shield it from mechanical damage and moisture. Use schedule-40 PVC conduit for all segments running above grade or exposed near walking paths–rigid metal conduit is mandatory within 8 feet of any structure. Secure the conduit to mounting brackets spaced no more than 4 feet apart with stainless steel straps to prevent sagging.
- Select 12 AWG copper conductors rated for 90°C wet locations when the circuit carries less than 20 amperes; step up to 10 AWG if the run exceeds 100 feet.
- Terminate each lead inside a weatherproof junction box mounted directly to the fixture pole–avoid twist-on connectors; crimp sleeves with heat-shrink tubing rated for underground service provide the only reliable seal.
- Label each conductor at both ends with indelible heat-resistant sleeves marked with permanent ink: hot (black), neutral (white), ground (green).
Grounding Requirements
Drive an 8-foot copper-clad grounding rod at the supply origin and bond it to the main panel’s grounding bus with 6 AWG solid copper wire. Extend a separate grounding conductor along the entire cable run, bonding each junction box and the fixture housing at designated grounding terminals. Verify continuity with a digital ground meter reading less than 25 ohms before energizing.
Seal the conduit entry point at the pole base with expanding foam rated for outdoor use, then cover the sealed area with a layer of waterproof membrane and granular backfill compacted in 6-inch lifts to prevent settling. Test the circuit at 1,000 VDC insulation resistance above 50 megohms before final connection; perform a 24-hour operational trial monitoring for voltage drop exceeding 3% on the neutral lead.
