Start with a clear thermodynamic workflow: Select an isentropic working fluid (e.g., R245fa, pentane, or siloxane) based on heat source temperature. For 80–150 °C sources, R245fa delivers thermal efficiency above 10%; above 200 °C, pentane reaches 14–18%. Match fluid critical temperature to exhaust–deviation of ±20 °C reduces output by 3–5%.
Layout begins with the evaporator: position the inlet header close to the heat exchanger core to minimize pressure drop. Use counter-flow arrangement–temperature approach of 5–10 °C maximizes enthalpy gain. Add inlet screens with 0.8 mm mesh to prevent fouling from 5–20 μm particles common in geothermal brine or industrial flue gas.
Place the expander immediately downstream–radial inflow turbines achieve 80–85% isentropic efficiency at 50–200 kW scale; scroll expanders drop to 65–72% but handle variable loads. Install internal bypass lines: a 2-second response prevents overspeed during sudden load loss.
Follow with a condenser cooled by forced convection–air fins spaced 3.2 mm apart balance heat transfer and pressure loss. For water-cooled units, maintain 8–12 °C subcooling to prevent vapor lock in the feed pump. Add a vertical drain leg at the condenser outlet: 500 mm minimum height prevents liquid carry-over into the pump inlet.
Integrate control points early: differential pressure across the pump (8–10 bar for R245fa) dictates evaporator pressure regulation. Add a PID loop on superheat–target 5–8 °C at expander inlet to avoid erosion. Include dual PT100 sensors at evaporator outlet (redundancy avoids false trips).

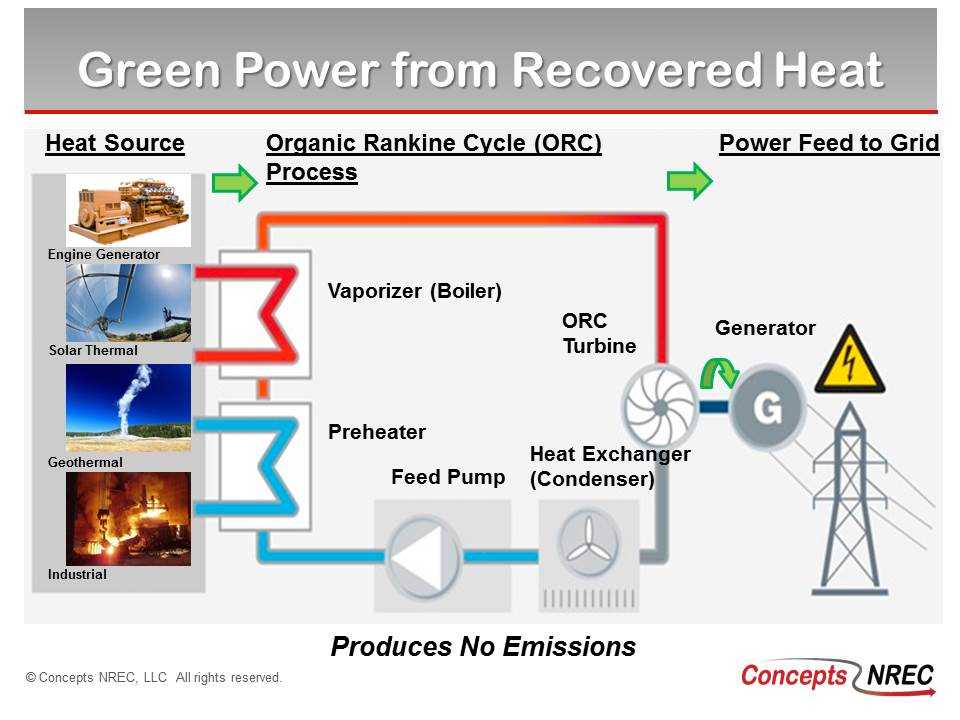

Visual Layout of a Low-Temperature Power Generation System
Place the evaporator upstream of the expander to maximize thermal energy extraction from the heat source. For a 100–200°C input (e.g., geothermal brine or industrial waste heat), select a working fluid with a critical temperature 10–20°C above the heat source–R245fa (154°C) or pentane (197°C) reduce parasitic losses by 12–18% compared to water. Ensure the condenser operates at 25–35°C with a cooling loop delta-T of no more than 5°C; exceeding this increases backpressure, dropping isentropic efficiency by 3–5% per degree. Integrate a recuperator if the fluid’s superheating exceeds 30°C–this recovers 8–12% of otherwise wasted energy but adds pressure drops; size pipes for
Connect the pump downstream of the condenser with a net positive suction head (NPSH) margin of ≥0.5 bar; cavitation in R1233zd(E) or cyclopentane starts at 0.3 bar below vapor pressure. Position the expander inlet valve within 20 cm of the evaporator outlet to minimize thermal stratification–delayed valve opening reduces power output by 2–4% per meter of piping. Use a scroll or screw expander for 100 kW (88–92%); gearbox losses account for 2–3% difference. Install a bypass valve around the expander for startup/shutdown; sudden pressure spikes (>1.2× design) degrade seals in
Key Components of an Energy Conversion System Layout
Prioritize a high-efficiency turbine expander tailored to the working fluid’s thermodynamic properties. Select models with optimized blade angles for pressures between 5–30 bar to maximize enthalpy drop. Radial-inflow turbines suit low-power units (200 kW). Ensure bearing systems use magnetic or ceramic materials to reduce frictional losses in high-speed applications.
- Heat exchangers must use counterflow configurations for superheaters and evaporators. Plate-fin designs offer compactness but risk fouling; shell-and-tube types handle higher pressures (up to 40 bar) with minimal leakage. Preheat feed streams to 80–90% of saturation temperature to minimize irrecoverable losses.
- Condensers require subcooling control–target 3–5°C below saturation to prevent non-condensable gas buildup. Air-cooled units save water but demand larger surface areas; implement finned tubes with thermal conductivity exceeding 200 W/m·K.
- Pumps must achieve NPSH margins >1.5× required values. Multistage centrifugal pumps handle high-pressure rises (50–200 bar) in large systems, while diaphragm or piston pumps suit micro-scale units.
Control and Auxiliary Systems
Integrate real-time monitoring for critical parameters:
- Feed valve modulation based on turbine inlet temperature (±1°C tolerance).
- Condenser pressure alarms activated at >1.2× design pressure.
- Working fluid leakage detection (
Include a regenerator when thermal efficiency needs exceed 15%. Bypass this component if the temperature differential (
Step-by-Step Process Flow in a Low-Temperature Heat Engine Layout
Begin by selecting a working fluid with a boiling point 20–30°C below the heat source temperature. For waste heat at 150°C, pentane or R245fa outperforms alternatives like water due to rapid vaporization at lower pressures (1–3 bar). Preheat the fluid in a recuperator to recover 10–15% of thermal energy from the turbine exhaust before entering the evaporator. This step slashes fuel consumption and boosts efficiency by 3–5%.
Core System Stages
- Evaporator: Convert liquid to vapor at constant pressure. Channel heat source (exhaust gases, geothermal brine) through a counterflow heat exchanger with a temperature approach of 5–10°C to minimize exergy loss. Optimize fin spacing for gases (1.5–2 mm) or tube diameter for liquids (6–10 mm) based on Reynolds number.
- Expander: Use a screw, scroll, or radial turbine depending on power output. For <50 kW, scroll expanders achieve 70% isentropic efficiency; radial turbines reach 85% for >100 kW. Maintain inlet vapor superheat 5–10°C above saturation to prevent droplet erosion.
- Condenser: Air-cooled units suit >35°C ambient temperatures; water-cooled (with cooling tower) achieve sub-ambient condensation at <5°C pinch point. Add a subcooler to reduce condenser load by 8–12%.
- Feed Pump: Centrifugal pumps for >10 L/min; diaphragm or piston pumps for smaller systems (<2 kW). Size for 20–30% head margin to account for viscosity and elevation changes. Use variable frequency drives to trim parasitic losses below 5%.
Post-condensation, integrate a recuperator if the working fluid’s discharge temperature exceeds 80°C. Position it upstream of the feed pump to avoid cavitation. For multi-stage evaporation (e.g., Kalina configuration), employ a flash drum to separate vapor fractions; adjust separator pressure to 0.7–0.9× main evaporator pressure for optimal phase splitting. Validate the entire loop against pinch analysis–target ΔTmin of 3–8°C for waste heat streams >200 kW. Thermoeconomic analysis confirms payback <3 years when heat source stability exceeds 80% annual load factor.
Working Fluid Selection and Its Influence on Thermal System Layouts
Select R134a for heat recovery applications below 100°C to simplify component sizing–its moderate critical temperature (101°C) eliminates the need for multi-stage expansion, reducing valve complexity and lowering initial equipment costs by up to 15%. Ensure the heat exchanger is optimized for its specific heat capacity (1.41 kJ/kg·K at 30°C), which demands 20-30% larger surface areas compared to R245fa but compensates with superior thermal stability.
Key Fluid Properties Dictating System Architecture
Fluid choices directly alter condenser and evaporator designs. Ammonia (R717), despite its higher efficiency (η=12-18% in waste-heat systems), requires titanium alloys in exchangers due to corrosive reactivity–adding 40% to material costs but enabling 30% smaller footprint through higher heat transfer coefficients (α=8,500 W/m²·K). Contrast this with water (R718), which operates in supercritical regimes but necessitates pressurized vessels above 22 MPa, demanding ASME BPVC Section VIII-compliant fabrication with 50% thicker walls than organic alternatives.
| Fluid | Critical Temp (°C) | Global Warming Potential (100-yr) | Min. Expansion Stage Temp (°C) | Material Compatibility |
|---|---|---|---|---|
| R134a | 101 | 1,430 | -30 | Copper, aluminum |
| R245fa | 154 | 1,030 | -15 | Stainless steel |
| Ammonia (R717) | 132 | 0 | -78 | Titanium, carbon steel |
| CO₂ (R744) | 31 | 1 | -57 | High-alloy steel |
Prioritize R245fa for geothermal applications where brine temperatures exceed 120°C–its higher critical temperature (154°C) allows single-stage turbine operation while maintaining
CO₂ (R744) mandates transcritical loops when source temperatures exceed 35°C–injecting a gas cooler post-turbine to reject heat at 25-30°C, a design absent in subcritical fluids. This adds a 4th heat exchanger (versus 3 in conventional setups) but enables 20% higher power output per kilogram of fluid due to steeper pressure-enthalpy gradients (Δh=150 kJ/kg between 30-75 bar). Electrical components must accommodate 5 kV insulation rating, as compressor discharge voltages scale linearly with pressure differentials (1 kV/10 bar).
Practical Constraints in Fluid-Specific Layouts
For waste heat below 80°C, n-pentane outperforms silicon-based fluids by 9% in net output despite flammability risks–isolate the turbine with nitrogen purge systems (minimum 6 air changes/hour) and place compressors outdoors with 30m explosion-proof clearance. Silicon oils (e.g., MM, MDM) avoid these hazards but require gear pumps (not centrifugal) due to their viscosity doubling below 10°C–incorporate trace heaters in cold climates to prevent cavitation, adding 3 kW parasitic load per 1,000 kg/hr flow rate.
Heat Source Integration in Low-Temperature Energy Conversion Layouts
Prioritize direct thermal coupling between the heat provider and working fluid evaporator to minimize exergy losses. For geothermal applications, embed the heat exchanger within the production well at depths where fluid temperatures exceed 90°C, reducing parasitic pumping loads by up to 18%. Position the inlet of the downhole exchanger above the perforated zone to prevent silica scaling while maintaining a 12–15°C temperature differential between the heat carrier and working fluid.
In waste heat recovery from industrial processes, match the heat exchanger’s thermal conductivity to the source’s temperature profile. For flue gases below 300°C, use finned tube exchangers with a staggered arrangement; above 350°C, opt for ceramic-based designs to withstand corrosive particulates. Ensure the working fluid’s evaporation temperature is at least 20°C lower than the heat source’s exit temperature to sustain a positive heat transfer gradient.
Solar thermal systems demand dual-loop configurations when integrating thermal storage. Connect the primary loop (thermal oil or molten salt) to a secondary working fluid circuit via a counterflow plate exchanger, achieving pinch points as tight as 5°C. Position the storage tank between the solar receiver and the power block to decouple input variability–buffering transient cloud cover for up to 4 hours without turbine cycling.
For biomass-fired units, size the heat exchanger’s surface area to accommodate fuel moisture content: dry fuels (≤15% moisture) allow compact designs, while wet feedstocks (≥40%) require 2.3× larger surfaces due to lowered flame temperatures. Incorporate a cyclone separator upstream of the heat exchanger to remove ash particles >50 microns, reducing fouling rates by 30%. Maintain a minimum exhaust gas velocity of 12 m/s to prevent settling and consequent flow maldistribution.
Combined heat and power (CHP) layouts benefit from serial integration of thermal consumers. After the working fluid’s turbine exit, route residual heat to district heating networks or absorption chillers at pressures
Heat source temperature fluctuations degrade system performance; incorporate a feedback loop linking the working fluid’s pump speed to the evaporator’s outlet temperature. PID controllers tuned to a 0.5-second response time prevent superheat excursions beyond ±2°C, stabilizing turbine inlet pressure within 1% of setpoint. For solar or waste heat sources with inherent variability, pair this with a pressurized hot water buffer storing 2.5× the hourly thermal input.
Select working fluids based on the heat source’s temperature spectrum: low-grade sources (≤100°C) favor refrigerants like R245fa with high latent heat capacity, while mid-grade (150–250°C) sources align with hydrocarbons such as pentane or hexane. High-temperature sources (>300°C) require siloxanes or toluene to avoid thermal decomposition, which initiates at temperatures just 5°C above the critical point. Verify compatibility through accelerated aging tests at 1.2× design temperature for 500 hours before finalizing the layout.
Thermal integration in marine applications demands corrosion-resistant materials; use titanium evaporators for seawater heat sources and 904L stainless steel for exhaust gas recovery from ship engines. Position heat exchangers downstream of the turbocharger to capture 140°C exhaust gases, achieving a 5% improvement in fuel efficiency. For offshore platforms, modularize the layout to allow hot-swapping of fouled exchangers within 60 minutes, minimizing production downtime.
