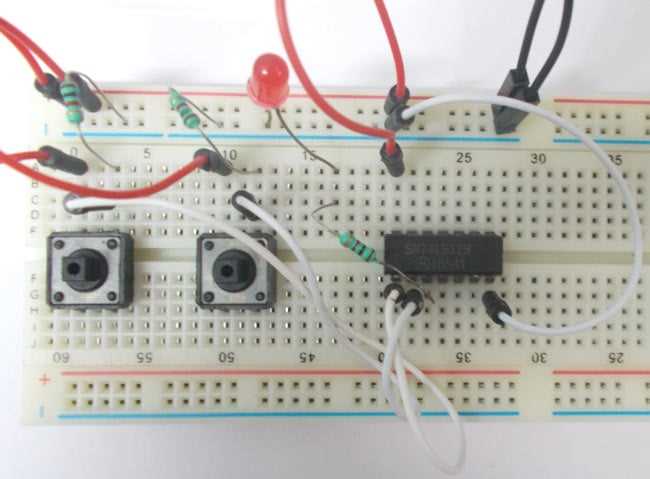

For reliable OR-based logic implementation, use a configuration with two input switches and a single 5V power source. Connect both inputs to separate push buttons or mechanical contacts wired in parallel to a single output. A pulldown resistor (10kΩ) on each input prevents floating states, while a current-limiting resistor (220Ω) before the LED output protects against excess draw. Test continuity with a multimeter across each input-output pair–closing either switch should trigger the output.
Optimize the design by selecting Schottky diodes (e.g., 1N5817) for faster switching and reduced voltage drop (0.2V vs. 0.7V for silicon). Arrange them in a wired-OR topology: anode to input, cathode tied together at the output. This method avoids active components while maintaining TTL-compatible voltage levels (0V/5V). For CMOS applications, use 4071 ICs–each chip contains four independent OR stages with rail-to-rail output, eliminating external diode requirements.
Simulate behavior in LTspice before prototyping. Define inputs as V(pulse) sources with 5V amplitude, 1µs rise/fall times, and 100kHz frequency. Monitor output waveform for correct truth-table mapping (L,L→L; L,H→H; H,L→H; H,H→H). Add a 1nF decoupling capacitor across the power rails to absorb transient noise, especially if driving inductive loads (e.g., relays).
For high-speed applications (MHz range), replace passive OR networks with 74HC32 logic. Propagation delay drops to 12ns, and output drive current (±4mA) handles low-capacitance loads directly. When cascading multiple stages, chain outputs to inputs without intermediary buffers–OR logic is associative, preserving functionality regardless of grouping. Document connections with IEC 60617 symbols in schematics: use a curved rectangle with “≥1” notation to denote the OR function.
Constructing a Basic OR Logic Configuration
Begin with two input switches connected to a single power source through 1kΩ resistors to prevent short circuits. A standard silicon diode (1N4148) should be placed between each input and the shared output node, ensuring both diodes face the output. This arrangement allows current to flow to the output if either input is energized, forming the core of the disjunctive operation. Verify functionality by measuring voltage at the output with a multimeter: it should register near supply voltage when either or both inputs are active, and drop to zero only when both are off.
Optimize performance by selecting diodes with faster recovery times–Schottky diodes like BAT54 offer minimal forward voltage drop (~0.2V) compared to 0.7V of silicon, improving response speed in low-power applications. For higher fan-out requirements, replace the shared output node with a pull-down resistor (10kΩ) to ground, ensuring clean signal transitions. Avoid placing LED indicators directly on the output; instead, buffer the signal with a transistor (2N3904) to drive visual feedback without loading the logic.
For troubleshooting, probe each diode’s anode and cathode individually– silent failures often stem from reversed polarity or cold solder joints. Test inputs separately before combining: a defective input will cause the entire assembly to behave unpredictably. Document component values on the schematic with legible labels (e.g., R1/1k, D1/1N4148) to streamline assembly and future modifications. Replace the power source with a regulated 5V supply for consistency in digital environments.
How to Build a Basic 2-Input OR Logic with Diodes
Select two silicon diodes with a forward voltage drop of 0.7V, such as 1N4148 or 1N4001. Connect their anodes to separate input terminals–each pulled low (0V) via a 10kΩ resistor to prevent floating states. Join the cathodes together, then route this common node through a 1kΩ resistor to a +5V supply. The output emerges at the cathode junction, yielding a logic high when either input reaches 2.5V or higher, accounting for the diode’s forward drop.
Component Placement
Orient the diodes with cathodes toward the central node to ensure correct polarity. Solder inputs on a perfboard with traces at least 1mm wide to handle 20mA current; narrower paths risk voltage sag. Test each diode individually with a multimeter in diode mode–reading 0.5-0.8V confirms functionality. Avoid exceeding 100mA per diode to prevent thermal damage.
For noise immunity, add a 100nF ceramic capacitor between the output node and ground, mounted within 5mm of the resistors. Verify operation by toggling inputs: +5V on either line should swing the output to ~4.3V, while both low should pull it to ~0.2V (TTL-compatible). Replace the pull-down resistors with 1N5711 Schottky diodes if faster switching is needed, as their 0.3V drop speeds edge transitions to under 50ns.
Step-by-Step Assembly of a Logic Union Using Bipolar Junction Components
Select two NPN transistors with matching parameters where the collector current rating exceeds 20 mA to ensure reliable switching. For prototyping, 2N3904 offers a balance between availability and performance, while BC547 provides lower cost for high-volume builds. Verify the voltage drop across the base-emitter junction remains within 0.6–0.7 V under load to prevent saturation delays.
Connect the emitters of both transistors to a shared ground bus. This node serves as the output of the combinational block, requiring a pull-down resistor–10 kΩ works for most 5 V systems–attached between this node and ground to define a clear low state. Absence of this resistor risks undefined voltage levels during transitions.
| Component | Value | Purpose |
|---|---|---|
| NPN Transistor (Q1, Q2) | 2N3904 or BC547 | Switching element |
| Base Resistor (R1, R2) | 1 kΩ | Current limiting |
| Collector Resistor (R3) | 4.7 kΩ | Load to VCC |
| Pull-Down Resistor (R4) | 10 kΩ | Ensures defined low |
Route the collectors via individual 4.7 kΩ resistors to the positive supply rail (VCC). These resistors limit current while maintaining sufficient voltage headroom; adjust values if VCC exceeds 6 V to stay within transistor ratings. The junction where both collectors meet forms the positive output only when either input activates.
Wire input signals through 1 kΩ resistors to each base terminal. These resistors protect the junctions from excess current while ensuring rapid turn-off when inputs drop to zero. For 3.3 V logic, reduce base resistors to 680 Ω to compensate for lower drive voltage.
Test functionality by applying voltage to one or both inputs. With 5 V supply, a single input must swing the output to approximately 4.3 V due to transistor saturation and resistor drops. Both inputs high should yield the same result, confirming the union behavior. Measure propagation delay–typically under 15 ns for small-signal transistors–using an oscilloscope, as marginal delays can cascade in multi-stage logic chains.
Isolate the assembly from noise sources by keeping input leads short and adding a 0.1 μF decoupling capacitor between VCC and ground near the transistors. This prevents false triggers from transient spikes, which become critical in designs where the combinational block drives subsequent stages or sensitive loads.
Common Mistakes When Drawing an OR Gate Schematic
Incorrectly placing input lines too close together leads to confusion during assembly. Ensure a minimum spacing of 5mm between parallel connections to prevent accidental shorting. Verify alignment with the logical element’s pinout–many designers overlook datasheet specifics, causing reversed signal flow.
Failing to label outputs and inputs clearly creates debugging nightmares. Use descriptive names like “Sensor_A” or “Alarm_Trigger” instead of generic “In1” or “Out”. Include voltage levels (e.g., +5V) near power rails to avoid miswiring.
Overcomplicating layouts by adding unnecessary components wastes space. Each resistor, diode, or jumper should serve a defined purpose–remove redundant elements that don’t influence the logical function. Simplify paths to reduce trace resistance and signal delay.
Neglecting to test intermediate nodes with a multimeter invites silent failures. Probe junctions after drawing to confirm voltages match expected states (0V or Vcc). Skipping this step risks undetected errors propagating to final testing.
Disregarding ground plane integrity causes noise interference. Connect all ground symbols to a single point using thick traces (minimum 20 mil). Avoid daisy-chaining grounds, as this introduces voltage drops and erratic behavior in sensitive setups.
Voltage Levels and Output States in an OR Logic Assembly
Always match input voltages to the logic family’s specifications. For standard TTL configurations, a low input falls below 0.8V, while a high input exceeds 2.0V. Violating these thresholds risks undefined output behavior, including metastability or parasitic oscillations. CMOS variants demand tighter adherence, typically requiring low inputs under 0.3V and high inputs above 0.7 times the supply voltage. Measure thresholds at the transistor’s base or MOSFET’s gate terminal–never assume compliance from datasheet generalizations alone.
Supply voltage directly dictates output swing and noise margins. A 5V rail in an OR element yields a clean 0V to 5V transition, but reducing the supply to 3.3V compresses the swing, shrinking noise immunity. Below 2.5V, most OR assemblies exhibit sluggish rise/fall times, degrading signal integrity in high-speed applications. Test output states under worst-case load conditions: connect a 1kΩ pull-down resistor to simulate real-world capacitive loads and verify that low-level output remains below 0.4V and high-level output stays above 90% of VCC.
Intermediate voltages between defined logic levels–commonly 0.8V to 2.0V in TTL–force the OR assembly into a linear region. This state increases current draw exponentially and generates excessive heat, shortening component lifespan. Utilize hysteresis techniques (Schmitt triggers) to eliminate false triggering during slow input transitions. For CMOS implementations, ensure hysteresis thresholds are symmetric around the midpoint voltage to prevent asymmetric noise susceptibility.
- Low-level leakage: Monitor output leakage current (IOL) when both inputs are low. Excessive leakage (above 10µA) indicates degraded oxide layers or contamination. Replace faulty units immediately.
- Propagation delay: Vary input slew rates from 10ns to 100ms and record output transition times. Any delay exceeding 15ns at 25°C suggests poor fabrication or improper decoupling.
- Power dissipation: Measure quiescent current (ICC) with all inputs low. Values above 5µA per MHz per unit signal switching frequency point to substrate leakage or latch-up susceptibility.
Temperature Dependence and Compensation
Thermal drift alters voltage thresholds nonlinearly. At 85°C, TTL low-level input voltage rises to ~1.0V, while CMOS high-level threshold drops to ~2.3V on a 3.3V rail. Compensate by selecting OR assemblies with built-in temperature sensors or adding resistive dividers to stabilize reference voltages. Cold environments (-40°C) cause CMOS leakage currents to plummet, potentially missing valid low-level inputs; use active pull-ups to maintain signal integrity.
Fan-out directly impacts output voltage levels. Each additional load pulls high-level voltage down by approximately 3mV in TTL. For CMOS, calculate voltage drop across the output impedance (typically 25Ω to 100Ω) and limit fan-out to prevent signals dipping below valid thresholds. Implement buffer stages when driving more than 10 loads in parallel to preserve logic state fidelity.
Output states under fault conditions demand rigorous testing. Short one input to VCC and the other to ground–verify the output locks high without transient glitches. Reverse the input states and confirm the same behavior. Single-event upsets (SEUs) in radiation-prone environments can flip internal states; integrate redundant OR assemblies or triple modular redundancy to harden the design against spurious transitions.
