Start by locating the power management IC near the battery connector on the main PCB. This component, typically marked MT6357, handles voltage regulation for core functions–screen, processor, and charging. If troubleshooting power issues, measure VBAT (4.2V–3.7V) at C901 and VCORE (1.1V) at C850. Deviations above 5% indicate faulty regulation or shorted capacitors.
The primary processor (MT6763V) sits beneath the EMI shield labeled U1001. Signal paths for DDR3L RAM (K4F6E3S4HM) and eMMC storage (SD1N5B2) run parallel to it via BGA balls–common failure points. For no-boot scenarios, probe CLK (133MHz) at resistor R1302 and CKE at R1305 using an oscilloscope. Absent waveforms suggest corrupted firmware or damaged traces.
RF sections require precise impedance matching. The antenna switch (RF3260) and PA module (SKY77354-13) are connected via band-specific filters (Murata DFY18 series). Weak signal strength often traces to oxidized connectors or failed LNA (BGU8001) input. Replace C321 (100pF) if signal drops below -95dBm in LTE Band 4.
For backlight issues, check the boost converter (TPS61161) output at L1701–expected 18V. Shorts in the LED driver circuits usually originate from corroded flex connectors (J1801) or burnt Q1702 (SI2301). Test continuity between BL_EN and the main PMIC. Intermittent brightness often links to failing C1703 (1µF ceramic).
Baseband processor (MT6763V) communicates with the modem IC (MD1135M) via MIPI RFFE interface. Corrupted IMEI or baseband errors frequently stem from damaged EEPROM (U401) or broken traces at R401–R404. Use a JTAG adapter (RIFF Box) to reflash secured partitions if software recovery fails.
Charging circuits center on the BQ24196 (U501). Verify CHG_EN (3.3V) at pin 3 and BATFET control at pin 1. Overheating during charging typically signals a degraded NTC thermistor (TH501) or faulty fuel gauge (BQ27542). Replace R503 (0Ω) if charging current stalls below 500mA.
CPH1803 Electrical Layout: Practical Reference for Technicians
Locate the main power IC (MT6357) on page 12 of the service blueprint–its pins 5, 14, and 23 must show 3.8V, 1.8V, and 0.9V respectively during boot. If voltage drops below these thresholds, replace the surrounding 10µF capacitors or reflow solder joints with a 0.2mm chisel tip at 350°C. Bypass mode checks: bridge TP401 to ground while powering on to force Qualcomm EDL mode for firmware flashing without battery.
Critical Test Points and Signal Paths
Measure USB data lines (D+ and D-) at resistors R501 and R502–both should read 47Ω to ground. If readings exceed ±5%, trace the path to the SoC (SDM450) and inspect U302 for cold solder. For baseband failures, probe the RF transceiver (WTR2955) pins 3-7: expect -45dBm at 1900MHz with a spectrum analyzer set to 10kHz RBW. Replace R804 if missing–it feeds the primary antenna switch network.
- Display interface (LS05A connector): Confirm 1.2V on pins 34-36; short circuits here cause black-screen faults.
- Camera power rails: AVDD (pin 4, 2.8V) and DVDD (pin 6, 1.2V) must stabilize within 20ms of shutter press.
- Charging circuit: PP3V0_CHARGE (C203) drops to 0V if Q201 fails–replace with SS16 diode.
Locating Authorized Technical Blueprints for the CPH1803 Device
The most reliable source for verified circuit layouts is the manufacturer’s official service portal. Access requires registration using an authorized account–typically provided to certified repair centers. Once logged in, navigate to the “Technical Resources” section, where internal documentation is classified by model number. Search for the variant matching hardware revision A.1 or later for accuracy.
Forums specializing in mobile hardware repairs often host unofficial archives, though legitimacy varies. Trusted communities like XDA Developers and MobileTechVideos maintain threads where users share verified copies. Filter posts by upload date and cross-reference checksums with known valid files to avoid corrupted or altered versions.
Electronic component distributors occasionally include service manuals with bulk orders of spare parts. Check purchase confirmations from vendors like LCSC or Win Source–some attach compressed archives containing partial layouts. Extract these files immediately, as download links expire within 48 hours.
Alternative Channels with Cautions
Third-party schematic repositories, such as AllSchematics.com, aggregate files but lack verification. Use these only if:
- The site provides direct download speeds (no redirections).
- SHA-256 hashes match those published in repair community threads.
- Files are scanned with VirusTotal to detect malware.
Avoid platforms demanding personal data or subscriptions for access.
Manufacturer disassembly guides, while not identical to full blueprints, include critical pinout diagrams and voltage rails. These are embedded in firmware update packages hosted on official support pages. Extract the ZIP archive and parse the board-info.txt file for traces of PCB component mappings.
Verifying Authenticity Before Use
Use a hex editor to inspect downloaded layouts–authentic files begin with 50 4B 03 04 (ZIP header) and contain standardized metadata in XML format. Compare layer counts: legitimate diagrams include at least 6 layers (ground, power, signal x3, solder mask). If discrepancies exist, discard the file and retry from another source.
Key Components and Circuit Paths in the Device’s PCB Architecture
Begin by tracing power delivery from the battery connector–labeled VBAT–to the primary PMIC (power management IC). This path must handle currents exceeding 3A, so verify copper trace width: widths below 3mm risk overheating under load. The PMIC regulates outputs to core subsystems–CPU, GPU, and memory–via buck converters. Check for decoupling capacitors near each output; a missing 10µF ceramic near the CPU core rail can introduce voltage ripple, causing instability during intensive tasks.
Next, examine the modem section. The RF transceiver connects directly to the antenna switch module via impedance-matched microstrips, typically 50Ω. Any deviation in trace length or solder mask thickness degrades signal integrity. Ensure the SIM card interface–linked to the baseband processor–has pull-up resistors (10kΩ) on data lines; absent resistors may lead to failed SIM detection. Test continuity from the SIM tray to the IC pins, as corrosion in the flex connector is a common failure point.
Memory and Processor Interconnections

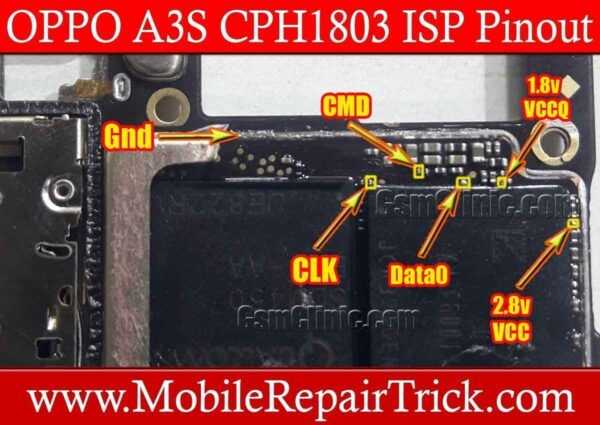

Locate the LPDDR4 RAM modules stacked atop the application processor. Data lines (DQ0-DQ15) must maintain equal trace lengths; mismatches introduce timing violations. Use a time-domain reflectometer to verify reflections caused by stubs or vias–REFCLK and address lines tolerate no more than 12ps skew. For NAND flash, confirm the eMMC interface uses 400MHz DDR signaling with proper termination. Probing the CMD and DATA0 lines with an oscilloscope reveals bad blocks if waveforms appear distorted; reflow the flash IC if interference persists.
The display interface–MIPI-DSI–demands strict adherence to differential pair routing. Check that the clock and data lanes maintain 100Ω differential impedance within ±10%. Any via transition should use teardrop pads to reduce stress; cracked vias here manifest as flickering or dead pixels. The touch controller communicates over I2C; pull-up resistors (2.2kΩ) on SDA/SCL lines prevent open-drain faults. If touch unresponsiveness occurs, probe these lines for 3.3V idle levels–zero voltages indicate a short to ground or a damaged IC.
Finally, review the charging circuit. The USB-C port feeds a dedicated charging IC, which negotiates power delivery profiles. Confirm the CC pins (CC1/CC2) show 5.1kΩ resistors to ground–missing resistors result in 500mA charging instead of 2A. The thermistor (NTC) must read between 10kΩ-100kΩ at room temperature; values outside this range trigger charging safeguards. Inspect the fuel gauge IC’s Coulomb counter accuracy by logging mAh readings–discrepancies exceeding 5% suggest firmware corruption or a depleted battery cell.
Step-by-Step Diagnostic Process Using the Reference Board Layout
Begin by locating the power management IC (PMIC) on the board layout, marked as U201 near the battery connector. Probe the input lines (VBAT) with a multimeter set to 20V DC–expected readings should match the battery voltage (±0.1V). If no power is detected, trace back to the charging port pins 2 and 3 (positive/ground) and check for continuity; a damaged flex cable often exhibits >1Ω resistance. For intermittent power loss, inspect the decoupling capacitors C201–C205 adjacent to the PMIC: shorted components will show
Signal Path Verification
To isolate display issues, verify the MIPI_DSI lines from the application processor to the display connector J101. Use an oscilloscope set to 1V/div and 500µs timebase–healthy signals should show a stable 1.8V square wave with clean edges. If corruption occurs, check the pull-up resistors R301–R305 on the data lanes; values outside 51–100Ω indicate a fault. For touchscreen malfunctions, confirm the I2C_SDA/SCL lines at U401 (touch IC) have
Understanding the Power Delivery Framework in Mobile PCB Designs
Begin analysis by locating the primary power management IC (PMIC) on the board layout–typically marked as U201 or similar near the battery connector. This component regulates multiple voltage rails critical for subsystems. Verify its input voltage range (usually 3.0V–4.5V) and cross-reference with the battery specification to prevent under/overvoltage conditions that degrade performance.
Trace the VBAT line from the battery terminal to the PMIC, ensuring no parasitic resistance (target <20mΩ) exists in vias, solder joints, or traces. High resistance here introduces voltage drops under load, leading to thermal throttling or unexpected reboots. Use a multimeter in continuity mode to confirm integrity; replace corroded connectors or cold solder joints immediately.
The PMIC generates distinct rails for core components:
| Rail Name | Voltage (V) | Target Load (mA) | Critical Components |
|---|---|---|---|
| VCORE | 0.8–1.2 | 1200–1800 | AP/Modem SoC |
| VIO | 1.8 | 300–500 | Memory (RAM/Flash) |
| VANA | 2.8 | 200–400 | Camera sensors |
| VPA | 3.7 | 800–1200 | Power amplifier |
Each rail includes a decoupling capacitor (typically 0.1µF–10µF) placed within 2mm of the IC pad for noise suppression. Omit or distance these capacitors beyond 5mm, and expect ripple (>50mVpk-pk) causing erratic behavior in RF or display modules. For VCORE, add a 22µF low-ESR tantalum near the SoC to handle transient current spikes (>2A/µs).
Examine the LDO vs. Buck converter implementation. LDOs (e.g., for VIO) offer low noise (20µVrms) but waste power as heat–limit to <500mW dissipation. Buck converters (e.g., VPA) achieve 90%+ efficiency but require careful layout: keep switching nodes (SW) compact, shielded, and away from sensitive traces like MIPI/USB. Violations here manifest as display flicker or camera failures.
Check the charging path from USB/AC adapter to PMIC. The input current limit resistor (R203, 0.5Ω) sets the maximum charging current–replace standard resistors with 1% tolerance to avoid overcurrent shutdowns. The PMIC’s CHG_DET pin must toggle within 50ms of plug-in to enable 5V/9V/12V input modes; delays indicate firmware corruption or faulty configuration resistors.
Fault Isolation in Power Rails
Use a logical power analyzer to monitor rail sequencing during boot. Rails must activate in this order: VIO → VCORE → VANA → VPA. Reversals or overlaps trigger brownouts. For intermittent issues, probe each rail with an oscilloscope (>100MHz bandwidth) under load–peaks/dips exceeding ±5% of nominal voltage confirm poor decoupling or layout errors.
Pay special attention to the peripheral power rails. The VREG_LCD_1.8V and VREG_CAM_2.8V lines often share a single LDO; if display artifacts appear, desolder and measure the LDO’s output directly. A verified 1.8V/2.8V ±2% confirms the LDO, while deviation suggests a shorted capacitor (test with 1µF ceramic) or damaged load switch (Q202, TPS22964). For eMMC failures, verify VCCQ=1.8V and VCC=3.3V–missing rails cause “storage medium not detected” errors.
