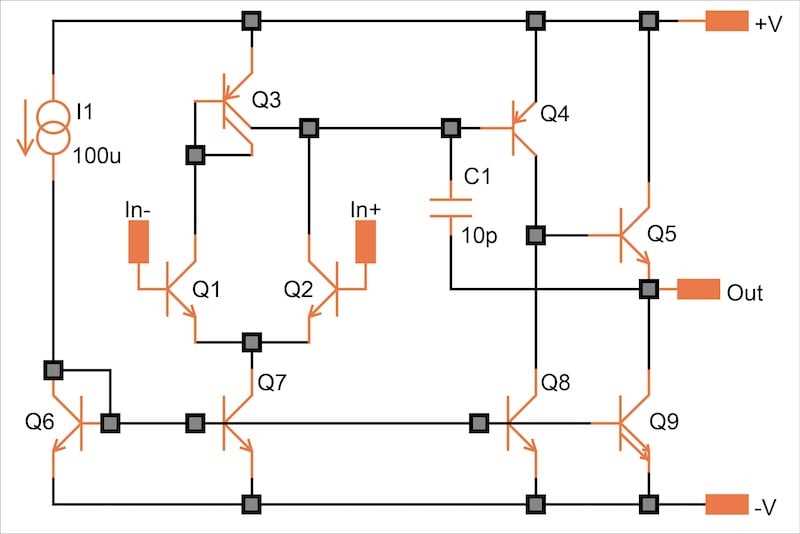

For inverting topologies, maintain a feedback resistor (Rf 10kΩ–1MΩ) proportional to the input resistor (Rin 1kΩ–100kΩ) to preserve bandwidth while preventing loop instability. A 1% tolerance on both resistors sustains gain deviation below 0.5% across ±15V rails–critical when amplifying piezoelectric sensors with 5mVp-p outputs. Offset nulling demands a 20kΩ trimpot tied between the op-amp’s null pins (e.g., LM741, TL072) adjusted at 25°C ambient; recalibrate if operating above 50°C avoids thermal drift exceeding 5µV/°C.
Non-inverting stages require Rg=10kΩ–200kΩ for unity buffer configurations or Rg=10kΩ, Rf=100kΩ–1MΩ for 10–100× gain. Decouple supply pins with 0.1µF ceramics (X7R) placed ≤2mm from the IC body to quash >50MHz oscillations from trace inductance–verified via 1GHz bandwidth oscilloscope with feedback capacitor (Cf 5pF–50pF) inversely to Rf (Cf = 1/(2π×Rf×fc)) to dampen 10kHz–1MHz ringing without sacrificing slew rate.
Differential front-ends need matched Rin and Rf (±0.1%) to reject 60Hz common-mode noise–achieve 90dB CMRR with INA128 or discrete OP07 pairs. Ground reference splitting (analog vs. digital) demands star topology with AGND at the op-amp’s inverting input; violating this invites ground loops corrupting >16-bit ADC resolution. For ±5V single-supply operation, bias the non-inverting input at 2.5V via voltage divider (R=10kΩ) and AC-couple inputs/outputs with C=1µF (X5R) to block DC while passing 10Hz–100kHz signals.
Designing Precision Signal Boosting Schemes
Use a non-inverting configuration for high-input impedance requirements–place the feedback resistor (Rf) between the output and inverting input, while grounding the inverting input through Rg. For a gain of 10, set Rf = 90 kΩ and Rg = 10 kΩ (Av = 1 + Rf/Rg). Ensure the op-amp’s supply voltage exceeds the expected output swing by at least 1.5 V to avoid clipping; for ±12 V rails, target a maximum peak of ±10.5 V. Bypass the power pins with 0.1 µF ceramic capacitors located within 2 mm of the IC to suppress high-frequency noise.
Key Component Selection Criteria
| Parameter | Recommended Value | Critical Consideration |
|---|---|---|
| Input Bias Current | < 1 nA (FET-input) | Prevents DC offset errors in high-impedance sources |
| Unity Gain Bandwidth | > 5 MHz | Ensures stable response for gains up to 100 at 100 kHz |
| Slew Rate | > 10 V/µs | Avoids distortion for 10 Vpp signals above 100 kHz |
| Common-Mode Rejection Ratio | > 90 dB | Rejects power-line noise in industrial environments |
Select precision resistors (1% tolerance or better) for Rf and Rg to maintain gain accuracy; metal film types minimize thermal drift. For AC-coupled applications, add a coupling capacitor (Cin) in series with Rg, sized as Cin = 1/(2π·fc·Rg), where fc is the desired cutoff frequency. Example: For fc = 10 Hz and Rg = 10 kΩ, use Cin ≥ 1.6 µF.
How to Select the Right Operational Device for Your Signal Boosting Setup
Begin by defining the required gain bandwidth product (GBW) based on the input signal frequency. For low-frequency applications (under 10 kHz), devices like the LM358 or TL072 suffice, with GBW around 1 MHz. Higher frequencies demand components such as the OPA2134 (8 MHz) or AD8620 (20 MHz) to avoid distortion and phase shifts. Calculate the necessary GBW by multiplying the target gain (e.g., 100x) by the highest input frequency (e.g., 50 kHz), resulting in a minimum GBW of 5 MHz. Prioritize parts with at least 20% headroom above this value to account for parasitic effects.
Evaluate input offset voltage (Vos) if handling microvolt-level signals. General-purpose units like the LM324 exhibit Vos around 2–7 mV, suitable for coarse tasks. Precision tasks, such as sensor interfacing, require devices like the OP07 (75 µV max) or LT1007 (25 µV max). For zero-drift designs, the LTC2057 (0.5 µV typical) eliminates drift over temperature, though at a higher cost. Match Vos specifications to the expected signal amplitude to prevent saturation.
Check output current drive capability for loads demanding high transients. Rail-to-rail output (RRO) devices, such as the MCP6021 (output swing within 100 mV of supply rails), handle 20 mA loads, adequate for resistive dividers or low-power actuators. For heavier loads (50–100 mA), use the LM675 (current-limited to 3 A) or OPA564 (1.5 A peak), both requiring heatsinks above 1 W dissipation. Ensure the selected part’s current rating exceeds the load’s worst-case scenario by 30% to avoid thermal throttling.
Thermal and Noise Performance
Thermal drift impacts stability in temperature-varying environments. Devices like the TLC272 exhibit 10 µV/°C drift, while the OP1177 reduces this to 0.3 µV/°C. For noise-sensitive tasks, compare voltage noise density (e.g., LT1128 at 0.85 nV/√Hz vs. NE5534 at 3.5 nV/√Hz) and current noise (critical for high-impedance sources). Balance noise specs against power consumption; bipolar input stages (e.g., OPA227) offer lower noise but draw more quiescent current than CMOS alternatives.
Select power supply configuration based on input/output swing needs. Single-supply options like the LM358 operate from 3 V to 32 V, simplifying battery-powered designs. Dual-supply devices (e.g., LM741 ±15 V) accommodate signals crossing 0 V but add complexity. Modern rail-to-rail input/output (RRIO) parts, such as the TSV992, eliminate the need for dual supplies while handling signals within 100 mV of both rails. Prioritize parts with shutdown modes (e.g., MAX4239) for portable applications to reduce standby current below 1 µA.
Compatibility and Form Factor
Ensure package type aligns with manufacturing constraints. Surface-mount technology (SMT) variants (SOIC-8, MSOP-10) suit automated assembly but lack heat dissipation of through-hole (DIP-8) packages. For high-power tasks, consider the TO-220 (LM675) or PowerSO-8 (TDA7297) with integrated thermal pads. Verify footprint compatibility with existing PCBs; some modern devices (e.g., ADA4898-1) use non-standard pinouts despite identical package dimensions.
Step-by-Step Guide to Sketching an Inverting Operational Block Layout
Begin by placing a standard operational block symbol at the center of your schematic sheet. Use a clean, symmetrical triangle with the non-inverting input marked by a “+” on the left side and the inverting input marked by a “−” on the top. Extend a horizontal line from the output terminal on the right side of the triangle. Ensure the symbol dimensions follow standard conventions: a base of 15 mm and a height of 10 mm for clarity.
Connect the feedback resistor between the output line and the inverting input. Select a value from the E24 series–common choices include 10 kΩ, 47 kΩ, or 100 kΩ–depending on the desired gain. Place the resistor directly adjacent to the input terminal, minimizing trace length to reduce parasitic effects. Label this component Rf immediately upon drawing it.
Attach the input resistor (Rin) from the inverting input to the signal source. Use a resistor value proportional to Rf–for a gain of −10, set Rin to 1 kΩ if Rf is 10 kΩ. Position this resistor perpendicular to Rf, forming a clear T-junction at the inverting input. Include a ground reference at the non-inverting input by linking it to a common node with a 0 V label, avoiding floating inputs.
Add a coupling capacitor (1 µF to 10 µF) in series with the input source if AC signals are involved, placing it 5 mm upstream of Rin. Verify all connections are orthogonal–no diagonal lines–to enhance readability. Annotate each component with its value and designation (e.g., “Rf = 47 kΩ”) in 10-point Arial font, positioned directly above or to the right of the symbol.
Designing Non-Inverting Signal Boosters with Precise Gain Calculation
Select resistors with a tolerance of 1% or better to minimize gain errors. For example, pairing a 10 kΩ feedback element with a 1 kΩ input resistor yields a nominal gain of 11, but a 5% tolerance could shift this to 10.45–11.55, introducing unacceptable variation in precision applications. Prioritize thin-film resistors over carbon-film for lower temperature coefficients and reduced noise.
Key Component Selection Criteria
- Feedback ratio: Maintain a ratio below 1000:1 to avoid stability issues with most operational blocks. Ratios above this threshold amplify input offset currents, degrading DC accuracy.
- Bandwidth constraints: Ensure the selected device’s gain-bandwidth product exceeds the required signal frequency by at least 10×. A 2 MHz GBWP part with a target gain of 100 limits useful signal handling to 20 kHz.
- Input impedance: Choose a non-inverting configuration only when source impedance is below 500 Ω; higher values interact with bias currents, introducing offset voltages.
Calculate the gain using the formula G = 1 + (Rf / Rg), where Rf is the feedback element and Rg is the ground-referenced resistor. For a 20 V/V booster, use Rf = 19 kΩ and Rg = 1 kΩ. Avoid standard E-series resistor values that force rounding; instead, source precision parts like 9.76 kΩ and 511 Ω for a 20.1× gain, eliminating trimming requirements.
Solder components directly to the board rather than using sockets to reduce parasitic capacitance, which can turn a nominally stable design into an oscillator. Use a ground plane under the feedback network and keep trace lengths under 1 cm to mitigate inductance. Bypass the power rails with 0.1 µF ceramic capacitors located within 2 mm of the operational block’s pins, supplemented by 10 µF tantalum capacitors for low-frequency stability.
Thermal and Noise Mitigation
- Operate the device within 70% of its maximum supply voltage to minimize self-heating. A 12 V rail on a ±15 V part reduces junction temperature rise by 30%.
- Minimize noise by selecting low-noise operational blocks (≤ 2.5 nV/√Hz) and using metal-film resistors with noise densities under 0.1 µV/√Hz.
- Shield the input traces with a grounded guard ring if the source impedance exceeds 10 kΩ, preventing capacitive coupling from adjacent tracks.
