Begin by selecting 10 AWG copper conductors for your panel-to-charge-controller connections if distances remain under 5 meters; beyond this, upgrade to 8 AWG to minimize voltage drop. Each 100W module produces roughly 5.5A at 18V under ideal conditions–match wire gauge to prevent more than 3% loss. Ground-mounted arrays require burial-rated cables (UF or USE-2) to resist moisture and UV degradation, while rooftop setups benefit from single-conductor THWN installed in conduit for mechanical protection.
Use a combiner box to merge individual strings before routing to the regulator–this reduces parallel connections and simplifies troubleshooting. Install a 60A DC breaker between the junction and regulator to isolate faults without risking arc flash. For lithium-ion storage, ensure the battery management system (BMS) disconnects at 10% state-of-charge to prevent deep discharge, which shortens lifespan by up to 30% per incident. Lead-acid alternatives tolerate lower thresholds but demand equalization charges every 30 days to prevent sulfation.
Route inverter cables through an enclosure sized to accommodate 125% of continuous current draw; a 2000W unit at 24V requires 103A, so 2/0 AWG copper is recommended. Keep AC and DC pathways separated by at least 75mm to avoid inductive coupling, especially in high-frequency sine-wave inverters. Label every conductor at both ends with heat-shrink tubing bearing voltage, polarity, and circuit ID to eliminate miswiring risks during maintenance or expansion.
Grounding is non-negotiable: drive an 8-foot copper rod at least 1.8m away from battery storage and bond all metallic components with 6 AWG bare copper. Surge protection devices must clamp at 20% below equipment maximum ratings–MOVs should handle 50kA impulses to survive indirect lightning strikes. Test insulation resistance with a 500V megohmmeter before energizing; any reading below 1Mohm indicates compromised cable integrity requiring replacement.

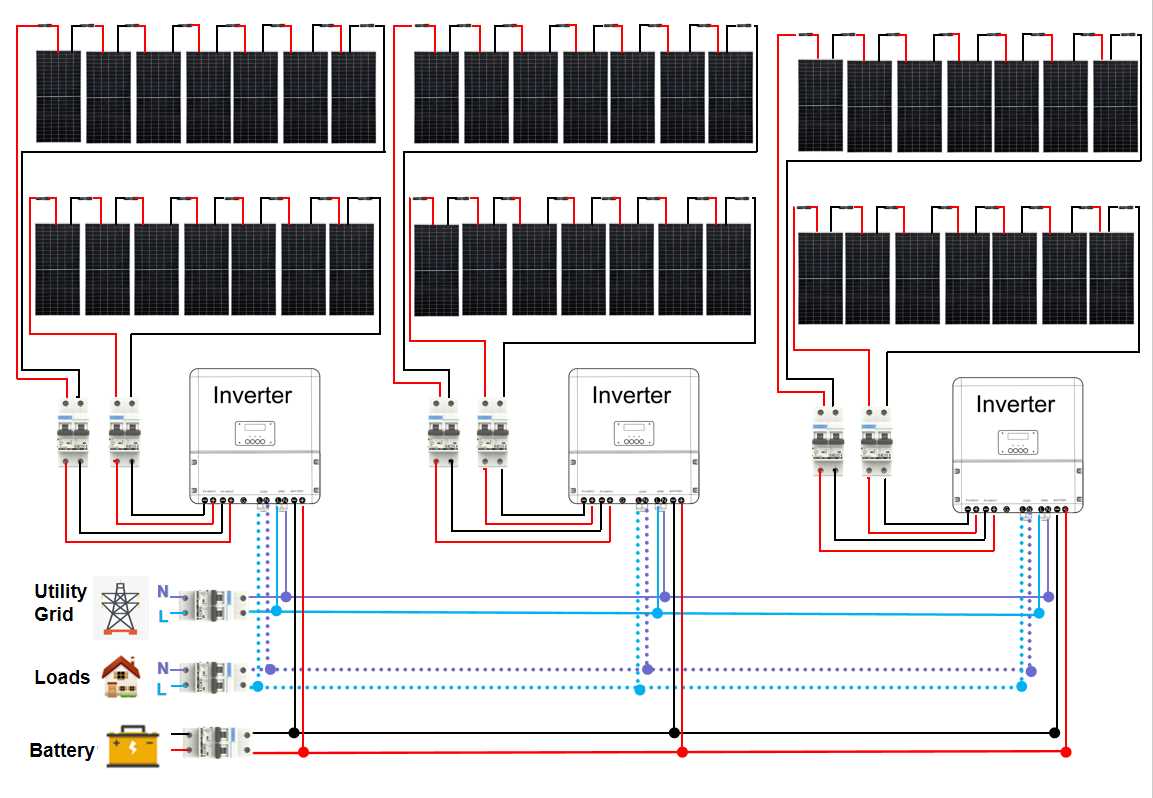

Standalone Energy System Circuit Layout
Select cables rated for 125% of the maximum continuous current your setup will draw–use 6 AWG copper for 10–15 amp circuits, 2 AWG for loads exceeding 60 amps. Secure all connections with crimp terminals and marine-grade adhesive-lined heat shrink to prevent corrosion from humidity. Route conductors through UV-resistant conduit if exposed to sunlight, ensuring at least 18 inches of clearance from combustible materials.
Battery Bank Configuration
Wire lithium iron phosphate cells in series for 48V nominal voltage, parallel strings for increased capacity–capacity (Ah) × 2.5 equals minimum wire gauge (e.g., 200Ah bank needs 2/0 AWG). Mount a 250A DC breaker between the bank and charge controller to isolate faults. Use busbars instead of direct battery-to-battery connections to handle 10–20% voltage drop over 10 feet of 2/0 AWG cable.
Place the inverter within 3 feet of the battery terminals to minimize resistive losses–most 5kW inverters require 4/0 AWG cables. Install a 300A ANL fuse between the inverter and battery bank. Ground the negative busbar to a 8-foot copper rod driven into damp soil, using 4 AWG bare copper wire, not coated, for minimal resistance.
Choosing Optimal Conductor Size for Autonomous Energy Systems
For 12V photovoltaic arrays, use 10 AWG copper cables when current stays below 30A over distances under 5m. Larger setups (24V/48V) require 6 AWG for 40A loads spanning 10m, reducing voltage drop to ≤2%. Aluminum conductors need two gauge sizes thicker than copper for equivalent performance. Calculate precise needs using:
Wire Size (AWG) = (Length × Current × 0.04) / (Voltage × 0.03)
where length is one-way in meters, current in amperes, voltage in volts. For inverter links, match battery bank voltage–2 AWG for 12V/100A, 4/0 AWG for 48V/200A.
Material-Specific Adjustments
Tinned copper resists corrosion in coastal conditions but costs 40% more than bare copper–justify use only for marine or high-humidity locations. Stranded wires (Class I or II) outperform solid core by ≥25% in vibration resistance. For underground runs, use THHN in conduit (rated for 90°C) with derating: multiply capacity by 0.86 for 2-6 conductors, 0.71 for 7-24. Avoid parallel runs under 10 AWG to prevent overheating–split loads instead.

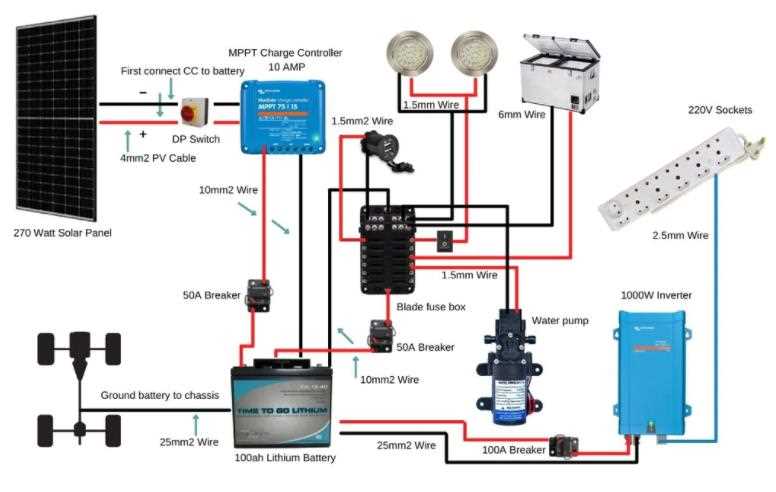

Step-by-Step Guide to Connecting Charge Controller to Batteries
Disconnect all energy sources before beginning. Verify battery bank voltage matches the controller’s input range–most 12V systems require 12.6V–14.4V, while 24V setups need 25.2V–28.8V. Use cable gauge sized per the manufacturer’s specs: 4 AWG for 30A controllers, 2 AWG for 50A. Strip 12mm of insulation, crimp ring terminals, and secure with a torque wrench (8–10 Nm for copper lugs). Avoid twist-on connectors; corrosion-resistant tin-plated copper reduces resistance.
Polarity and Safety Checks
| Step | Action | Tool Required |
|---|---|---|
| 1 | Mark positive (+) and negative (–) terminals with colored tape | Red/black electrical tape |
| 2 | Apply dielectric grease to terminals before fastening | 10mm socket, grease applicator |
| 3 | Connect negative lead first, then positive (reversing sequence prevents shorts) | 6-inch wrench, insulated pliers |
Test connections with a multimeter: probe the controller’s battery terminals–readings should match bank voltage (±0.2V). Enable the controller’s display (if available) to confirm charging status; MPPT units typically flash “Bulk” or “Absorption.” Recheck torque after 24 hours, as copper lugs may settle. For lithium iron phosphate banks, ensure the controller supports cell-specific charging profiles (3.65V per cell max).
How to Properly Ground Your Independent Energy System Components
Use a copper grounding rod at least 8 feet long driven vertically into damp soil for optimal conductivity. Connect the rod to the system’s main negative busbar with a minimum 6 AWG bare copper wire, ensuring zero resistance at the connection point. Avoid aluminum conductors–moisture and oxidation will degrade performance over time. If soil conditions are dry or rocky, bury the rod horizontally in a trench at least 3 feet deep and surround it with bentonite clay to improve grounding efficiency.
Separate equipment grounds from charge controller and inverter chassis using dedicated 4 AWG copper wires. Route these wires directly to the grounding rod without splicing, and secure them with stainless steel clamps coated in anti-corrosion grease. Any metallic enclosures housing batteries or wiring must also connect to this grounding network to prevent stray voltage buildup, which can damage sensitive electronics during load surges.
Test ground resistance with a dedicated meter before energizing the setup. Ideal readings should fall below 5 ohms in moist soil, though values up to 25 ohms are acceptable in less conductive environments. If resistance exceeds this threshold, install additional rods spaced no closer than twice their length (16 feet minimum) and interconnect them with heavy-duty copper braid. Never rely on a single rod in loose or sandy terrain–add a second rod if the first fails to meet specifications.
Fuse the grounding conductor near the main battery bank to protect against unintended short circuits. Use a 150-amp class T fuse or a DC-rated breaker sized 125% above the system’s maximum continuous current. This prevents catastrophic melting of conductors during a ground fault, which could otherwise create fire hazards in remote installations where maintenance access is limited.
Inspect all grounding connections annually for corrosion, especially in coastal or high-humidity regions. Clean terminals with a wire brush and reapply conductive paste before retightening. Replace any compromised wires–even minor surface oxidation on copper can increase resistance by over 30%, reducing fault protection effectiveness. In areas with lightning activity, install a transient voltage suppressor at the inverter to divert surges away from delicate circuits.
Isolate low-voltage DC grounds from AC-neutral bonds in hybrid systems combining inverters and generators. Connect AC neutrals directly to the grounding rod, but keep DC grounds separate to prevent galvanic corrosion between dissimilar metals. If an inverter’s neutral-ground bond is factory-set, verify it complies with local electrical codes–some jurisdictions mandate separate grounding electrodes for DC and AC circuits.
Label all grounding conductors with weatherproof tags indicating their purpose (e.g., “MAIN GROUND,” “INVERTER CHASSIS”). Use color-coded wire (green or bare copper) consistently to avoid confusion during troubleshooting. Document the grounding layout in your system schematic, including rod depth, wire gauge, and connection points, to ensure future modifications don’t compromise safety.
Connecting Panels in Sequence or Side-by-Side: Practical Setups
Opt for a series connection when system voltage must match higher-input charge controllers (e.g., MPPT units handling 150V+) or inverters requiring elevated DC bus voltages. Example: four 40V panels wired sequentially yields 160V total, ideal for a 200V controller–ensure each module’s bypass diodes remain functional to limit voltage drops during partial shading. Parallel setups suit lower-voltage systems (e.g., 12V, 24V, 48V) where current scaling is critical; pair identical panels to prevent circulating currents, using dedicated combiner boxes with 10A fuses per string to isolate faults.
- Series:
- Voltage = sum of individual panel voltages (e.g., 4 × 38V = 152V)
- Current = single panel’s rated current (e.g., 10A)
- Use gauge wire rated for panel’s Isc (short-circuit current) × 1.56 (NEC derating)
- Require blocking diodes only if mixed orientations exist
- Parallel:
- Voltage = single panel voltage (e.g., 38V)
- Current = sum of each string’s current (e.g., 3 × 9.5A = 28.5A)
- Wire gauge: 1/0 AWG for 30A+, or 4 AWG for 15A strings (check voltage drop ≤3%)
- Bypass diode critical for each panel; add combiner fuses ≥1.25 × string Isc
