The OBD interface on most vehicles follows a standardized 16-pin layout, but exact pin assignments can vary by manufacturer and model year. Always verify the pinout against the service manual for your specific make and model before attempting any modification or testing. Pin 16 supplies battery voltage (12V), while Pins 4 and 5 provide chassis ground–critical for stable communication. Pins 6 and 14 (CAN High/Low) are the most common communication lines, supporting protocols like ISO 15765-4 (CAN) and SAE J1850 (PWM/VPW).
For older vehicles (pre-2008), Pins 2 (J1850 Bus+), 7 (ISO 9141-2 K-line), or 10 (J1850 Bus-) may be active instead. Use a multimeter to confirm connectivity–resistance between CAN High/Low should read ~60 ohms. If readings differ significantly, check for damaged wiring or missing termination resistors. Adapter cables for non-standard ports (e.g., GM’s 12-pin ALDL or Nissan’s Consult) require custom pin mapping; refer to vehicle-specific schematics.
When troubleshooting, prioritize signal integrity. Twisted pairs (CAN High/Low) reduce noise interference, while shielded cables prevent EMI in high-interference environments. Avoid tapping into Pins 1, 3, 8, 9, 11, 12, or 13 unless specified by the manufacturer–these are reserved for proprietary functions (e.g., GM’s Class 2 or Chrysler’s SCI). For aftermarket tools, ensure the device supports the vehicle’s protocol; mismatches cause silent failures or erratic readings.
For permanent installations (e.g., telematics or logging), splice into the harness at the diagnostic port’s backbone–not the connector itself–to prevent connector wear. Use soldered joints or weatherproof crimp connectors; avoid wire nuts or tape. Always disconnect the negative battery terminal before splicing to prevent short circuits. Validate functionality with a scan tool post-installation.
Understanding Vehicle Diagnostic Port Pinouts
Check pin 16 first when diagnosing power issues–it supplies 12V directly from the battery through fuse 15 in most ISO 15765-4 compliant setups. If voltage drops below 11.5V, inspect the ignition relay or alternator output before proceeding further.
A multimeter set to continuity mode can verify ground integrity on pins 4 and 5. Corrosion at the chassis connection point often mimics ECU failure; clean with electrical contact cleaner and apply dielectric grease to prevent future oxidation. BMW and Audi models sometimes route ground through pin 6–consult the specific manufacturer’s technical bulletin if readings remain unstable.

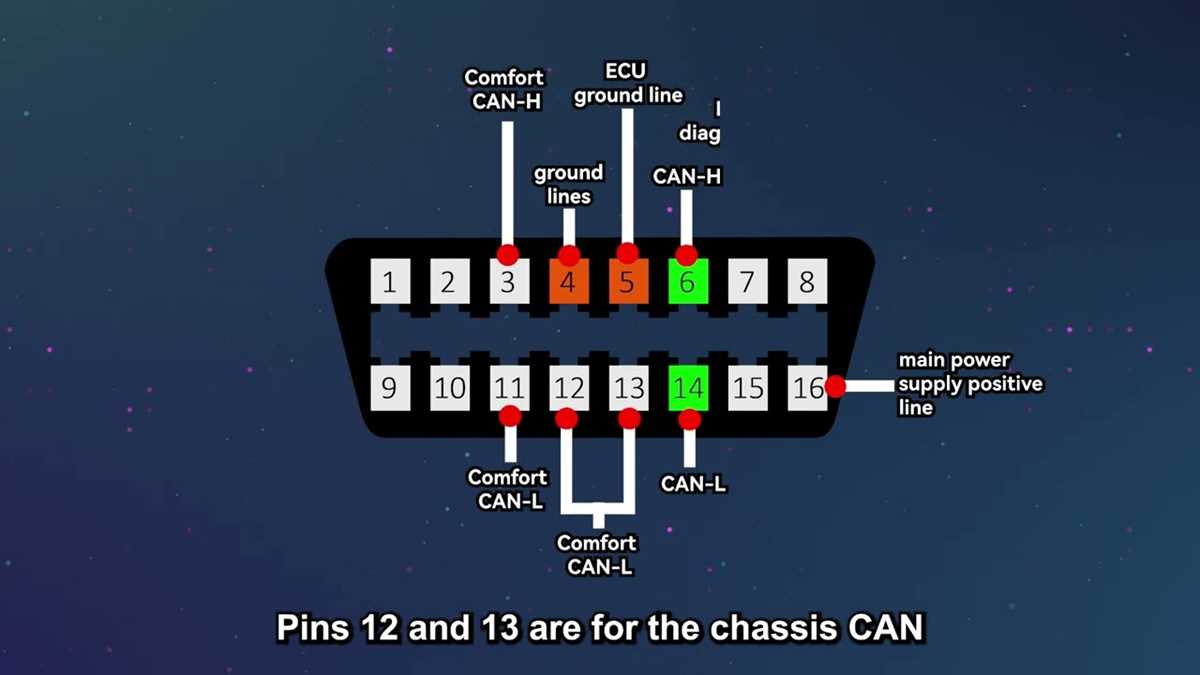

CAN bus communication relies on pins 6 (high) and 14 (low). Termination resistors between these lines should measure 60 ohms; deviations suggest wiring damage or missing resistors in the network. Ford and Mazda frequently use pins 3 and 11 for secondary CAN networks–check wiring harness diagrams for splices near the instrument cluster.
Pins 7 (K-line) and 15 (L-line) require a scope for accurate diagnosis. Voltage spikes above 5V or asymmetric waveforms indicate interference from aftermarket audio systems or poorly shielded cables. Toyota’s pre-2008 models sometimes reversed these assignments–compare against the EWD (Electrical Wiring Diagram) for the exact vehicle.
Aftermarket adapters often mislabel pins–confirm functionality by probing each terminal against the factory service manual. Dodge and Chrysler vehicles may include pin 1 on some 2010-2014 models for a proprietary diagnostic line, though it typically carries no signal in standard OBD modes.
Always disconnect the battery before resoldering damaged terminals. Use heat-shrink tubing rated for 125°C on repairs near exhaust manifolds or turbochargers. For splices, crimp with gold-plated connectors and solder joints to prevent resistance buildup over time.

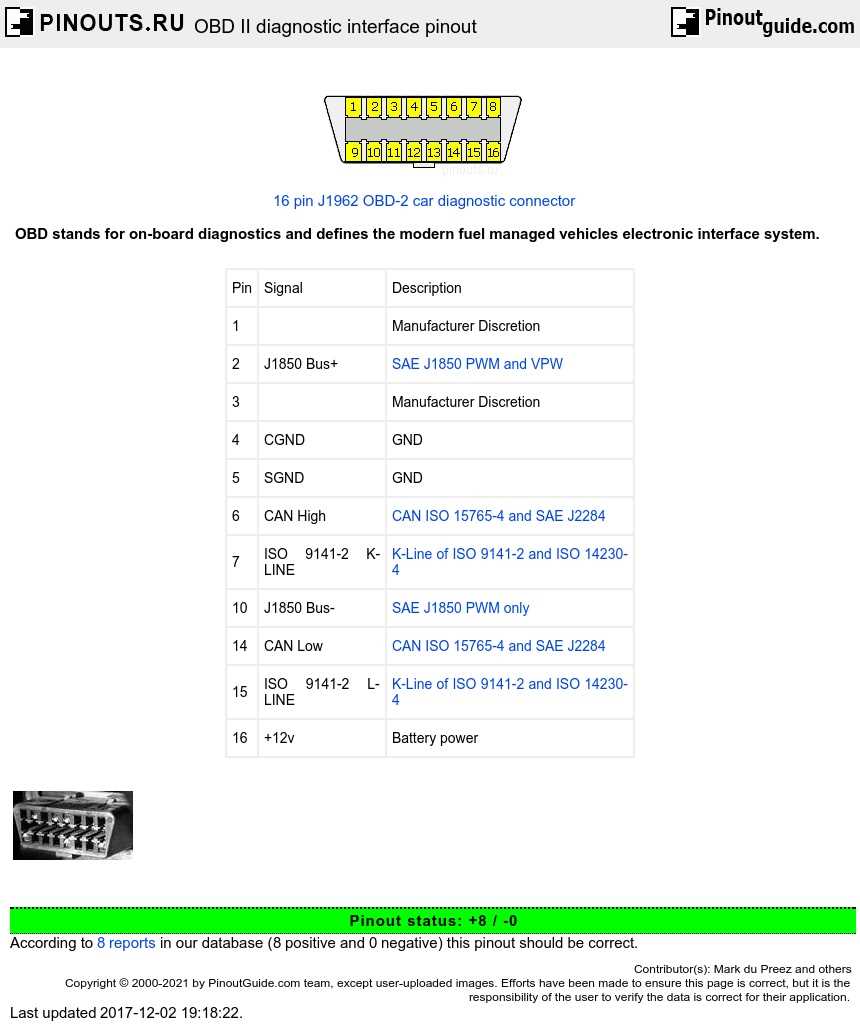

Pinout Configuration for Standard Vehicle Diagnostic Port
For ISO 15765-4 CAN protocols (pins 6 and 14), ensure 120Ω termination resistance between the high and low lines to prevent signal reflection. Most modern vehicles use CAN-H (6) as a golden-yellow wire and CAN-L (14) as light-green; deviations often indicate aftermarket modifications or non-standard ECM integrations. Pins 2 (J1850 VPW) and 10 (J1850 PWM) rarely coexist–verify the vehicle’s OEM protocol before bridging circuits. Pin 16 supplies battery voltage (12V+); a multimeter reading below 11.5V suggests corroded fuse contacts or alternator issues.
Pins 4 (chassis ground) and 5 (signal ground) must exhibit Pin 7 (ISO 9141-2 K-line) carries bidirectional serial comms at 10.4 kbit/s–use a scope to confirm clean transitions between 0V and 12V. Avoid back-probing pin 1 (manufacturer discretionary) on Ford or GM systems without schematics, as it may trigger false DPF regeneration cycles.
Step-by-Step Guide to Assemble a Vehicle Diagnostic Port
Locate the standard pinout configuration for your car’s onboard interface–most modern models follow ISO 15031-3 specifications. Prepare a 16-pin harness with color-coded leads: pins 4 and 5 (black) for chassis ground, pin 6 (blue) for CAN high, pin 14 (green) for CAN low, and pin 16 (red) for battery voltage. Verify the multimeter reads 12V on pin 16 before proceeding; absence indicates a blown fuse or disconnected power line.
Strip 5mm of insulation from each lead, twist strands tightly, then crimp with gold-plated terminals. Secure connections with heat-shrink tubing to prevent corrosion–standard automotive-grade tubing contracts at 120°C. For CAN signals, route wires away from ignition coils and alternators to minimize electromagnetic interference. A ferrite bead near the plug reduces noise in copper pairs.
Connect ground leads first to ensure a stable reference point. Attach the battery voltage last to avoid short circuits. If integrating aftermarket modules, use pin 2 (SAE J1850 PWM) or pin 10 (SAE J1850 VPW) for legacy systems. For proprietary adapters, refer to manufacturer schematics–some European brands repurpose pin 1 for K-line communications.
Test each link with a diagnostic scanner before finalizing. A live communication probe should show CAN bus activity between 2.0V–3.5V differential. Check continuity on the chassis ground–resistance exceeding 0.5Ω suggests a faulty joint. Re-seal the port housing with dielectric grease to prevent moisture ingress.
Document deviations from OEM configurations. Non-standard arrangements (e.g., pin 15 for L-line or pin 7 for K-line) require custom cable harnesses. Store spare fuses and terminals–common failure points include oxidized contacts and broken latches from harsh conditions.
Common Missteps in Vehicle Interface Cables and Fixes
Inverting power and ground lines ranks as the most frequent error. Pin 16 (typically +12V) and Pin 4/5 (chassis ground) must never swap places. Use a multimeter to confirm polarity before connecting; reverse voltage can fry modules in under a second. If the interface fails to power up, check these pins first–corrosion or bent terminals often mimic wiring flaws.
Shorting adjacent pins during repairs causes silent failures. Pins 6 (CAN-H) and 14 (CAN-L) sit close together; a stray strand from a frayed wire can bridge them, throttling communication. Strip wires only 2-3mm to minimize exposed metal, and verify continuity between individual pins with a low-ohm setting on your meter. If CAN signals flatline, isolate each pin and retest–ground loops from improper splicing can produce the same symptom.
- Bypassing fuse protection: Pin 16 often connects directly to the battery; installing a 500mA fuse inline prevents catastrophic shorts.
- Ignoring strand count: Thin automotive cables (≥22 AWG) handle 1-2A; anything smaller risks overheating.
- Neglecting ISO 9141-2: Pins 7/K-line and 15/L-line use 10.4 kΩ pull-ups; omitting resistors can corrupt diagnostic streams.
Hidden Pitfalls in Aftermarket Harnesses
Cheap adapters frequently mislabel pins or omit crucial lines like Pin 1 (manufacturer discretionary). Compare the pinout against OEM specs–Mazda assigns Pin 2 to SCP, GM uses it for Class 2. Mismatches create phantom faults; if the vehicle throws U-code errors for missing modules, cross-reference every pin before trusting the harness.
Solder splashes inside the plug block signal pathways. Use flux sparingly and clean joints with isopropyl alcohol (≥90% concentration). A microscope helps spot whiskers; even 0.1mm bridges can intermittently disrupt engine timing signals on Pins 2 and 10. Heat shrink tubing over joints prevents future shorts from vibration.
- Test lightweight cables with a 1kHz signal generator and oscilloscope–high-frequency noise hints at poor shielding.
- Verify mating surfaces: Gold-plated pins oxidize slower than tin; contaminants increase resistance beyond 0.5Ω.
- Locking tabs cracked by rough handling? Glue-free repairs (cyanoacrylate) fail under engine bay temperatures; replace the housing entirely.
Diagnosing Intermittent Failures
Loose terminals exhibit temporary connectivity–gently wiggling the plug while monitoring live signals reveals faults. Replace crimped connectors with soldered joints if terminals show signs of fatigue (discoloration, pitted surfaces). For vehicles with gateway modules (e.g., Volkswagen), ensure Pin 12 connects to the diagnostic bus; missing this link drops ABS and transmission readings.
Voltage drops across harnesses degrade signal integrity. Measure Pin 16 at the battery and pin–difficulty exceeding 0.3V indicates excessive resistance. Corroded fuse boxes or oxidized ground bolts (common behind dashboard panels) amplify the issue. Sand contacts to bare metal and apply dielectric grease to prevent recurrence.
