Start by locating the upstream and downstream probes in your exhaust system. Most inline-four engines position the first upstream gauge just before the catalytic converter, typically threaded into the exhaust manifold. The second downstream unit sits directly after the converter in the exhaust pipe. V6 and V8 engines often add a third probe–check the left bank before attempting repairs.
Verify power delivery first. Probe the signal wire (usually black) with a multimeter set to DC volts–expect 0.1 to 0.9 volts fluctuating rapidly at idle. A steady 0.45 volts indicates a dead gauge or open ground. Trace the heater element feed (typically white or gray) back to the fuse box; look for a 10-amp fuse labeled “O₂ Heat.” If blown, suspect short circuits caused by chafed wires rubbing against exhaust bolts.
Inspect the harness for heat damage. Sleeving near the exhaust manifold often melts, exposing copper wires. Use a repair kit rated for 500°C; solder joints fail under vibration–crimp and heat-shrink terminals instead. Ground wires (usually green) tie to the engine block; scrape paint off mounting surfaces to ensure clean contact. Corroded grounds drop signal strength, triggering false lean codes.
Check the wiring diagram specific to your vehicle–J1939 CAN networks embed gauge signals differently than analog setups. On Ford vehicles, pin 58 of the PCM handles upstream data; Toyota routes it through the MAF circuit. Measure resistance between pins: upstream gauges read 5-15 ohms, downstream 10-40 ohms. Readings outside these ranges confirm internal failures requiring unit replacement.
Resolve code P0135 by testing the heater circuit. Apply 12 volts directly to the heater element (grey wire) and monitor current draw–expect 0.8-2.0 amps. High draw indicates internal shorts; low draw suggests corroded connectors or broken wires. For VW/Audi models, scan with VCDS and monitor live data–not just codes–to distinguish intermittent faults from false triggers.
Understanding Oxygen Probe Circuit Connections
Locate the primary signal lead (typically a thin black or gray wire) and connect it to the engine control module’s designated input–usually pin 37 on 4-pin probes or pin 41 on 5-pin variants for most OEM setups. Verify voltage readings between 0.1V and 0.9V during operation; deviations outside this range indicate either exhaust anomalies or connection faults. Ground paths must terminate at the engine block, not chassis, to prevent signal interference from electrical noise during fuel mixture adjustments.
Critical Wire Pinouts by Manufacturer
Toyota’s 4-wire probes use red (heater power), white (heater ground), black (signal), and a gray/green stripe (signal return). Ford’s heated variants separate sensor feedback into two wires: a black/pink stripe for the signal and a brown/white stripe for return. Avoid splices within 15 cm of the connector–heat-resistant silicone insulation degrades performance if compromised. For pre-1996 models, consult voltage drop specs: 12V at the heater circuit with no more than 0.5V loss across the harness.
Test probe integrity by backprobing the connector at idle–voltage should fluctuate rapidly; static readings confirm contamination or wiring shorts. Replace aged harness sections if resistance exceeds 0.5 ohms between the control unit and probe tip, especially in high-mileage vehicles where corrosion disrupts data transmission.
How to Identify the Correct Leads on a 4-Wire Oxygen Probe
Begin by locating the heater element terminals–typically two white or light gray wires on most automotive probes. These supply 12V from the vehicle’s relay, so resistance between them should measure 5–15 ohms when the engine is cold. If readings vary significantly, trace the leads back to the harness connector to confirm correct pin identification, as miswiring risks damaging the internal heating coil.
Next, isolate the signal pair: one lead carries ground, while the other outputs the voltage swing (0.1–0.9V) reflecting exhaust gas concentration. Use a voltmeter set to DC millivolts–probe the darker (usually black) wire against chassis ground to find steady 0.45V at stoichiometric air-fuel mix. The lighter (tan, purple, or striped) wire should fluctuate between 0.1–0.9V under varying throttle conditions. If both leads read near 0V, swap them at the harness; persistent zero output indicates a severed ground connection.

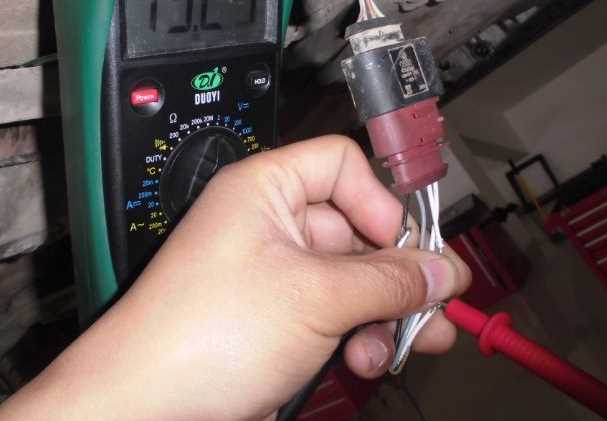

Verify each lead’s function by back-probing the connector with the ignition on (engine off) and observing real-time voltage changes. Heater wires will show battery voltage; the signal pair will mirror exhaust composition shifts after engine start. Cross-reference with manufacturer service manual pinouts, as color codes differ–common alternatives include tan/black for signal ground, light blue/black for signal, and heavy gauge white for heater supply.
Step-by-Step Guide to Testing Oxygen Probe Circuits with a Multimeter
Disconnect the oxygen probe connector to isolate the harness from the control module. Set your multimeter to ohms (Ω) mode, typically 200Ω range. Probe the terminals of the harness side connector–refer to the manufacturer’s pinout for correct pairing. A healthy circuit should read between 0.5Ω and 5Ω. Resistance outside this range indicates a broken conductor, corrosion, or poor crimping. Document each reading for later comparison.
Switch the multimeter to DC voltage mode, 2V scale. Reconnect the oxygen probe. Start the engine and let it idle. Backprobe the signal wire at the module connector while monitoring the display. A functional upstream probe alternates between 0.1V and 0.9V every 1-2 seconds at operating temperature. Downstream probes hover near 0.45V with minor fluctuations.
If voltage remains static below 0.1V or above 0.9V, disconnect the probe again. Probe the signal wire at the harness connector using a jumper wire to chassis ground. Voltage should drop to 0V. If it doesn’t, the signal circuit is shorted to power–inspect the harness for chafing near exhaust components or brackets. Use a wiring loom diagram to trace the full path.
Diagnostic Voltage Thresholds
| Condition | Expected Range (V) | Fault Indication |
|---|---|---|
| Upstream Probe (Idle) | 0.1–0.9 | >0.9 or |
| Downstream Probe | 0.4–0.5 | >0.6 or |
| Ground Test | 0.0 | >0.02 |
| Supply (Heater) | 12–14 | 14.5 |
Test the heater element by setting the multimeter to ohms (200Ω scale). Measure across the heater terminals. A viable element reads 2Ω to 20Ω–values outside this range suggest a failed heater or open circuit. Next, verify heater power: switch to DC voltage (20V scale), start the engine, and probe the heater power wire. Voltage should match battery voltage (13.5V–14.5V). Lower readings point to a corroded fuse, relay failure, or wiring issue.
For advanced troubleshooting, use a scan tool to log probe activity. Configure the tool to display voltage graphs alongside fuel trim data. Correlate flatlined probe voltage with long-term fuel trim values exceeding ±15%–this confirms a silent failure rather than a mechanical issue. Replace the probe if voltage doesn’t swing after verifying all circuits. Clear codes and road-test to confirm resolution.
Common Wire Color Standards for Oxygen Probes by Automaker
General Motors primarily uses black for the signal lead, gray for the ground reference, and purple for the heater circuit on pre-catalytic converters. Post-cat probes often switch to a dark blue signal line instead. Always cross-check with a scan tool to confirm which pin corresponds to the 0.1–0.9 V swing range, as the gray wire may occasionally carry the signal in newer models like the Chevrolet Silverado 2500.
Ford Motor Company sticks to white for the signal, tan for the low-reference, and white with a red stripe for the heating element on upstream units. Downstream variants typically replace the red stripe with orange. Avoid relying on the tan wire alone–verify ground integrity with a voltmeter at the ECU connector; some Transit models show voltage leaks on this path.
Asian Brands: Consistency and Exceptions
Toyota and Lexus follow a strict pattern: black (signal), white (ground), and pink (heater) across most gasoline engines since 2005. However, turbocharged versions like the GR Supra use a green stripe on the signal wire to indicate a wide-range AFR probe. Hyundai and Kia mirror this setup but swap the heater circuit to brown–exception being diesel applications where brown carries the signal.
Nissan and Infiniti diverge sharply after 2012; pre-attenna probes use light blue for signal, whereas post-Gen4 ECUs adopt a green lead. The heater circuit remains red regardless of model year. Mazda retains green for signal on all SKYACTIV engines, yet the 2020 CX-5 introduces a gray-striped ground–making fuse box identification critical before back-probing.
European marques exhibit the widest variance. Volkswagen Group uniformly assigns black (signal), gray (ground), and white-black (heater) on naturally aspirated TDI but flips the heater to red-black on 2.0T engines. BMW switches between gray for signal upstream and violet downstream; Mini Cooper R56 swaps violet for yellow. Always confirm with an oscilloscope–plug-in color charts frequently mislabel ground wires on vehicles with start-stop systems.
Audi complicates matters further on longitudinal V6 platforms: black (signal) persists, yet the heater circuit changes from white-black to brown-black depending on emission standard (Euro 5 vs. Euro 6). Porsche Cayenne couplings follow the same standard, but Macan models introduce an additional shielded pair–striped orange and bare–a feature absent in standard documentation.
