Replace any linear two-terminal network with a single current source in parallel with an impedance to analyze complex electrical behaviors without altering external connections. Begin by calculating the short-circuit current across the terminals–this defines the equivalent source’s magnitude. Measure or compute the total impedance seen from the same terminals with all independent sources deactivated (voltage sources replaced by short circuits, current sources by open circuits) to determine the parallel resistance.
For resistive networks: omit reactive components during initial calculations unless phase relationships matter. Use Ohm’s law directly: divide the open-circuit voltage by the equivalent resistance to derive the short-circuit current. Verify accuracy by ensuring power dissipation matches between the original network and simplified model–discrepancies above 5% suggest calculation errors or overlooked dependent sources.
Apply this method to:
– DC bias analysis: reduce amplifier input stages to a single source and resistor, simplifying quiescent point calculations.
– Signal source modeling: represent antennas, sensors, or transducers with a Norton model to standardize interface specifications.
– Fault current estimation: replace power distribution grids with a current source and impedance for short-circuit studies, using standardized per-unit values for transformers and cables.
Modify the process for AC systems by:
– Converting impedances to phasor form (rectangular or polar).
– Using complex division for short-circuit current: IN = VOC / Zeq, where VOC is the open-circuit phasor voltage.
– Including frequency-dependent effects (skin effect, dielectric losses) if precision above 1kHz is critical.
Avoid common mistakes:
– Skipping source deactivation–always null independent sources before impedance calculations.
– Misidentifying terminals–label ports clearly to prevent polarity errors.
– Ignoring dependent sources–these require additional equations derived from the original network’s constraints.
Equivalent Current Source Representation in Linear Networks

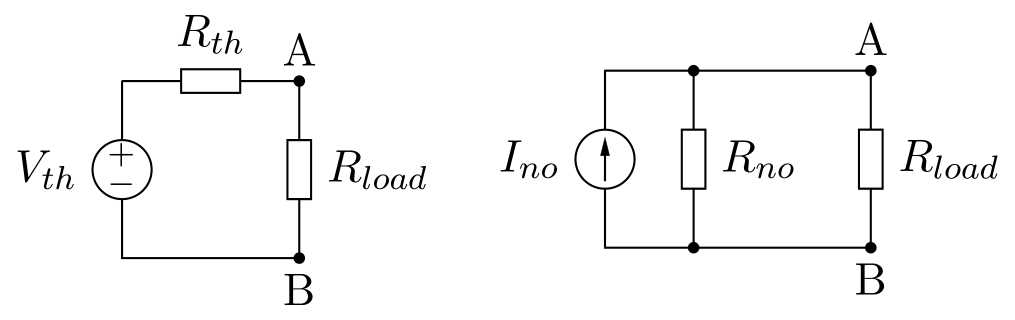

Begin by replacing the complex linear network with a simplified current source paralleled by a single resistor. Measure the open-circuit voltage across the terminals of the original network, then short those terminals to calculate the short-circuit current–this becomes the magnitude of the replacement source. The parallel resistance equals the open-circuit voltage divided by that short-circuit current. For accuracy, ensure the network contains only independent sources, linear elements, and no controlled sources that could alter terminal behavior under different loads.
Use SPICE simulation to validate the simplification before hardware implementation. Simulate the original network and its equivalent under identical load conditions; discrepancies larger than ±2% indicate errors in source magnitude or parallel resistance calculations. For transient analysis, verify that rise times and settling behaviors match, as parasitic capacitances or inductances in the original network may not transfer to the simplified model.
Practical Guide to Simplifying a Network Using the Parallel-Source Model
Begin by isolating the segment of the electrical configuration you need to reduce. Identify the terminals where the simplified version will interface with the rest of the system. Trace every current path leading to these points, noting resistances, dependent sources, and independent sources separately.
Deactivate all independent voltage generators by replacing them with short connections and open all independent current generators. This reveals the passive network’s resistance between the selected terminals. Calculate this equivalent resistance precisely–errors here distort the entire simplified model. For complex branches, apply series-parallel combinations or delta-wye transformations where necessary.
Deriving the Equivalent Current Generator
Restore the original active elements. Measure the short-circuit current flowing between the terminals while keeping all internal resistances intact. This current becomes the magnitude of your equivalent parallel-source generator. Use mesh or nodal analysis for multi-loop systems–choose the method that simplifies solving simultaneous equations. Record the exact value without rounding intermediate calculations.
Construct the simplified model by placing the calculated resistance in parallel with the derived current generator. Verify accuracy by comparing the original network’s voltage-current behavior at the terminals with the new model’s response under identical loading conditions. Discrepancies exceeding 2% indicate missed components or calculation errors.
Replace the original segment with this streamlined representation. Reconnect it to neighboring sub-circuits and analyze performance–transient responses, power dissipation, or signal distortion–using standard simulation tools. Document each transformation step for troubleshooting and future reference.
Locating the Subnetwork for Equivalent Current Source Transformation
Start by isolating the segment where simplification will yield the greatest benefit–typically where load behavior dominates. Mark the two terminals forming the interface between the retained network and the portion slated for replacement. These terminals define the boundary for the upcoming source conversion.
Measure the open-circuit voltage across these terminals to establish the Thevenin equivalent voltage. Replace all independent sources with their internal resistances before proceeding to the next step. For dependent sources, preserve their controlling variables outside the targeted subnetwork.
To derive the equivalent current source, calculate the short-circuit current flowing between the identified terminals. Ensure the following conditions are met:
- All independent sources remain active during this measurement.
- No external load should be connected at this stage.
- The shorting path must bypass the subnetwork while preserving all node voltages elsewhere.
Once the short-circuit current is determined, compute the equivalent resistance by deactivating all independent sources. This resistance must match the Thevenin impedance derived earlier. Discrepancies indicate incorrect terminal selection or overlooked components within the boundary.
Key Components to Verify Before Finalizing the Boundary
Review these elements to avoid incorrect simplification:
- Controlling variables of dependent sources–ensure they remain outside the selected region.
- Series or parallel paths that could alter the short-circuit current calculation.
- Coupling effects between inductors or capacitors near the boundary.
- Nonlinear elements that may invalidate the linear assumptions of the equivalence.
After confirming the boundary, represent the subnetwork as a single current source in parallel with the equivalent resistance. Validate the model by reattaching the original load and comparing voltage and current values against the original network’s behavior. Adjust the boundary if discrepancies exceed 5%.
Calculating Equivalent Current via Short-Circuit Method
To determine the current flowing through a collapsed branch, replace the target terminals with a direct connection. Measure the amperage at this junction using a multimeter or simulation software–this gives the exact value needed for further steps. Avoid approximations; precision here ensures accuracy in subsequent calculations.
Begin by isolating the network’s active components. Remove all load resistances connected to the terminals of interest, leaving only the internal sources and their associated resistances. For example, if analyzing a network with a 12V source and resistors of 4Ω and 6Ω, short the output nodes and solve for the current between them.
Step-by-Step Measurement Procedure
| Step | Action | Expected Outcome |
|---|---|---|
| 1 | Identify the terminals where the branch collapses | Clear demarcation of the shorted nodes |
| 2 | Deactivate all internal sources (replace voltage sources with shorts, current sources with opens) | Isolated passive network |
| 3 | Apply Kirchhoff’s laws to the remaining paths | Current values for each loop |
| 4 | Sum the currents at the shorted nodes | Total current through the branch |
Common Errors and Corrections
Misidentifying the shorted nodes skews results. Ensure the connection spans the exact terminals under analysis–no additional resistances should remain. Another frequent mistake involves overlooking dependent sources; account for them by including their control variables in the equations.
For networks with multiple sources, use superposition. Short one source at a time while keeping others active, then algebraically sum the resulting currents. A 10V source combined with a parallel 5V source through identical 2Ω resistors, for instance, yields a combined short-circuit current of 7.5A, not 15A.
Document each calculation step. Record the applied voltage, measured current, and derived resistance to cross-verify. A 3A discrepancy in a 5A system indicates an error–recheck the branch equations. Simulators like SPICE or TINA-TI automate this but manually solving small networks builds intuition.
Calculating Equivalent Internal Resistance with Power Supplies Disabled
To measure the internal resistance in any linear network, deactivate all standalone voltage supplies by shorting their terminals and replace current sources with open circuits. This leaves only passive elements–resistors, inductors, capacitors–whose combined impedance defines the equivalent resistance seen from the output terminals.
Begin by identifying the exact nodes where the load would connect. With sources neutralized, apply a test voltage or current at these terminals, then compute the resulting current or voltage. Ohm’s law direct calculation yields the resistance: Req = Vtest / Itest. Ensure inductors behave as short circuits at DC and capacitors as open circuits.
For networks containing capacitors or inductors, perform AC analysis using angular frequency ω. Replace each inductor L with impedance jωL and each capacitor C with 1/(jωC). Combine these impedances in series or parallel as dictated by topology, then compute magnitude and phase to derive the complex resistance.
If the network includes controlled sources (e.g., voltage-controlled current sources), maintain their governing equations active during measurement. Treat their output as zero when their controlling variable is nullified, but retain their internal resistance contributions within the network.
Practical Steps Without Simulation
Label every component resistance value on a schematic copy. Systematically reduce parallel and series combinations, starting from the farthest branches toward the output nodes. Record intermediate results to avoid recalculating identical paths.
For Delta-Wye transformations, use:
RA = (R1R2 + R2R3 + R3R1) / R1,
RB = same numerator / R2,
RC = same numerator / R3.
These conversions simplify intricate resistor meshes into serial or parallel arrangements.
Verify calculations by reapplying source neutralization rules after simplification. Check that no residual active component remains; discrepancies typically stem from overlooked resistor paths or misapplied transformations.
