Begin with a polarizing magnet rated at 1.5–3 Tesla for clinical applications, ensuring homogeneity of ±0.5 ppm over a 40 cm diameter spherical volume. Position superconducting coils inside a liquid helium cryostat to maintain temperatures below 4.2 K. Include persistent current switches to eliminate resistance and stabilize the field without external power.
Integrate gradient coils shaped as Maxwell-Golay pairs for axial and transverse encoding. Specify a slew rate of 200 T/m/s and amplitude of 40 mT/m to minimize eddy currents. Shield actively with secondary coils carrying opposing currents, reducing peripheral nerve stimulation by 90%.
Place the radiofrequency (RF) resonator as a birdcage or TEM configuration, tuned to 63.87 MHz for proton imaging at 1.5 T. Include quadrature detection for signal-to-noise ratio improvement of √2. Add preamplifiers with noise figures below 0.5 dB and isolators to prevent transmitter leakage.
Connect the data acquisition system via 16-bit ADCs sampling at 1 MHz with digital filtering to remove aliasing. Route signals through fiber-optic links to isolate analog paths from digital interference. Use a reconstruction computer with GPU-accelerated FFT kernels to process 256×256 matrices in under 50 ms per slice.
Incorporate active and passive shimming elements: superconducting shim coils for first- and second-order corrections, and room-temperature shims for residual errors. Calibrate using field mapping sequences with dual-echo gradient echoes to resolve distortions at 0.1 ppm resolution. Ensure Faraday shielding between all high-frequency components to block stray emissions.

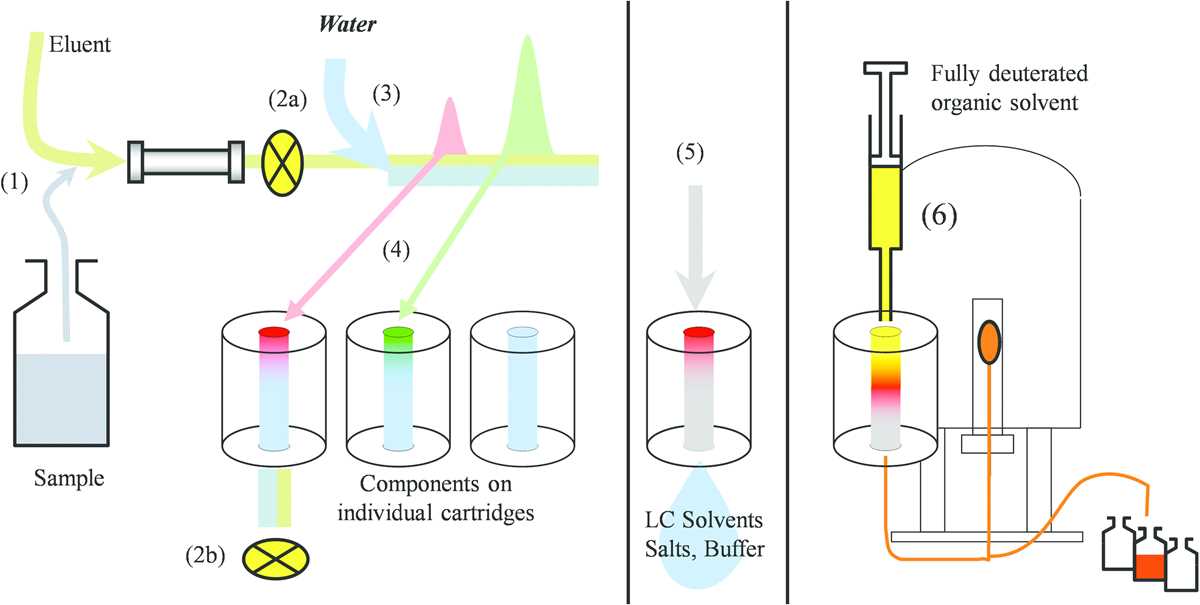

Key Functional Blocks in Magnetic Resonance Instrumentation Layouts

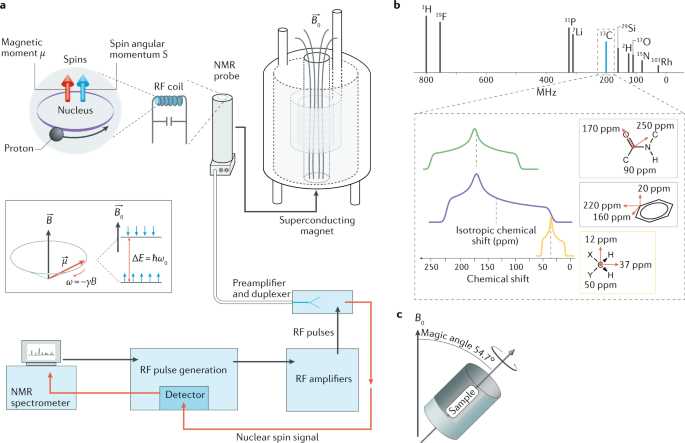

Begin by selecting a superconducting magnet with a field strength matching the sample’s chemical shift resolution requirements–1.4 T (60 MHz proton) suits routine organic analysis, while 14 T (600 MHz) resolves complex biomolecules. Stabilize the magnet with a closed-loop helium recirculation system to prevent thermal drift; integrate a persistent switch for quench-free operation.
Incorporate a radiofrequency (RF) transmitter emitting pulses at the Larmor frequency of the target nucleus–e.g., 500 MHz for 1H in a 11.7 T field. Use a broadband amplifier with 1 kW peak power for nuclei like 13C to overcome low natural abundance. Match the probe’s impedance to 50 Ω via tuning and matching capacitors; employ a double-resonance design for 1H/13C decoupling.
Install gradient coils for spatial encoding: three orthogonal axes, each driven by switching amplifiers delivering 60 A at 1 kHz. Limit eddy currents by actively shielding the coils or using pre-emphasis circuits with time constants under 100 μs. For diffusion measurements, apply pulsed gradients with slew rates above 200 T/m/s to minimize signal attenuation by molecular motion.
Opt for a low-noise preamplifier with a noise figure below 0.7 dB to preserve signal integrity. Place it within 20 cm of the probe to reduce cable losses; use cryogenic preamps for detection limits below 1012 spins. Filter signals with a bandpass centered on the Larmor frequency ±5 kHz to exclude spurious emissions from the transmitter and gradient drivers.
| Component | Critical Specification | Failure Mode | Mitigation |
|---|---|---|---|
| Magnet | Field homogeneity | Shimming artifacts | Use room-temperature shims; iterative gradient shimming |
| RF Probe | Q-factor >200; | Signal-to-noise drop | Optimize coil geometry; reduce sample conductivity |
| Gradient Coils | Linearity | Image distortion | Active shielding; dynamic pre-emphasis |
| Digitizer | Sampling rate >2×Nyquist; 16-bit resolution | Aliasing or quantization error | Use anti-aliasing filters; oversample at 10× |
Digitize the free induction decay with a 16-bit ADC sampling at 10× the spectral width–200 kHz for a 10 kHz sweep width. Apply oversampling to suppress quantization noise; implement a digital filter with a Kaiser window to reduce ringing. For 2D experiments, use phase cycling to cancel quadrature detection artifacts; acquire data in non-uniform sampling mode with 30% fewer scans for equivalent resolution.
Control sequence execution with a pulse programmer generating timing resolution of 10 ns. Store raw data in a 32-bit float format to prevent overflow during signal averaging. Process spectra using exponential multiplication with a line-broadening factor equal to the natural linewidth (e.g., 0.5 Hz for small molecules), followed by zero-filling to twice the number of acquired points.
Ground all components to a single copper busbar bonded to the magnet cryostat to avoid ground loops. Isolate the RF transmitter and receiver with quarter-wavelength stubs and cross-diode switches. For variable-temperature experiments, regulate the sample space with a nitrogen flow at 1 L/min and ±0.1 K stability; use a Pt100 sensor for feedback.
Key Blocks of a Basic Magnetic Resonance Instrument Layout
Begin with a high-stability superconducting magnet graded between 7.05–23.5 tesla for proton observation, as field strength directly scales with signal-to-noise and spectral resolution. Ensure the helium cryostat maintains a boil-off rate below 0.1 L/hour to guarantee consistent homogeneity (±0.01 ppm over the sample volume). Position the shim coils within 1–2 cm of the probe coil axis; gradient amplitudes above 50 G/cm enable rapid 3D field correction without signal saturation.
The radiofrequency transmitter must deliver pulses of 1–500 μs width with phase stability 10 dBm to preserve signal integrity before digitization.
Digitization requires a 16-bit ADC sampling at 5–10 MHz, synchronized to the DDS clock via a phase-locked loop with jitter 80 dB stopband rejection to extract weak resonances adjacent to dominant solvent peaks.

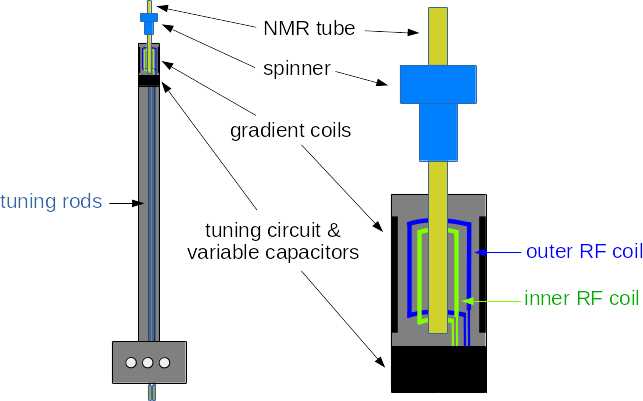

Temperature control demands a proportional–integral–derivative controller targeting ±0.05 °C over a 20–180 °C range, interfaced to a copper block wrapped in 0.5 mm silver foil for thermal uniformity. Sample rotation rates of 1–20 kHz necessitate a turbine driven by compressed air or nitrogen (pressure ≥3 bar), with bearing surfaces coated in diamond-like carbon to reduce friction noise. Probe construction employs solenoidal or saddle coils with Q-factors 200–500, wound from oxygen-free copper or high-purity silver to minimize resistive losses.
Lock circuitry relies on a deuterium channel sampled at ≤1 kHz with phase-sensitive detection, maintaining field drift

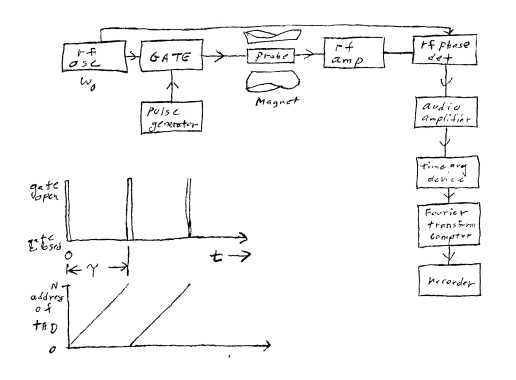

Step-by-Step Assembly of RF Transmitter and Receiver Pathways
Begin by selecting a low-phase-noise signal source for the excitation chain, such as a direct digital synthesis (DDS) module with <1 Hz frequency resolution and <-120 dBc/Hz phase noise at 1 kHz offset. Connect its output to a broadband RF amplifier with a 1 dB compression point of at least +20 dBm to prevent saturation during pulse transmission. Include a 5-pole low-pass filter with a cutoff frequency 10% above the highest working frequency to suppress harmonics before reaching the transmit coil.
For the transmit coil, use a solenoid wound with 6-8 turns of 1.5 mm diameter copper wire, spaced at 1.2 times the wire diameter. Calculate the inductance using L = μ₀N²A/l, where N is turns, A is cross-sectional area, and l is length; target 1-2 μH for frequencies between 10-100 MHz. Match the coil to 50 Ω with a non-magnetic trimmer capacitor (2-20 pF range) in parallel and a series capacitor (5-50 pF) tuned via a VSWR bridge to <1.2:1. Ground the coil’s cold end through a 1 kΩ resistor to prevent DC buildup.
Receiver Chain Integration
Position the receive coil orthogonally to the transmit coil, ensuring <-40 dB isolation between channels. Employ a crossed-coil or saddle-coil design for minimal coupling; verify with a network analyzer showing <-30 dB cross-talk at operating frequency. Connect the coil’s output to a low-noise amplifier (LNA) with <0.5 dB noise figure and >+20 dB gain, powered via a bias tee to avoid ground loops. Insert a band-pass filter (Q ≥ 20) centered on the target frequency with >30 dB rejection at ±20% offset to block transmit leakage.
Route the LNA output to a quadrature demodulator IC, such as the AD8347 or LMX2487, configured for I/Q output with <3° phase imbalance. Use a 90° hybrid splitter or a precision quadrature network to generate the local oscillator (LO) signal; ensure LO power is +7 dBm ±1 dB to maintain mixer linearity. Terminate unused mixer ports with 50 Ω loads to minimize reflections. Feed the I and Q outputs into 14-bit ADCs with >70 dB dynamic range and sampling rates >2× the signal bandwidth to satisfy Nyquist criteria.
Implement digital filtering in hardware using a FPGA with finite impulse response (FIR) filters: 50 taps for the passband, 100 taps for transition bands, and a Hamming window to suppress Gibbs oscillations. Program the FPGA with a 32-bit fixed-point arithmetic core to handle signal averaging and Fourier transforms; ensure latency <10 μs to prevent data skew. Power all analog components from a linear regulator with <10 μVpp ripple, bypassed with 0.1 μF and 10 μF capacitors at each IC’s power pin.
Calibrate the system by injecting a -30 dBm test tone into the receive coil and measuring the ADC output amplitude across the frequency range. Adjust the trimmer capacitors in 0.5 pF increments until the received signal peaks at the target frequency with <0.2 dB variation. Verify isolation by transmitting a 100 μs pulse (50 W peak) and confirming the receiver’s ADC input remains below full scale. If coupling exceeds -30 dB, increase coil separation or add a mu-metal shield between transmit and receive paths.
Pulse Control and Synchronization
Generate pulse sequences using a 100 MHz clock source with <5 ppm stability, divided to 1 MHz for timing resolution. Use a 16-bit timer on a microcontroller to produce 10 ns edge accuracy for pulse width and delay commands; program dead times between pulses to allow for coil decay (>5× T2*). Route control signals through optocouplers (e.g., HCPL-2630) to isolate digital noise from the analog front end, ensuring >2.5 kV isolation.
For duplex operation, switch between transmit and receive modes using PIN diodes (e.g., MA4P7470F-1091T) with <1 μs transition time. Bias the diodes with +5 V in transmit mode and -5 V in receive mode; confirm >30 dB isolation in the off state. Test the entire pathway by transmitting a 5 μs pulse, switching to receive mode within 2 μs, and capturing the free induction decay (FID). The FID’s initial amplitude should decay exponentially with a time constant matching the coil’s Q-factor; deviations indicate impedance mismatches requiring capacitor adjustments.
