Install a 4-pin switching module rated for 30A continuous current with a secondary fuse no larger than 15A placed within 18 inches of the battery terminal. Use 12-gauge copper wire for load circuits and a minimum 14-gauge for trigger lines to prevent voltage drop under high-demand conditions. Ground connections should terminate at a dedicated chassis point with a surface area of at least 4 square inches, sanded to bare metal and secured with a stainless-steel bolt torqued to 12 ft-lbs.
For dual-output configurations, arrange diode isolation between two trigger sources–generic cigar lighter ports and CAN-based ignition signals–using Schottky diodes (IN5822 or equivalent) to prevent backfeed. Test each trigger circuit with a multimeter before final connection; expected closed-circuit voltage should not exceed 0.3V below system voltage. Avoid daisy-chaining control lines; each auxiliary light bank requires a dedicated module with independent fusing.
Label all wires with heat-shrink tubing marked at 6-inch intervals using a label printer set to 6-point font. Route harnesses away from moving components, exhaust manifolds, and sharp edges, securing them with nylon loom every 12 inches. Verify operation through a full thermal cycle (–4°F to 122°F) before finalizing connections; monitor for flicker or unintended activation during engine cranking or accessory load spikes.
Leverage a modular approach where possible–use connectors with gold-plated contacts (e.g., Deutsch DT04-4P) for field-serviceable sections. Document every installation with photos, torque values, and voltage readings in a QR-coded PDF stored on a waterproof USB drive secured to the vehicle’s firewall. Replace any wire showing scorch marks, melting, or reduced flexibility immediately, regardless of visual continuity tests.
Connecting Auxiliary Lighting Control Modules: A Practical Guide
Begin by identifying the power source for your auxiliary lights–typically a fused connection to the vehicle’s battery or an ignition-switched circuit. Use a minimum 14-gauge wire for low-current setups (under 20A) and 12-gauge for higher loads, ensuring the conductor can handle the anticipated amperage without overheating. Secure the positive lead to the input terminal of the control unit, then route the output to the lights themselves, maintaining polarity consistency to prevent damage to sensitive components.
Ground the system directly to the chassis or a dedicated grounding point, avoiding shared connections that can introduce voltage fluctuations. A common mistake involves attaching the ground to painted or coated surfaces, which leads to poor conductivity–clean the contact area with a wire brush and apply dielectric grease to prevent corrosion. Verify the ground’s integrity with a multimeter set to continuity mode before finalizing the setup.
Signal Integration for Smart Activation
If integrating with existing vehicle electronics, connect the control unit’s trigger input to a switched source, such as the high-beam circuit or a separate dashboard switch. For precision, use a relay harness with built-in diodes to protect against voltage spikes when multiple devices share the same trigger. Test the activation sequence with the vehicle off to confirm the module responds only to intentional signals, not parasitic draws or accidental short circuits.
For multi-stage lighting configurations, wire each bank of lights through individual outputs on the module, pairing each with a dedicated fuse sized 120% of the light’s rated current. Label all connections clearly, especially in complex setups with additional features like strobe patterns or timed delays, to simplify troubleshooting later. Avoid daisy-chaining lights, as this increases resistance and can lead to uneven brightness or premature failure of the farthest unit.
Finalize the installation by securing all cables away from moving parts, sharp edges, and heat sources using zip ties or conduit. Recheck all connections with the engine running, monitoring for voltage drops (should not exceed 0.2V) across terminals under load. If the lights flicker, revisit the ground path or inspect for loose terminals–this often resolves intermittent operation issues.
Key Electrical Switching Elements for Auxiliary Lighting Setups
Install a 40-amp mechanical switch in series with the power source before reaching the control circuit to prevent excessive current draw. Most quality harness assemblies include a pre-wired fusible link rated for 20–30 amps; verify the fuse matches the max load of connected LEDs–typically 5–12 amps per pair of lamps. Attach the input terminal directly to the battery positive, avoiding factory fuse panels that may not handle additional amps reliably.
- Use 14-gauge copper conductors for signal lines and 10-gauge for power feeds to handle 25–35 amp transient loads without voltage drop.
- Connect the ground terminal of the switching module to the chassis or engine block–not the battery negative–to reduce electrical noise.
- Isolate the activation input with a dedicated switch or OEM trigger; avoid tapping into existing circuits prone to voltage spikes (e.g., A/C clutch, radiator fan).
- Measure voltage at the output terminals before connecting devices: nominal 12.6–14.4V DC under load ensures proper function of auxiliary modules.
Critical Installation Checks Before Energizing
Verify all conductors are secured with insulated terminals–crimped, not soldered–to prevent corrosion at connection points. Route cables away from moving parts, sharp edges, and heat sources above 85°C; use protective sleeving rated for automotive temperatures. Test continuity from power source to device with a multimeter before applying voltage; resistance above 0.2 ohms indicates a poor connection requiring immediate correction.

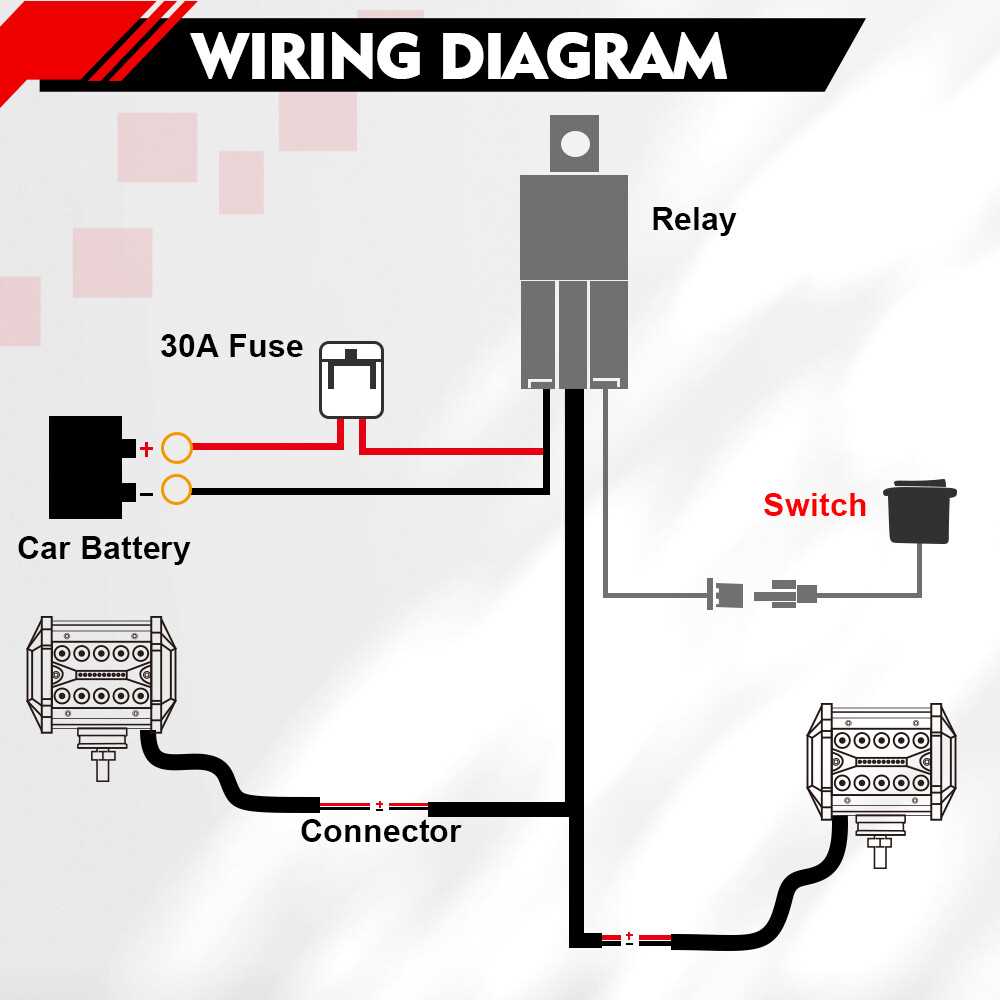

Step-by-Step Guide to Hooking Up an Auxiliary Switching Module to Work Lights
Begin by locating a fused power source capable of handling the current draw of your lights–typically a 15A or 20A circuit from the vehicle’s fuse box. Use a multimeter to confirm the wire carries steady 12V when the ignition is on. For most setups, splicing into the headlight harness or an existing auxiliary circuit reduces clutter while ensuring proper voltage. Avoid tapping into low-amperage sensors or ECU-controlled wires, as this can trigger electrical faults or erratic behavior.
Mount the switching module in a dry, secure area near the fuse block–under the dashboard or inside the engine bay works best. Connect the control terminal of the module to a dashboard-mounted toggle or momentary switch rated for at least 10A. Route the output wire to your work lights using 14-gauge or thicker cable, depending on distance and load. A quick-reference table for wire gauge selection:
| Light Load (amps) | Distance (feet) | Recommended Wire Gauge |
|---|---|---|
| 5–10A | 0–10 | 16 AWG |
| 10–15A | 10–20 | 14 AWG |
| 15–20A | 20+ | 12 AWG |
Ground the module’s negative terminal to the vehicle’s chassis using a dedicated ring terminal and a clean, bare-metal surface. Avoid sharing ground points with high-current devices like starters or audio amplifiers, as voltage drops can cause unreliable operation. For vehicles with aluminum or composite body panels, drill a small hole to attach a self-tapping screw, ensuring a solid connection. Apply dielectric grease to the terminal to prevent corrosion over time.
Validate the setup by activating the switch with the engine running–if the lights flicker or fail to turn on, check for loose connections, inadequate grounding, or a blown fuse. Use a test light to verify voltage at each stage: input from the power source, module output, and light terminals. If issues persist, bypass the module temporarily by connecting the power source directly to the lights to isolate the problem. Once confirmed working, secure all cables with zip ties or adhesive mounts, keeping them away from moving parts, sharp edges, and excessive heat sources.
Critical Errors to Sidestep During Component Integration
Misidentifying power ratings on the control module leads to immediate failure. Verify the input voltage matches the vehicle’s electrical system–12V for most automotive setups, 24V for heavy-duty applications. Exceeding these limits by even 2V risks burning out the coil or triggering erratic switching. Check manufacturer specs against your multimeter readings before connecting.
Omitting a dedicated fuse near the power source invites fire hazards. Use a blade-type fuse sized 10-20% above the module’s max draw–30A for high-output models, 15A for standard units. Position it within 15cm of the battery terminal; longer leads create resistance, causing voltage drops that degrade performance under load.
Grounding directly to painted surfaces or thin chassis metal introduces resistance, causing intermittent activation. Scrape paint to bare metal at attachment points, then secure with a stainless steel bolt and star washer. Ensure wire gauge matches power wires–8 AWG for 30A circuits, 10 AWG for 15A–to prevent overheating.
Relying on factory switches without load capacity verification overloads circuits. Aftermarket toggles must handle 20A continuous; OEM switches often clip at 10A. Replace or parallel existing switches if currents exceed 15A to avoid melting contacts or tripping thermal cutoffs.
Twisting wires without proper soldering or crimp connectors creates high-resistance joints. Solder all connections, then insulate with adhesive-lined heat shrink. Avoid electrical tape–it degrades under heat and vibration, exposing frayed strands that short to adjacent components.
Signal Interference Pitfalls
Routing control lines alongside high-current power cables induces false triggers. Separate them by at least 10cm, crossing perpendicularly if unavoidable. Shield sensitive leads with foil or braided sleeving, grounding the shield at one end only to eliminate ground loops.
Ignoring diode protection for inductive loads (motors, solenoids) backfires with voltage spikes up to 100V, frying the activation circuit. Install a 1N4007 diode across the load terminals, cathode to positive. For bidirectional loads, use two diodes in parallel or an MOV (varistor) rated at double the system voltage.
