Before opening the device case, verify the voltage on your heating and cooling system terminals. Most modern programmable devices require a 24V AC power supply, typically labeled Rc (cooling), Rh (heating), or R (common). If your system uses separate transformers for heating and cooling, bridge these terminals with a jumper wire to avoid malfunctions. Cross-compatibility issues arise when merging old two-wire systems with newer models–inspect existing wiring for corroded or undersized conductors, replacing them if resistance exceeds 0.2 ohms.
For heat pumps, identify the O/B terminal–this controls reversing valve functionality. Incorrect polarity here forces the system into emergency heat mode, spiking energy consumption by 30-50%. Label all wires during disassembly, noting manufacturer-specific color codes (e.g., white = W1/W2, orange = O/B). Avoid using stranded wire for final connections; solid core (18-20 AWG) ensures stable contact with screw terminals.
Ground the device properly to prevent ghost readings. On most North American installations, connect the C (common) wire to the system’s 24V transformer neutral–skipping this step causes intermittent shutdowns. For furnace-controlled configurations, use humidifier or dehumidifier terminals (labeled HUM or DEHUM) only if the system supports them; otherwise, they’ll introduce phantom loads. Always test continuity with a multimeter after wiring but before restoring power.
Systems with dual-fuel setups demand careful terminal mapping. Prioritize the heat pump’s Y terminal for cooling, then route auxiliary heat (W1/W2) to the furnace’s relay. If temperatures drop below -10°C, manual override may be needed to prevent compressor damage. For zoned systems, wire zone controllers directly to the thermostat’s base, avoiding daisy-chaining to prevent signal degradation. Keep wire runs under 100 feet; longer distances require 16 AWG or thicker to maintain voltage integrity.
Smart Thermostat Installation Blueprint
Disconnect power at the breaker before handling any connections–failure to do so risks severe electric shock or equipment damage. Verify voltage with a multimeter: terminals labeled RH, RC, or R should read 24VAC, while C must show zero. If readings deviate, the system may require a dedicated transformer replacement.
Map existing wires to the new device’s ports using this reference:
- R (24V power): Red wire (or yellow/white in older setups)
- C (common): Blue or black wire–confirm continuity with ground
- W1 (heat): White wire–ensure compatibility with single-stage heating
- Y1 (cool): Yellow wire–test with thermostat in “cool” mode to verify compressor activation
- G (fan): Green wire–check for independent fan control before connecting
- O/B (heat pump): Orange (O) or dark blue (B)–identify system type (HVAC manual required)
For dual-fuel systems, add a second transformer if voltage drops below 22VAC during operation. Wire gauges must meet AWG18 minimum–thinner wires cause overheating. Label each wire at both ends (thermostat base and HVAC board) with masking tape to prevent misconfiguration during future servicing.
Fault Detection Steps
If the display remains blank after power restoration:
- Recheck breaker status and multimeter readings–look for phantom voltage
- Inspect C-wire connection–corrosion or loose screws are primary culprits
- Examine the HVAC control board fuse–replace if blown (typically 3A)
- Test for short circuits by disconnecting all wires except R and C
Hydronic (boiler) systems require a relay kit–connect W1 to the kit’s input, then link the kit’s output to the boiler’s TT terminals. Confirm boiler manual for TT pin voltage requirements (typically 120VAC). Skip this step for electric baseboard heaters–wire directly to W1.
Heat pumps need O/B wiring verification. Measure resistance between O and C terminals during defrost mode–values between 10–50 ohms indicate proper operation. Outside units with defrost cycles exceeding 15 minutes require a defrost board inspection (located behind the outdoor coil panel).
Post-installation, calibrate sensors via the device’s calibration menu. Set temperature offset to ±1°F if readings drift. For zoned systems, use a separate sub-base per zone–do not share C-wires between zones. Keep wiring runs under 100 feet to avoid signal degradation. Store the installation diagram behind the device cover for future reference.
Matching Terminal Blocks for the Latest Smart Thermostat Model
Begin by locating the Rh (heating power) and Rc (cooling power) ports–these are the primary input points for 24V AC supply from your HVAC system. If your setup uses a single transformer for both heating and cooling, bridge these terminals with the provided jumper wire. Verify compatibility by checking the existing control board: systems with separate transformers require no jumper, while dual-fuel heat pumps often need individual connections to avoid interference with defrost cycles.
For heat pump configurations, attach the O/B terminal to control the reversing valve–consult the manufacturer’s specifications to determine whether it energizes on O (cooling) or B (heating). Misconfiguration here risks damaging the valve actuator or causing erratic compressor behavior. Fan-powered systems may require the G terminal for continuous blower operation; ensure this aligns with your air handler’s relays to prevent short-cycling or overheating.
Auxiliary heat sources, such as electric or gas furnaces, connect to the W2/Aux terminal. High-efficiency setups with variable-speed blowers might also use E for emergency heat, but only enable this if your system explicitly supports multi-stage heating. For two-stage cooling, link the Y2 terminal to the compressor’s secondary contactor–failure to do so can result in reduced dehumidification performance or excessive compressor wear.
Check the gauge of the existing wiring before finalizing connections. Most residential systems use 18 AWG copper conductors, but commercial setups or long runs may require thicker wires (16 AWG) to prevent voltage drop. Strip exactly 0.25 inches of insulation from each wire; excessive exposure can cause shorts, while insufficient length may prevent proper terminal engagement. Use a multimeter to confirm 24–28V across R and C before powering on to avoid damaging the control board.
For zoned systems with dampers, prioritize the Z1 and Z2 terminals for damper control signals. If your setup includes a dehumidifier, connect its control wire to the HUM terminal, ensuring the unit’s relay matches the smart device’s 24V signal. Always label each wire at both ends during installation to troubleshoot future upgrades or repairs efficiently.
Connecting Your Smart Thermostat to Single-Stage Heating and Cooling Systems
Before handling any electrical components, shut off power at the circuit breaker. Verify the system is inactive using a non-contact voltage tester on both the HVAC control board and existing device terminals. Incorrect live connections can damage equipment or create safety hazards.
Label each wire from the existing baseplate with adhesive tags or masking tape. Standard single-stage systems typically include:
| Terminal Color | Abbreviation | Function |
|---|---|---|
| Red | R | 24VAC power (Rc for cooling, Rh for heating if separate) |
| White | W | Heating call (furnace or heat pump) |
| Yellow | Y | Cooling call (compressor) |
| Green | G | Fan relay |
| Blue | C | Common (neutral return for constant power) |

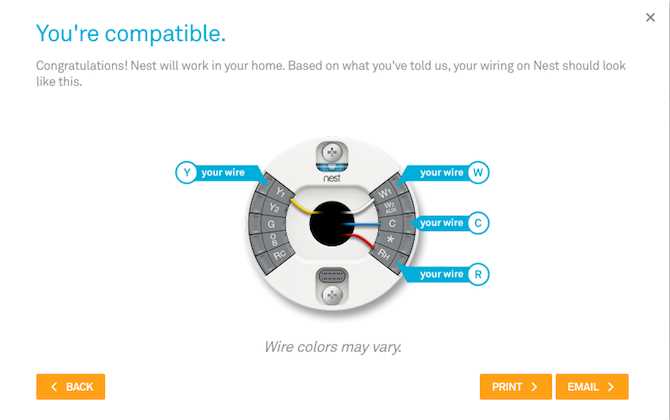

Remove the old mounting plate carefully; straighten bent wires and trim frayed ends to ensure clean connections. If the new baseplate includes labeled ports, match each wire to its corresponding terminal:
- R/RC/RH: Insert fully into the power port (jump both RC and RH if using a single transformer for heating and cooling)
- W: Connect to the heat port
- Y: Insert into the cool port
- G: Attach to the fan port
- C: Secure into the common port (required for battery-free operation)
Gently push wires into each terminal until secure; tug lightly to confirm they don’t dislodge. For systems without a C-wire, use the included power connector kit to link an unused G terminal to the C port while rerouting fan control through W during heating cycles. Avoid splicing unless absolutely necessary.
Snap the faceplate onto the baseplate; restore power at the breaker and follow on-screen setup prompts using the touch interface. Verify heating and cooling functions by adjusting setpoints 5°F above and below ambient room temperature. Listen for equipment activation; check for error messages indicating incorrect connections or compatibility issues with auxiliary components like humidifiers.
Connecting Smart Thermostat for Heat Pump Configurations with Backup Heating
Identify the O/B terminal on your HVAC equipment–this controls the heat pump’s reversing valve. For systems with auxiliary heating, connect this terminal to the corresponding port on your climate control device. Most heat pumps use O for cooling mode (valve energized) and B for heating (valve de-energized); verify your manufacturer’s specifications before securing the connection. If your system lacks a labeled O/B terminal, trace the wires from the outdoor unit’s compressor to the control board and mark the relevant conductor.
- Locate the E (emergency heat) or W2/AUX terminal–this activates backup heating elements when the heat pump can’t meet demand. Confirm whether your system uses a single-stage or two-stage auxiliary heat setup by checking the equipment label or consulting installation manuals.
- Attach the auxiliary heat wire to the appropriate port on the thermostat base, ensuring compatibility with your system’s staging (e.g., W2 for second-stage heat or AUX for dedicated backup).
- For variable-speed systems, verify if the thermostat supports multiple auxiliary stages–some models require separate terminals (e.g., W3) for advanced configurations.
If your setup includes a dual-fuel system (heat pump paired with a furnace), connect the W1 terminal to the furnace’s heating relay while leaving the heat pump’s O/B terminal wired to its own port. Enable dual-fuel mode in the thermostat’s settings menu by selecting “Auxiliary Heat Pump” or “Hybrid Heat,” adjusting temperature differentials for seamless switching–typically 1–3°F below the heat pump’s cutoff. Test the transition between heat sources by lowering the thermostat setpoint incrementally and observing outdoor unit shutdown while the furnace ignites.
