The renal corpuscle and tubular segments form an intricate filtration system critical for maintaining fluid balance, electrolyte levels, and waste elimination. Begin by isolating the glomerulus–a capillary network encapsulated by Bowman’s capsule–where hydrostatic pressure drives plasma filtration. Blood enters via the afferent arteriole and exits through the efferent arteriole, creating a pressure gradient that forces ultrafiltrate into the tubular lumen. Note: the filtration barrier consists of fenestrated endothelium, glomerular basement membrane, and podocyte foot processes; damage to any layer disrupts selective permeability, leading to proteinuria or hematuria.
Trace the ultrafiltrate through the proximal convoluted tubule (PCT), where 65-70% of sodium, chloride, glucose, and amino acids undergo active reabsorption. Sodium-potassium ATPase pumps on the basolateral membrane create an electrochemical gradient, driving co-transport of solutes via SGLT2 (glucose), NHE3 (sodium/hydrogen exchange), and organic anion transporters. Clinically, SGLT2 inhibitors exploit this pathway to reduce hyperglycemia in diabetic patients. Meanwhile, the PCT secretes organic acids (e.g., uric acid, penicillin) and bases (e.g., creatinine) into the lumen, emphasizing its dual role in reabsorption and excretion.
The loop of Henle establishes a countercurrent multiplier system essential for urine concentration. The thin descending limb is permeable to water but impermeable to solutes, while the thin ascending limb passively reabsorbs sodium and chloride. The thick ascending limb (TAL), however, actively transports Na+, K+, and Cl– via the NKCC2 cotransporter–targeted by loop diuretics like furosemide. The medullary interstitial osmotic gradient (1200–1400 mOsm/kg) generated here enables the collecting duct to fine-tune urine osmolality under ADH influence.
In the distal convoluted tubule (DCT) and collecting duct, hormonal regulation refines electrolyte balance. Aldosterone enhances sodium reabsorption and potassium secretion via ENaC channels and Na+/K+ ATPase, while ADH inserts aquaporin-2 water channels into the apical membrane of principal cells. Potassium-sparing diuretics (e.g., spironolactone) block aldosterone receptors, while thiazides inhibit the NCC cotransporter in the DCT. Visualize these segments with precise labeling: macula densa (juxtaglomerular apparatus), intercalated cells (acid-base regulation), and principal cells (water/sodium balance).
Use color-coding to differentiate arterial supply (red), venous drainage (blue), and tubular flow (yellow/green). Highlight critical junctions: glomerulotubular balance (PCT reabsorption rate adjusts to filtration), transepithelial voltage (lumen-negative in TAL, lumen-positive in cortical collecting duct), and transport maximums (e.g., 375 mg/min for glucose). For clinical correlations, annotate common pathologies: diabetic nephropathy (glomerular hypertrophy), acute tubular necrosis (PCT injury), and Bartter syndrome (NKCC2 dysfunction).
Functional Blueprint of the Renal Filtration Unit
Start by segmenting the illustration into three core zones: the vascular network, tubular pathway, and interstitial interface. The vascular segment must highlight the afferent arteriole with a 20% larger diameter than the efferent arteriole to emphasize pressure gradients–critical for glomerular filtration rates (GFR). Use directional arrows (5-7 mm in length) to depict blood flow, ensuring they follow a logical path: from renal artery → interlobar artery → arcuate artery → interlobular artery → afferent arteriole.
Label the glomerular capsule with a dual-layer annotation: the parietal layer (simple squamous epithelium) and visceral layer (podocytes). Include foot processes (pedicels) spaced at 25-30 nm gaps to demonstrate the slit diaphragm’s role in selective permeability. Indicate the basement membrane’s trilaminar structure–lamina rara interna, lamina densa, lamina rara externa–with distinct color coding (e.g., pale blue for lamina densa).
Tubular Component Precision

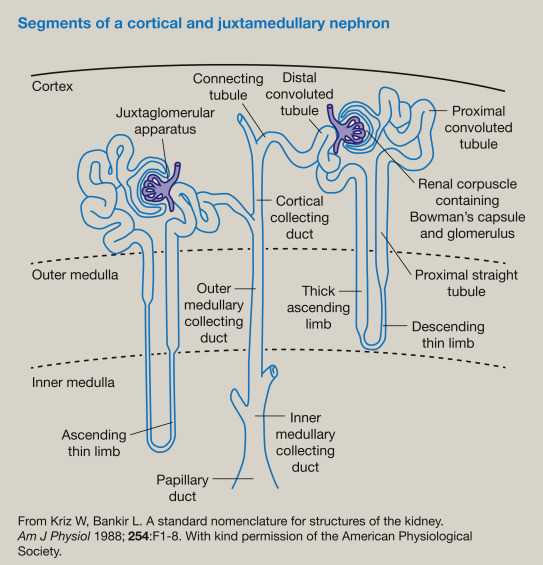

Divide the tubular system into five annotated sectors: proximal convoluted tubule (PCT), descending limb, thin ascending limb, thick ascending limb (TAL), and distal convoluted tubule (DCT). For the PCT, use a brush border symbol (hashtag pattern) to denote microvilli and specify its length (14 mm) and diameter (60 µm). Add mitochondrial density markers (1 µm icons) at 50 µm intervals to reflect active transport demands.
Depict the loop’s descending limb with thinner walls (1-2 µm) and ascending limb walls thickening progressively (6-8 µm in TAL). Overlay sodium-potassium-chloride co-transporter (NKCC2) symbols on the TAL’s apical membrane, using a antiport arrow (↔) to show ion movement. For the DCT and collecting duct, include principal cells (light shading) and intercalated cells (dark shading) with distinct aquaporin-2 (AQP2) and H+-ATPase annotations.
Include a peritubular capillary network branching from the efferent arteriole, drawn parallel to the tubules with vasa recta labeled for juxtamedullary units. Use dashed lines for oxygen/nutrient exchange and solid lines for fluid reabsorption. Specify the countercurrent multiplier effect by contrasting red (O₂-rich) and blue (O₂-poor) gradients along the capillary loops.
Juxtaglomerular Apparatus Critical Markers
Isolate the macula densa cells at the DCT’s distal end, highlighting their cuboidal shape and nuclei density (double the neighboring cells). Draw the extraglomerular mesangial cells (Goormaghtigh cells) with starburst shapes to denote their contractile function. Model the granular cells (juxtaglomerular cells) along the afferent arteriole with renin-containing vesicles (dots, 0.5 µm diameter) and label cathepsin B as the activating enzyme.
Integrate pressure-sensitive annotations: mark glomerular hydrostatic pressure (55 mmHg), capsular hydrostatic pressure (15 mmHg), and colloid osmotic pressure (30 mmHg). Calculate net filtration pressure (NFP) in a legend: NFP = GHP – (CHP + COP) = 10 mmHg. Use this to explain autoregulation via tubuloglomerular feedback: increased NaCl at macula densa triggers adenosine release → afferent arteriole constriction.
Verify structural proportions: glomerular tuft diameter (200 µm), PCT length (14 mm), loop of Henle depth (varies: 1-14 mm based on cortical/juxtamedullary location). Cross-reference with electron microscopy data to confirm podocyte foot process width (300-400 nm) and basement membrane thickness (300-350 nm). Include a scale bar (10 µm) for reference.
For final accuracy, validate fluid dynamics: color-code filtrate composition (glucose, amino acids, Na⁺) in green/yellow at PCT → brown/red at loop (urea concentration) → blue/green at collecting duct (variable osmolality, 50-1200 mOsm/kg H₂O). Add a color-coded sidebar for hormones: angiotensin II (afferent vasoconstriction), aldosterone (DCT Na⁺ reabsorption), ADH (collecting duct AQP2 insertion).
Critical Structures in a Kidney Filtration Unit Illustration and Their Roles

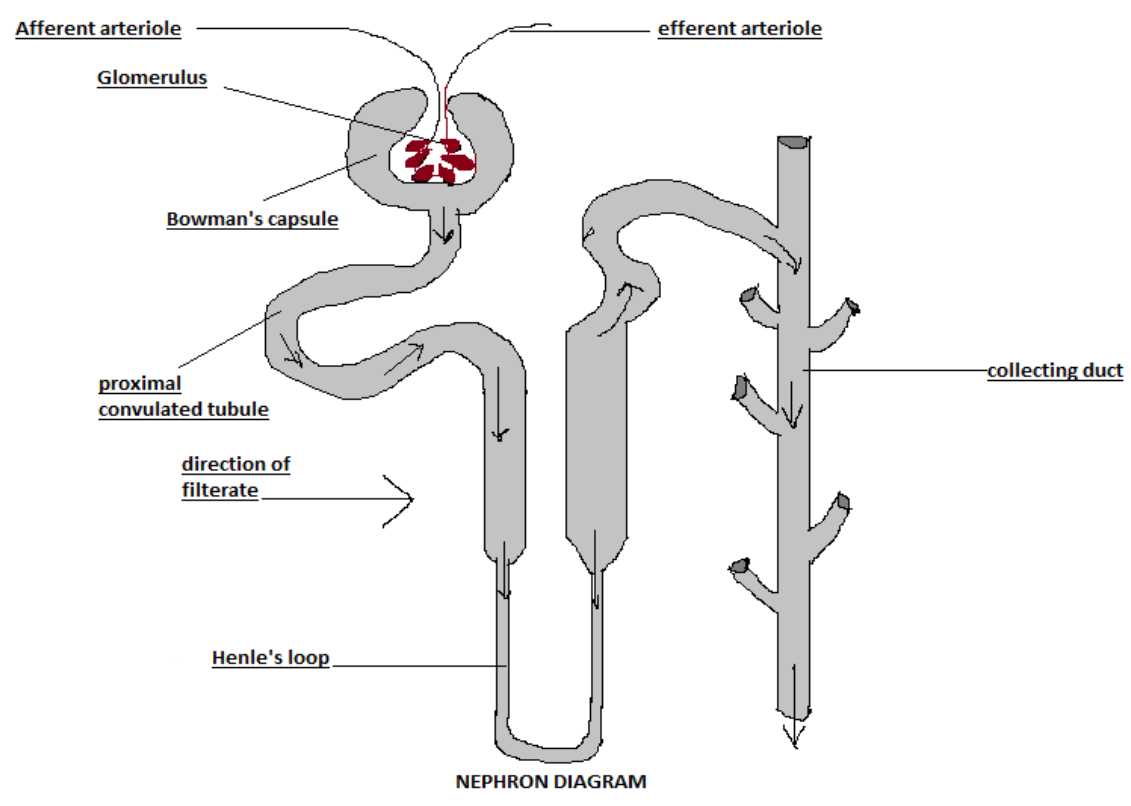

Label the renal corpuscle at the top of your visual representation–this includes the glomerulus and Bowman’s capsule. The glomerulus, a network of capillaries, filters blood plasma with a pressure-driven process: hydrostatic force pushes fluid through endothelial fenestrations, the basement membrane, and podocyte slits. Bowman’s capsule captures this filtrate, funneling it into the tubular system. Ensure your drawing marks the vascular pole (where afferent and efferent arterioles enter/exit) and urinary pole (where the proximal tubule begins) to clarify flow direction.
Trace the proximal convoluted tubule (PCT) immediately after the corpuscle in your sketch–this segment reclaims 65–80% of filtered sodium, chloride, water, and nearly all glucose and amino acids. Use arrows to indicate active transport (e.g., Na+/K+ ATPase pumps) and passive diffusion (e.g., water via aquaporin-1 channels). Highlight the brush border (microvilli) in the PCT to underscore its role in maximizing reabsorption surface area. Contrast this with the thin descending limb of the loop of Henle, which is permeable only to water, and the thick ascending limb, where 25% of filtered Na+ and Cl– is actively reabsorbed without water, creating the osmotic gradient for urine concentration.
Functional Zones to Annotate in Tubular Flow
- Distal convoluted tubule (DCT): Regulates acid-base balance via H+ secretion and reclaims Ca²⁺ under parathyroid hormone control. Mark the macula densa at the DCT’s start–its cells monitor NaCl levels to trigger tubuloglomerular feedback.
- Collecting duct: Adjusts final urine composition using principal cells (respond to aldosterone for Na+ reabsorption/K+ secretion) and intercalated cells (secrete H+ or HCO₃⁻). Illustrate the cortical and medullary segments separately: the latter’s permeability to water increases with antidiuretic hormone, concentrating urine to 1200 mOsm/kg.
- Juxtaglomerular apparatus (JGA): Annotate the granular cells in the afferent arteriole–these release renin when blood pressure drops or NaCl delivery to the macula densa declines. Include the extraglomerular mesangium as a structural support.
Step-by-Step Guide to Illustrating a Basic Renal Functional Unit Outline
Begin with a curved, tubular structure to represent the filtering pathway. Sketch a small, cup-shaped segment at the upper left–this will serve as the initial filtration chamber. Extend a narrow, descending line downward from the cup, curving it gently to mirror the gradual change in diameter observed in physiological studies. Ensure the descending segment narrows progressively to emphasize pressure dynamics.
Structural Components and Their Proportions
| Section | Length Ratio (Approx.) | Key Anatomical Feature |
|---|---|---|
| Primary filtration capsule | 1:0.3 | Podocyte-lined fenestrations |
| Descending limb | 1:2 | Thin, water-permeable walls |
| Ascending limb | 1:1.8 | Thick, ion-transporting cells |
| Collecting conduit | 1:3 | Variable permeability to urea |
Connect the descending limb to a thin, hairpin-shaped twist at the bottom–this mimics the countercurrent exchange mechanism. From the bend, draw an ascending line parallel to the descending one but slightly thicker, reflecting cellular differences. Mark the transition between thin and thick segments with a subtle change in line weight or shading.
Label each segment with concise annotations: use “F” for the filtration chamber, “D” for the descending limb, “A” for the ascending limb, and “C” for the conduit leading to excretion. Add arrows along the pathway to indicate fluid flow direction, ensuring they follow anatomical conventions (e.g., downward in the first limb, upward in the second). Avoid crossovers between limbs to maintain clarity.
Refining Details for Accuracy
Highlight the interface between the filtration chamber and blood vessels with a dotted or dashed circle around the cup’s opening, signifying capillaries. Add small, evenly spaced dots along the thick ascending limb to represent mitochondria-rich cells responsible for active transport. For the conduit, draw intermittent branching lines at the lower end to denote connection to larger drainage systems.
