Start by verifying the circuit breaker matches the required amperage–mismatches cause overheating or equipment failure. Use 10-gauge copper wire for a 30-amp circuit to handle the 240-volt load safely. Strip exactly ¾ inch of insulation from each conductor to ensure proper terminal contact without frayed strands.
Follow the terminal layout: green screw (ground), brass screw (hot, L1), silver screw (hot, L2), and gold screw (neutral if applicable). Secure each wire tightly–loose connections arc and melt insulation. Tighten screws to 12–15 inch-pounds of torque using a calibrated screwdriver.
Test polarity with a multimeter before energizing. Set to AC voltage and probe between L1 and neutral (120V expected), L1 and L2 (240V expected), and ground to neutral (0V expected). Reverse wiring damages devices–correct errors immediately.
Mount the receptacle in a weatherproof box if outdoors. Seal all openings with silicone caulk to prevent moisture ingress, which corrodes contacts. Label the panel clearly: “30-amp twist-lock–dedicated circuit.”
For dual-voltage equipment, confirm the attached plug matches the receptacle configuration. Cross-referencing pins with the manufacturer’s manual prevents miswiring. If replacing an old unit, photograph the existing connections before disassembly–retroactive errors are costly to diagnose.

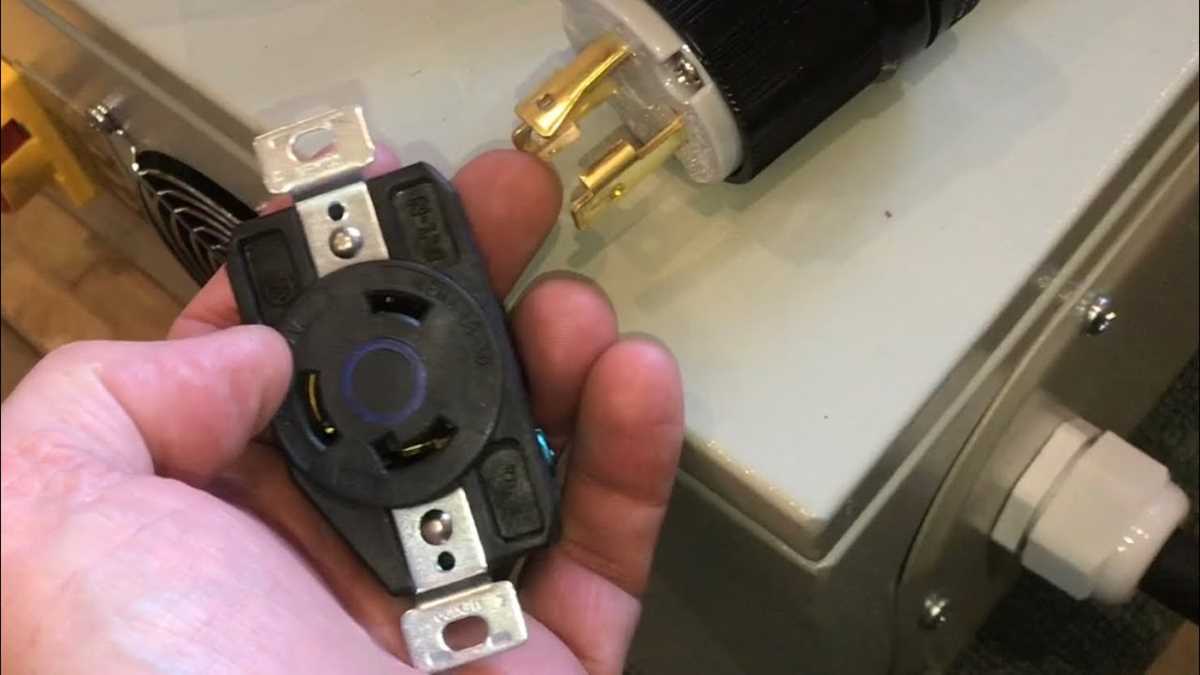

L6-30 Receptacle Connection: Step-by-Step Instructions

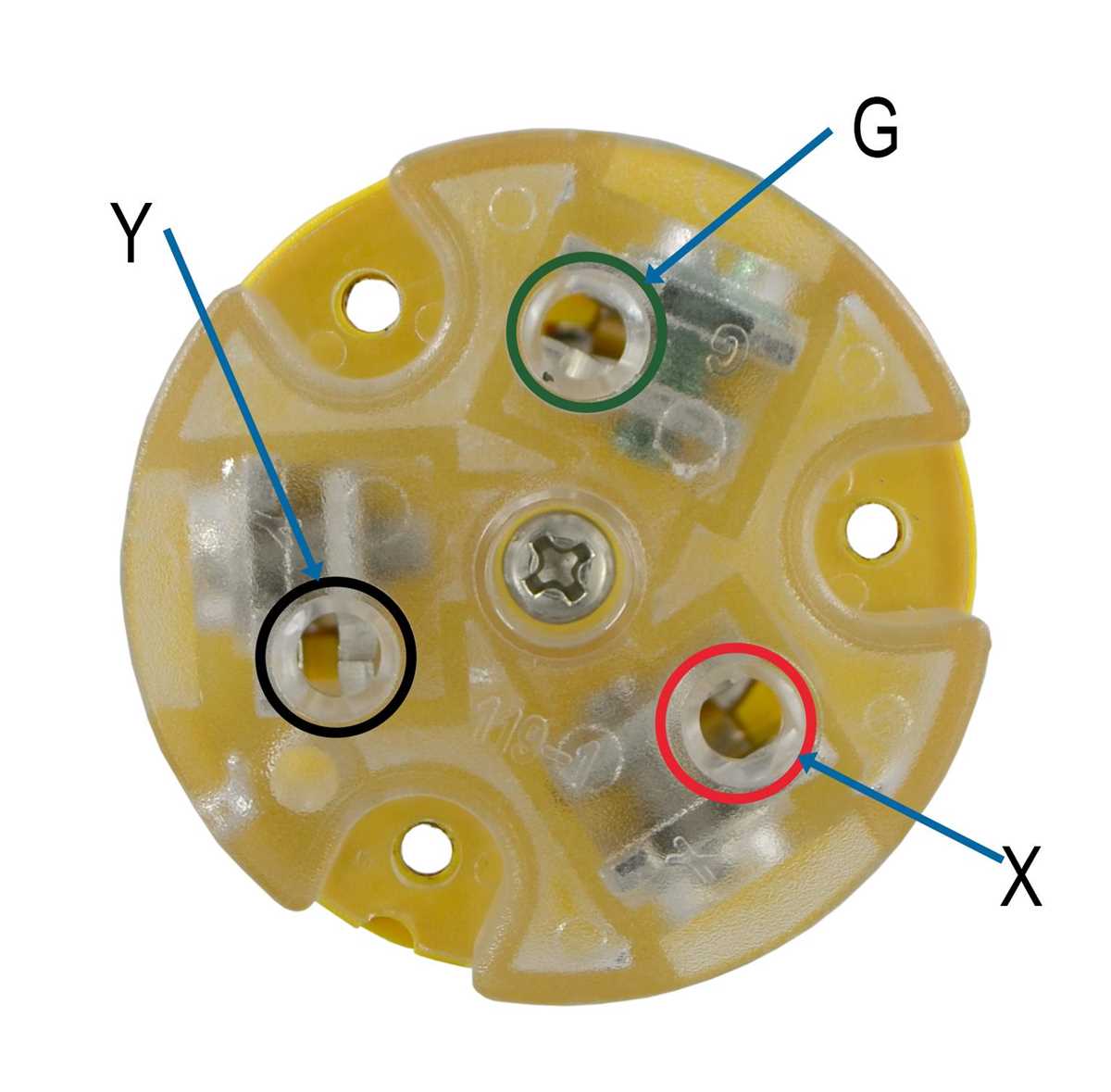

Match the terminal screws to the conductor colors strictly: brass screw (X) for the black hot wire, silver screw (Y) for the red hot wire, and green screw (G) for the bare ground. Tighten each connection to 15–20 in-lbs using a torque screwdriver–over-tightening risks thread stripping on the 10-32 screws, while loose connections can arc at 240V loads.
Test continuity before energizing: use a multimeter set to ohms (Ω) between X and Y terminals–expected reading is
Step-by-Step Guide to Installing a 250V Twist-Lock Receptacle
Before handling any electrical components, confirm the circuit breaker is off by testing the terminals with a non-contact voltage detector. For a secure installation, strip ¾ inch of insulation from the ends of three 10 AWG copper conductors–black (line), white (neutral), and green or bare (ground). Ensure the strip gauge matches the conductor size to avoid nicks that could weaken the wire.
Mounting the Outlet and Securing Wires
- Remove the cover plate from the 30-amp receptacle box and align the unit’s mounting holes with the enclosure’s screws.
- Thread the conductors through the strain relief bushing to prevent abrasion against the metal edges of the box.
- Attach the green (or bare) ground wire to the grounding screw–typically marked with a green dot or located at the top of the terminal block–by wrapping it clockwise and tightening the screw with a torque screwdriver to 12 in-lbs.
- Connect the white neutral wire to the silver-colored terminal, ensuring the stripped end extends fully into the terminal clamp before tightening to 15 in-lbs.
- Fasten the black line conductor to the brass-colored terminal using the same torque specifications.
Verify all connections by gently tugging each wire to confirm they are snug. Fold the excess conductor neatly into the box without sharp bends to prevent insulation damage. Position the receptacle into the box, aligning the break-off tab on the mounting ears with the knockout slot, and secure it with the provided screws, applying even pressure to avoid misalignment.
Final Checks Before Powering On
- Double-check the torque values on all terminal screws using an insulated screwdriver.
- Inspect the strain relief bushing to ensure it clamps the cable jacket, not the insulation, to comply with NEC 314.17(C).
- Tighten the box’s cover plate, ensuring it sits flush against the wall without gaps.
- Reenergize the circuit at the breaker panel and test the receptacle with a plug-in load tester, confirming the indicator lights match the expected configuration for a grounded, properly wired twist-lock outlet.
For added safety, affix a label inside the breaker panel identifying the circuit’s purpose and load rating, using moisture-resistant tags if the installation is in a damp location. Store any spare 10 AWG wire segments coiled in the box for future maintenance, avoiding loops that could induce magnetic fields under load.
Tools and Materials Required for Secure Heavy-Duty Receptacle Installation
Select a torque screwdriver rated for 15-20 in-lbs to ensure terminal screws are tightened to manufacturer specifications without stripping threads or compromising contact integrity. Check the tool’s calibration prior to use–most reputable brands include a small adjustment window or external dial for verification.
Insulated wire strippers with notches for 10 AWG copper conductors prevent nicks that weaken wires and introduce hotspots. Look for models featuring a spring-loaded mechanism to reduce hand fatigue during prolonged use, typically indicated by an ergonomic grip and a built-in cutter for quick clean severing of excess length.
A non-contact voltage tester with a detection range of 50-600 volts AC is mandatory before handling any live circuit. Choose a unit with both visual and audible alerts–the louder the beep and brighter the LED, the faster you identify residual or misrouted current. Confirm the tester’s functionality on a known live source first.
Heat-shrink tubing sized 3/8 inch in diameter with a 3:1 shrink ratio provides superior strain relief and moisture sealing compared to electrical tape. Always slide tubing onto the conductor *before* crimping or soldering terminal lugs, then position it over the joint and apply heat evenly using a butane-powered heat gun until the inner adhesive visibly melts.
Testing and Verification Instruments
A digital multimeter with a minimum of 600 V AC/DC rating, true RMS capability, and a low-impedance mode prevents false readings from ghost voltages. Verify continuity across terminal screws immediately after installation–any resistance exceeding 0.5 ohms suggests a loose connection requiring re-termination.
Heavy-duty crimping pliers fitted with hexagonal dies (size 10) create gas-tight connections between copper terminals and conductors. Avoid ratcheting-style crimpers; their inconsistent pressure can leave voids. Instead, apply firm, steady force until the die fully compresses the barrel without flattening the wire strands.
Safety gloves rated for arc flash category 2, with a minimum voltage resistance of 17 kV, provide essential protection during final circuit energization. Select gloves with extended cuffs to shield the forearm, and pair them with ANSI Z87.1 impact-resistant goggles–non-negotiable when working near exposed bus bars or main disconnect panels.
Critical Errors to Sidestep When Configuring an L6-30 Outlet
Reversing the ground and neutral conductors will trigger immediate safety hazards. Verify wire placement against the terminal labels: the ground attaches to the U-shaped slot, neutral to the longer straight slot, and the hot wires (red and black) to the angled slots. A multimeter set to continuity mode should confirm zero resistance between neutral and ground–any reading above 0.5 ohms indicates a misconnection.
Skipping torque specifications on terminal screws guarantees loose connections. Tighten screws to 12-15 inch-pounds for copper wire, using a calibrated torque screwdriver. Loose terminals overheat, measured by thermal imaging showing temperatures exceeding 60°C (140°F) under load. Compare readings against the table below:
| Connection Type | Acceptable Temperature (°C) | Failure Threshold (°C) |
|---|---|---|
| Hot-Hot | 50-55 | >70 |
| Neutral-Ground | 40-45 | >60 |
Ignoring cable strain relief damages internal conductors. Secure cables with a properly sized clamp, ensuring no sharp edges contact insulation. Bend radius must exceed 5 times the cable diameter–tighter bends risk conductor fatigue, detectable by irregular current readings on a clamp meter.
Mixing wire gauges compromises load handling. For a 30-amp circuit, use 10 AWG copper conductors; 12 AWG increases resistance by ~25% per foot, reducing maximum safe load to 24 amps. Calculate voltage drop using V = I × R × L × 2 (where L is one-way length in feet), ensuring drop stays below 3% of supply voltage (3.6 volts for 120V circuits).
Omitting insulation stripping uniformity causes arcing. Strip 5/8-inch of insulation precisely–excess exposes bare wire, while insufficient prevents proper terminal contact. Use strippers calibrated for the gauge; verify with a go/no-go gauge. Deformed or nicked conductors increase local resistance, measurable as a 5-10% reduction in current capacity upon load testing.
Disregarding phase rotation in 240V applications damages equipment. Test rotation with a phase sequence indicator–clockwise (L1-L2-L3) ensures motors run forward. Reversing two hot legs swaps rotation, confirmed by a 180° shift in the indicator’s LED pattern. Document rotation with indelible marks on the receptacle housing to prevent future errors.
Diagnosing Intermittent Failures
Intermittent faults often trace to oxidized terminal surfaces. Scrub terminals with 220-grit emery cloth until bright metal surfaces appear, then apply antioxidant paste before reassembling. A thermal camera should now show uniform heat distribution across all connections under load, with deviations under 5°C between terminals.
How to Verify a Correctly Installed 240V Twist-Lock Outlet
Before testing, disconnect all equipment from the receptacle and shut off power at the circuit breaker. Use a non-contact voltage detector to confirm the circuit is dead–hold it near the outlet’s terminals and along the connected conductors. If the detector emits a signal, revisit the breaker panel and verify the correct switch is flipped. A false negative here risks severe injury or equipment damage during inspection.
Once power is confirmed off, proceed with a multimeter set to resistance (ohms) mode. Check continuity between each terminal pair (hot-hot, hot-ground, neutral-ground if applicable) by placing probes on the corresponding screws. A properly terminated outlet should show:
- Hot-hot: ~0.1–0.5 ohms (low resistance indicates intact connection).
- Hot-ground/neutral-ground: Infinite resistance (OL on most meters), confirming no shorts.
Next, restore power and measure voltage with the multimeter set to AC mode (500V range). Probe the two hot terminals–readings should stabilize at 220–240V. Check each hot terminal against ground; expect 110–120V. Deviations beyond ±5% suggest loose connections, reversed polarity, or incorrect breaker configuration. For twist-lock outlets, torque terminal screws to 15–20 lb-in using a calibrated torque screwdriver–under-tightened screws cause resistive heating and voltage drop.
