Install a 30-amp double-pole breaker in your electrical panel for a 14-50 connector. Use 6 AWG copper wire–3 conductors (black, red, white) and a bare ground–to ensure safety and compliance with NEC standards. Strip ¾ inch of insulation from each wire end before securing them to the outlet terminals.
Connect the black (hot) wire to the brass-colored terminal marked “X,” the red (hot) wire to the brass terminal marked “Y,” and the white (neutral) to the silver terminal. The bare copper ground must attach to the green grounding screw. Tighten all connections with a torque screwdriver (set to 12 lb-in for 14-50 outlets) to prevent loose connections.
Test the circuit with a multimeter before energizing. Set the meter to AC voltage and check for 240V between the two brass terminals (X and Y) and 120V from either hot terminal to neutral. Verify continuity between the ground screw and the neutral terminal–zero resistance confirms a proper ground path.
Avoid backstabs; instead, loop wires clockwise around terminal screws for maximum contact. Secure the outlet in a metal junction box with provided mounting straps, ensuring no exposed wires remain outside the box. Label the breaker “EV Charger” or “Appliance Circuit” to identify the 240V source.

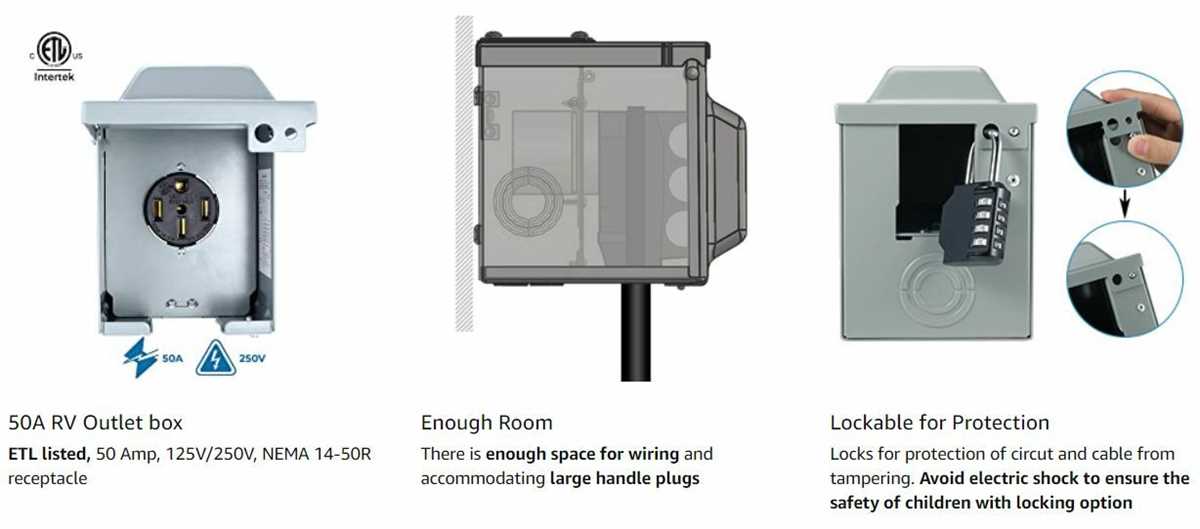

For outdoor installations, use a weatherproof cover rated NEMA 3R. Seal conduit entries with silicone to prevent moisture ingress. If the circuit trips after activation, recheck all connections–undiagnosed issues often stem from improper torque or reversed wires.
Understanding the 14-50 Power Receptacle Installation
Connect the ground wire first–attach it to the green terminal screw located at the top of the outlet. This ensures safety before proceeding with other connections. Verify the breaker is off using a voltage tester to prevent accidental shocks during installation.
Strip the insulation from each conductor using wire strippers, exposing approximately ¾ inch of copper. Match the wires to their terminals: red and black wires (hot conductors) to the brass screws on either side, white wire (neutral) to the silver screw. Tighten each terminal securely to avoid loose connections, which can cause overheating.
For a 240V setup without neutral, cap the white wire with a wire nut and tuck it back into the box. This configuration is common for electric vehicle chargers or heavy-duty appliances. Ensure the breaker matches the circuit–typically 50 amps for this receptacle type–using properly sized wire (6 AWG copper or 4 AWG aluminum) to handle the load.
- Use a torque screwdriver to tighten terminals to manufacturer specifications (usually 10-12 inch-pounds). Over-tightening can damage threads, while under-tightening risks arcing.
- Avoid backstab connections; they’re unreliable for high-current outlets. Always loop wires clockwise around terminal screws for secure contact.
- Label the breaker in the panel with the outlet’s location for future reference.
After securing all wires, fold them neatly into the electrical box, leaving space for the outlet. Attach the receptacle to the box with screws, ensuring it’s flush against the wall. Turn the breaker back on and test with a multimeter: probe slots should read 240V between hots and 120V between each hot and neutral/ground.
Common Mistakes to Avoid
Reversing hot and neutral wires won’t trip the breaker but will damage appliances and create a shock hazard. Using undersized wire causes voltage drop and overheating–check local code requirements before purchasing materials. Never install this receptacle on a shared circuit with other high-draw devices like ovens or dryers; dedicate a circuit for optimal performance and safety.
- Check for continuity between outlet ground and panel ground before finalizing installation.
- Inspect the receptacle cover plate; gaps or misalignment can expose live parts.
- If the outlet feels warm after 30 minutes of use, shut off the circuit immediately and recheck connections.
Tools and Materials for High-Power Receptacle Setup
Begin with a multimeter rated for 600V AC to verify circuit absence before handling terminals. A non-contact voltage tester is insufficient–direct measurement ensures safety. Choose a model with audible continuity alerts to speed up ground and neutral checks.
Armored cable strippers with precision blades prevent nicked conductors, especially when working with 6 AWG copper wire. Standard wire strippers often crush strands–select ones with adjustable stops for 4/6 AWG. Include a crimping tool for insulated terminals if connecting pigtails.
Torque screwdrivers comply with NEC 110.14(D) for terminal tightening. Use a 7-10 in-lb driver for terminal screws–overtorquing cracks porcelain, undertorquing causes arcing. Keep a spare set of Phillips #2 bits; factory tools round out under repeated use.
A 10-inch adjustable wrench tightens conduit fittings without damaging zinc plating. Pair it with a basin wrench for tight spaces behind mounting plates. For metal boxes, include a knockout punch set to avoid sharp edges–step bits ruin starts when forced.
Thermal imaging cameras or infrared thermometers spot loose connections early. Heated terminals above 140°F signal poor contact–re-torque or re-terminate immediately. Laser-etched labels on wires prevent miswiring; designate line, load, ground with permanent markers.
Schedule 80 PVC conduit and fittings resist UV degradation better than EMT. Use expansion couplers for runs longer than 20 feet to accommodate temperature shifts. Rain-tight hubs with silicone gaskets prevent moisture ingress in outdoor installations.
Specialized Consumables
Heat-shrink tubing with adhesive lining seals splices against moisture–standard vinyl tape fails after 6-12 months. Apply a dual-layer shrink tube: first a liner, then an outer sleeve for mechanical protection. Anti-oxidant compound prevents corrosion on aluminum conductors.
Final Checks
Silicone-based anti-seize on stainless steel screws prevents galling. A high-visibility flag on temporary grounds reduces tripping hazards. Document test results: insulation resistance, polarity verification, and torque values in a logbook for next inspection.
Step-by-Step Installation Guide for a 240V Heavy-Duty Receptacle
Before handling any electrical components, shut off the main breaker at the service panel. Verify power is fully disconnected by testing the circuit with a non-contact voltage detector. Working on live wires poses severe electrocution risks and violates safety codes.
Mount the outlet box securely to a stud or structural surface at a height of 18–24 inches above the floor. Use a 4½-inch square deep box for ample wire bending space. Ensure the box’s knockouts align with the cable entry direction–top for overhead wiring, side for underground or conduit-fed setups.
Run 6/3 AWG copper or 4/3 AWG aluminum type NM-B cable from the panel to the outlet location. Measure the distance, add 2 feet for slack, and secure the cable every 4½ feet with staples or clamps. Avoid sharp bends; maintain a minimum 5-inch radius to prevent insulation damage. Strip the outer jacket 9 inches from the end, exposing the individual conductors–black, red, white, and bare ground.
Terminal Connections Inside the Receptacle
| Wire Color | Terminal Type | Torque (in-lb) | Special Notes |
|---|---|---|---|
| Black (Hot-Line 1) | Brass screw | 25–30 | Loop clockwise, leave ⅜-inch bare conductor |
| Red (Hot-Line 2) | Brass screw | 25–30 | Same as black; avoid crossover with neutral |
| White (Neutral) | Silver screw | 22–27 | Fully insulate if unused in 240V-only devices |
| Bare/Ground | Green screw | 30–35 | Secure first; verify continuity to box |
Thread each conductor clockwise under its screw, trim excess to 7/16 inch, and tighten with a calibrated torque screwdriver. Cross threading risks arcing; ensure screws sit flush against the plate. Fold slack into the box neatly–no coiled loops–to avoid magnetic field interference.
Panel-Side Wire Termination
At the breaker enclosure, feed the cable through a rigid conduit connector or romex clamp, leaving 8 inches of stripped jacket inside. Land the ground on the bonding bar, then attach black and red wires to a 50-amp double-pole breaker. Label the circuit immediately to prevent future misidentification. If using aluminum conductors, apply antioxidant paste to all connection points and retorque after 24 hours.
Restore power incrementally. First, switch on the breaker and verify 240V ±5% between hot terminals with a multimeter. Check for 120V ±3% from each hot to neutral and zero volts hot-to-ground. Proceed only if readings match. If tripping occurs, disconnect and inspect for crossed wires or nicks in insulation. Recheck torque specs before re-energizing.
Secure the receptacle faceplate with the provided screws, ensuring no gaps expose wiring. Test with a plug-in load tester; confirm LEDs indicate correct polarity and absence of open ground/neutral. For EV chargers, program the charging unit to match the circuit’s ampacity–never exceed 40A continuous draw on a 50A breaker.
How to Distinguish Live, Return, and Earth Conductors in a 14-50 Outlet
Examine the outlet’s terminal layout: the two brass screws carry 120 V each (live), the silver screw delivers the common return (neutral), and the green screw connects to earth. Verify with a multimeter–probes on brass-to-brass should yield ~240 V, brass-to-silver ~120 V, and brass-to-green 0 V under normal load. Match conductor insulation: red and black for live, white for return, bare or green for earth.
Label conductors at the source–color codes persist from panel to plug: red/black (ungrounded), white (grounded), green/bare (equipment grounding). Tighten couplings to 15–20 lb-in torque; loose connections risk overheating. Confirm continuity with a dedicated ground path tester; any impedance above 0.5 Ω indicates corrosion or improper bonding.
