For safe and correct installation, match the terminal screws on the outlet to the corresponding conductors: L1 (brass or dark screw) to the black wire, L2 (brass or dark screw) to the red wire, neutral (silver screw) to the white wire, and ground (green screw) to the bare or green wire. Confirm the circuit breaker is rated for 30 amps–attempting to use a 20-amp breaker will trip under load and may damage the appliance.
Use 10 AWG THHN/THWN copper wire for all connections; thinner gauges will overheat. If the cable runs through conduit, ensure each conductor is pulled taut without sharp bends–kinks can cause insulation damage over time. The ground wire must terminate directly to the metal outlet box before connecting to the receptacle’s green screw; do not loop it.
Before energizing, test continuity between neutral and ground with a multimeter–readings above 0.5 ohms indicate a faulty connection. Check voltage between L1 and neutral (120V), L2 and neutral (120V), and L1 to L2 (240V). Any deviation suggests miswiring. Tighten terminal screws to 12–15 inch-pounds; overtightening can strip threads or crack the outlet’s plastic housing.
Secure the outlet with mounting screws aligned straight to prevent misalignment–crop screws that protrude more than 1/8 inch beyond the box to avoid damaging drywall. Cover plate screws should not contact terminal screws. If retrofitting an older box, replace any corroded or discolored screws–aluminum or rusted steel compromises conductivity.
After verification, reset the breaker and confirm the appliance operates at full capacity–partial power indicates a loose connection or incorrect phase pairing. Label the circuit at the panel for future reference: “Dryer Outlet – 30A – 240V”. If installing in a subpanel, ensure the feed wire gauge matches the main breaker’s amperage–8 AWG for 40A, 6 AWG for 50A. Incorrect gauges risk overheating.
Installing a 14-30 Outlet: Step-by-Step Connection Instructions
Begin by shutting off the main power at the circuit breaker to prevent accidental shocks. Verify the absence of voltage using a multimeter on the wires–ensure the red and black conductors register zero before proceeding. Connect the ground wire (bare or green) to the U-shaped terminal first, tightening it securely with a screwdriver. This establishes a safe foundation for the remaining connections.

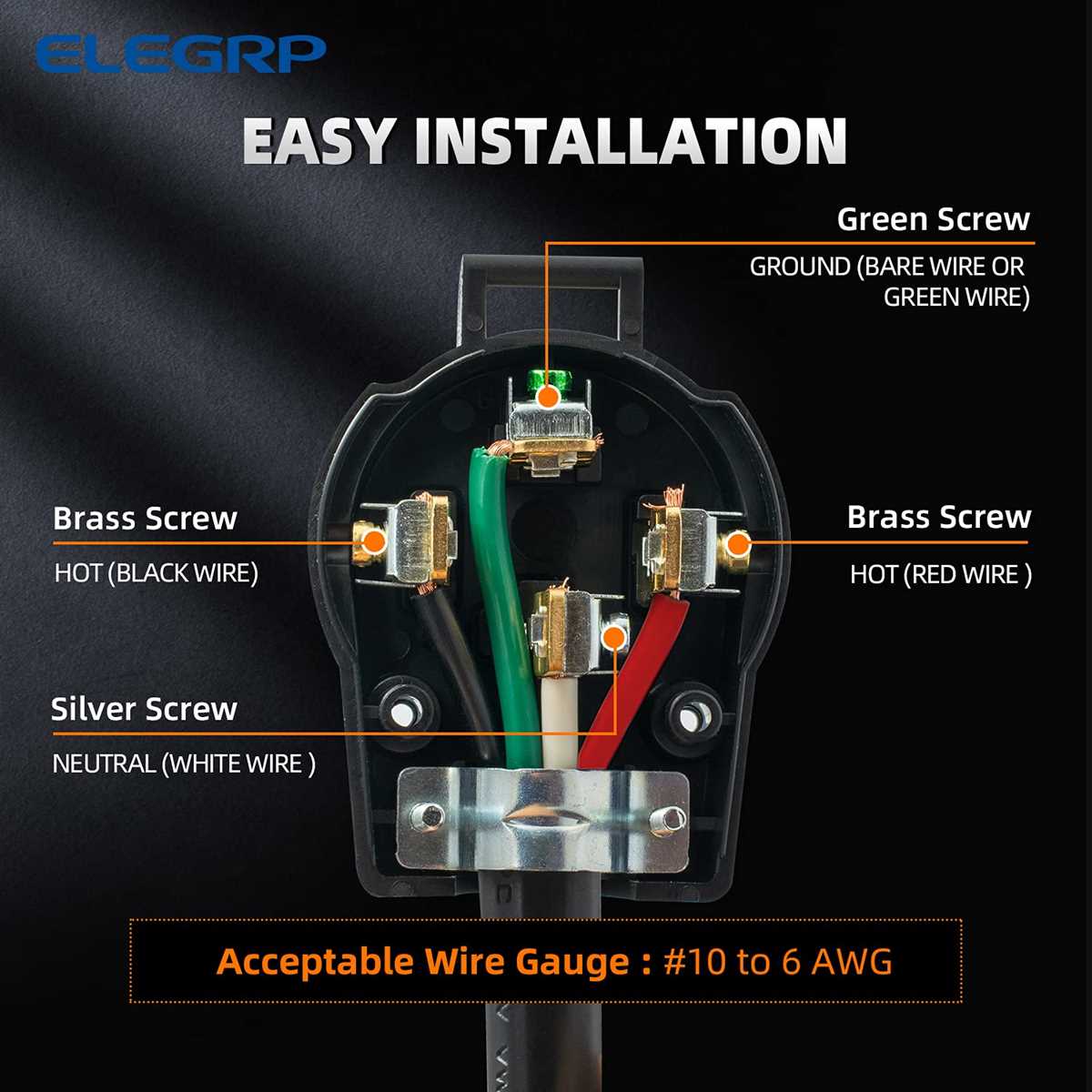

The red and black wires carry 240V each and must attach to the brass terminals marked X and Y. Twist the stripped ends clockwise before inserting them into the terminals to maintain solid contact. The white neutral wire connects to the silver terminal; improper placement here risks short circuits or appliance damage. Double-check each screw for tightness–loose connections generate heat and pose fire hazards.
Safety Checks Before Powering On
- Inspect all wire ends for exposed copper–residual strands cause shorts.
- Push the outlet back into the junction box, ensuring no wires are pinched.
- Secure the faceplate with the provided screws, covering all terminals.
- Restore power at the breaker and test with a voltage meter: 240V between red/black, 120V between either hot wire and neutral.
If the appliance doesn’t activate, recheck the wiring sequence–reversing red and black may not trigger overt failure but can damage sensitive electronics. For dryers or EV chargers, confirm the appliance’s plug matches the outlet’s pin configuration; adapters compromise safety.
Identifying the Terminals on a 14-30 Power Receptacle
Locate the L-shaped neutral slot first–it’s the larger vertical opening on the left side of the outlet when viewed from the front. This terminal accepts the white conductor in standard installations and connects directly to the neutral bus in the service panel. Failure to secure this wire properly risks loose connections, which can lead to overheating and potential fire hazards.
Examine the two adjacent hot slots next–these are identical in size and positioned side by side, horizontally aligned to the right of the neutral. Corresponding to the black and red live wires in 240V circuits, each terminal must be tightened with a torque screwdriver to the manufacturer-specified value, typically 18–20 inch-pounds. Confusing either slot without meter verification guarantees incorrect voltage delivery.
The grounding terminal sits centered below the hot slots, its U-shaped opening accommodating the bare or green grounding conductor. This connection provides the essential fault return path and must never share any continuity with the neutral wire outside the main service disconnect. Check continuity with a multimeter set to ohms; a reading above 0.5 ohms warrants replacement of corroded terminals.
Use colored tape or permanent marker labels on the back of the device to distinguish X from Y before mounting in the box. Mislabeling during installation persists through future maintenance cycles, causing technicians to trace errors unnecessarily. For clarity, note that the top slot of the L-neutral corresponds to terminal screw designated “W” on most brands, including Leviton and Hubbell.
Verify each connection immediately after tightening by gently tugging the conductor; any movement indicates insufficient torque. Record torque values in a logbook attached inside the junction box cover to simplify future servicing and meet NEC documentation requirements. Skipping this step voids warranty coverage on many industrial-grade receptacles.
Close the cover plate only after confirming no exposed copper extends beyond the terminal screws, as stray strands can create short circuits under vibration. Threaded fasteners securing the cover should be tightened to 12 inch-pounds; overtightening cracks brittle thermoplastic covers found on some commercial models.
Installing a 14-30 Type Receptacle: Precise Assembly Guide
Shut off the main circuit breaker at the electrical panel before handling any conductors. Verify power absence with a non-contact voltage tester on all terminals–this prevents arc flashes and electrocution. Label each wire with color-coded tags: red and black for hot legs, white for neutral, and green or bare for ground. Remove ¾ inch of insulation from each strand using wire strippers, ensuring no copper filaments are nicked.
Insert the colored conductors into their designated slots on the receptacle. The two hot leads attach to brass screws (X and Y terminals), the neutral wire secures to the silver screw (W terminal), and the ground connects to the green screw. Torque specifications matter: tighten screws to 12 inch-pounds using a calibrated screwdriver–loose connections create resistive heating and fire risks.
Refer to this torque verification chart for common terminal types:
| Terminal Type | Torque (inch-lbs) | Verification Method |
|---|---|---|
| Brass screw (hot) | 12 | Digital torque screwdriver |
| Silver screw (neutral) | 12 | Same tool |
| Green screw (ground) | 15 | Torque wrench |
| Push-in clamps | 8 | Spring-loaded tester |
Fold wires neatly into the electrical box to avoid pinching. Secure the receptacle to the box with mounting screws, ensuring the device sits flush against the wall–misalignment causes stress on terminal screws. Reattach the cover plate, tightening screws just until snug; overtightening cracks the plastic.
Restore power at the circuit breaker. Test each slot with a plug-in analyzer: red LED for hot, white for neutral, and green for ground. If miswired, the device flashes a fault code–consult ANSI C12.1 for decoding. For appliances drawing over 24A, verify voltage between hot legs (240V ±5V) and between each hot and neutral (120V ±3V).
Avoid back-wiring clamps on this receptacle type–strip-and-wrap method provides superior long-term reliability. If using a conduit system, pull a dedicated ground wire from the panel even if metal conduit is present; code section 250.118(5) mandates this redundancy for circuits exceeding 20A.
Mark the circuit breaker clearly–use engraved labels listing voltage, amperage, and device location. Keep a multimeter set to AC voltage on hand for periodic checks; thermal scanning every 12 months identifies loose connections before failure.
For installations in damp areas, swap the standard receptacle for a moisture-resistant variant (NEMA Type 4X) and seal the box with silicone gaskets. Torque all connections to the upper limit of specifications–humidity accelerates corrosion on undertightened terminals.
Correlating Conductor Hues with 14-30 Receptacle Terminal Layout
Identify the ground terminal first–it’s invariably marked with a green screw or green-colored housing. Attach the bare copper or green-insulated conductor here, ensuring no slack remains; this connection must bear the full fault current during an overload. For the remaining pins, follow the standardized sequence: X (neutral) sits at the top-left U-shaped slot, Y (line 1) at the bottom-left, and Z (line 2) at the bottom-right. Secure the white wire to the neutral terminal, then route the black and red wires to the two hot terminals; polarity here isn’t critical for 240V loads but must mirror the breaker’s configuration to maintain phase balance.
Use a torque screwdriver set to the receptacle’s specified inch-pounds–typically 15–20–to prevent terminal creep or arcing; loose connections generate heat, accelerating oxidation and increasing resistance. Verify each conductor’s insertion depth: stranded wire should extend just beyond the terminal clamp, while solid wire must sit flush without bending back. If the cable shield includes a paper separator, remove it before termination to meet NEC 310.15(B)(16) derating requirements; insulation remnants can carbonize under load, compromising safety margins.
Label the circuit at both ends with a permanent marker: mark the panel breaker “Dryer – 14-30” and tag the receptacle “30A / 240V / No 120V.” For split-phase circuits supplying both 240V and 120V loads (e.g., electric ranges), ensure the white conductor is not re-identified as a hot wire unless the circuit is permanently dedicated and marked per NEC 200.7(C)(1); accidental miswiring here creates 240V across neutral-ground bonds, tripping GFCIs and risking equipment damage.
